    Toshiba Satellite U205 series memory install

    Discussion in 'Toshiba' started by prmass1, Aug 18, 2008.

  1. prmass1

    prmass1 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I read some info on installing memory for the Satellite u 205 series Toshiba laptop. But here is in pictures. It probably can be applied to others.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

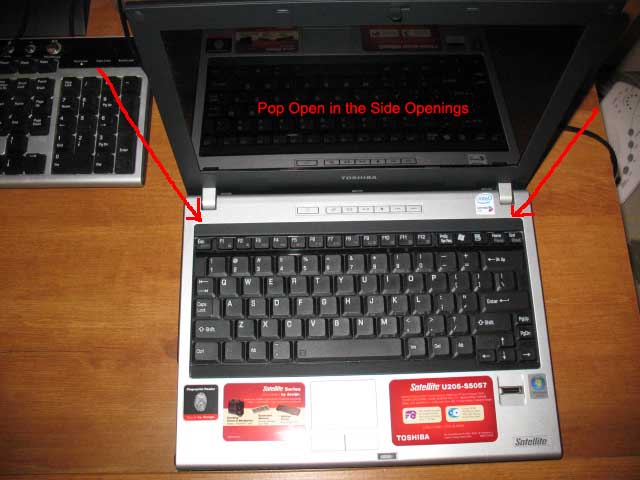

    1- find openings of side of the long piece of plastic. Warning: be careful this is plastic. Do not use rough metal to pry open.

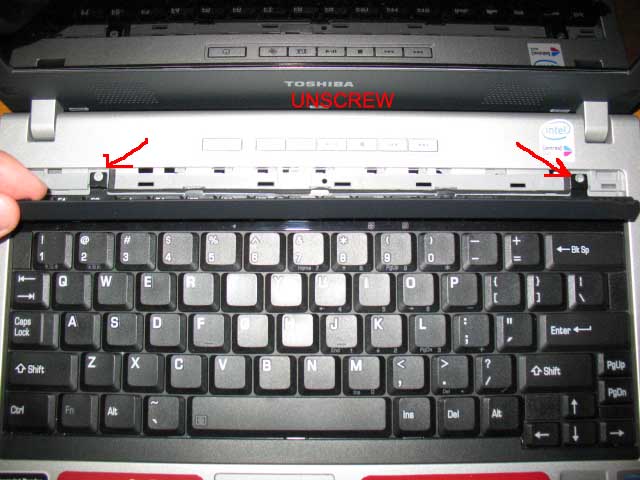

    2- unscrew both screws with correct screwdriver tip to avoid stripping

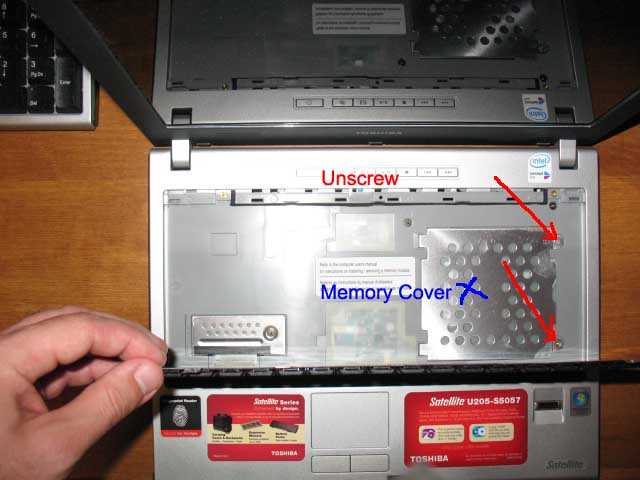

    3- the silver cover is the memory spill proof cover; unscrew both screws

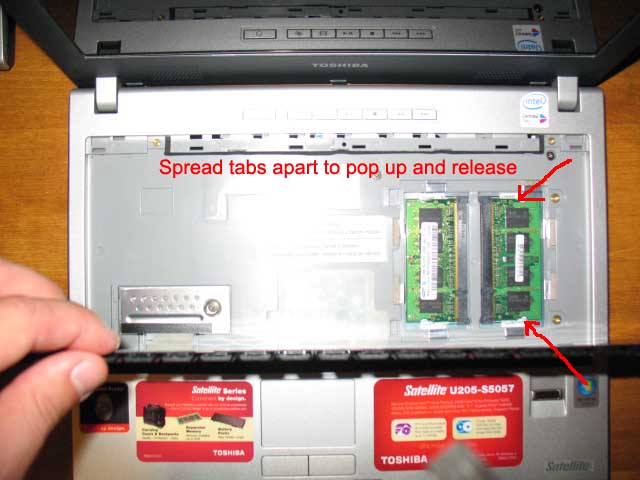

    4-spread the tabs at same time then the memory pops up then u pull out Warning: grounds yourself or touch a ground
    -----everything else is in reverse----

    One reason that toshiba does not include the info on installing is the bad handling of components. The plastic cover atop of the keyboard is very fragile. And I simply don't know it u can order it or buy from spare parts.


    Attached Files:

    • t1.jpg
      File size:
      70.3 KB
      Views:
      273
    • t2.jpg
      File size:
      78.6 KB
      Views:
      199
    • t4.jpg
      File size:
      69.9 KB
      Views:
      263
    • t5.jpg
      File size:
      71.2 KB
      Views:
      236
  2. travelconsultant

    travelconsultant Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Thank you! Not as intuitive as other machines I've owned, so your post is very much appreciated!

  3. Earl40

    Earl40 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the information.
