    CF 19 Touchpad wanted

    Discussion in 'ToughBook Buy Sell and Trade Forum' started by Tranquillo, Apr 15, 2015.

  1. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    I have damaged the touchpad on my TB, the model number is: CF 19 FHG83AM which IIRC is a MKII so need a replacement.

    I can see the crease in the actual pad but all the ads I have seen show the palm rest is included as well, do I need all that?

    Next step, apart from the cost price, I also need a price to ship it to: Aguilas 30880 Murcia Spain

    regards

    Dave

  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    I was ready to send you an entire empty bottom housing with touchpad.
    I imagine shipping to Spain would be pricy.

  3. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Hi Shawn, I have never stripped my TB apart from fitting the modem so I am in the dark as to how far to strip the minimum part I need i.e. the touchpad. I do know that Spain has horrendous import charges weighed against the parcels value, so a parcel marked as a 'gift' ;) should not attract too much attention. Let me know how far I need to strip to get the touchpad transferred and a how much you want and a 'guesstimate' at shipping cost?

    Many thanks

    Dave

  4. safn1949

    safn1949 I'm sure I'm on the wrong planet

    Reputations:
    141
    Messages:
    1,176
    Likes Received:
    375
    Trophy Points:
    101

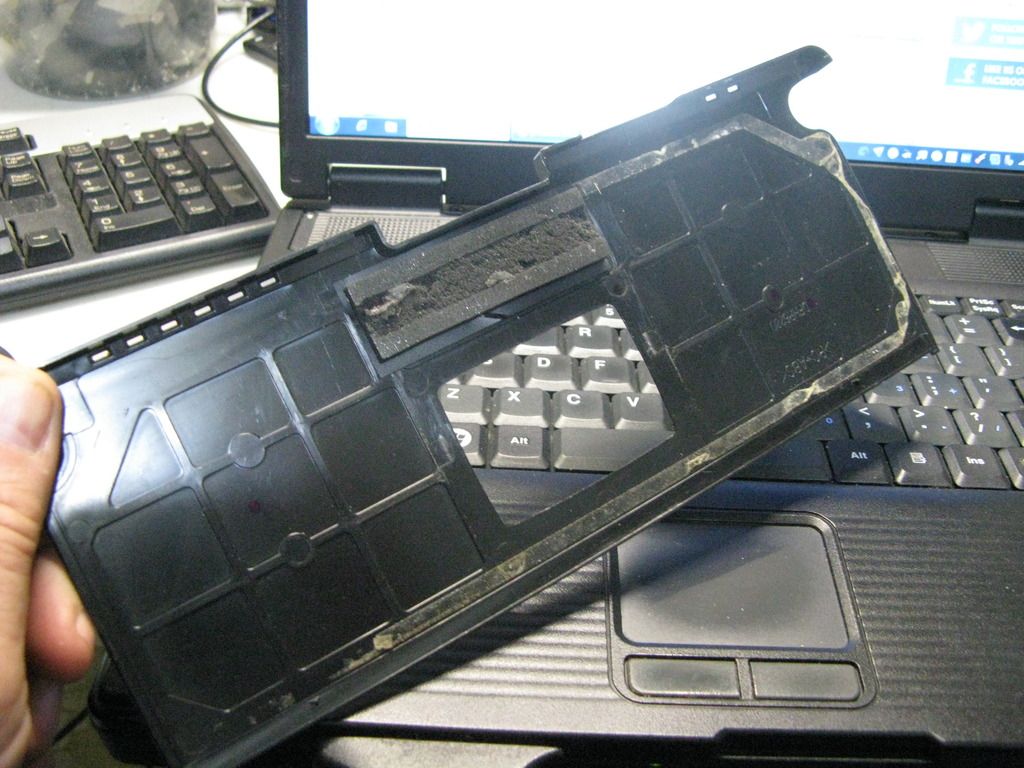

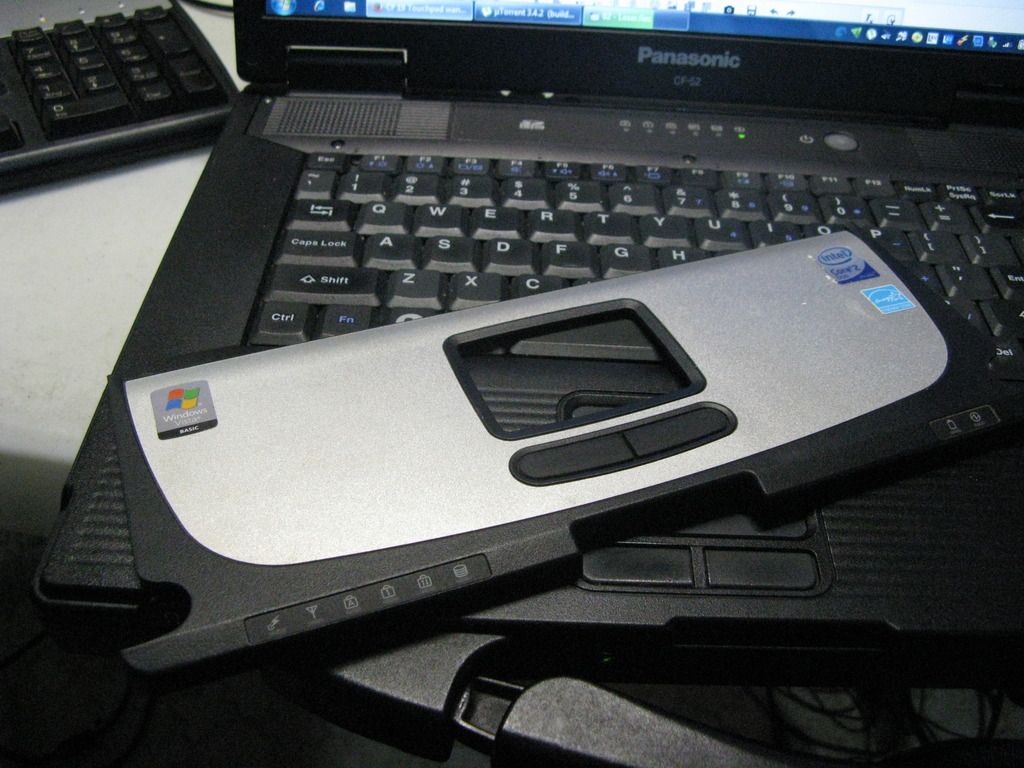

    The front piece that is silver is simply taped down,remove the keyboard so you don't damage it and you will be able to lift that piece off exposing the actual touch pad. It also is taped down and easy to replace.

    [​IMG]

    [​IMG]

    Last edited: Apr 16, 2015
    Shawn likes this.
  5. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Nice post Kerry,
    I assumed they were held on the same as a CF30 and you needed a 4 foot crowbar and a Hurst tool to remove them.
    Do you need to remove the base of the CF19 at all?

  6. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Great post, that allays the fears that I am unlikely to do any more damage that it already has, funny I had the same size crowbar ready that Shawn has. :)

    Keep me in the loop please Shawn about cost/shipping please.

    Many thanks

  7. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Shipping to Spain is $25.00 and I need $25.00 for the touchpad alone or the whole bottom housing with touchpad. Shipping cost from USPS is the same for the touchpad alone or the whole housing.

    Check these out.
    They may be a better option for you, rather than coming from across the pond..

    From Lithuania
    http://www.ebay.com/itm/Genuine-Pan...862?pt=LH_DefaultDomain_3&hash=item33a100abd6

    From Canada, You don't need ten, but if you ask he may sell you one.
    http://www.ebay.com/itm/10-pcs-Ultr...578?pt=LH_DefaultDomain_2&hash=item4add601d3a

    This photo shows the palmrest/touchpad being glued down very securely. That is very high bond tape. Possibly the one in the above photo was already changed? By the looks of this photo, the palmrest will need heat to remove. I would swap everything to a better housing...

    [​IMG]

  8. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Just about to drop the coin on the euro one but, will the MK I fit my MK II before I commit?

    many thanks

  9. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Yes it will fit....

  10. safn1949

    safn1949 I'm sure I'm on the wrong planet

    Reputations:
    141
    Messages:
    1,176
    Likes Received:
    375
    Trophy Points:
    101
    It's not too bad,start at the keyboard side as it has to come loose first,you'll see. Use a knife with a stiff blade to pry up/cut tape.

  11. safn1949

    safn1949 I'm sure I'm on the wrong planet

    Reputations:
    141
    Messages:
    1,176
    Likes Received:
    375
    Trophy Points:
    101
    No,the mouse pad peels off and you just unplug the ribbon. Once you get the edge loose it comes of fairly easy.

  12. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Thanks all, I have ordered and paid for it, should be here by the 27th, I will be in the UK when it arrives but someone will pick it up for me, I will attempt a fit in the first week of May, I will get back to you with the result.

    Thanks again

    Tranquillo

  13. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    If you choose to swap the palmrest and touchpad on your housing, I would try to remove your broken one FIRST...That way you have an idea of what you are getting into.

  14. Tranquillo

    Tranquillo Notebook Consultant

    Reputations:
    28
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    OK Shawn will do,

    Tranquillo
