    WTB VIP Sidekick CF 29 media bay connector

    Discussion in 'ToughBook Buy Sell and Trade Forum' started by Shawn, Jul 24, 2010.

  1. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    I am trying to get a VIP Sidekick working and I need the connector and the software. CF 29E

    Thanks

  2. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Should have read this as you stated in your other post. The connector hooks into a notch in the MB and the ribbon cable goes to the keyboard PCB. You need top and bottom off at the same time. I have the plug and ribbon cable with it's exotic bend.
    Plus you need one screw and I have that. The question is "does the E model have the notch"? I may be able to answer that as I have to take an E apart again for a little arctic silver.
    $10.00 plus shipping and $100/hour to open the E model up. :D (kidding)
    Let me know, we can deal.
    I have a MB laying around and the tester plug plus KB PCB and could be coerced into taking a picture or two. In fact I think I may have them already. That doesn't help as far as the tester and leads go but again you may try ohlip.

    Jeff

  3. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    $10.00 plus shipping sounds great! As long as it's not fleabay style of a $10.00 part and $719.30 shipping. I am sure I can figure out how to make the leads but any info would make it easier. The screw on connection is an old style microphone connector. I am clueless on obtaining the software.

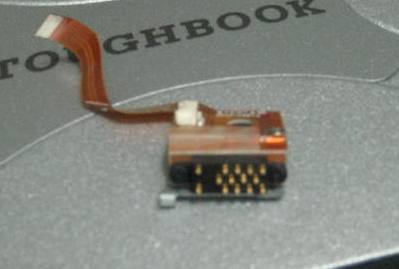

    Is this the correct part? I got the photo from a previous post by Ohlip.

    [​IMG]

  4. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    It's the price in my ad, I ship the cheapest way which as this is awkwardly shaped means USPS small flat rate box. Run-on sentence but it's early yet.

    That's the part. What else do you need?

    I'm letting the ebay /shipping comment slide as I am on my first cup of coffee. My sense of humor didn't get up yet.


  5. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    PM's sent to GORK

  6. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Your email doesn't show up on your user page.

  7. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Things changed here and I am packing now. Tell me what you need. Refer to the pictures in the regular forum. I don't know why they had the modem wired in but you may wish to copy it.

  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Yes I will wire it to the modem.

  9. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    I found the rest of the system. Let's talk P.M. before I race madly to the mailbox. My 9 o'clock appointment changed to 10 and I was able to think this thing through.
    I'll put it here too;
    From the jack the ribbon cable goes to the KB PCB. One black lead to the modem and the other to the replaceable phone jack. That ends in a little push button mini-PCB.
    I have all this stuff.
    If you think you need to hardwire the black RJ-11? end of the black wire then you don't need the mini-pcb with the push button connector. If you DO use this you might want the whole replaceable modem arrangement.
    We'll talk after I finish my deal with a customer re: lambs.
    Jeff the multi-tasker.
    In regards to my names for equipment"I know you think you understand what you think I said but what you heard is not what I meant". :D :confused: :rolleyes: But don't worry....I have pictures.

  10. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    I can't seem to comprehend the whole rj 11 and push button deal. I am not in the telecom biz, so I doubt I will need the replaceable jack setup.

  11. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131

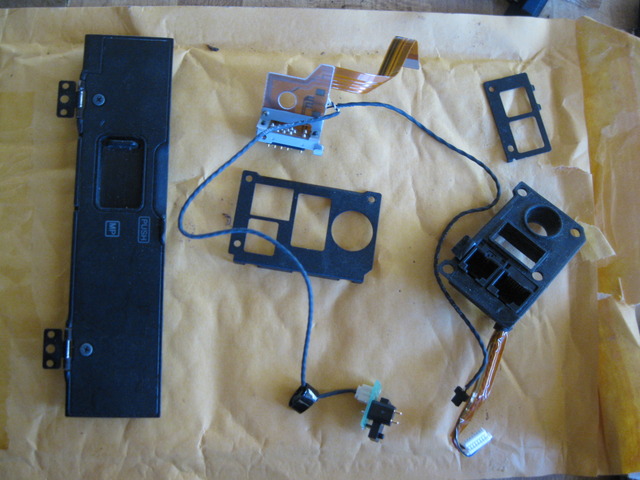

    This is in the mail.

    Thanks,

    Jeff


    Attached Files:

  12. Almstprfct1

    Almstprfct1 Notebook Consultant

    Reputations:
    2
    Messages:
    111
    Likes Received:
    5
    Trophy Points:
    31
    I got the software for a VIP ADSL from Tempo...it took awhile for them to get back with me but they sent it to me for free...let me know if I can help.
    [email protected]

  13. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    PM sent...........

  14. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Parts arrived and look good.

    Thanks

  15. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    You are most welcome. If you need any photo documentation PM.

    Jeff

  16. interestingfellow

    interestingfellow Notebook Deity

    Reputations:
    280
    Messages:
    995
    Likes Received:
    34
    Trophy Points:
    41
    ok, now that I checked the faq, and searched;
    wht is a vip sidekick? I've gathered that it's a modem, but some elaboration would be great!
    where do you people learn bout all this obscure stuff (I wanna learn)

  17. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    It is not a "modem"; it is an integrated tester used by SBC/at&t Field Service Technicians.

    The Tempo VIP (Virtual Instrument Package) Sidekick is best described here.
