    WTB: Extendable CF-27 antenna

    Discussion in 'ToughBook Buy Sell and Trade Forum' started by NX2000, Apr 20, 2008.

  1. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    Anyone got one? Thanks.
    ~ryan

    NX2000, Apr 20, 2008
    #1
  2. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,362
    Likes Received:
    372
    Trophy Points:
    251
    Do you mean the CF-28 RIM antenna? I have several of those... Please PM me if interested....

    Rick

    Toughbook, Apr 20, 2008
    #2
  3. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    Is the RIM antenna the one used for the internal cell modem or something? I'd love to see some photos of the assmebly

    NX2000, Apr 20, 2008
    #3
  4. gravitar

    gravitar Notebook Deity

    Reputations:
    120
    Messages:
    976
    Likes Received:
    0
    Trophy Points:
    30
    I've got a few 27s with the LCD mounted antenna assembly. do you just want the screw-in antenna or the whole thing?

    gravitar, Apr 21, 2008
    #4
  5. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    I'd like the whole thing. How much do ya want? Any photos so I can see what I'm getting?

    NX2000, Apr 21, 2008
    #5
  6. gravitar

    gravitar Notebook Deity

    Reputations:
    120
    Messages:
    976
    Likes Received:
    0
    Trophy Points:
    30

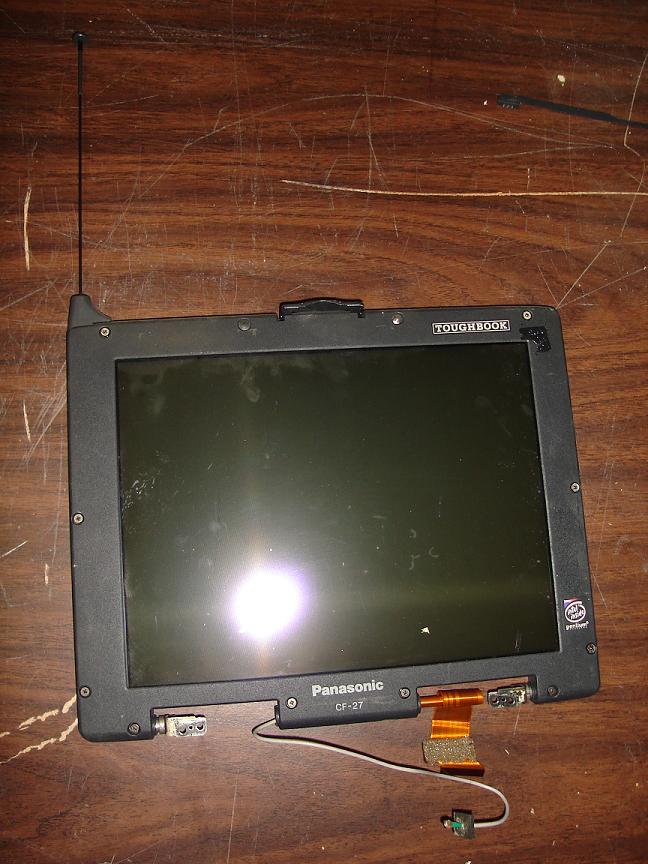

    This is what i've got, just haven't removed it from the screen yet. $10 shipped


    Attached Files:

    gravitar, Apr 23, 2008
    #6
  7. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    Does it hook into the screen wiring harness/ribbon/daughter-board or does it have its own wires?

    NX2000, Apr 23, 2008
    #7
  8. gravitar

    gravitar Notebook Deity

    Reputations:
    120
    Messages:
    976
    Likes Received:
    0
    Trophy Points:
    30
    There's one little coaxial cable (shown dangling out the bottom) that is independent of the LCD harness.

    gravitar, Apr 23, 2008
    #8
  9. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    NX2000,
    In the CF-27 stuff I sent Modly there is a service manual supplement for installing the LCD antenna with expanded parts drawings. There is a lot of stuff there and I don't know if he even has it yet. If he puts the whole thing up, you'll find it there.

    capt.dogfish, Apr 23, 2008
    #9
  10. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    Ohh, first look at that, I thought it was the microphone; I'll definatly want some other stuff from you too so we can make a package deal. :D
    Sweet, I'll forward to seeing that. :eek:

    NX2000, Apr 23, 2008
    #10
  11. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    NX2000,
    Modly organized the stuff very nicely, thanks George. Look under CF-27 on Modly's site, under service manuals, supplements, "27 sp19.pdf", that's it.

    capt.dogfish, Apr 24, 2008
    #11
  12. NX2000

    NX2000 Notebook Geek

    Reputations:
    17
    Messages:
    88
    Likes Received:
    0
    Trophy Points:
    15
    Thank you sir, funny thing is I just ordered the service manuals off ebay, and they are somewhat disapointing....all it seems to be is a parts catalog. :(

    NX2000, Apr 26, 2008
    #12
  13. rickdog

    rickdog Notebook Guru

    Reputations:
    45
    Messages:
    59
    Likes Received:
    0
    Trophy Points:
    15
    What the heck is that extendable antenna for anyway?

    I ask because I just got one.

    rickdog, Feb 4, 2009
    #13
  14. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81


    Thats one of a gimmick of those money making seller on ebay offering service manual without a complete detail or included on the cd and sometimes misleading the buying public.


    ohlip

    ohlip, Feb 4, 2009
    #14
  15. Rob

    Rob Toughbook Aficionado

    Reputations:
    452
    Messages:
    3,946
    Likes Received:
    65
    Trophy Points:
    116
    Not like anyone on here has these new-fangled manual things :rolleyes:

    Rob, Feb 4, 2009
    #15
