    Wtb/wtt

    Discussion in 'ToughBook Buy Sell and Trade Forum' started by rusty503, Dec 15, 2011.

  1. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    I just got a CF-52 MK2 and I am now in need of a smart card reader for this system. I know most of you on this board never use and will never use this reader. I, on the other hand, must use this daily. I am looking for the "built-in" reader that is on the front left side of the palmrest.

    I need everything to install this to include any brackets, screws and cables. I will in turn trade you the standard cover for the same area of the palm rest. In other words, you get the stock cover so that when the reader is pulled, you put the cover on, and it is stock.

    rusty503, Dec 15, 2011
    #1
  2. orphanlr

    orphanlr Notebook Evangelist

    Reputations:
    183
    Messages:
    331
    Likes Received:
    0
    Trophy Points:
    30
    I have several of the pcmcia removable smart card devices that came from a batch of military computers. You are welcome to them, just tell me were you want them sent.

    Sam

    orphanlr, Dec 15, 2011
    #2
  3. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,114
    Messages:
    6,194
    Likes Received:
    2,255
    Trophy Points:
    331
    You mean the right side, above the harddrive caddy...right

    toughasnails, Dec 16, 2011
    #3
  4. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    Yup! 10 chars

    rusty503, Dec 16, 2011
    #4
  5. orphanlr

    orphanlr Notebook Evangelist

    Reputations:
    183
    Messages:
    331
    Likes Received:
    0
    Trophy Points:
    30
    orphanlr, Dec 16, 2011
    #5
  6. orphanlr

    orphanlr Notebook Evangelist

    Reputations:
    183
    Messages:
    331
    Likes Received:
    0
    Trophy Points:
    30
    OK,

    Sorry, off the grid........

    I've only been able to find one of the pcmcia smart card reader/writer like above, not sure were they all went since I have no use for them and had about eight, but I did find two internal asemblies for smart card readers that came out of some toughbooks, not sure if 50/51/52, but will snap a pic if you want those as well.

    They should all fit in a small flat rate box, so I'll ship them as soon as i get a second.

    Sam

    orphanlr, Dec 19, 2011
    #6
  7. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    Bump.

    Any takers?

    rusty503, Jan 11, 2012
    #7
  8. orphanlr

    orphanlr Notebook Evangelist

    Reputations:
    183
    Messages:
    331
    Likes Received:
    0
    Trophy Points:
    30
    Rusty503,

    Sorry I forgot, I will ship them tomarrow. The good news is I found two of the slipin pcmcia type as pictured above and two of the bolt in assemblies like you want.

    Sam

    orphanlr, Jan 11, 2012
    #8
  9. Pareto Optimal

    Pareto Optimal Notebook Consultant

    Reputations:
    0
    Messages:
    151
    Likes Received:
    0
    Trophy Points:
    30
    I could use one of the PCMCIA type if you please.

    Pareto Optimal, Jan 12, 2012
    #9
  10. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    O.K. I have what I think is a smart card reader. :D

    Swivel door above the caddy (right side). Problem being I dropped the 52 0n the slate by my wood stove and it cracked the door. 16" drop test. Every thing else is fine. Do you want it. You would need to replace the door. Super glue rules.

    I need instructions for the easiest route to the cmos battery. Going by the manual you take the whole thing apart. Can I just split the case while I'm getting your reader with-out disturbing the upper 1/2?


    I love this thing. 52GUNBR2M.

    Jeff

    SHEEPMAN!, Jan 12, 2012
    #10
  11. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131

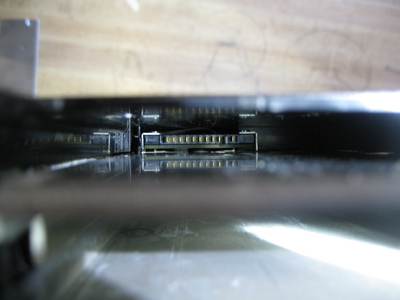

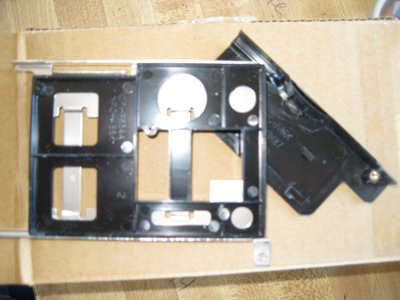

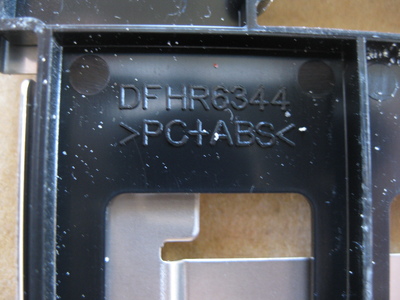

    Using this Rusty for the pictures. There is a part?/s missing. The plastic and rails are there but nothing to connect to the plug. I have noooooo idea what's missing.

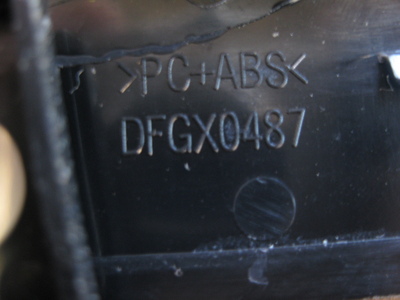

    I need the part number in #3. Super glue still holding. DFGX0487 The screw was mia.

    I did finally see the yellow part you were talking about in PM.

    I have a CF-51 with Smart card reader. Would those parts fit?

    Jeff


    Attached Files:

    SHEEPMAN!, Jan 13, 2012
    #11
  12. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    That is the same thing I have. As for the rest I am not sure. I do have orphanlr sending me some stuff and I will see what I can come up with. I was just hoping for a direct swap.

    rusty503, Jan 13, 2012
    #12
  13. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    I was surprised it wasn't there. Do they ship them all with no hardware on the Smart Card sled?

    Thanks,

    Jeff

    SHEEPMAN!, Jan 13, 2012
    #13
  14. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    No they don't. Considering that the military is a very big user of Toughbooks, there are quite a few out there with smart card readers.

    rusty503, Jan 15, 2012
    #14
