    Harddrive upgrade question...

    Discussion in 'VAIO / Sony' started by djdarkmeat, Nov 26, 2009.

  1. djdarkmeat

    djdarkmeat Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Will this harderive work in a PCG-8M2L?

    250.0 GB ATA/100 5400 RPM 9.5mm 12.5MS 8MB Cache

    or will this one work, I like it better?

    Seagate ST9500420AS 500 GB 7200 RPM it is an SATA drive...

    Thanks,
    I'll be checking incrimentally...

    djdarkmeat, Nov 26, 2009
    #1
  2. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206

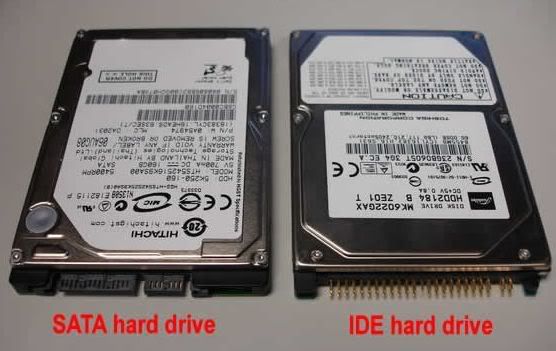

    Since this is a fairly old laptop, I would assume it uses the older ATA (IDE) interface. However, please confirm if it's an IDE or SATA interface by taking your hard drive out of your laptop. Below is an image to help you identify your hard drive type.

    [​IMG]

    If it's an IDE, then the first option will be compatible.

    David, Nov 26, 2009
    #2
  3. djdarkmeat

    djdarkmeat Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Well see there inlies the problem, the laptop was given to us and it did not have a hard drive in it when we got it, so is there any visual aid you can give me to identify it from the what the inside of the laptop looks like?

    djdarkmeat, Nov 26, 2009
    #3
  4. ShadowFlare

    ShadowFlare Notebook Geek

    Reputations:
    6
    Messages:
    98
    Likes Received:
    0
    Trophy Points:
    15
    I'd say you need to get a flash light and alight the hdd connectors inside the laptop. Should be quite easily distinguishable. The IDE hard drive connector will have 2 lines of tiny pinholes in a horizontal arrangement, while SATA will just have 2 rectangle holes, one being about twice as large as the other. Refer to David's picture so you have some idea of how the holes of the connectors would look like.

    ShadowFlare, Nov 27, 2009
    #4
  5. DetlevCM

    DetlevCM Notebook Nobel Laureate

    Reputations:
    4,843
    Messages:
    8,389
    Likes Received:
    1
    Trophy Points:
    205
    DetlevCM, Nov 27, 2009
    #5
  6. surfasb

    surfasb Titles Shmm-itles

    Reputations:
    2,637
    Messages:
    6,370
    Likes Received:
    0
    Trophy Points:
    205
    Yeah, just pop open the panel and look at the connections.

    surfasb, Nov 27, 2009
    #6
  7. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    This would be a little difficult, seeing that the OP doesn't have a hard drive to start with :p

    Do what ShadowFlare suggested. The two interfaces are quite difference and should be recognized easily.

    David, Nov 27, 2009
    #7
  8. djdarkmeat

    djdarkmeat Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the help guys, I'll pop it open and take a look...

    djdarkmeat, Nov 27, 2009
    #8
  9. cosmok

    cosmok Notebook Consultant

    Reputations:
    23
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    30
    Is this what it looks like? If so it's IDE. If there's no HDD caddy you may be SOL

    cosmok, Nov 27, 2009
