    Is Sony Power Adapter VGP-AC19V26 = VGP-AC19V25

    Discussion in 'VAIO / Sony' started by nizee, Sep 22, 2008.

  1. nizee

    nizee Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    It's for my Sony Z.
    I'm looking for second adapter and sony sold out on small/compact the VGP-AC19V26.
    Is the VGP-AC19V25 has the same power rating/features and size as the VGP-AC19V26?

    nizee, Sep 22, 2008
    #1
  2. Skyshade

    Skyshade Notebook Deity NBR Reviewer

    Reputations:
    298
    Messages:
    1,548
    Likes Received:
    1
    Trophy Points:
    56
    V25 should be smaller than V26...it is the standard AC adapter for Z in several countries, so it is perfectly compatible with Z.

    Skyshade, Sep 22, 2008
    #2
  3. nizee

    nizee Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    My Sony have not arrive yet, should be by end of this week.

    Does the US version Z come with VGP-AC19V26 or VGP-AC19V25?

    When i'm ordering online from Sony a few weeks ago, the options for additional adapters is VGP-AC19V26, but was out of stock.

    So the VGP-AC19V25 is smaller then VGP-AC19V26??? If they are compatible, then i should buy VGP-AC19V25 because it's more compact !
    Correct?

    nizee, Sep 23, 2008
    #3
  4. nizee

    nizee Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    Can someone give me dimension/size for the following adapter please. I can't even find on sony website.

    1) VGP-AC19V26
    2) VGP-AC19V25

    Skyshade mention that the VGP-AC19V25 is smaller, but google search show it's the same size????? 49.5mm x 30.2mm x 121.5mm

    nizee, Sep 23, 2008
    #4
  5. FenderP

    FenderP Notebook Deity

    Reputations:
    280
    Messages:
    1,483
    Likes Received:
    30
    Trophy Points:
    66
    Here's the info on VGP-AC19V25:
    http://forum.notebookreview.com/showthread.php?p=3935822&highlight=vgp-ac19v25#post3935822

    I just got my Japanese Z90US and it has the AC19V25. The adapter appears to be the same size as the Z590UAB which I briefly owned. There are two key differences I can see.

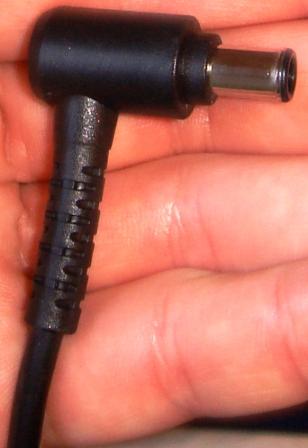

    1. The tip is all metal with a thicker plastic housing before it, not the thinner nearly all plastic one on the AC19V26.

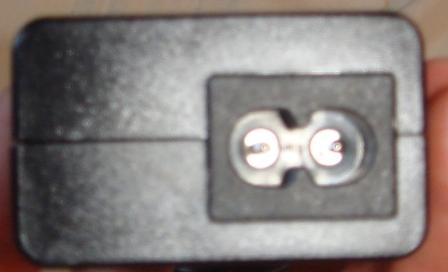

    2. For the cord, it uses the two input (you know what I mean) like the G and I assume T/TZ, not the three input on the base like the SZ and US Z.

    EDIT: Pics added


    Attached Files:

    • ac1.jpg
      File size:
      28.9 KB
      Views:
      163
    • ac2.jpg
      File size:
      25.6 KB
      Views:
      137
    FenderP, Sep 23, 2008
    #5
  6. Skyshade

    Skyshade Notebook Deity NBR Reviewer

    Reputations:
    298
    Messages:
    1,548
    Likes Received:
    1
    Trophy Points:
    56
    The "box" part of the adapter is pretty much the same, but V26 has three-prong (with ground) plug in the end so the cable part is a little bigger when wrapped for carrying...it's not night and day difference, but V25 is slightly smaller... :p

    Anyhoo, you can just get a V25...

    Skyshade, Sep 23, 2008
    #6
  7. JBLMD2004

    JBLMD2004 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I have a Sony Stick AC 19.5 V adapter VGP-AC19V21 which works on the SZ Series. Is it also compatible with the new Z Series. Sony says no on their website. Why shouldnt it work?

    JBLMD2004, Sep 28, 2008
