    MY SCREEN IS SPLIT INTO 4, EVEN BIOS, PICs inside

    Discussion in 'VAIO / Sony' started by RickyG512, Jul 18, 2007.

  1. RickyG512

    RickyG512 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi

    i have a sony vaio PCG - K415B

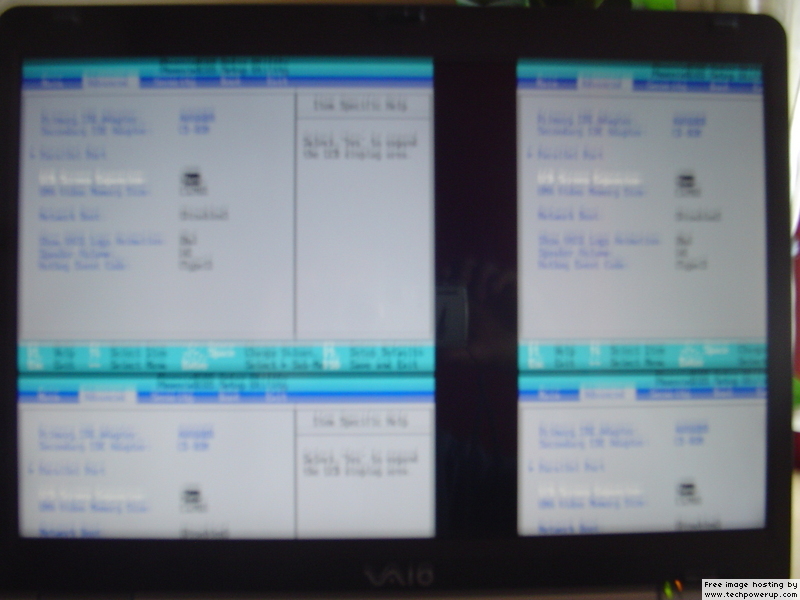

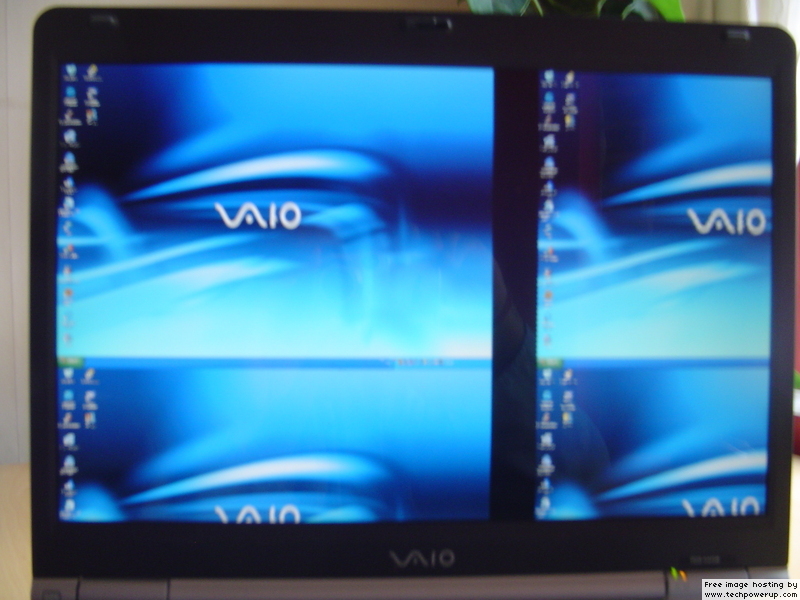

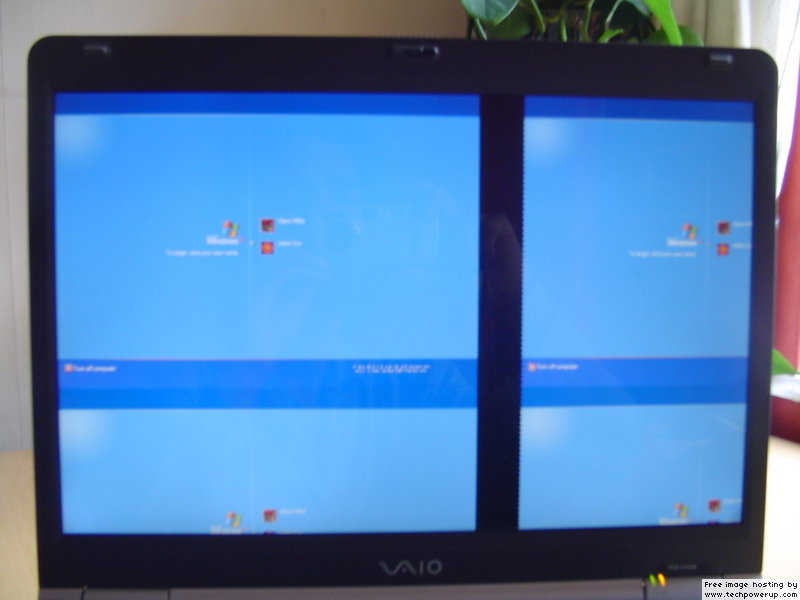

    when i turn it on the screen is split into 4, ive tried:

    reset bios
    update bios to version 108 from 107
    changing resolution in windows
    LCD screen expansion in bios, yes and no both dont work

    note: the 2 splits of the screen on the right side are a little fuzzy

    [​IMG]
    [​IMG]
    [​IMG]

    plz help
    thanks

    RickyG512, Jul 18, 2007
    #1
  2. ahl395

    ahl395 Ahlball

    Reputations:
    3,867
    Messages:
    8,218
    Likes Received:
    72
    Trophy Points:
    216
    I would call customer support and tell them the problem. They will probably be able to fix it

    ahl395, Jul 18, 2007
    #2
  3. thegsrguy

    thegsrguy Notebook Deity

    Reputations:
    24
    Messages:
    812
    Likes Received:
    0
    Trophy Points:
    30
    Probably a bad video card or loose cable between the video card and display.

    Hook up an external monitor and see if the problem goes away.

    thegsrguy, Jul 18, 2007
    #3
  4. ATR90

    ATR90 Notebook Evangelist

    Reputations:
    31
    Messages:
    551
    Likes Received:
    0
    Trophy Points:
    30
    How old is the notebook? Did you drop it by any chance before this happened?

    ATR90, Jul 18, 2007
    #4
  5. RickyG512

    RickyG512 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the replies, i dont think it was dropped, i know the moddle came out in 2005 so cant be older than 2 years, will try external monitor

    also when i change reslutions it can be 8 smaller screens, shall i open it up and see if grapihc card is loose, it says ATI IGP 345M -cant find drivers for it on ATI site, if i open it up will i find it or is it onboard or something like that

    RickyG512, Jul 18, 2007
    #5
  6. RickyG512

    RickyG512 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    when i connect to external monitor it fits the whole screen on any resolution on my 19" LCD 5:4

    but the text is slightly blured and "auto adjust" doest fix it like it normal does

    RickyG512, Jul 20, 2007
    #6
  7. Ice-Tea

    Ice-Tea MXM Guru NBR Reviewer

    Reputations:
    476
    Messages:
    1,260
    Likes Received:
    0
    Trophy Points:
    55
    Bad resolution to the screen. Notebooks are ussualy set up so that the LCD always receives the native resolution. Example: if you have a 1280 * 800 screen and set the resolution to 640 * 480 the graphics card scales automatically and send 1280 * 800 anyways, even in the Bios. For this, it should read out an EEPROM on the screen. My idea: damaged or corrupted EEPROM. Suggestion: set it to the native resolution in Windows. Boot might still be garbled but Windows might be ok.

    Ice-Tea, Jul 20, 2007
    #7
  8. RickyG512

    RickyG512 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    i just realised the native resolution cant be selected, the max i can set is is 1400x1050, closest to native i can select is 1280x768

    RickyG512, Jul 21, 2007
    #8
  9. bogart

    bogart Notebook Evangelist

    Reputations:
    183
    Messages:
    553
    Likes Received:
    1
    Trophy Points:
    31
    Since the bios resolution is determined and set by the bios and not influenced by anything else, such as the OS, the problem is hardware related and most likely the screen.

    bogart, Jul 21, 2007
    #9
  10. Ice-Tea

    Ice-Tea MXM Guru NBR Reviewer

    Reputations:
    476
    Messages:
    1,260
    Likes Received:
    0
    Trophy Points:
    55
    Try powerstrip to force the right timing.

    Ice-Tea, Jul 23, 2007
    #10
  11. Ice-Tea

    Ice-Tea MXM Guru NBR Reviewer

    Reputations:
    476
    Messages:
    1,260
    Likes Received:
    0
    Trophy Points:
    55
    Try to use powerstrip or something to force the correct resolution. May very well fix it for you.

    Also: what about drivers? What have you tried already?

    Ice-Tea, Jul 23, 2007
    #11
