My TZ-Story -dissecting the TZ

Hey there!

Here comes my TZ-Story.
Summary: TZ-Software and buying-modalities, the One-seg-tuner, disassembly-guide.

Last year I worked in Japan. When the heatwave killed my old rotten-rugged Pavillion (HewPaq) I decided: "Hey, you are in Notebook-Land, get a new one!"
So my feed found the way to a local "Compmart" and "Miste' Kohno" helped me.
As I wanted all possibilities, full mobility, ulta-portability and medium workpower, we chose the Vaio-TZ as "Ownermade" with
Intel Core2Duo-ULV 1.06 GHz
2GB of RAM
80GB HDD
Optical Multidrive
L-Battery (the XL looks like a tumor and is almost 2times heavier than the smallest one -including the computer!)
N-Type-WIFI
Bluetooth
Fingerprint-Sensor and TPM (in Japan it is an option!)
Webcam
and finally (as I wanted to return to Japan later) a built-in TV-Tuner.

Mister Kohno admitted that he doubts that the Tuner (although its a hybrid multiband-tuner) would work outside Japan, but I threw the coin and decided to give it a try.

=====End of Part 1=====



===== Part 2 =====
As I can only speak medium Jap. and writing is a secret to me (only Katakana, Hiragana and some Kanji-Essentials) Mister Kohno offered me a discount on the Vista-Ultimate-Upgrade and was willing to switch it to German after the Upgrade.

So when the comuter reached the store, I had to buy a Anytime-Upgrade-license and Mister Kohno and I started the installation. After conversion to German, I had a German Vista-Ultimate, with some Japanese Applications and tons of Addware from Vaio-Computers. I took it home and finished my job in Japan.

Here I'd like to describe the TZ:
Its literally spoken "ultraportable". Its very small, but just on the edge, still very operationable. It's ultra lightweight and seems to be very durable. All peripherals worked and most of the applications could be switched to German or English, except the Tuner. But nevertheless, I got used to it. Some Kanji are kind of self-explaining and many words like "sa-he" (safe) or "Ko-N-Pi-Yu-Ta" (written in Katakana) are lovely Jap-Style-details, that make my Computer to MY Computer.

Returning to Germany, I found that Sony had already sent me the DVD and as I got used to Vista meanwhile I backuped my data, burned a "recovery-DVD", and tried reinstalling the OS.

1.: The SN on my laptop is not valid for German DVDs
2.: The "recovered" Vista rejects cooperation with the German AU-DVD
3.: The Tuner-Driver rejects installation under German Vista
4.: SONY speeks itself free from any responsibility for delivering the wrong DVD.
5.: VAIO Germany can not and in no future time serve me a Japanese DVD
6.: "Miste' Kohno" is very sorry for all that mess, ("gomen nasai") but can't change anything about it... especially NOT testify how it came to this dog's breakfast!

So I decided to visit Miste' Kohno next time I'm in Japan and show him my 64-legs-Chip-removal-forceps... and to continue with this interim-state (German Business-license) before I get hands on a Japanese Anytime-Upgrade-DVD.

===== End of Part 2 =====



===== Part 3 =====
The Tuner-Story:
Before reinstalling my computer i gave the tuner a quick try and watched some minutes of netherland's digital TV, but as I did not understand the Online-manual of the tuner-suite clearly, I couldn't switch it to German parameters. (it is a multi-band, hybrid-tuner and should be able to work on any ether... by the way)

After German Reinstallation, besides of the tuner, all devices were working: the FN-Key, the AV-Bar, the card-readers and even the N-Type WIFI, but I soon found out that Sony had built in some breaks to keep international users from get the Tuner working. The hotlines did not provide any support as soon as i mentioned the word "tuner".

So I googled and soon found out that the device is the so called "one-seg-tuner" (aka oneseg, 1-seg, 1seg...) and that is is rarely used: only on a playstation-mod, and on the TZ. Damn! So there are NO reference drivers, and not even the windows-media-edition would neither recognize nor identify the tuner and show a picture...
===== End of Part 3 =====



===== Part 4 =====
I gave Ubuntu 10.7 (Gutsy-Gibbon) a chance and found that even Ubuntu does only see the device as a "vendor-specific-device".

So I startet dissecting the Laptop to find out more about this ghost-like device which Sony does not talk about to foreigners...

===== End of Part 4 =====



===== Part 5 =====
Before we begin: I have deep microsurgical Experience, I know how to handle integrated circuits, where to be lazy, where to be a sergeant-major, how to hurt, how to heal and all that stuff. I don't thrust any hands except mine after one week of abstinence...
What I want to tell by this: I am not to be taken responsible foreverwhat you do with your computer. This is in No Way a guide how to rock your mashine, I just give back what I exerienced when taking it down and reassambling it later (successfully: i am currently writing on that computer).

Not everyone should do what I did, but anyone could be successfull with it. The Computer has a very simple layout, is built very clearly, the structures are logical and only at 3 places, you need some well dosed force... I'll come to that later.

For the first, we get some tools together:
2 slot-microscrewdriwers,
1 cross-slot microscrewdriver,
1 magnet-lifter,
1 forceps,
5 small boxes for screws,
a pencil for leaving marks on the system,
a camera for finding the way back out,
a needle for finding weather there is a scree+screwhole behind those rubber-feet without ripping them all of,
clean fingers,
an old toothbrush,
a magnifier,
a cotton-towel (for under the laptop),
all pure and only cotton-clothes against static discarges,
an earthed piece of metal (heating radiator etc),
a wooden toothpick for removing glued parts without damaging the hull.
AND: Your Computer.

Now do a prayer, light a candle, whatever you prefer. It would be a shame if we fail and did not try this!

I suggest you think of the Jin that fills the computer with life and as it is a Japanese system you should say "gomen-nasai" (I am very sorry) and please mean it so. You enter the sanctuary of a working computer without being forced by anything than a researcher's spirit!

(NO, I AM NOT KIDDING)

Place the computer on the towel (upside down)

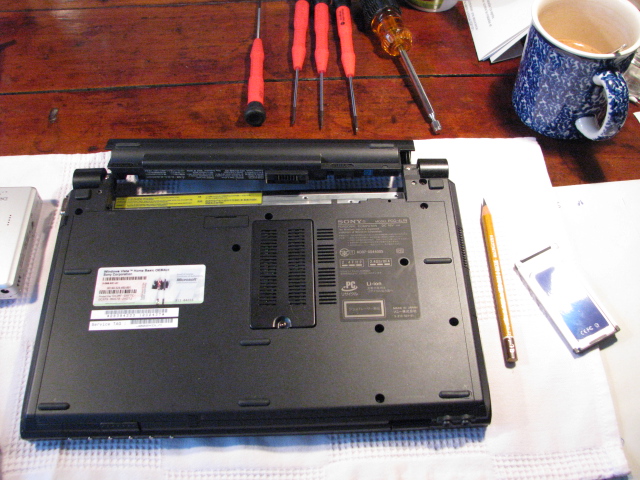

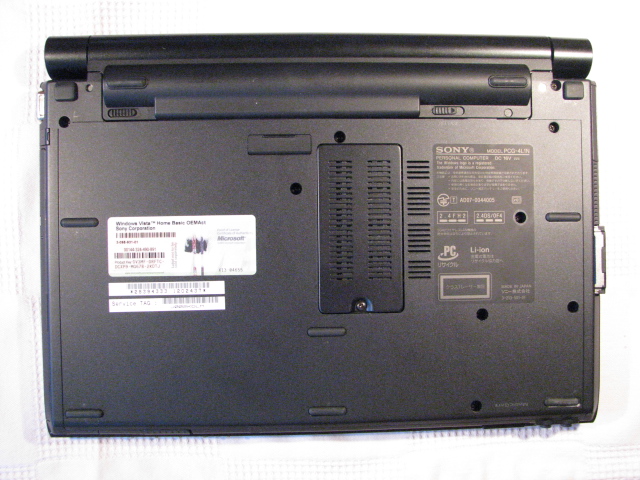

Here you see the whole Site:

Say " Onegai-Shimasu!" when starting to announce that what you do is your will and that you are not playing.

First eject the flash-memory-cards, use the toothpick to remove the BT/Wifi-Switch and remove the battery. Press once the start-button, for discharging any capacitys that might still contain electric power.

===== End of Part 5 =====



===== Part 6 ======

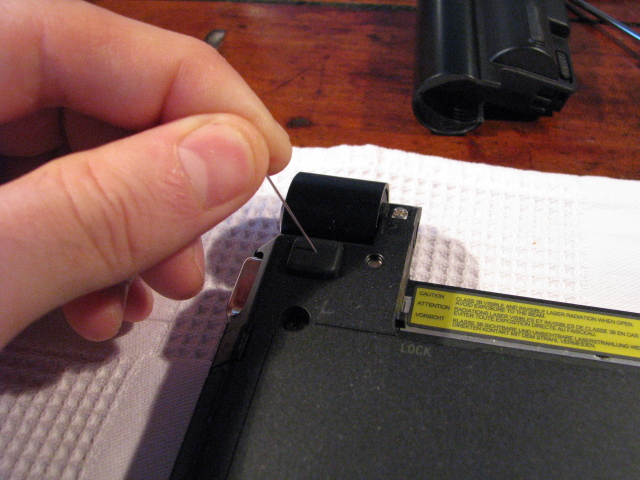

Use the needle to search for hidden screws.

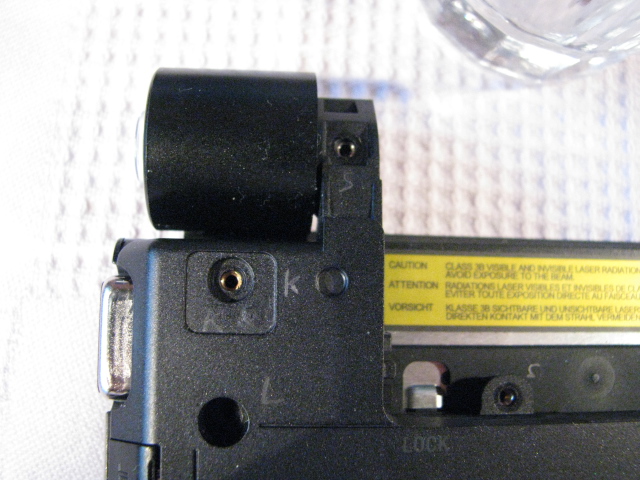

There are only 4: one in the left-upper corner (near the lid-hinge) and 3 under the plastic-covers in front. (but be aware that models change and that Sony might spare some screws or add new ones to face experinced problems)
Use a flat-screwdriver or the toothpic to remove the plasic-buttons at the lower front.

You will find another 3 silver-screws in the battery bay and one in the RAM-Bay. Remove them all, assort them according to size into the small boxes (or dishes or whatever) and mark the hole with your pencil. As I am German, I chose "s" for silver, "k" for "kurz" and "L" for long. Inside the mashine you will face another type of Ultra-short black and fat silver scew (but also this could change...)

When all Screws are out, lets watch the hinges.

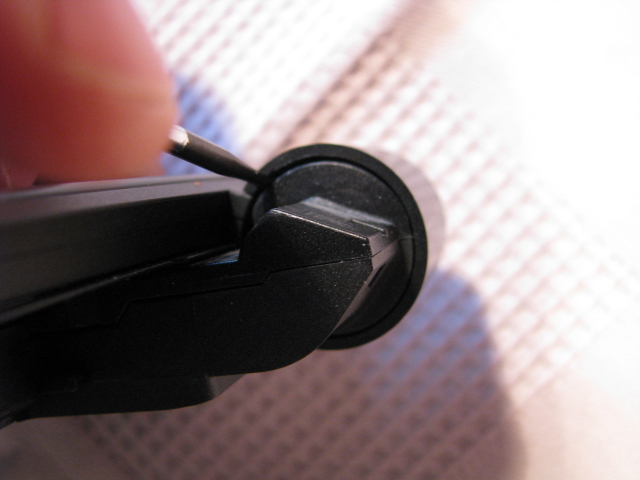

Start with removing the cap on the charger-plug-side "left side when under usage" its the easier one and has only one notch to bend away before pulling it of (also this could change when they improve the laptop!)

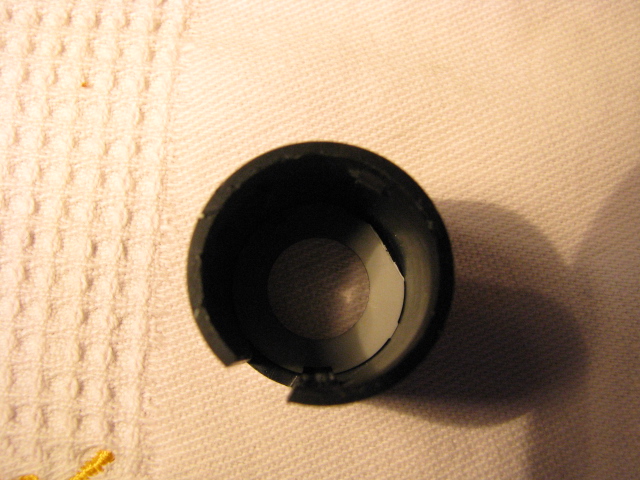

The right hinge is a little more delicate, it has 2 notches and there are some cables. Please do only use the wooden toothpick for not piercing the cables!

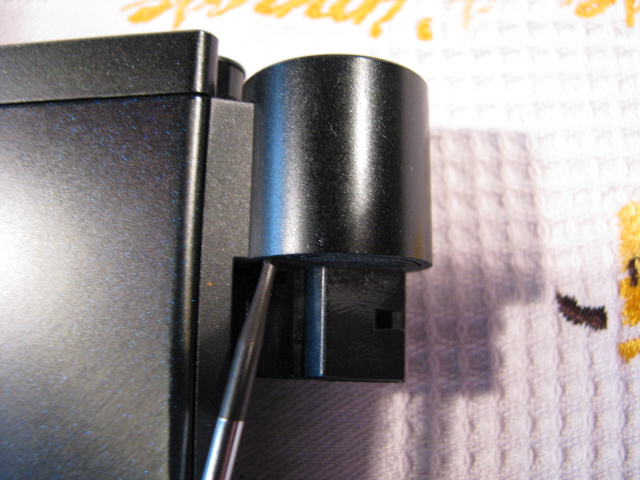

Here you see the right cover taken off the notches are to be found at 1°° and at 6°° I hope you will treat yours a little smarter than I did with mine... now as my laptop is reassambled I don't see any scratches anymore... but it could be!

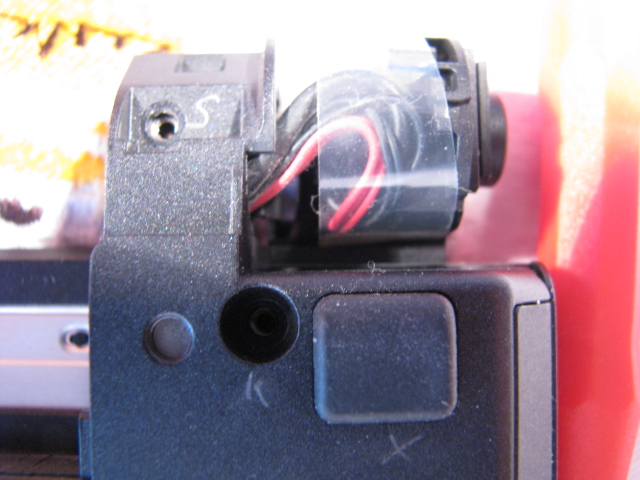

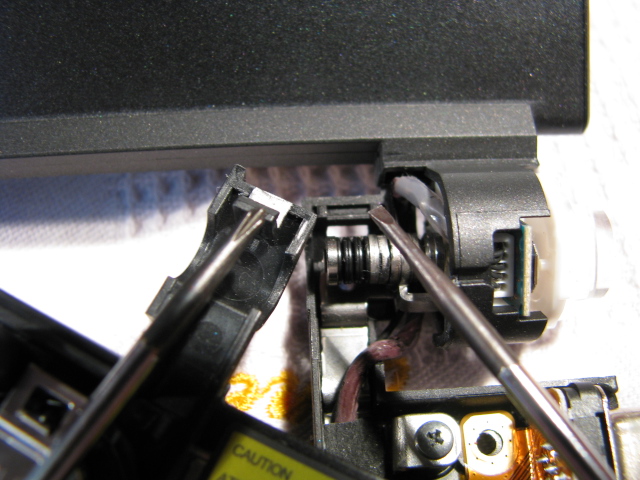

Finally one makro of the hinge-site:

DON'T do that Oger-style, or you will pierce the cables. They are silicone-covered and very soft!
===== End of Part 6 =====



===== Part 7 =====
Now open the lid and press these (view from inside, marked with the screwdriver) zwo notches on each side of the hinge.

On the left side (cooler outlet) and at the middle front you will find some small "snap-lock"-notches, which will give way, when using your fingernails with patience and always carefully!
You will now notice that the lid-frame connection seems to be unstable. IT IS! Handle with care or you might rip out one of those now unsecured hinges!!!
Now you should be able to take off the keyboard without any resistence. (if there is: some srews are still in position!

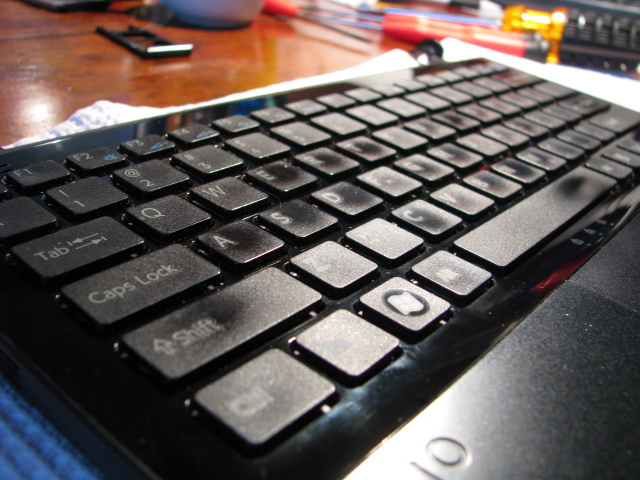

Above you can see the the keyboard-unit lifted up. It is connected with one cable, that leads the wires for the fingerprintreader, the mousepad, the speakers, the soundcard and the soundjacks, the AV-panel and the keyboard. Unplug the cable at the motherboard's jack.

Now to the drives. Open the DVD-drive using the pin and slide it out.

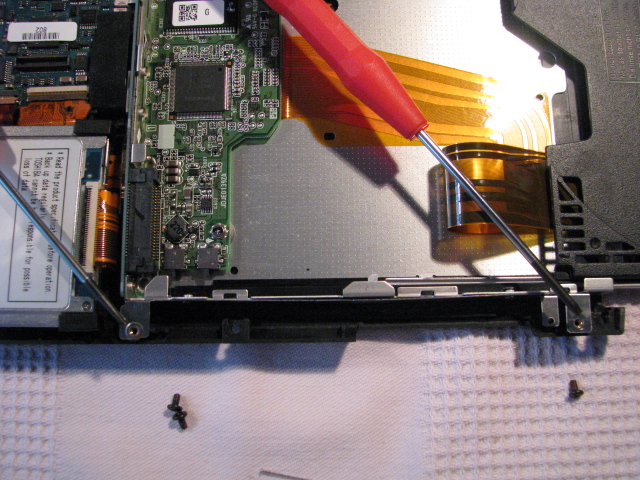

remove the two screws (the fat-black type) in the upper right (marked by the screwdrivers)

there is again a notch, where there is written "sus" on the metal frame

Now two screws at the bottom, the left one holds the hard-disk-frame.

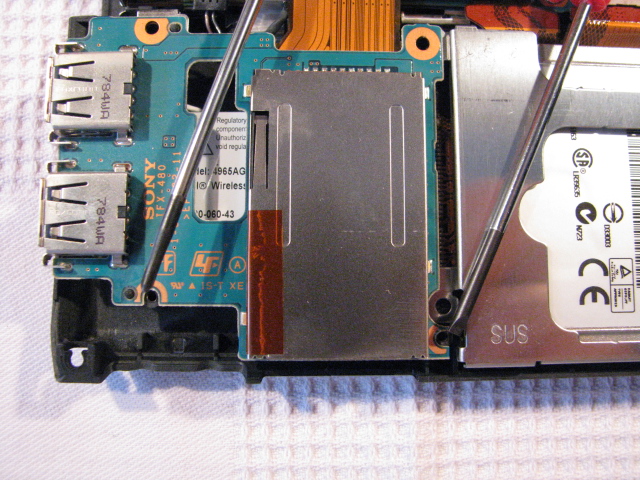

Now two at the USB-Board

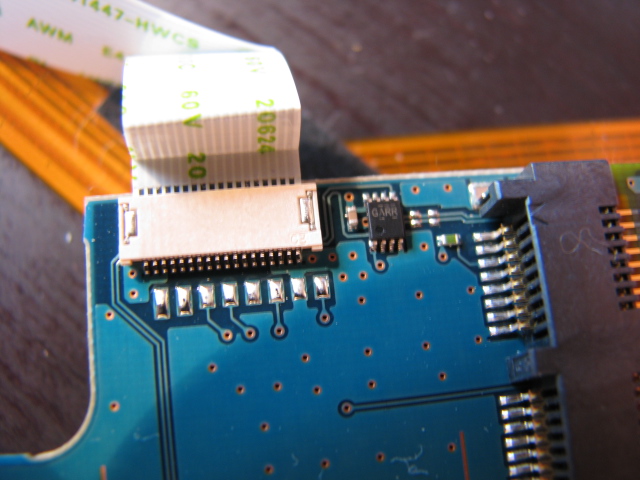

This here is the connection from the LAN-jack to the LAN-adaptor. DAMN! I ordered Gigabit, and here you see: unshielded twisted pair *ROFL*

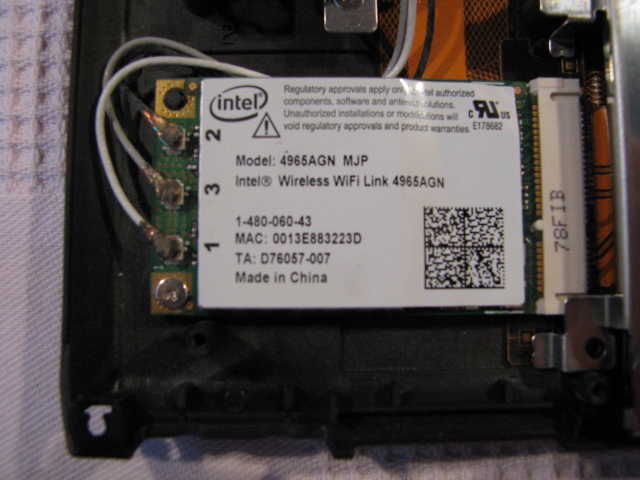

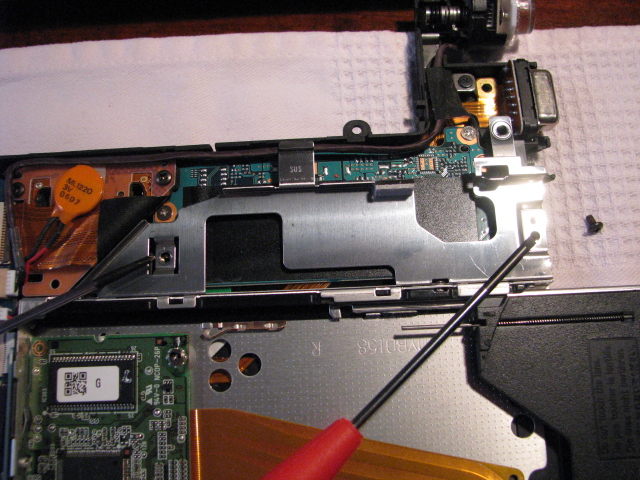

Beneath the USB-Panel we find the WLAN-card. You might notice that there is a lot of space for another device when necessary.

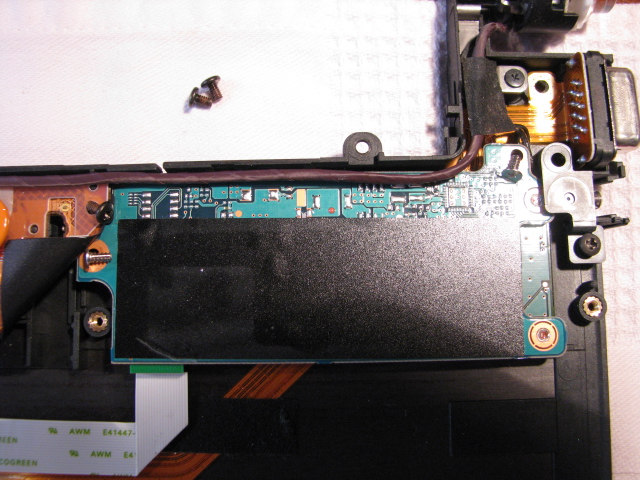

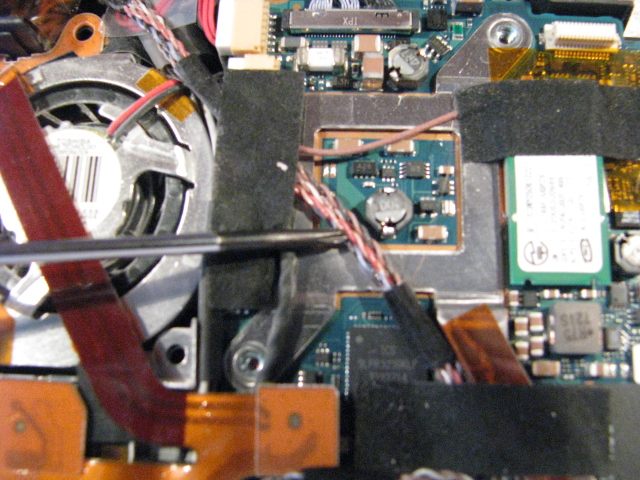

In the upper right we find the Tuner. (after removing the hard disk and flapping the DVD-drive to the left. -it looked to dangerous to take off those cables!)
Remove the black screws at the left and right (holding the platina and the plug) and then the silver ones in the upper and lower right/left.

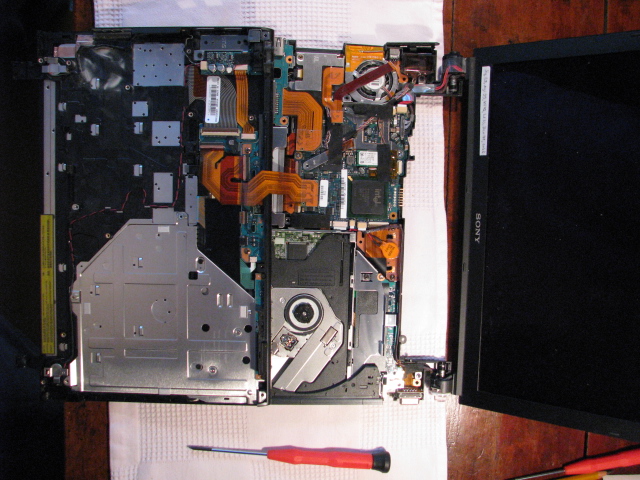

Now we have enough space to twist the unit around.

One makro of the connectors

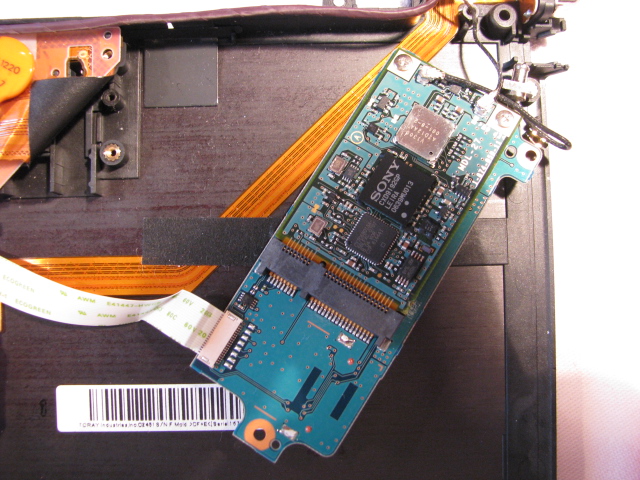

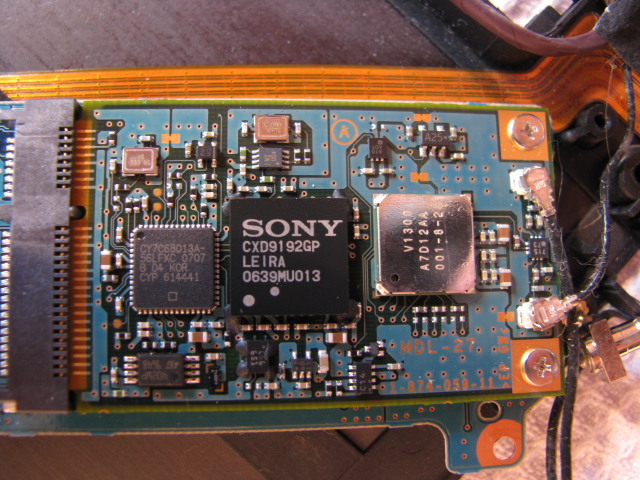

and one of the device itself


OK that's it for this time. Now i will search for an international tuner to build it in there. There's lot of space around it and all cables are connected with standard-plugs.

When putting everything back together, don't mix up the screws and check if the fan is running sufficiently (use a whet finger to check the air outlet).

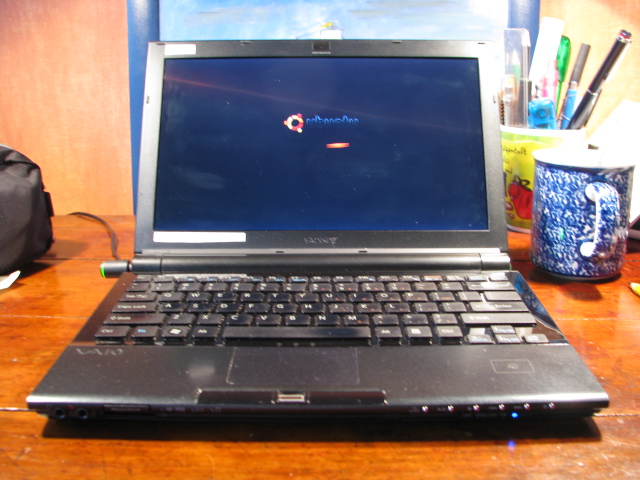

After giving the whole setup a clean and a polish I have a picture here of my keyboard...
Looks older than a year, but in fact it is only 5 month old!!!




===== End of Part 7 and the whole story =====
