    PCG-K33 Repair issues

    Discussion in 'VAIO / Sony' started by loasdrums, Mar 1, 2007.

  1. loasdrums

    loasdrums Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Ok, so some one stepped on the power cord and broke the connector for the power supply. A friend rigged it to work but with a wiggle sparks were seen and the connector does not work anymore.

    So, I'm trying to fix it the right way. I have taken all the screws that I can see out but at about where the space bar is it looks like there is a screw but the only way I think to unscrew it is to stick a wrench in it.

    Anyone know of a better way to get it open?

    loasdrums, Mar 1, 2007
    #1
  2. laptop-gsm

    laptop-gsm Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi, On PCG-K33 you must take off all screws at bottom case, keyb. lcd screen, palmrest and take off power board... and few screws claimed power supply cable... , the power supply cable is called Power DC jack for SONY K series, you can use as k15 k25 or k33 K45 all work fine, You can get it cheapest on eBay. Good Luck.

    laptop-gsm, Mar 1, 2007
    #2
  3. loasdrums

    loasdrums Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5

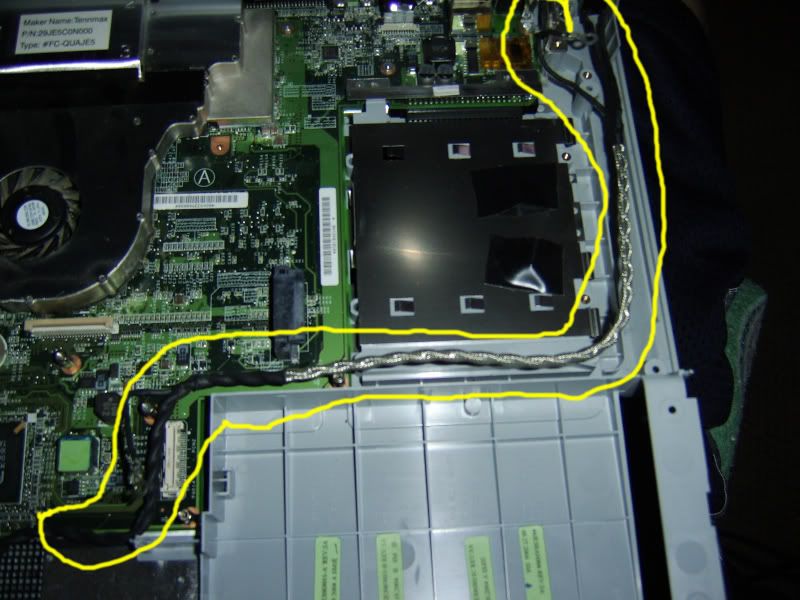

    Ok, so the cord going to the pc board the the battery was connected to and the power adapter connector is the power DC jack? Here I circled the wires, is this the jack?
    [​IMG]

    Is this the part?

    217900901 BRACKET DC JACK

    or is this?
    196478311* HARNESS(WITH DC JACK,2P,LONG)

    loasdrums, Mar 2, 2007
    #3
  4. RUFF

    RUFF Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5

    SO How do I get this open I have pcg-k33 and it seems there is hidden screws somewhere, does anyone have the screw locations? or the service manual copy, I need to clean the fan.

    Thanks in advance

    RUFF, Jun 5, 2007
