    Picture of rear hook on VGN-Z.

    Discussion in 'VAIO / Sony' started by 4KUziel, Feb 7, 2011.

  1. 4KUziel

    4KUziel Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi!
    This is kind of a long shot but can anyone post a close-up picture of the "rear hook" inside the VAIO Z?
    My model is VGN-Z11XN which is (I believe equivalent to US models Z570,Z575 and Asian models Z70,Z90.

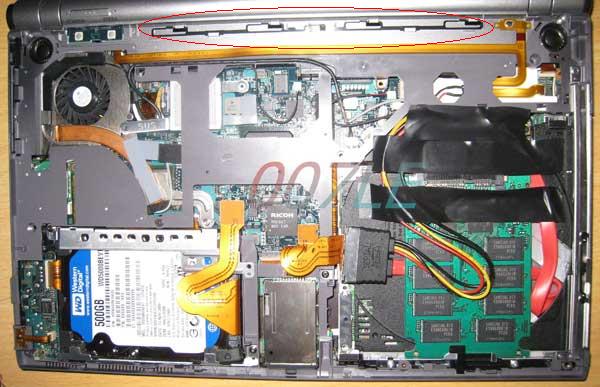

    The rear hook is a sliding thing that lock the keyboard, circled in attached picture.

    The reason for this is that I cant get hold of this spare part and it is missing from my computer for some reason so i I will try to construct my own slider-hook thingy. I just need to see how it kinda looks and try to estimate the shape, thickness and material.

    I would really appreciate it if someone would go through the trouble and post it.


    Attached Files:

    4KUziel, Feb 7, 2011
    #1
  2. sonus

    sonus Notebook Consultant

    Reputations:
    26
    Messages:
    186
    Likes Received:
    1
    Trophy Points:
    31
    Just out of curiosity, how'd you break it?

    sonus, Feb 7, 2011
    #2
  3. 4KUziel

    4KUziel Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    It wasn´t me, I was dead at the time...

    No, I wonder the same thing, I bought it without having seen it just because it was sold at an auction as "a Sony computer" with an "estimated market value" of 400$.
    It came that way, with the rear hook missing.
    I´m guessing an ad lib disassembly with mild violence took place at some point.

    Thanks for the bump.

    4KUziel, Feb 8, 2011
    #3
