    Pictures of my new Z with 640GB HD in place of DVD drive

    Discussion in 'VAIO / Sony' started by John566, Mar 20, 2010.

  1. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31

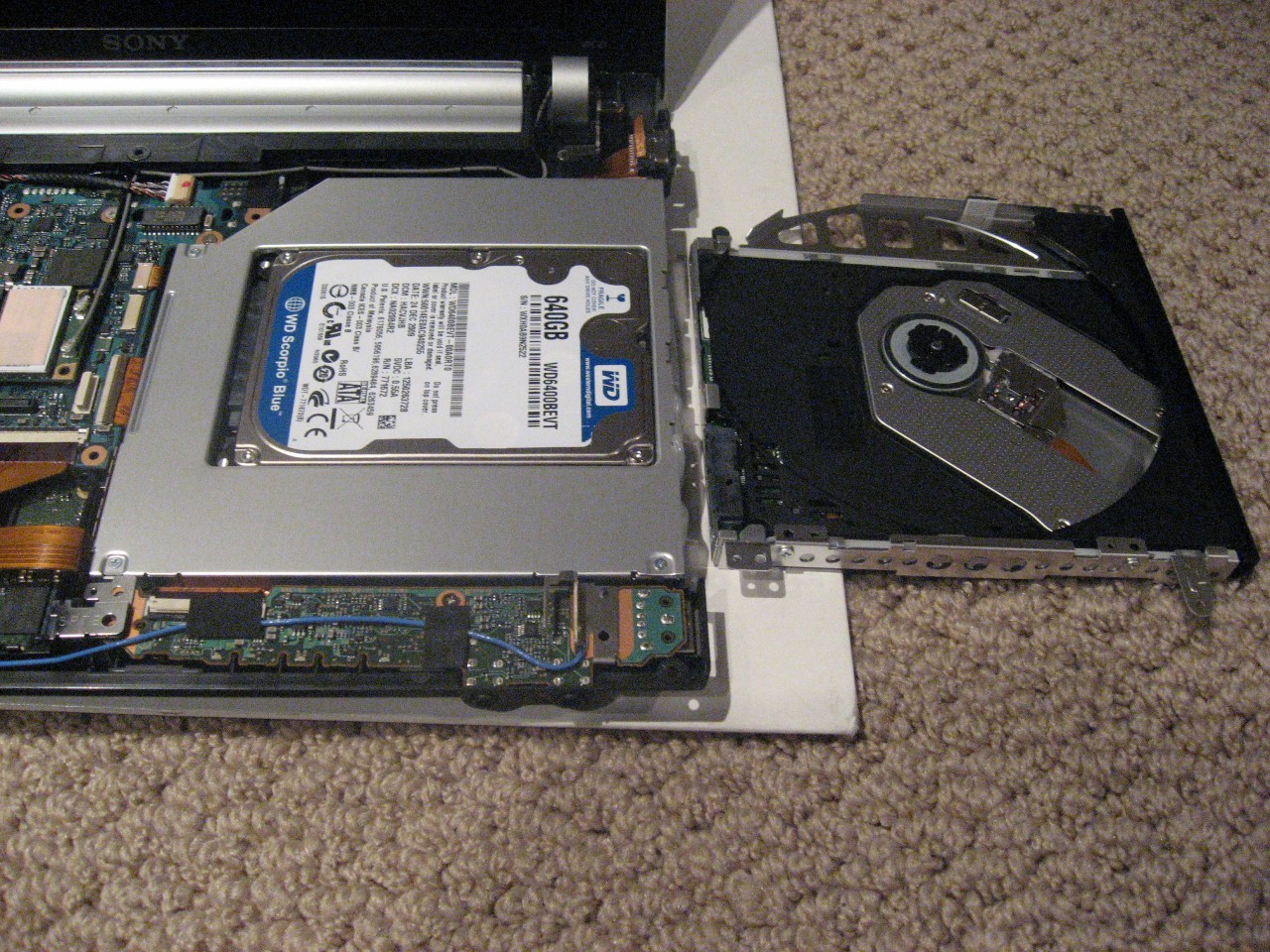

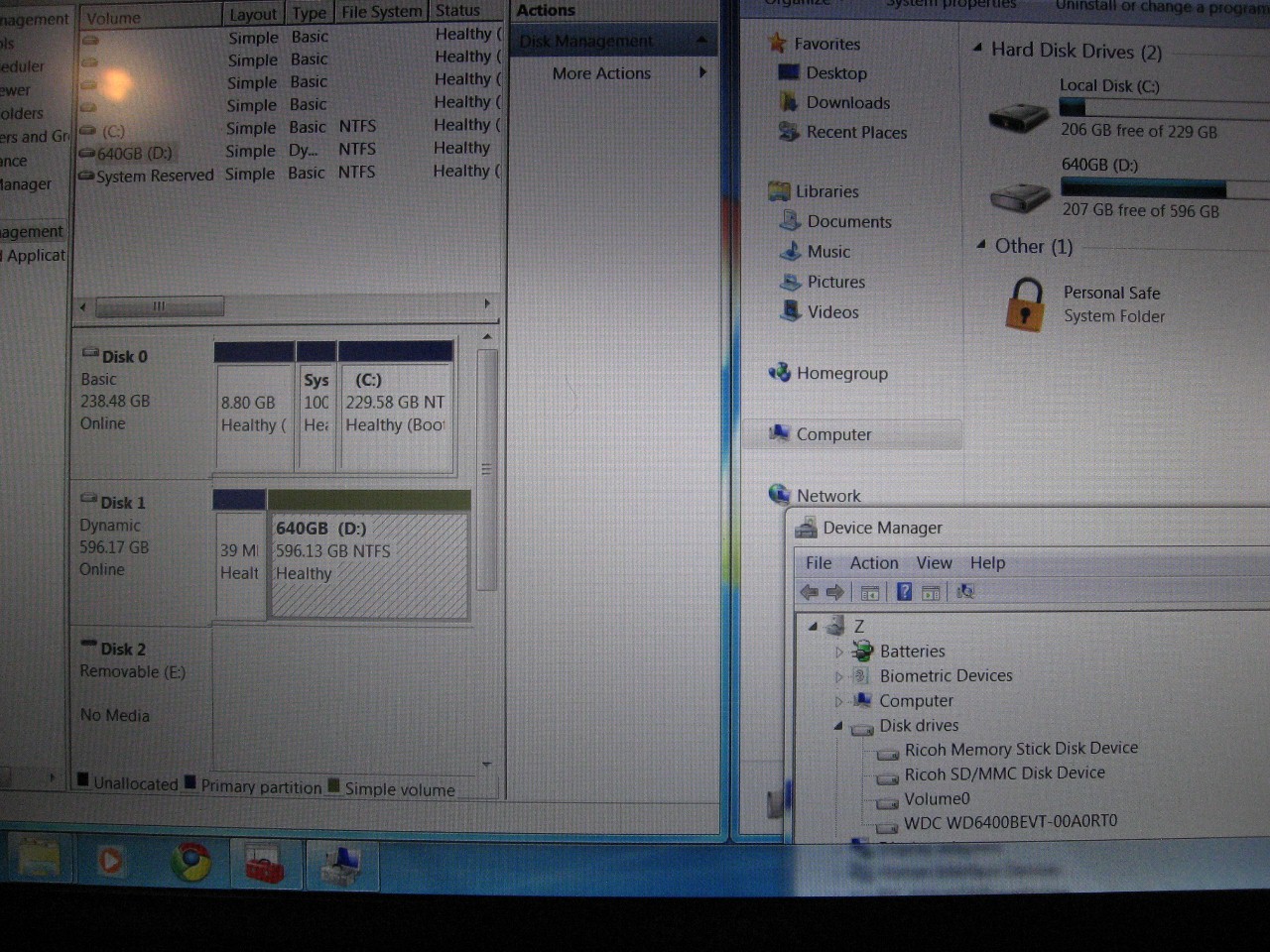

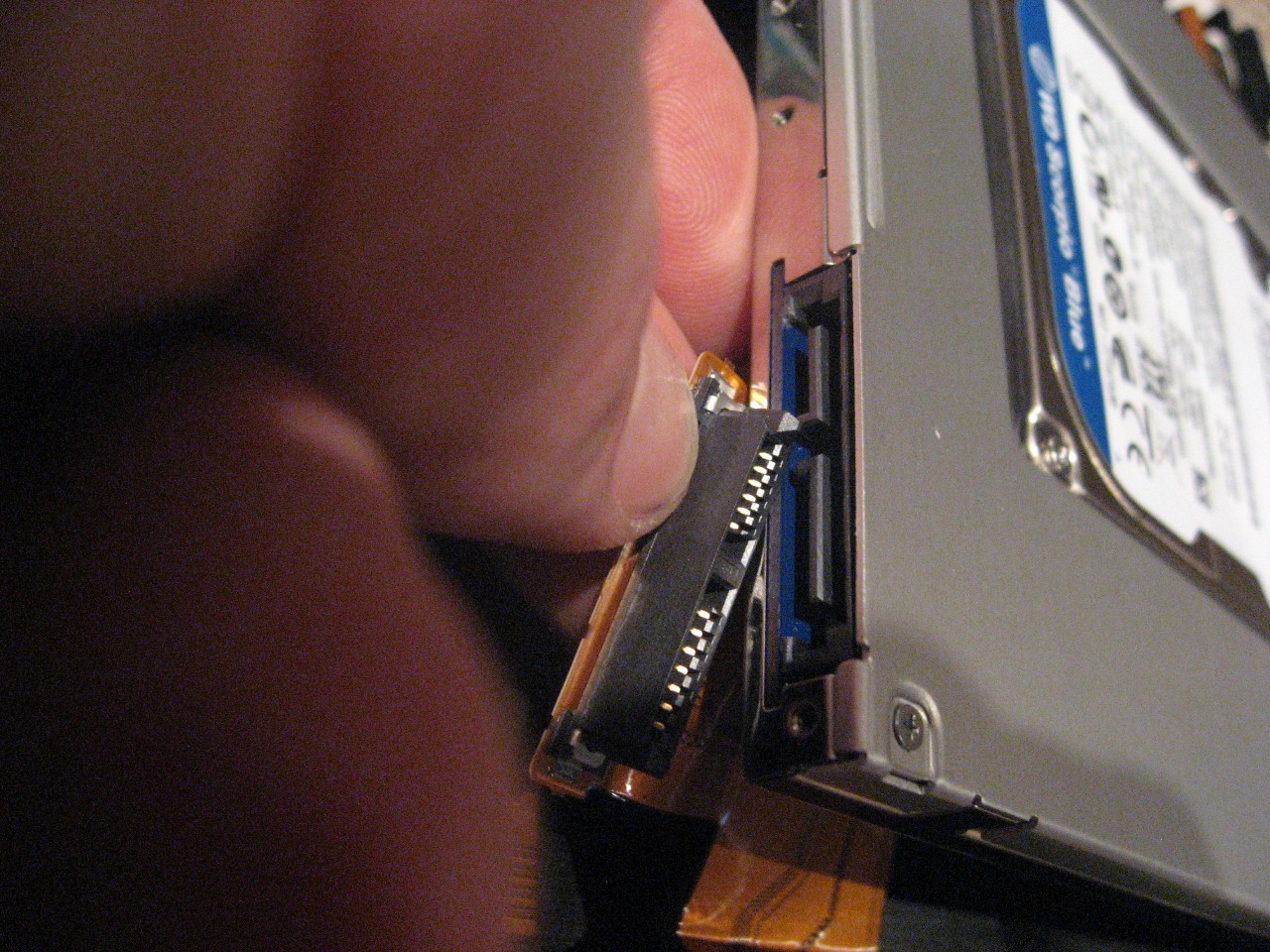

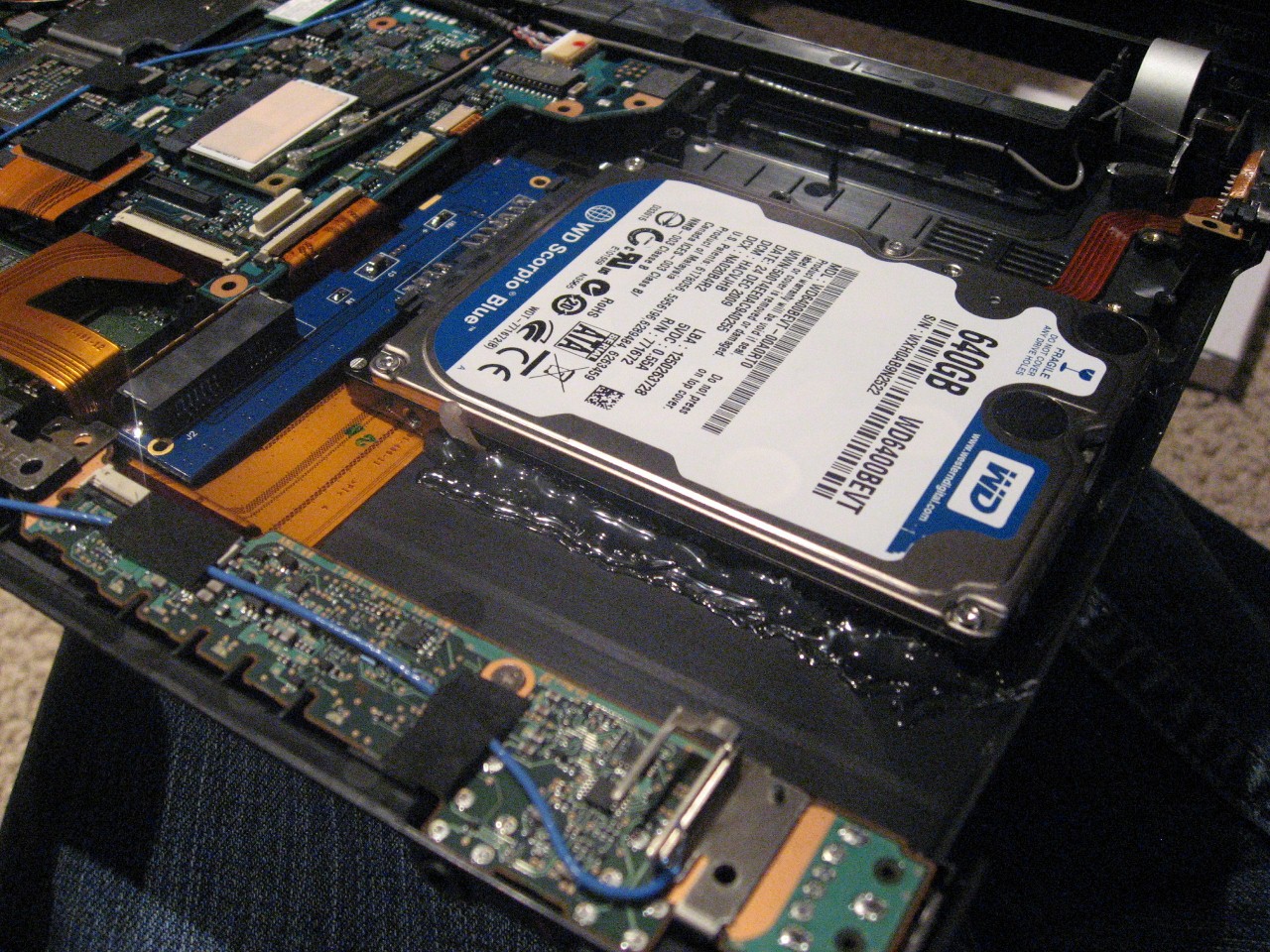

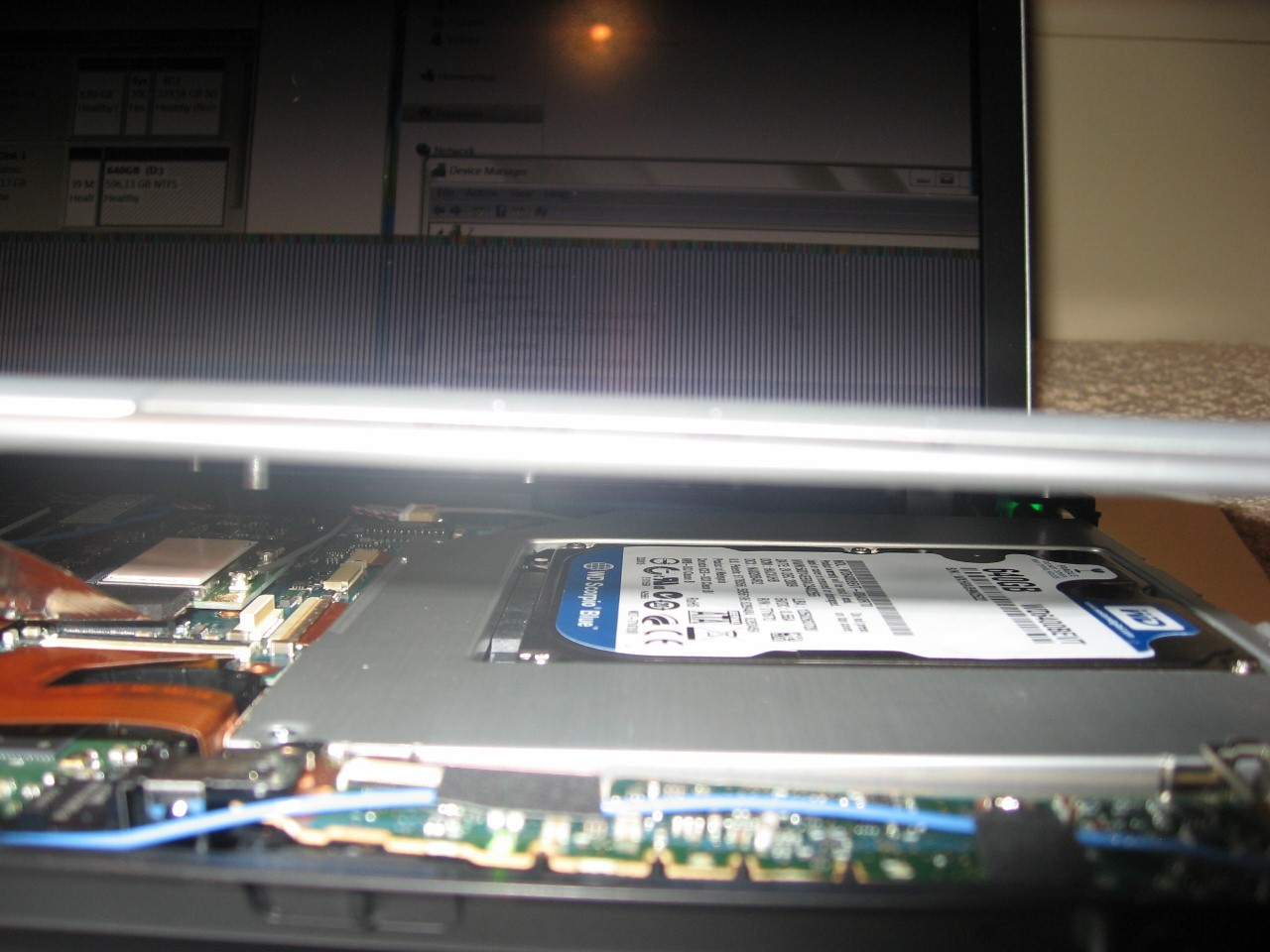

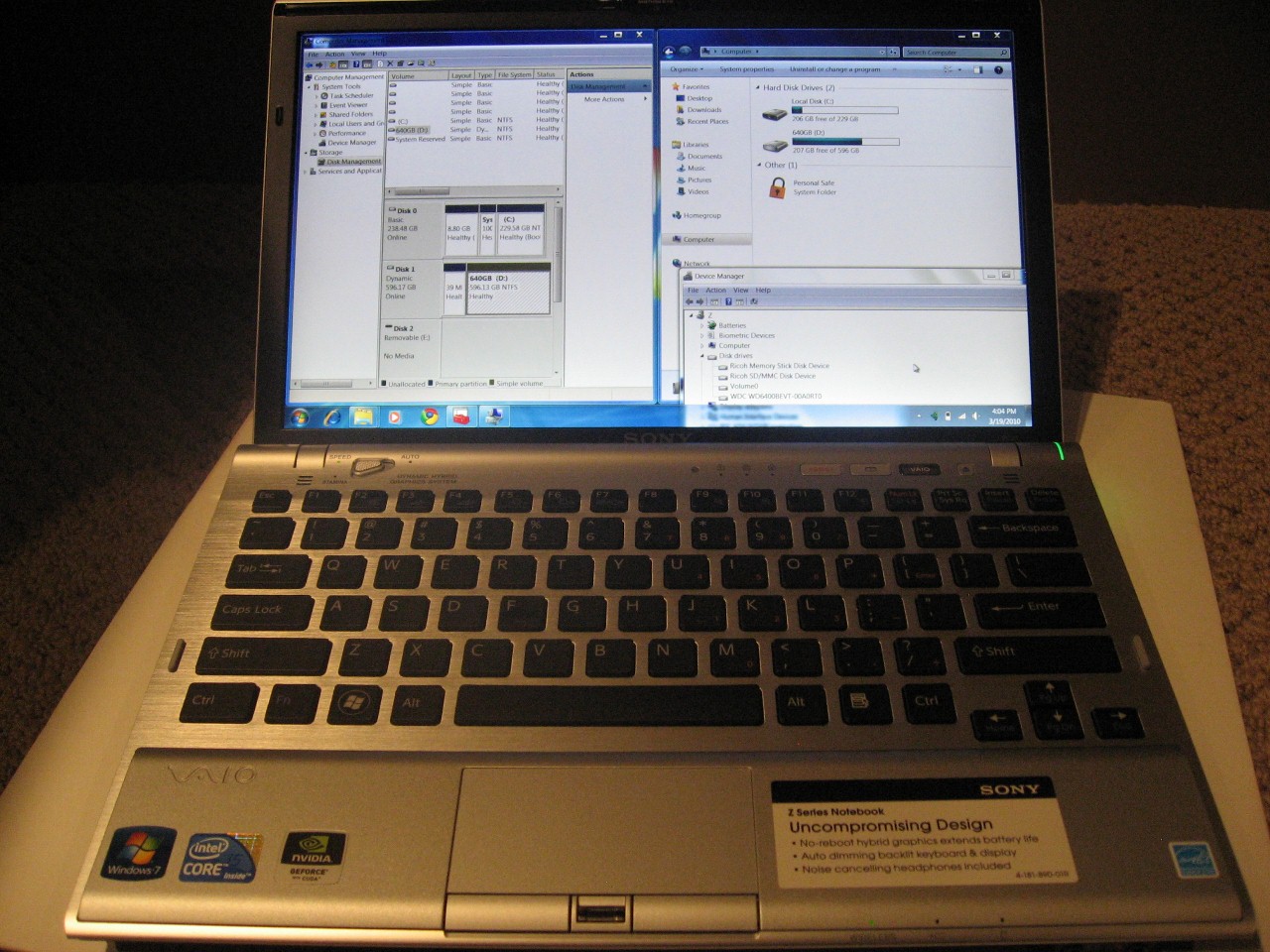

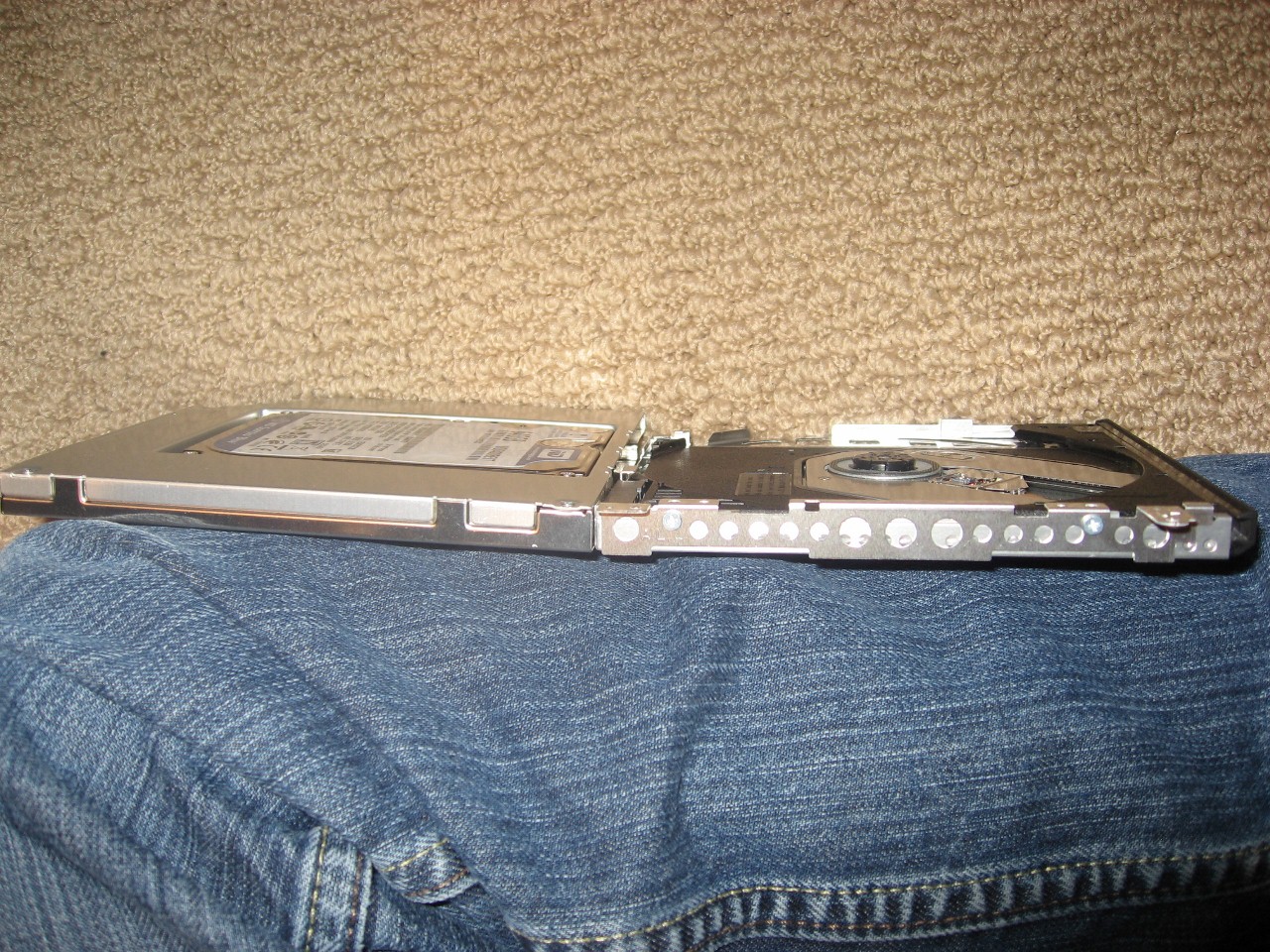

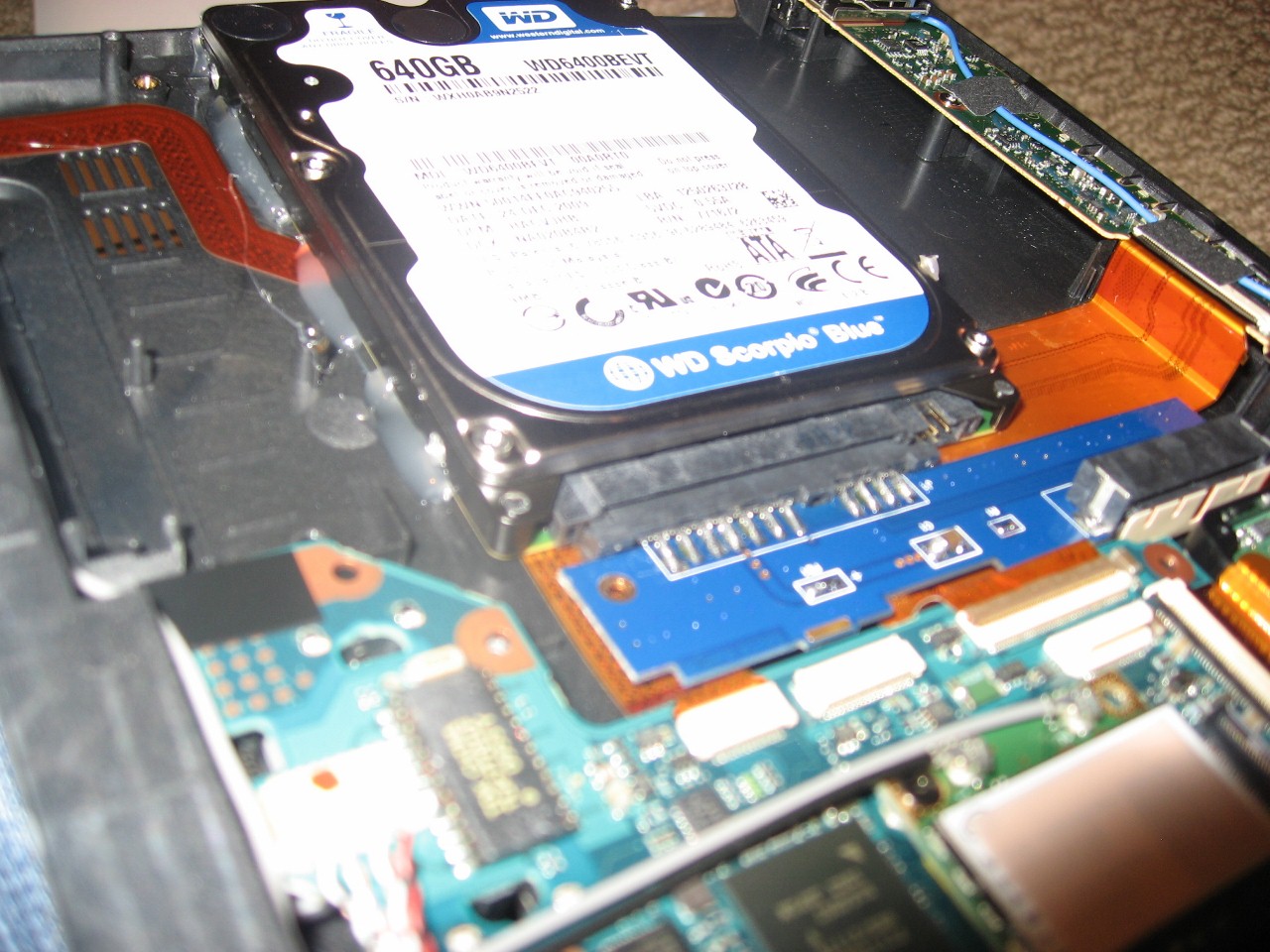

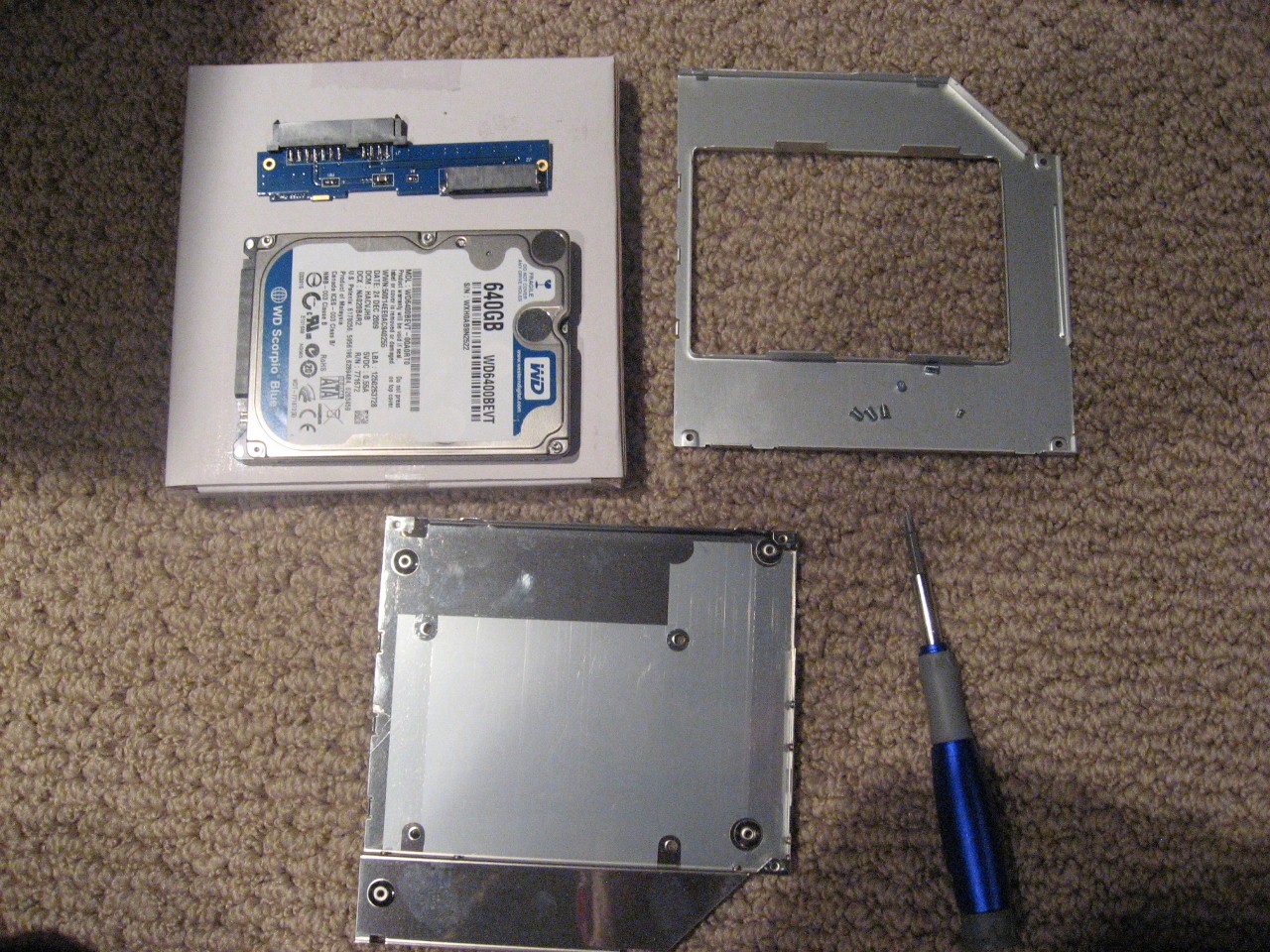

    I really wanted the Z but I was afraid that the 256 SSD wouldn't be enough storage. I couldn't find confirmation of anyone swapping the (to me useless) DVD drive for a HDD. So, I bought it anyways with hopes that it would work - and it did. I don't have much time today but I wanted to get the pictures up and let those of you who are interested in doing this know that it can be done, and it is pretty easy. I used hot glue to hold it in place because it is light, sturdy, and can be removed fairly easily when necessary. I will post links later where you can get the optical HDD caddies which I took apart to get the circuit boards from. The first few pictures show the optical HDD caddy that I later discarded (keeping the circuit-board with the microSATA to SATA connectors).

  2. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    It is giving me problems uploading photos. I'll try a couple/few at a time.


    Attached Files:

  3. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    A few more. (9 total)


    Attached Files:

  4. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    This should do it.


    Attached Files:

  5. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    Anyone who stumbles upon this thread should also check out the following.
    http://forum.notebookreview.com/showthread.php?t=469244

    If a moderator is able to move this to the main Sony thread it would be greatly appreciated. Don't know how I accidentally put it here. (duh) :)

  6. Oscar2

    Oscar2 Notebook Deity

    Reputations:
    209
    Messages:
    1,030
    Likes Received:
    0
    Trophy Points:
    55
    Thank you very much for doing that John.

    This is something I definitely want to try as well. I also looked at the one you pointed to in Zoinks thread.

    The two of you are my new heroes.

  7. iceking66

    iceking66 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Awesome Mod! Where does the SSD sit in relation to the cd/dvd drive caddie? The SSD does not have two caddies for 2 drives? What size are they?
    Thanks so much!

  8. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    I was so excited that the HDD was fitting and being recognized by the computer that I didn't pay much attention to the SSDs that were already in there. ZoinksS2k has some previous posts with excellent pictures and I'm pretty sure he illustrates where the SSDs are in those.

  9. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    Thanks. Please let us know how it goes. Make sure you keep track of where the screws go. I used ZoinksS2k idea of printing out a picture of the bottom of the computer and then sticking the screws through the paper where they go. If I hadn't done this I would have had problems.

    Everyone should remember to up ZoinksS2k's "Rep Power".

  10. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    I have since replaced the HDD with an Intel X-25 160GB SSD because the HDD developed a rhythmic (every 7 seconds) ticking. The X-25 is my boot drive now and seems to boot a little faster than in Sony SSD Raid.

  11. Goronok

    Goronok Notebook Enthusiast

    Reputations:
    0
    Messages:
    31
    Likes Received:
    1
    Trophy Points:
    16
    Any idea if a 12mm drive would fit in the caddy?

  12. eccentricafterglow

    eccentricafterglow Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    What kind of HDD caddy did you use to get the sata to microsata adapter? How did you get inside? why did you use hot glue instead of the adapter?

  13. eccentricafterglow

    eccentricafterglow Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    I doubt a 12mm drive would fit, but if the headroom allows it, maybe if it bulges out of the caddy it would fit.

  14. keisuke28

    keisuke28 Notebook Consultant

    Reputations:
    2
    Messages:
    129
    Likes Received:
    0
    Trophy Points:
    30
    Would this mod make it possible to do a triple raid configuration by adding a 64gb ssd drive?

  15. Bronsky

    Bronsky Wait and Hope.

    Reputations:
    1,653
    Messages:
    9,239
    Likes Received:
    247
    Trophy Points:
    231
    Was the rhythmic tick related to a manufacturing defect in the drive or something related to the installation. Why did you go for another SSD?

  16. Skyshade

    Skyshade Notebook Deity NBR Reviewer

    Reputations:
    298
    Messages:
    1,548
    Likes Received:
    1
    Trophy Points:
    56
    Didn't someone already post in the main thread that he put in 1TB hdd in place of optical? I don't think he used caddy though.

  17. ascend

    ascend Notebook Consultant

    Reputations:
    0
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    30
    john556 you are one brave guy! thanks for the pics. my z115 has 500gb with no built-in optical drive.

  18. John566

    John566 Notebook Consultant

    Reputations:
    25
    Messages:
    201
    Likes Received:
    2
    Trophy Points:
    31
    I will be answering the preceding questions and posting more pics when I get time in the next few days. Thanks.

  19. mfpreach

    mfpreach Notebook Evangelist

    Reputations:
    10
    Messages:
    397
    Likes Received:
    0
    Trophy Points:
    30
    In my experience that ticking sound is due to insufficient voltage.

  20. Malarkey

    Malarkey Notebook Guru

    Reputations:
    26
    Messages:
    59
    Likes Received:
    0
    Trophy Points:
    15
    Thanks for the notes here!

  21. funkmasterta

    funkmasterta Notebook Evangelist

    Reputations:
    209
    Messages:
    509
    Likes Received:
    6
    Trophy Points:
    31
    John, any chance you could post links to the adapter you bought? Cheers! :D
