Sony VAIO VPC-Z13A7E

I will start this post with the specification of this model and I invite those who owns such model to say his solwes/tweaks about this device.


General
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN aerial, Bluetooth aerial, cellular aerial
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Width 31.4 cm
Depth 21 cm
Height 3.3 cm
Weight 1.43 kg
Colour Carbon fibre

Processor
Processor Intel Core i5 460M / 2.53 GHz
Max Turbo Speed 2.8 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Features Intel Turbo Boost Technology
Chipset Type Mobile Intel HM57 Express

Cache Memory
Type L3 Cache
Installed Size 4 MB

RAM
Installed Size 4 GB / 8 GB (max)
Technology DDR3 SDRAM - 1066 MHz
Configuration Features 2 x 2 GB

Storage Controller
Type Serial ATA
Serial ATA Interface Serial ATA-150

Storage
Hard Drive 320 GB - Serial ATA-150 - 5400 rpm

Card Reader
Type Card reader
Supported Flash Memory Cards SD Memory Card, Memory Stick PRO-HG Duo, SDHC Memory Card, SDXC Memory Card

Display
Display Type 13.1" TFT
LCD Backlight Technology LED backlight
Max Resolution 1600 x 900 ( WXGA++ )
Widescreen Display Yes
Image Aspect Ratio 16:9

Video
Graphics Processor / Vendor NVIDIA GeForce GT 330M / Intel HD Graphics
Video Memory 1 GB

Audio
Audio Output Sound card
Compliant Standards Dolby Home Theater
Audio Input Microphone

Notebook Camera
Camera Type Integrated
Sensor Resolution 0.3 Megapixel
Capture Resolutions 640 x 480

Input Device(s)
Type Touchpad, backlit keyboard
Features Multi-finger touchpad

Telecom
3G Mobile Broadband Yes
Modem Wireless cellular modem
Max Transfer Rate 7.2 Mbps

Networking
Networking Network adapter
Wireless LAN Supported Yes
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.1 EDR
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.1

Expansion / Connectivity
Expansion Slots Total (Free) 2 ( 0 ) x memory ¦ 1 ( 1 ) x ExpressCard/34
Interfaces 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x headphones - output - mini-phone stereo 3.5 mm ¦ 1 x microphone - input - mini-phone 3.5mm ¦ 3 x Hi-Speed USB - 4 PIN USB Type A ¦ 1 x display / video - VGA output - 15 pin HD D-Sub (HD-15)

Power
Power Device External

Battery
Technology 6-cell Lithium Ion
Installed Qty 1
Run Time (Up To) 3.5 hour(s)

Operating System / Software
OS Provided Microsoft Windows 7 Professional 64-bit Edition / XP Professional downgrade
OS Preinstalled Windows 7
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software VAIO Update, McAfee AntiVirus (60 days trial), VAIO Care, Microsoft Internet Explorer 8.0, VAIO Gate, Norton Online Backup (Trial), VAIO Transfer Support, Google Chrome, VAIO Smart Network, Adobe Photoshop Elements 8.0, Adobe Premiere Elements 8.0, Adobe Reader 9, Microsoft Office 2010 Starter

Environmental Standards
ENERGY STAR Qualified Yes

Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years

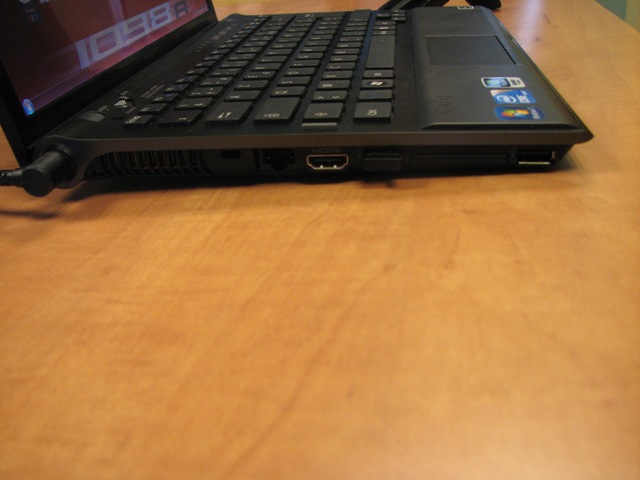

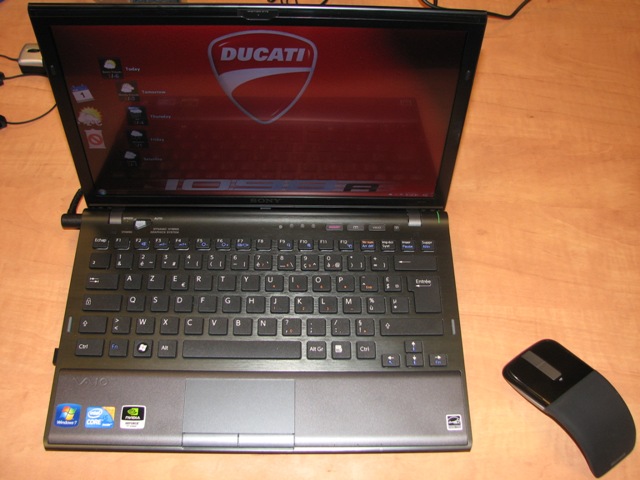

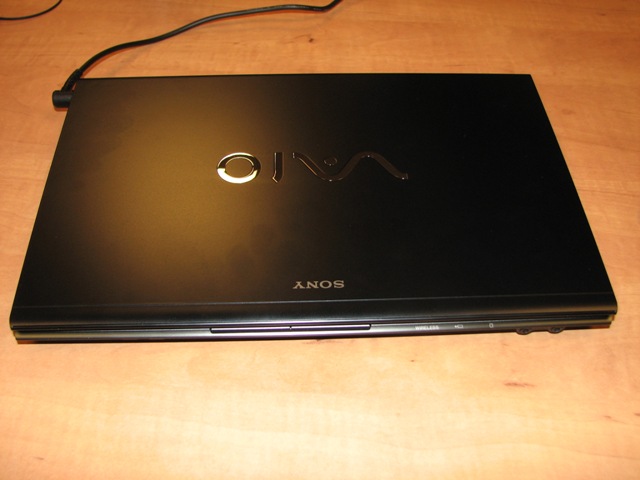

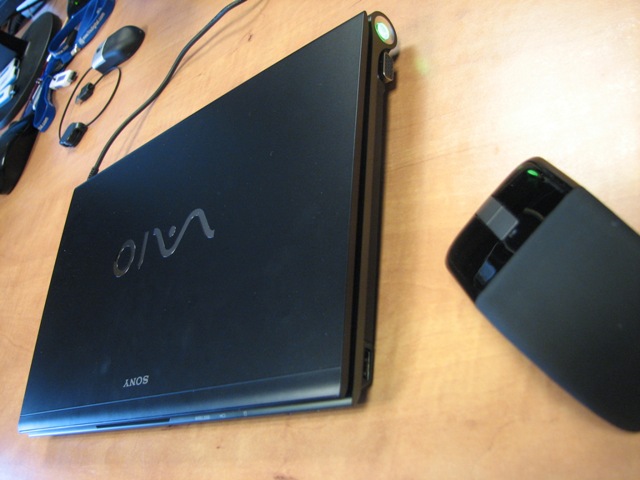

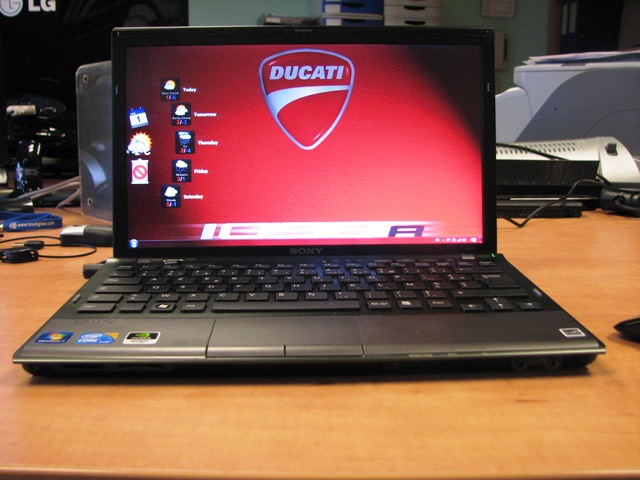

I put also some photos of mine



How do you like that new Microsoft Arc Mouse?

I notice you have an HDD, does the eject button above the keyboard do anything then?



The title of your thread has been changed. This section of the board is not for official owners' threads. Your model is no different than the other many Z models in the official Z owners' thread.



Hey and thank you!First of all I don't have a eject button instead mine has like so:ASSIST,split screen,VAIO and presentation button i have no ideea what kind of buttons have the other models.
The Microsoft Arc Touch is great!it's a bit hard in games and clicking because te right click button and the left click button they have very low action range,it's very confortable and the scroll function is fantastic it makes you feel that is a real scrool weel.The speed is very good!



Ok sorry for this i just wanted to make a thread for this model of Z



Oh interesting regarding the buttons. Mine with a disc drive has Assist, Split Screen, VAIO, and eject.

I'm glad you like the mouse, I played with it in the store and it was kind of interesting. I didn't like how you have to use a dongle though. Do you have any issues with disconnect? My bluetooth mouse disconnects from time to time and it takes a few seconds to "wake back up>"



No i didn't had any problems with him no disconnection it's good and smooth and i forgot to tell you that it's very precises
What model do you have?



I got Apple's Magic Mouse! My uncle found a used one for $8!!!

I found the extracted boot camp drivers and am able to get scrolling to work on Windows 7. Although the scroll is quite sensitive (it covers the whole surface of the mouse) I accidentally scroll all the time and that gets annoying.



i didn't like also the mouse from apple when i tested but this one from microsoft it looks good and it works good also,i've seen that microsoft it's preparing to lunch another touch mouse but that one doesn't look so good
What model of VAIO Z do you have?



I have the Z1390 CTO outfitted with the various things you see in my signature. The only thing I didn't upgrade was to a larger SSD since the computer was already so expensive and space could be upgraded later on in the form of memory cards or express cards. I also did not add the internal 3G since I just tether with my phone.

We don't have an HDD version in the USA btw.



There is no user with this exactly model?
