    Sony VAIO Z2 - SATA II vs SATA III

    Discussion in 'VAIO / Sony' started by ZoinksS2k, Aug 29, 2011.

  1. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    This thread is for current-gen Sony VAIO Z2's ONLY.

    UPDATE: 9/2/2011

    Looks like most markets that sell SATAII setups in preconfigured Z2's also have options for SATAIII's in Configure to Order models.

    Confirmed countries with Gen3 SSD's:
    • US
    • Canada
    • Japan
    • UK (£30 option)

    Countries shipping Gen2 SSD's
    • Germany (via TechData)
    • Malaysia
    • Singapore
    • Hong Kong
    • Indonesia

    There have been reports about different SSD drives being shipped in different regions. The concern here is that the SATA II SSD's have lower performance characteristics that their SATA III counterparts.

    US Models have what members are calling Gen3 SSD's. They come in the following flavors:

    128GB = 2x 64GB on one sammich
    256GB = 2x 128GB on one sammich
    512GB = 2x 256GB on one sammich

    People in Europe are reporting that they have the slower SATA II parts, these are being called Gen2 SSD's.

    I would like to get a running tally of who's got what drive.

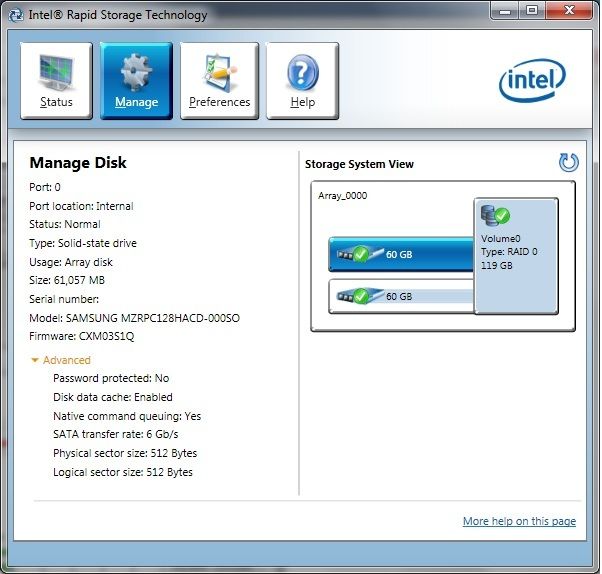

    Easiest way to determine if you have a SATAII/III is via the Intel Control Panel:

    [​IMG]

    If your SATA Transfer rate is 6Gb/s, you have SATA III and a Gen3 SSD
    If your SATA Transfer rate is 3Gb/s, you have SATA II and a Gen2 SSD

    Please list the following:

    Country of Purchase:
    Retailer Name:
    Purchase Date:
    Model Number: (full number, pls)
    SSD Size:
    SATA Type:

    Here's the data from the two Z2's I've had:

    Country of Purchase: USA
    Retailer Name: Sony Style Store (Dallas)
    Purchase Date: 8/11
    Model Number: Sony Z VPCZ21SHX/X
    SSD Size: 512GB (2x256)
    SATA Type: SATA III

    Country of Purchase: USA
    Retailer Name: Sony Style Store (Dallas)
    Purchase Date: 8/11
    Model Number: VPCZ21AGX/B
    SSD Size: 128GB (2x64)
    SATA Type: SATA III

  2. ota-con

    ota-con Notebook Deity

    Reputations:
    205
    Messages:
    1,240
    Likes Received:
    4
    Trophy Points:
    56
    Country of Purchase: Hong Kong
    Retailer Name: Sony Style Store Hong Kong
    Purchase Date: Picked up on 10th August
    Model Number: VPCZ217GG
    SSD Size: 256GB (2x128)
    SATA Type: SATA II

  3. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Thanks sir

  4. fhsieh

    fhsieh Notebook Consultant

    Reputations:
    69
    Messages:
    134
    Likes Received:
    1
    Trophy Points:
    31
    Country of Purchase: Japan
    Retailer Name: SonyStyle Online Japan
    Purchase Date: 8/4
    Model Number: VPCZ21AJ
    SSD Size: 512GB (2x256)
    SATA Type: SATA III

    Here in Japan, the standard retail models (pre-built and sold at major electronics shop) ship with the 128GB (2x64) SATA II drive. But all orders from SonyStyle (pre-configured units and CTO) ship with the SATA III drives (128GB, 256GB, and 512GB).

  5. anytimer

    anytimer Notebook Virtuoso

    Reputations:
    302
    Messages:
    2,160
    Likes Received:
    321
    Trophy Points:
    101
    Hmm.. I wouldn't mind that if they told me about it upfront, and let me choose based on either the price differential or the capacity. Hiding things like this leaves a bad taste in my mouth. (Ok, maybe not hiding, per se, but not making the buyer aware of the difference).

  6. steven_ew

    steven_ew Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    In UK sonystyle you have the option to choose. I choose 'Gen 3' and have 6Gbs

  7. Greyt

    Greyt Notebook Enthusiast

    Reputations:
    0
    Messages:
    28
    Likes Received:
    0
    Trophy Points:
    5
    Yep, same here. In the UK and specced Gen 3 (around $30 premium on a 256GB SSD) and have 6Gbs.

  8. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Interesting.

    I get leaving value-based models with the Gen2's, but poor ota-con has a higher-end flavor. I'd be fairly agitated if this happened to me.

    To my knowledge, Sony isn't advertising the Z2's as SATA3 capable, so I don't think they are doing anything insidious or anything. If I were buying one, I'd be happy to pay $50 extra for the guarantee of having SATA3.

    Hopefully we can figure out what Sony's distribution plans are for these drives so people can do better than rolling dice to get the faster storage.

  9. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    That's how you do it. Glad they have the option in the UK.

    I'd tell anyone debating the upgrade to do it without hesitation.

  10. Firestone

    Firestone Notebook Consultant

    Reputations:
    78
    Messages:
    221
    Likes Received:
    1
    Trophy Points:
    31
    Thanks. I cancelled my order request already

    No point paying 4k and getting sub par equipment

  11. ota-con

    ota-con Notebook Deity

    Reputations:
    205
    Messages:
    1,240
    Likes Received:
    4
    Trophy Points:
    56
    Yup...kinda sucks...that I am stuck with gen 2. I would have gladly paid more for the gen 3. I guess now I have a good reason to buy the next refresh if it comes with gen 3.

  12. Malgrave

    Malgrave Notebook Consultant

    Reputations:
    18
    Messages:
    170
    Likes Received:
    1
    Trophy Points:
    31
    Country of Purchase: Canada
    Retailer Name: sonystyle.ca
    Purchase Date: 23 July 2011
    Model Number: (full number, pls): CA-VPCZ2190S-LBOM
    SSD Size: 256 GB (2 x 128 GB)
    SATA Type: SATA III

  13. goldentreesang

    goldentreesang Notebook Evangelist

    Reputations:
    48
    Messages:
    594
    Likes Received:
    0
    Trophy Points:
    30
    USA CTO, gen3

  14. quigley0

    quigley0 Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Same here.

  15. Ung_Kung

    Ung_Kung Notebook Evangelist

    Reputations:
    15
    Messages:
    332
    Likes Received:
    1
    Trophy Points:
    31
    US CTO Gen3 also

  16. SirRobin

    SirRobin Notebook Evangelist

    Reputations:
    62
    Messages:
    611
    Likes Received:
    4
    Trophy Points:
    31
    Country of Purchase: Germany
    Retailer Name: TechData, German Distributor
    Purchase Date: 12th August
    Model Number: VPCZ21V9E/B
    SSD Size: 256GB (2x128)
    SATA Type: SATA II

  17. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Where are you and which model did you consider?

    Thanks to all who posted thus far. OP update in a few.

  18. Firestone

    Firestone Notebook Consultant

    Reputations:
    78
    Messages:
    221
    Likes Received:
    1
    Trophy Points:
    31
    I am from Singapore, and there is only 1 model - which is equivalent to the top end signature model from USA (except it's without wwan and it's a 2nd gen ssd)

    the model should be the same as ota-con

  19. Tarantula

    Tarantula Notebook Consultant

    Reputations:
    11
    Messages:
    106
    Likes Received:
    0
    Trophy Points:
    30
    I'm probably speaking for all Singaporeans, since we only have 1 lousy model on sale. :D

    Country of Purchase: Singapore
    Retailer Name: Sony Style (official retailer)
    Purchase Date: August 6th
    Model Number: VPCZ217GG/X
    SSD Size: 256GB (2x128GB)
    SATA Type: SATA II

    To be honest, I would have gladly paid $100 more for a gen III SSD. As it stands, we're stuck with what we're offered.

  20. Stringfellow

    Stringfellow Notebook Enthusiast

    Reputations:
    5
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    And I'm probably speaking for all Malaysians, since only one model is available for sale.

    Country of purchase: Malaysia
    Retailer name: SonyStyle
    Purchase date: August 28th
    Model number: VPCZ21GG/X
    SSD size: 256GB (2x128GB)
    SATA Type: SATA II

    Speedtested slower than the OCZ Vertex III I have in my souped up 2011 Mac Mini, and definitely slower than my Pegasus Thunderbolt RAID Storage. It is, however, benchmarked faster than my CTO 11" MacBook Air.

    That is in benchmarking. In practice, they are all snappy without any apparent difference between them. Unless you're into hardcore video-editing that require fast transfer speeds or using that internal storage as scratch disk, all these numbers will not mean anything to normal day-to-day usage.

  21. ins4n3h0rst

    ins4n3h0rst Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Got my Z yesterday! :D

    Country of Purchase: Germany
    Retailer Name: sony.de
    Purchase Date: 15th August
    Model Number: VPCZ21C5E
    SSD Size: 256GB
    SATA Type: Sata III

  22. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Congrats, did you have to apply any upgrade to get the g3 ssd or was it bundled?

  23. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    If Sony is reasonable, the Z22 should be the end of 2nd gen. SSDs.

  24. ins4n3h0rst

    ins4n3h0rst Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Yes, there's an option to choose between Gen2 and Gen3.
    G3 costs about 25€ (~ 35$) more than G2 ;)

  25. Max Portis

    Max Portis Notebook Enthusiast

    Reputations:
    0
    Messages:
    35
    Likes Received:
    0
    Trophy Points:
    15
    If in Germany you order straight through Sony, you get to choose between 2nd and 3rd gen SATA. 3rd gen is preselected and 20€ more expensive than 2nd gen.

    Fun fact: You have to pay 15€ extra for the backlit keyboard.

  26. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Interesting. I wonder if, minus currency conversion, maxed out systems cost the same. Like if you can opt out of more options in Germany and the UK

  27. ins4n3h0rst

    ins4n3h0rst Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    They won't cost the same!

    I payed ~2500€ (~3500$) for the following configuration:
    -i7-2620M
    -8 GB RAM
    -256 GB Gen3
    -Backlit keyboard
    -1600x900 display
    -No WAN
    -Win 7 Pro

    If you buy from sony.com, a similar system costs ~2600$, but WITH the PMD (which is at least 440€ extra in Europe)!
    So it's really expensive her!

  28. Tarantula

    Tarantula Notebook Consultant

    Reputations:
    11
    Messages:
    106
    Likes Received:
    0
    Trophy Points:
    30
    I wouldn't want to post this in a new thread, since it pretty much concerns the very same topic Zoinks has brought up.

    I'm a tad annoyed that I'm getting a gen II SSD as opposed to the faster models other markets are getting. Is there anyway I can bring this up with Sony? I understand that I should have done my homework before I purchased the Z; I'm just seeing if there's anyway I can get this model replaced with a newer (future) Z configuration that comes with a gen III SSD. I don't mind paying a bit more, I just want to ensure I'm getting the best, especially since I paid $4k for this baby.

    Thanks in advance. :)

  29. antonyunus

    antonyunus Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    0
    Trophy Points:
    15
    Country of Purchase: Indonesia
    Retailer Name: Sony Center, Grand Indonesia
    Purchase Date: 22nd August
    Model Number: VPCZ217GG/X
    SSD Size: 256GB (2x128)
    SATA Type: SATA II

  30. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    Seems like the markets that have the gen2's also have options in CTO for the the faster g3's. I think it is buyers beware on preconfigs, but you might call to see if they'll let you swap it or something. Doubtful tho

  31. lovelaptops

    lovelaptops MY FRIENDS CALL ME JEFF!

    Reputations:
    1,208
    Messages:
    3,600
    Likes Received:
    107
    Trophy Points:
    131
    Just curious, have you contacted Sony to see if they would do something for you? You can't be much past the 30 day return date, though I guess you are past it. Saying you have a good reason to buy the next refresh - unless you have money to burn, that's going to be a very expensive way to get a $35 upgrade. Maybe Sony didn't advertise falsely, but this is certainly in a gray area. Why in the world would they offer it both ways? Is there a rational reason to choose the SATA II for such a tiny cost difference?

  32. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    Sure, they're Sony.

  33. WilliamG

    WilliamG Notebook Deity

    Reputations:
    629
    Messages:
    1,421
    Likes Received:
    6
    Trophy Points:
    56
    Just got a brand new Sony VAIO VPC-Z214GX/B 13.1-Inch Laptop (Black) from Amazon.com today. Arrived not 20 minutes ago. SATA II, sadly (64GBx2).

  34. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    Strange how inconsistent the company is in selecting parts. Perhaps the Z22s will all be SATA III.

    Or, perhaps not.

  35. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    well... 64GB drives are normally filling a quarter of avalible controller channels, making SATAIII very hard to justify, even in RAID0...

  36. Palda

    Palda Notebook Consultant

    Reputations:
    54
    Messages:
    177
    Likes Received:
    0
    Trophy Points:
    30
    Country of Purchase: Germany
    Retailer Name: Sonyonline
    Purchase Date: 16.8.2011
    Model Number: VPCZ21C5E (CTO)
    SSD Size: 256GB
    SATA Type: SATA III - Gen III - 6Gb/s

  37. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    Not when they're selling the world's most expensive production laptop. Besides, as other readers have noted, some but not all of the Z21s with a 2x128GB configuration are also SATA-II.

  38. rmcx

    rmcx Notebook Evangelist

    Reputations:
    29
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    Minor sidetrack: Fully loaded MacBook Pro 15's and 17's are more expensive.

  39. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    I guess he meant starting price?

    Though some Clevos (X7200, in particular) and the Alienware m18x may give it a run :p

  40. rmcx

    rmcx Notebook Evangelist

    Reputations:
    29
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    The 17" MacBook starts almost $500 higher than the base Z2, at least here in the States.

    You get a better processor, a larger but SLOOWER hdd, etc.

  41. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    ah, I see. I never bought a mac, lol. Well, except for a poor old 2009 era MacBook white that was used as an iTunes machine for a while, before I went to Zune and never looked back. Except for AT&T not having any stinkin WP7 phones within 50km^2 when my company gave me a 4 hr deadline for buying a new phone, so I got an Atrix instead :(

  42. jhjun37

    jhjun37 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I have a question.
    How about Vaio VPC-z212gx/b selled in amazon?
    Is it SATAII?
    Is there anyone who knows the answer exactly?

  43. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    I meant similarly configured. A fully loaded Z2 is about $4500 while a similar Macbook 17 with 512GB SSD, 8GB RAM, etc. is about $4100.

  44. rmcx

    rmcx Notebook Evangelist

    Reputations:
    29
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    Hmmm. I went through and priced out fully loaded configs for each of them (not counting software packages) and the 15 and 17 were still more expensive.

    Are you doing US prices??? (BTW, Sony seems to have a roughly $300 "sale" going on now and I guess without that, they're closer to each other.)

  45. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
  46. rmcx

    rmcx Notebook Evangelist

    Reputations:
    29
    Messages:
    529
    Likes Received:
    0
    Trophy Points:
    30
    OK, right. I didn't do the Signature series, just a CTO.

    I looked at the Signature series in a Sony store and asked the guy what made it worth nearly $500 more than an identically loaded CTO. He couldn't actually give me a straight answer. We ultimately agreed that the only benefit was that he would give me a 48 month payout schedule if I wanted.

    I opted for a somewhat less configured CTO (see signature, below).

  47. TraderJoe

    TraderJoe Notebook Consultant

    Reputations:
    24
    Messages:
    130
    Likes Received:
    0
    Trophy Points:
    30
    Just received mine today:

    Country of Purchase: USA
    Retailer Name: Microsoft Store (Microsoft Signature Image)
    Purchase Date: 9/23/2011
    Model Number: (full number, pls) VPCZ21BGX
    SSD Size: 256
    SATA Type: Type III - 6 Gb/sec

    And so far, I'm lovin it.....

  48. balan555

    balan555 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I bought Z2190S series laptop last week. Could not make the Vaio button works. All other Assist and web short cut button works perfect. There is no option to make Vaio Button work. Also I could not make the Auto lcd brightness light control work. When enabled it goes back to default once the system is logged off. Any one can help to resolve?? Contacted Sony esupport and installed Notebook utility it did not fix the issue

  49. dariusf

    dariusf Notebook Consultant

    Reputations:
    0
    Messages:
    227
    Likes Received:
    14
    Trophy Points:
    31
    Just got my VPCZ21BGX
    256GB = 2x 128GBPC
    SATA Type: Type III - 6 Gb/sec

  50. Louche

    Louche Purveyor of Utopias

    Reputations:
    92
    Messages:
    894
    Likes Received:
    0
    Trophy Points:
    30
    Why do I read reviews? To learn stuff. From Wired:

    Rare Book | Product Reviews | Wired.com

 Next page →
