    Sony Vaio disassembly guides and instructions

    Discussion in 'VAIO / Sony' started by cj2600, Nov 5, 2008.

  1. cj2600

    cj2600 Notebook Geek

    Reputations:
    52
    Messages:
    93
    Likes Received:
    1
    Trophy Points:
    15
    cj2600, Nov 5, 2008
    #1
  2. ZeldaFreak

    ZeldaFreak Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Great. Very useful thread. Thank you!

    *Waiting anxiously for the Vaio Z disassembly guide*

    ZeldaFreak, Nov 5, 2008
    #2
  3. WILLY S

    WILLY S I was saying boo-urns

    Reputations:
    478
    Messages:
    1,784
    Likes Received:
    0
    Trophy Points:
    55
    WOW you have alot of websites cj2600 :eek:

    You should also post a link in the sticky of usefull and popular threads so more people can find this.

    +repped

    WILLY S, Nov 5, 2008
    #3
  4. cj2600

    cj2600 Notebook Geek

    Reputations:
    52
    Messages:
    93
    Likes Received:
    1
    Trophy Points:
    15
    cj2600, Nov 5, 2008
    #4
  5. SPEEDwithJJ

    SPEEDwithJJ NBR Super Idiot

    Reputations:
    865
    Messages:
    3,499
    Likes Received:
    1
    Trophy Points:
    106
    Those are good and useful links. Thanks to all for taking the time & effort to search and post them.

    SPEEDwithJJ, Nov 5, 2008
    #5
  6. george01

    george01 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I have a PCG-FX215 with the same problem do you have any info. on that model.
    Thanks
    George01
    [email protected]

    george01, Nov 6, 2008
    #6
  7. cj2600

    cj2600 Notebook Geek

    Reputations:
    52
    Messages:
    93
    Likes Received:
    1
    Trophy Points:
    15
    cj2600, Nov 6, 2008
    #7
  8. tc2007

    tc2007 Notebook Consultant

    Reputations:
    120
    Messages:
    139
    Likes Received:
    0
    Trophy Points:
    30
    home.comcast.net/~nw_systems/VgnC.pdf

    For VGN-C Series

    tc2007, Nov 7, 2008
    #8
  9. shenofjo

    shenofjo Notebook Consultant

    Reputations:
    67
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    30
    i would like to know how to replace the cpu for sr series. my plan is on sig

    shenofjo, Nov 8, 2008
    #9
  10. cj2600

    cj2600 Notebook Geek

    Reputations:
    52
    Messages:
    93
    Likes Received:
    1
    Trophy Points:
    15
    Here are links to PDF manuals for Sony Vaio VGN series laptops.

    VGN-A ( http://home.comcast.net/~nw_systems/vgnA.pdf) ,
    VGN-AR ( http://home.comcast.net/~nw_systems/VGN-AR.pdf) ,
    VGN-AX ( http://home.comcast.net/~nw_systems/vgnX505.pdf) ,
    VGN-B ( http://home.comcast.net/~nw_systems/vgnB.pdf) ,
    VGN-BX ( http://home.comcast.net/~nw_systems/vgnBX.pdf) ,
    VGN-C ( http://home.comcast.net/~nw_systems/VgnC.pdf) ,
    VGN-FE ( http://home.comcast.net/~nw_systems/vgnFE.pdf) ,
    VGN-FJ ( http://home.comcast.net/~nw_systems/vgnFJ.pdf) ,
    VGN-FS ( http://home.comcast.net/~nw_systems/vgnFS.pdf) ,
    VGN-N ( http://home.comcast.net/~nw_systems/vgnN.pdf) ,
    VGN-S ( http://home.comcast.net/~nw_systems/vgnS.pdf) ,
    VGN-SZ ( http://home.comcast.net/~nw_systems/vgnSZ.pdf) ,
    VGN-T ( http://home.comcast.net/~nw_systems/vgnT.pdf) ,
    VGN-TX ( http://home.comcast.net/~nw_systems/vgnTX.pdf) ,
    VGN-U ( http://home.comcast.net/~nw_systems/vgn-U.pdf) ,
    VGN-UX ( http://home.comcast.net/~nw_systems/vgn-UX.pdf)

    :cool:

    cj2600, Nov 8, 2008
    #10
    smkudelko likes this.
  11. ScuderiaConchiglia

    ScuderiaConchiglia NBR Vaio Team Curmudgeon

    Reputations:
    2,674
    Messages:
    6,039
    Likes Received:
    0
    Trophy Points:
    205
    Any chance for an FZ model version?

    Gary

    ScuderiaConchiglia, Nov 9, 2008
    #11
  12. cj2600

    cj2600 Notebook Geek

    Reputations:
    52
    Messages:
    93
    Likes Received:
    1
    Trophy Points:
    15
    I linked to Sony Vaio VGN-FZ220 disassembly guide in the first post but not sure where to get the official service manual.

    cj2600, Nov 10, 2008
    #12
  13. ScuderiaConchiglia

    ScuderiaConchiglia NBR Vaio Team Curmudgeon

    Reputations:
    2,674
    Messages:
    6,039
    Likes Received:
    0
    Trophy Points:
    205
    I saw the original link. I was just hoping you had one to the "official" maual.

    Thanks,
    Gary

    ScuderiaConchiglia, Nov 10, 2008
    #13
  14. pardes3

    pardes3 Notebook Evangelist

    Reputations:
    32
    Messages:
    355
    Likes Received:
    0
    Trophy Points:
    30
    anyone have the official sony Z series service manual?

    pardes3, Jan 14, 2009
    #14
  15. degull

    degull Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hi everyone. I'm looking to mod my PCG-TRA3P. I've looked hi and low for a service or parts manual. Anyone know where I can find one?

    degull, Jan 15, 2009
    #15
  16. The Invisible Man

    The Invisible Man Notebook Geek

    Reputations:
    25
    Messages:
    78
    Likes Received:
    0
    Trophy Points:
    15
    I need a guide to replace the palm rest on a Sony Vaio AR series, can anyone help ?

    The Invisible Man, Jan 15, 2009
    #16
  17. ScuderiaConchiglia

    ScuderiaConchiglia NBR Vaio Team Curmudgeon

    Reputations:
    2,674
    Messages:
    6,039
    Likes Received:
    0
    Trophy Points:
    205
    Did you look at the AR disassembly guide?

    Gary

    ScuderiaConchiglia, Jan 15, 2009
    #17
  18. malinoisman

    malinoisman Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    lost my manual for my sony vgn s150 series laptop...I would like to upgrade the memory from 512 to 1 gb. Can someone direct me to where I can purchase the memory...I researched it and it says i need Microdimm ddr 333 memory...
    dont know if it is 200 pin or not...can someone please aid me....

    malinoisman, Jan 16, 2009
    #18
  19. Turbo9

    Turbo9 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Is there a AR disassemble thread on this forum?

    Turbo9, Feb 19, 2009
    #19
  20. NHT

    NHT Notebook Evangelist

    Reputations:
    18
    Messages:
    525
    Likes Received:
    1
    Trophy Points:
    31
    NHT, Feb 19, 2009
    #20
  21. levicki

    levicki Notebook Guru

    Reputations:
    27
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    Any service manuals for VGN-FW series?

    levicki, Feb 20, 2009
    #21
  22. Turbo9

    Turbo9 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Great, maybe the moderator should post a new thread fro the AR series, and add this pdf to it? Just an observation

    Turbo9, Feb 20, 2009
    #22
  23. chibits

    chibits Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    anyone can find a guide for the CR series? particularly how to upgrade the CPU. thanks

    chibits, Mar 9, 2009
    #23
  24. SSDVaio

    SSDVaio Notebook Guru

    Reputations:
    4
    Messages:
    59
    Likes Received:
    0
    Trophy Points:
    15
    SSDVaio, Mar 9, 2009
    #24
  25. Peto

    Peto Notebook Enthusiast

    Reputations:
    -11
    Messages:
    40
    Likes Received:
    0
    Trophy Points:
    0
    People
    Aand What about AW Series ???

    Peto, Mar 9, 2009
    #25
  26. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    It is MicroDIMM DDR333 172-pin. You can buy some on ebay.
    http://shop.ebay.com/?_from=R40&_trksid=m38&_nkw=microdimm&_sacat=See-All-Categories
    http://www.ewiz.com/detail.php?p=D27MA12G&c=pw#

    ngvuanh, Mar 9, 2009
    #26
  27. google123

    google123 Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    2
    Trophy Points:
    6
    I would really appectiate a link for the SR series as well. Thanks!!!! :)

    google123, Apr 4, 2009
    #27
  28. claysmc

    claysmc Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks so much for doing this. I spent hours trying to find guides to disassembly my vaio. It would have been impossible without your guide.
    Again, Thanks!!!

    claysmc, Apr 18, 2009
    #28
  29. NiKoMatsu

    NiKoMatsu Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I have successfully disassembly a VAIO VGN-FW290 flawlessly.

    I wanted it open because my power cable connector was loose, probably because of an unwanted hit (that cracked the magnesium alloy support). Because I was on a hurry I couldn't make a picture guide. And because I used it on a daily basis I can't afford dissasembling it to make a step by step guide.

    If anyone want some advice or is stucked somewhere I wouldn't mind helping.

    But if you have patience you will probably figure out for yourself, there are no tricks or hidden screws. It's just reverse engineering for the assembly process.

    NiKoMatsu, Apr 22, 2009
    #29
  30. Duplicated

    Duplicated Notebook Geek

    Reputations:
    5
    Messages:
    78
    Likes Received:
    6
    Trophy Points:
    16

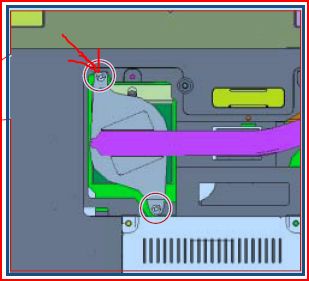

    Can I ask some quick question about how to remove heatsink from my Vaio SZ series please?

    As you can see in the picture, I can't remove that screw. I tried to apply more force on it, but it just wouldn't budge. I think the other screw underneath that one requires the same screwdriver's size right?? I can remove that one relatively easy, but not the other one

    Any help right now would be appreciate :)

    Attached Files:

    Duplicated, Jun 14, 2009
    #30
  31. reneb

    reneb Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Anyone have a VGN-TT disassembly manual? Would appreciate one, thanks.

    reneb, Jun 19, 2009
    #31
  32. qhn

    qhn Notebook User

    Reputations:
    1,654
    Messages:
    5,955
    Likes Received:
    1
    Trophy Points:
    205
    How about using the guide for the T series on the first page as reference?

    cheers ...

    qhn, Jun 21, 2009
    #32
  33. junkster10

    junkster10 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Anyone knows where to get 1 for the SR36GN series

    junkster10, Jun 22, 2009
    #33
  34. nye too

    nye too Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I'm having difficulty finding anything on the VGN-TZ models. Any ideas or have I missed a link already posted?

    It is not T series as listed. The keyboard is not removable from the top cover.

    nye too, Jun 22, 2009
    #34
  35. reneb

    reneb Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    T isn't TT, no removable keyboard, nothing else comparable...


    reneb, Jun 23, 2009
    #35
  36. yeahbr0

    yeahbr0 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    anybdy have any guise for the vgn ns series specifically on how to remove keyboard?

    yeahbr0, Jul 1, 2009
    #36
  37. coldmack

    coldmack Notebook Virtuoso

    Reputations:
    92
    Messages:
    2,539
    Likes Received:
    0
    Trophy Points:
    55
    Yeah I would like to also see a guide for the TT.

    coldmack, Jul 5, 2009
    #37
  38. qhn

    qhn Notebook User

    Reputations:
    1,654
    Messages:
    5,955
    Likes Received:
    1
    Trophy Points:
    205
    qhn, Jul 7, 2009
    #38
  39. VeEuzUKY

    VeEuzUKY Notebook Consultant

    Reputations:
    8
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    Is the CPU assembly easily accessible and do you think that the CPU is replaceable? I have a X9100 3.06GHz Extreme and would like to know if it possibly works with the FW... the problem is the heat it genefates at 44W...

    VeEuzUKY, Jul 21, 2009
    #39
  40. 02BLACKTAWS6

    02BLACKTAWS6 Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    I believe the CPU is replaceable(not soldered). PM45 chipset should work just fine with the X9100.

    02BLACKTAWS6, Jul 21, 2009
    #40
  41. VeEuzUKY

    VeEuzUKY Notebook Consultant

    Reputations:
    8
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    The PM45 is also the chipset used on the Vaio Z, correct? I only ask this because I got very confused with the issue of the FW using DDR2 vs. the Z using DDR3 while I was under the impression that both used the same Centrino 2 design and therefor the same parts...

    VeEuzUKY, Jul 21, 2009
    #41
  42. 02BLACKTAWS6

    02BLACKTAWS6 Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Yes, the PM45 supports either DDR2 or DDR3. However, the motherboard determines which is used. If your notebook came with DDR2, than that's what you must use.

    02BLACKTAWS6, Jul 21, 2009
    #42
  43. VeEuzUKY

    VeEuzUKY Notebook Consultant

    Reputations:
    8
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    So if I upgraded an FW to DDR3 or downgraded the Vaio Z to DDR2 sticks both laptops would still work properly and the motherboard upon boot would just adapt itself to 800MHz or 1066MHz operation?

    VeEuzUKY, Jul 21, 2009
    #43
  44. 02BLACKTAWS6

    02BLACKTAWS6 Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    It's my understanding that the physical connection on the motherboard is different. They are not interchangeable at all.

    02BLACKTAWS6, Jul 21, 2009
    #44
  45. VeEuzUKY

    VeEuzUKY Notebook Consultant

    Reputations:
    8
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    I see... I have been looking at many benchmarks online and the reality is for the most part, there is no performance gain between DDR2-800 and DDR3-1066... in the end, its about the same when it comes to actual real world applications usage...

    VeEuzUKY, Jul 21, 2009
    #45
  46. ZugZug

    ZugZug Notebook Evangelist

    Reputations:
    165
    Messages:
    540
    Likes Received:
    9
    Trophy Points:
    31
    DDR2 standard voltage 1.8v
    DDR3 standard voltage 1.5v

    DDR3 uses less power.

    ZugZug, Jul 21, 2009
    #46
  47. monacos

    monacos Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    monacos, Aug 14, 2009
    #47
  48. happymk

    happymk Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    is there any thread based on vgn-cr series?

    happymk, Aug 16, 2009
    #48
  49. s5156

    s5156 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi all and sundry! Does anyone have a link to the VGN-FW series service manuals?
    Many thanks in advance.

    s5156, Sep 30, 2009
    #49
  50. ajreynol

    ajreynol Notebook Virtuoso

    Reputations:
    941
    Messages:
    2,555
    Likes Received:
    0
    Trophy Points:
    55
    would love to see one for the AW.

    ajreynol, Sep 30, 2009
    #50
