    VPC Z13 Lcd Panel Upgrade BIG PROBLEM

    Discussion in 'VAIO / Sony' started by SOADam, Nov 3, 2011.

  1. urgiv

    urgiv Notebook Consultant

    Reputations:
    14
    Messages:
    203
    Likes Received:
    0
    Trophy Points:
    30
    you need LCD housing? is hinge broken? any pictures?

    contact me by My WEB

    urgiv, May 18, 2012
    #51
  2. NuShrike

    NuShrike Notebook Guru

    Reputations:
    5
    Messages:
    51
    Likes Received:
    13
    Trophy Points:
    16
    There are many LCD upgrade threads such as this.

    NuShrike, May 21, 2012
    #52
  3. LordGray

    LordGray Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5

    My Sony VAIO VPC-CW17FX fuse, F17, type 'N' was blown. I tried to solder a bridge, which tested w/ an Ohm meter, but after reassembly, I now get no image at all on the LED LCD. External monitor still works. Where do I buy a replacement fuse? I have no idea what the specs on it are. Also, any tips on how to best/safely replace it? Thanks!

    LordGray, Jun 30, 2012
    #53
  4. LordGray

    LordGray Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Please ... How do I find out the specs for fuse F17 on a Sony VAIO VPC-CW17FX motherboard? Anyone? Thanks in advance!!!

    LordGray, Jul 2, 2012
    #54
  5. mirek954

    mirek954 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    first of all welcome everyone.
    Im not nativ english speaker, so forgive me my language. My problem is very much the same like others. Ive got vaio Z (first gen) and ive lost backlight after bad dissasembly. I did exactly the same thing as urgiv did with his vaio Z. His notebook work after this fix, my is still dead. Please suggest me what could be wrong besides fuse, besides, for me this not look like fuse. urgiv solder this black little fuse to brown resistor, question is why. Maybe lcd scrreen is broken, because this fix didnt work for me.
    I am desperete to fix my vaio, its great notebook and i miss it so much. I dont wanna spend 200 usd for new motherboard and wait for this 1 month. Please help me.

    best regards

    http://img204.imageshack.us/img204/9277/snc111230123023.jpg

    mirek954, Aug 17, 2012
    #55
  6. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    mirek954, your pictures do not show up.

    ngvuanh, Aug 17, 2012
    #56
  7. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    Sorry, I am late.
    Fuse for LCD on TZ board is circled Yellow.


    ngvuanh, Aug 17, 2012
    #57
  8. mirek954

    mirek954 Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Picture of motherboard now shows up.

    mirek954, Aug 18, 2012
    #58
  9. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    I can't see it at an angle.
    You should take a straight picture of the board on both side.

    ngvuanh, Aug 20, 2012
    #59
  10. halaxi

    halaxi Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    hallo,
    i read here now more then a week. but cant find solution for my sony vaio PCG-71811m.

    I looked for F15, F16, F17, N-Fuse .... but i cant find something like this. now i made pictures an hope someone can help me to locate this fuse.

    [​IMG] [​IMG] [​IMG] [​IMG]

    halaxi, Sep 5, 2012
    #60
  11. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    Green component marked N1, designated F1.
    See attached picture, I marked with a red circle.


    ngvuanh, Sep 6, 2012
    #61
  12. halaxi

    halaxi Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    thanks a lot.
    are you sure?
    because this is assignated as F1 and i think it stand (TN) and not (N1)

    look on the picture F2 looks same F1 both marked on the picture what to do now
    can you help me

    [​IMG] [​IMG]


    what do you think about the "H" F4 Fuse on the frontside


    should i bridge F1 fuse? what you are thinking? :) :) :)

    halaxi, Sep 6, 2012
    #62
  13. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    Between F1 and F4, I prefer F4 because its rating is 1A, which is similar to fuse rating on other models.
    F1 is rating 0.25A, so it may be not the right one.

    ngvuanh, Sep 6, 2012
    #63
  14. halaxi

    halaxi Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    hello again,

    thanks a lot. for your answer.

    it was the F4 Fuse. now its working fine

    thanks again

    halaxi, Sep 22, 2012
    #64
  15. B@rt

    B@rt Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    I have a VGN-Z with the same problem by upgrading the screen (1366x787), to (1600x900), the backlit stopped working.
    Switch over to the old screen and it didn't work either.
    I had a quick look over the motherboard, and looked at the part that Urgiv pointed out.

    What fuse/resistor is dedicated to the backlit?
    I have a spare VGN-Z motherboard were I can pull the fuses of, don't like to bridge it.

    B@rt, Sep 30, 2012
    #65
  16. BirtyBassett

    BirtyBassett Guest

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0

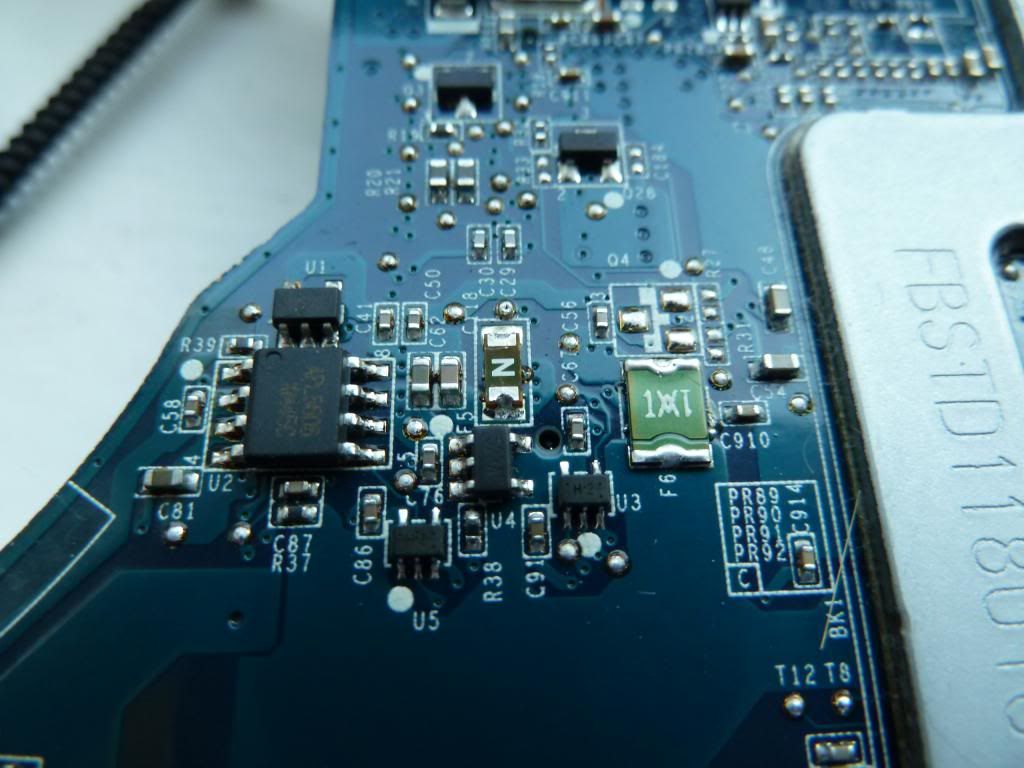

    Hi, I'm really hoping someone can help me here. My Sony Vaio VPCEE3E0E / PCG-61611M has exactly the same issue as discribed in this thread - no voltage to DC side of inverter. I believe the fuse is marked 'N' but would someone be able to confirm? The N is directly underneath the pin that is not supplying the power.

    [​IMG]

    BirtyBassett, Apr 20, 2013
    #66
  17. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66
    I can see the fuse marked F5, but I can't confirm it because I am not sure what it is for.
    You should take photos which I can estimate fuse location.
    If you have voltmeter, you can also check that fuse.

    Sent from my SGPT12 using Tapatalk 2

    ngvuanh, Apr 21, 2013
    #67
  18. BirtyBassett

    BirtyBassett Guest

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Hi, many thanks for that. Re additional photos, do you want me to take more pictures of the same area? I have a multimeter, and will check the voltages. Thanks for your help. :)

    BirtyBassett, Apr 22, 2013
    #68
  19. BirtyBassett

    BirtyBassett Guest

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    BirtyBassett, Apr 22, 2013
    #69
  20. hidric

    hidric Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    hi halaxy

    where can i find the F4 fuse on your picture ?
    i have the same problem
    thank you very much

    hidric, Oct 21, 2014
    #70
