    Vaio CW17fx Innerds Splayed....

    Discussion in 'VAIO / Sony' started by H.A.L. 9000, Dec 28, 2009.

  1. H.A.L. 9000

    H.A.L. 9000 Occam's Chainsaw

    Reputations:
    6,415
    Messages:
    5,296
    Likes Received:
    552
    Trophy Points:
    281
    Now first of all, I know some people just want to see what's really inside what they just purchased... so for everyone that has bought a Vaio VPCCW17-FX from Best Buy, this is what the insides look like. This was BY FAR the easiest laptop that I've EVER taken apart. All the bottom plate screws are the same size/length/head so all you really have to do is keep up with them when you take them out! Also this is quite a bandwidth intensive thread, but I've offloaded the load to flickr instead of NBR forums. Enjoy!

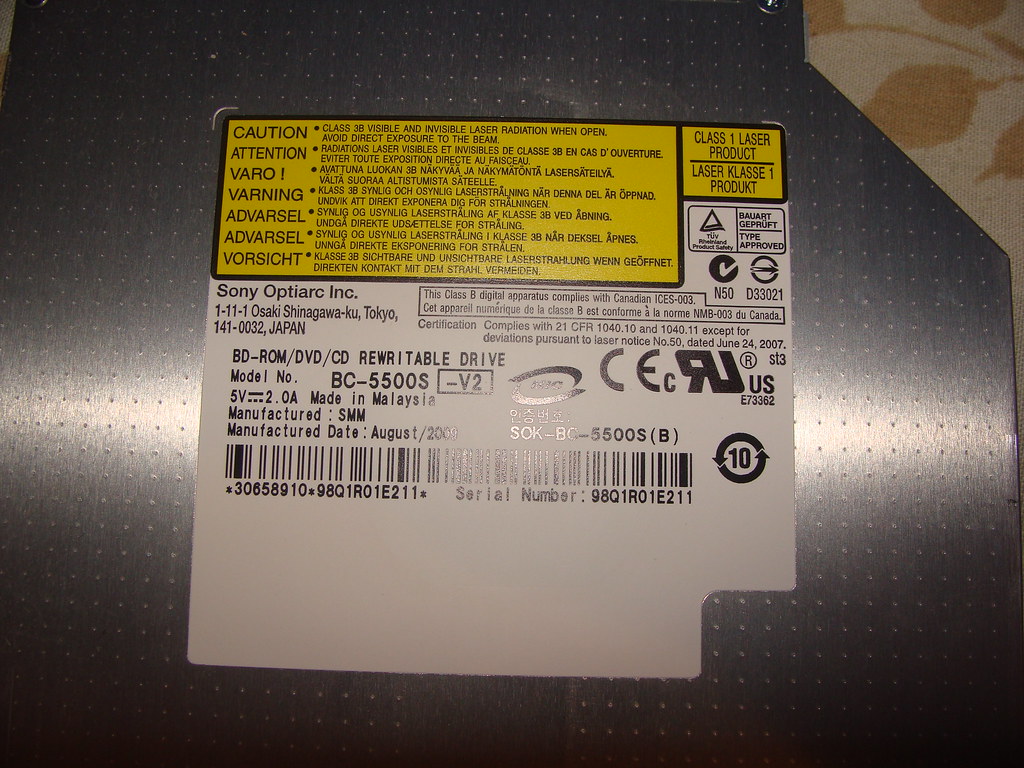

    BD-Rom Drive...
    [​IMG]

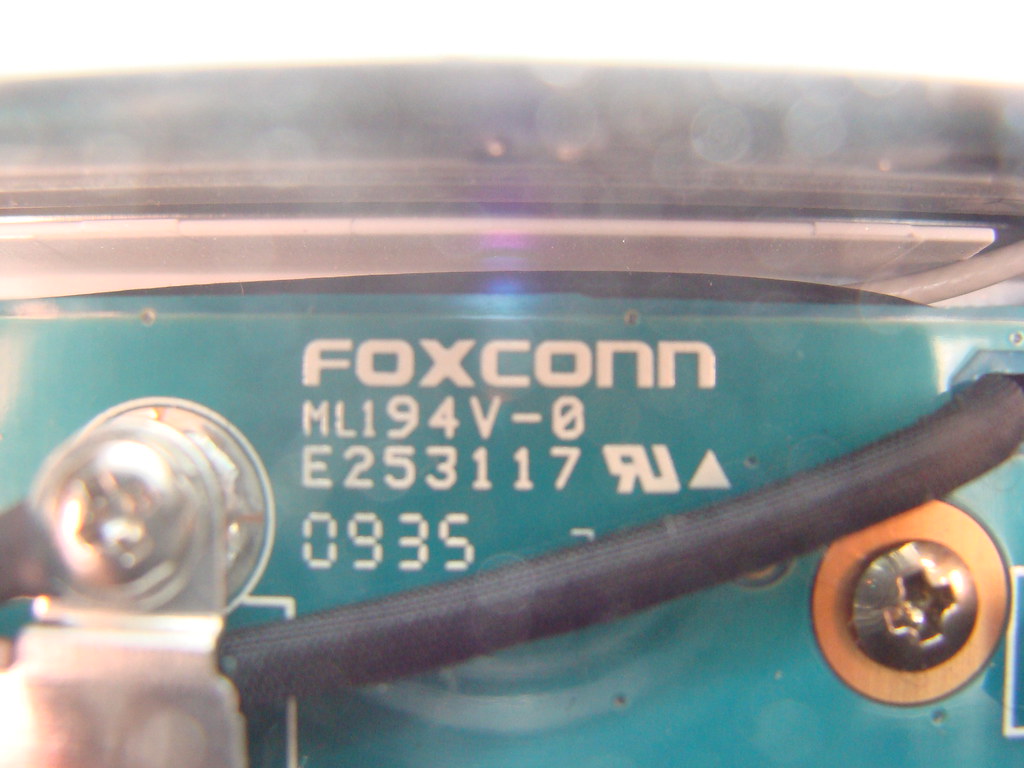

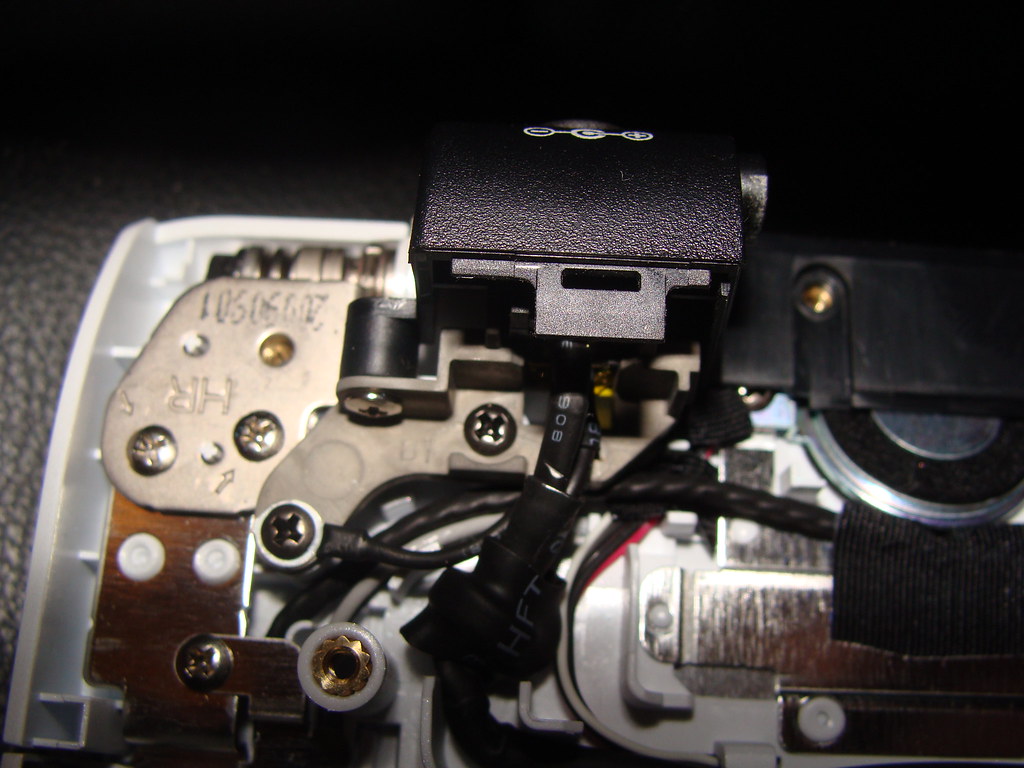

    A/C Board & Screen Hinge...
    [​IMG]

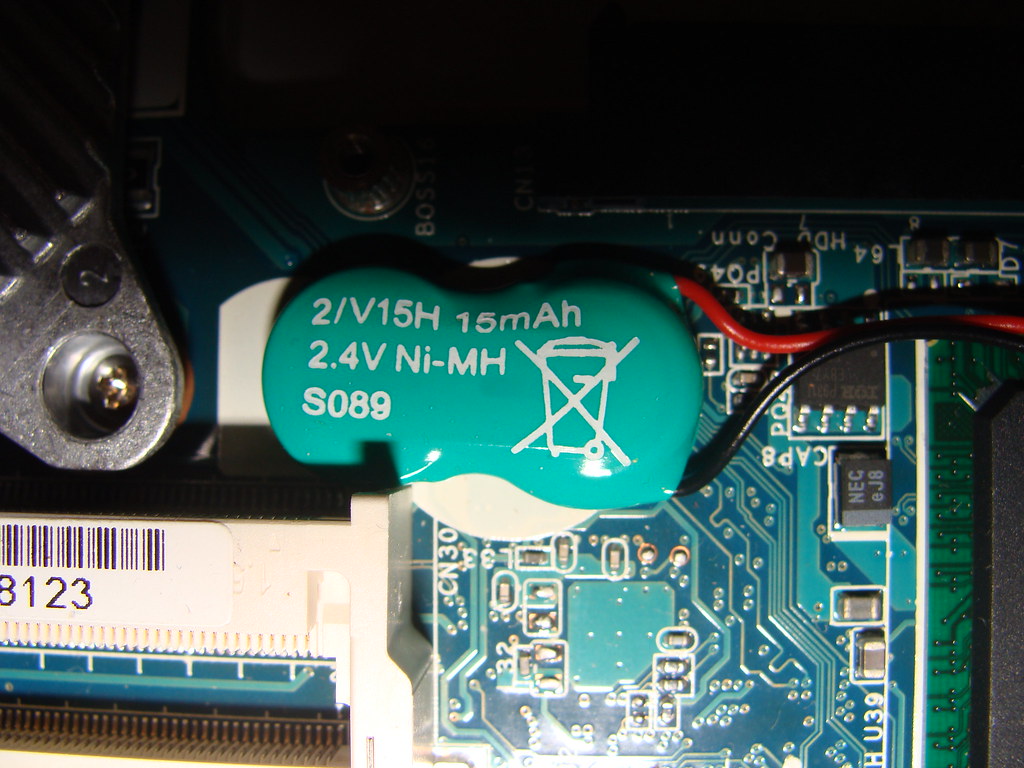

    BIOS Battery...
    [​IMG]

    MOBO Battery...
    [​IMG]

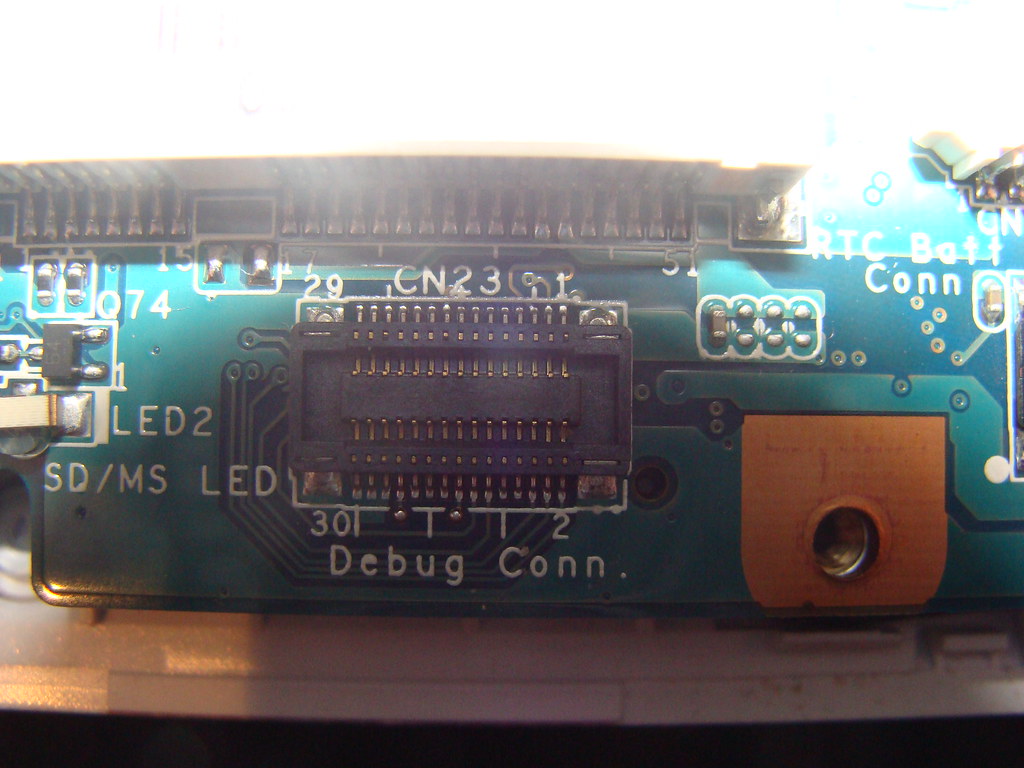

    OEM Debug Connector...
    [​IMG]

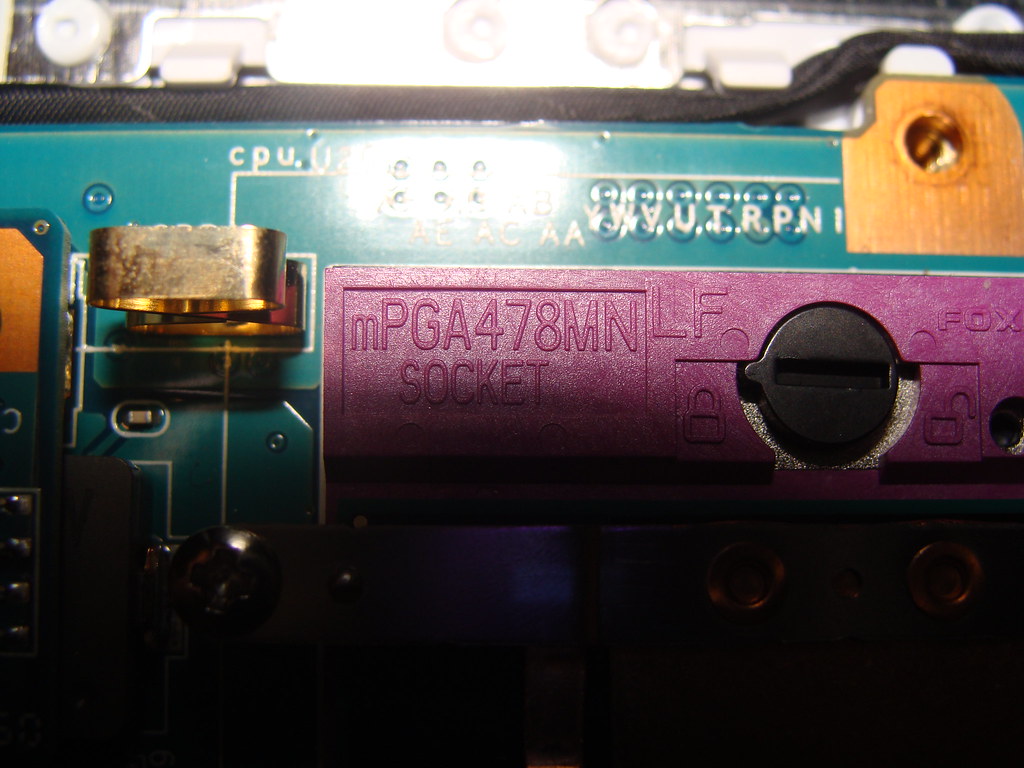

    Socket P Intel mPGA478...
    [​IMG]

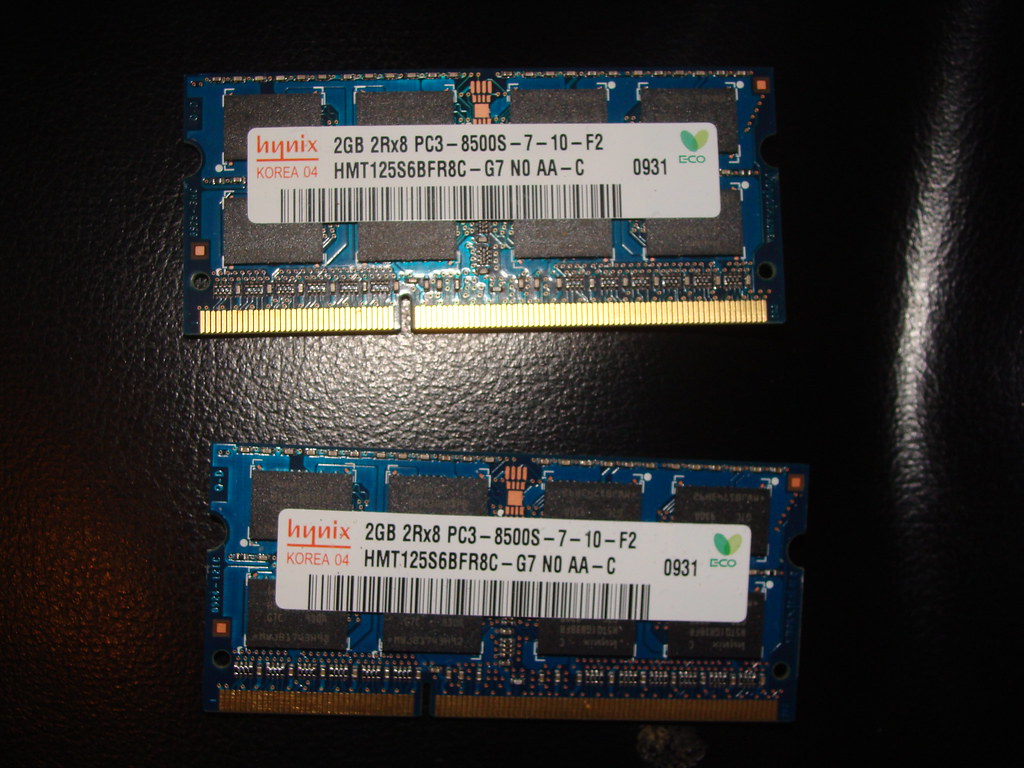

    Hynix - 2@ 2GB PC3-8500 1066Mhz...
    [​IMG]

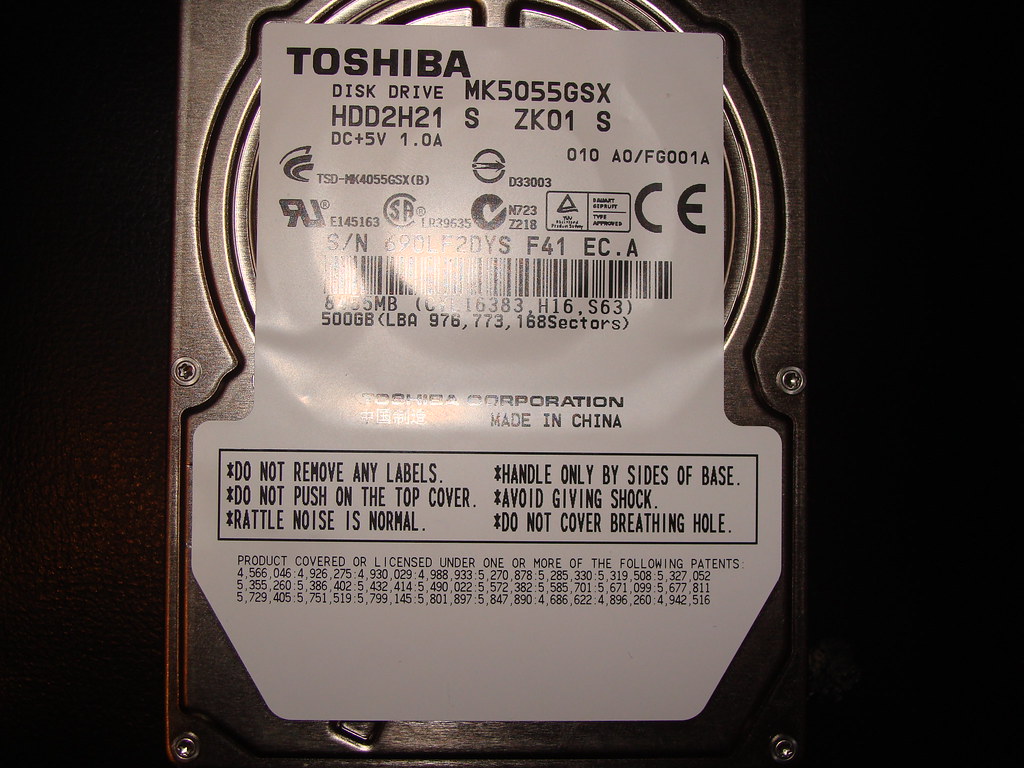

    Toshiba MK5055GSX 500GB 5400RPM...
    [​IMG]

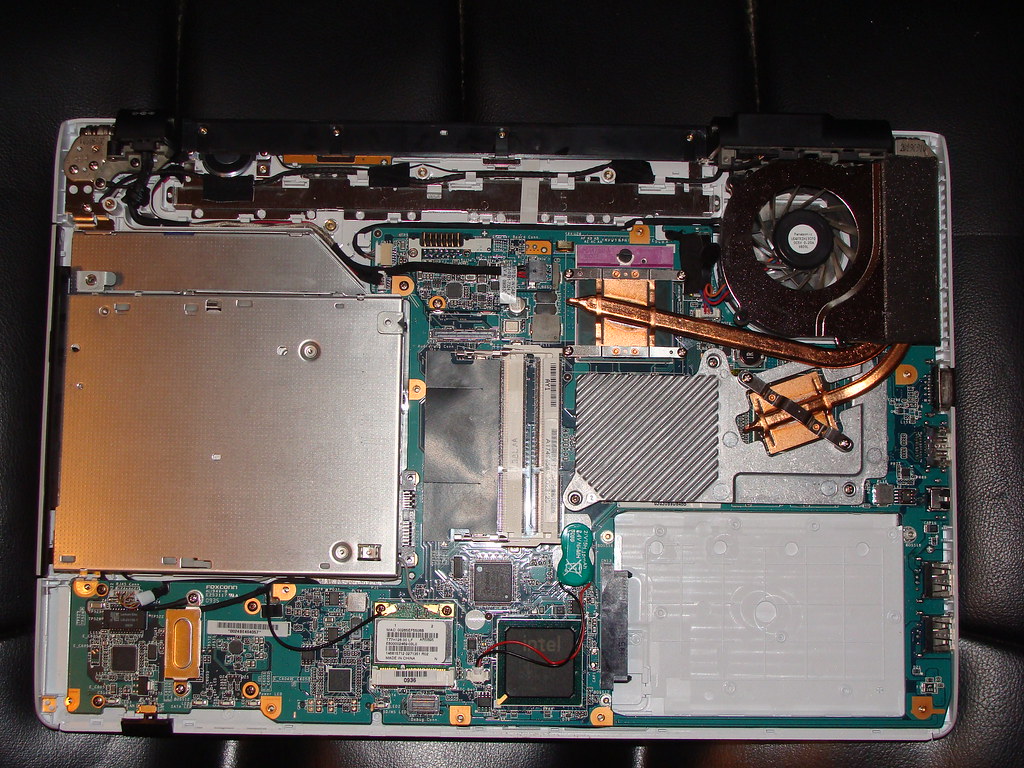

    Zoom Out of Entire Board...
    [​IMG]

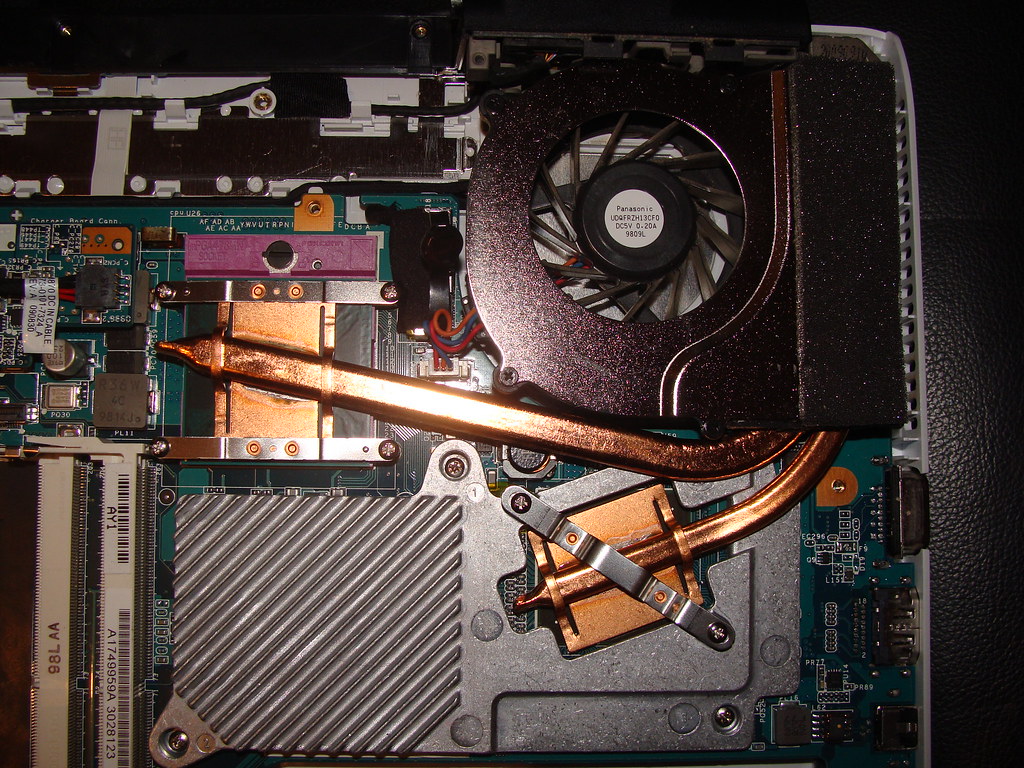

    Socket P & NVidia G210m Graphics...
    [​IMG]

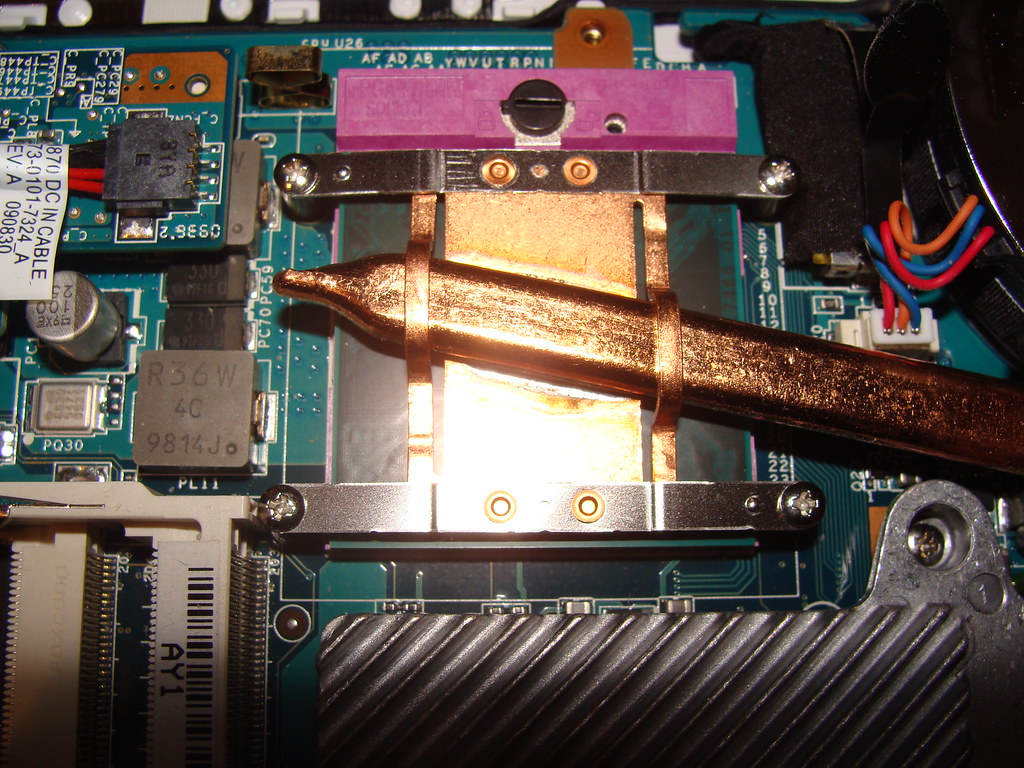

    Socket P...
    [​IMG]

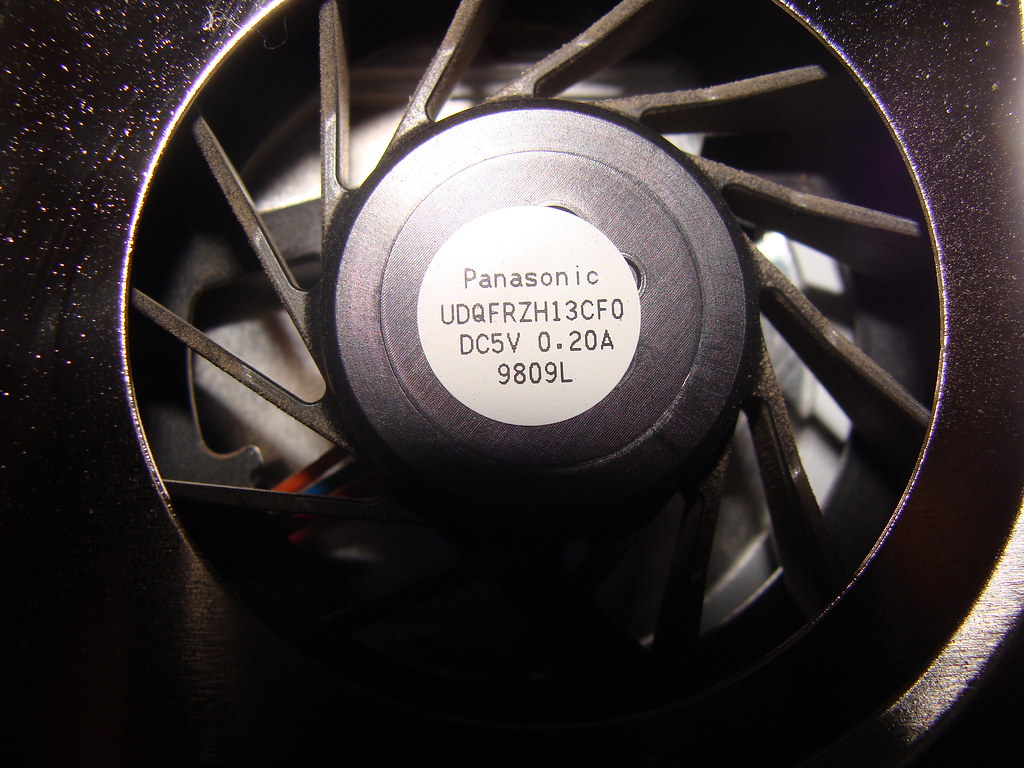

    Panasonic/Matsua Heatsink Fan Unit...
    [​IMG]

    H.A.L. 9000, Dec 28, 2009
    #1
  2. Mickbt26

    Mickbt26 Notebook Evangelist

    Reputations:
    55
    Messages:
    634
    Likes Received:
    37
    Trophy Points:
    41
    Great pics! Does the heatsink/fan for the CPU require the GPU heatsink to be removed aswell if you want to change the CPU or are they seperate underneath that panel

    Mickbt26, Jan 4, 2010
    #2
  3. BlasCobra

    BlasCobra Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    i think i'll buy this notebook, did you run some games on it? what about installing winXP or some linux?
    cheers

    BlasCobra, Feb 22, 2010
    #3
  4. H.A.L. 9000

    H.A.L. 9000 Occam's Chainsaw

    Reputations:
    6,415
    Messages:
    5,296
    Likes Received:
    552
    Trophy Points:
    281
    On mine, the GPU ane CPU are connected together on the same Heatsink, so to remove the CPU heatsink, I have to remove the GPU heatsink too.

    Yea! I've been playing Bioshock and Bioshock 2 lately with a little Modern Warfare 2 and pretty much every game I've played ran very smoothly. Linux runs great, but with Ubuntu and the NVIDIA drivers, you have to change the DSDT tables to get it to recognize the internal flat panel monitor. Upon installing the NVIDIA drivers in Ubuntu you have to start the computer up with an external monitor plugged in to fix the default monitor issue. But this notebook has absolutely no issues with Windows 7. It runs amazingly well on this hardware!

    H.A.L. 9000, Feb 22, 2010
