    Vaio Duo 13 no backlight

    Discussion in 'VAIO / Sony' started by joshaybee, Mar 16, 2016.

  1. joshaybee

    joshaybee Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I was wondering if anyone has found the backlight fuse for the Vaio Duo 13 Pro - SVD132.

    The LCD connector is in the top right hand corner of the Front photo. Only some of the components are actually labeled. The fuse I suspect to be the culprit has a silver outline next to the LCD connector- this fuse is similar (in appearance) to one ngvuanh correctly pointed out in an older Duo model - the Duo 11. That fuse has 1G or I4 or some variation of those written on it and is one-of-a-kind.

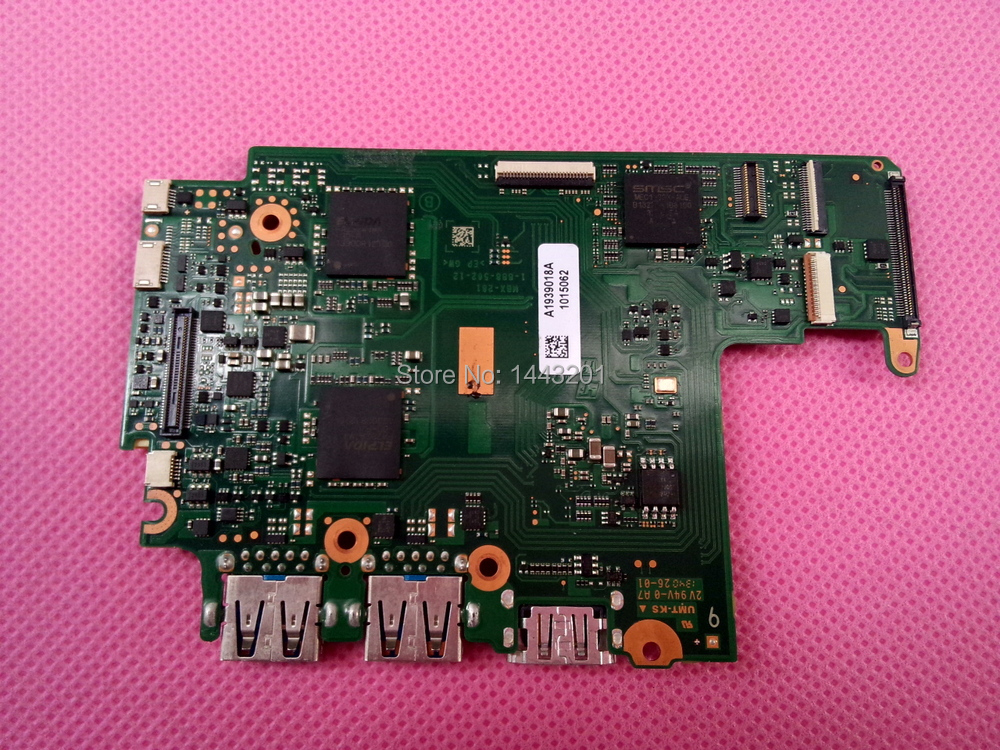

    Front
    Back

    If anyone has any ideas or suggestions I would appreciate it greatly.

    joshaybee, Mar 16, 2016
    #1
  2. electronicsguy

    electronicsguy Notebook Evangelist

    Reputations:
    54
    Messages:
    403
    Likes Received:
    4
    Trophy Points:
    31
    Even if you do find the fuse, is it replaceable by end users with simple tools like a soldering iron? I think not, but I may be wrong.

    electronicsguy, Mar 19, 2016
    #2
