    Vaio S 15" - SATA or mSATA?

    Discussion in 'VAIO / Sony' started by The Egyptian, Jul 18, 2012.

  1. The Egyptian

    The Egyptian Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    yet another stupid question. Help is much appreciated.

    The Egyptian, Jul 18, 2012
    #1
  2. JAmerican

    JAmerican Notebook Consultant

    Reputations:
    5
    Messages:
    105
    Likes Received:
    0
    Trophy Points:
    30
    I don't own one but from the videos and information I've seen, only the Vaio T has a mSATA port with SATA III specification. The Vaio S series has only a standard SATA port.

    JAmerican, Jul 19, 2012
    #2
  3. Supranium

    Supranium Notebook Evangelist

    Reputations:
    80
    Messages:
    412
    Likes Received:
    0
    Trophy Points:
    30
    Vaio S HDD versions come with standard sata port.

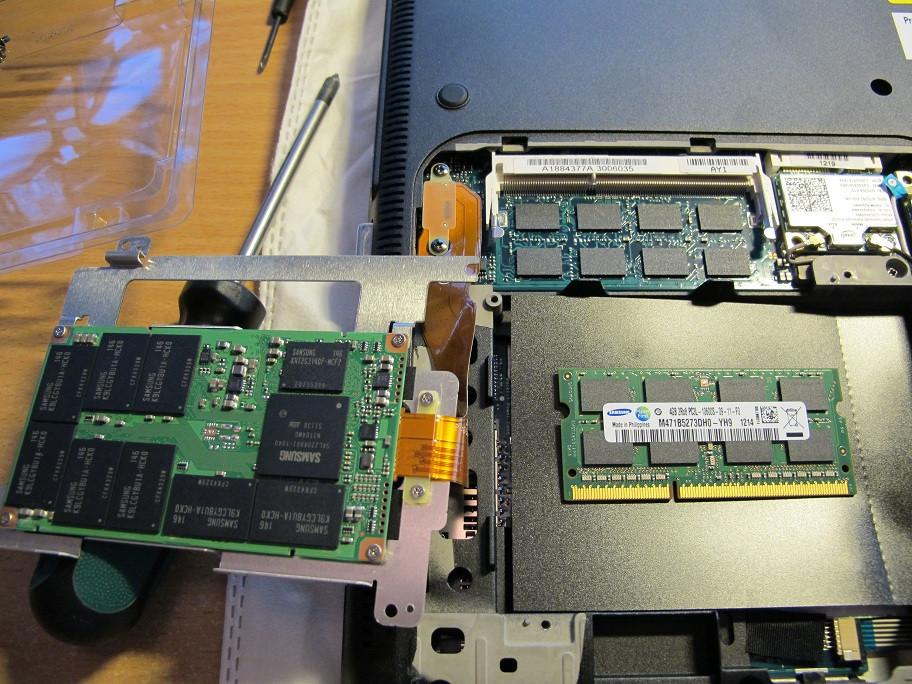

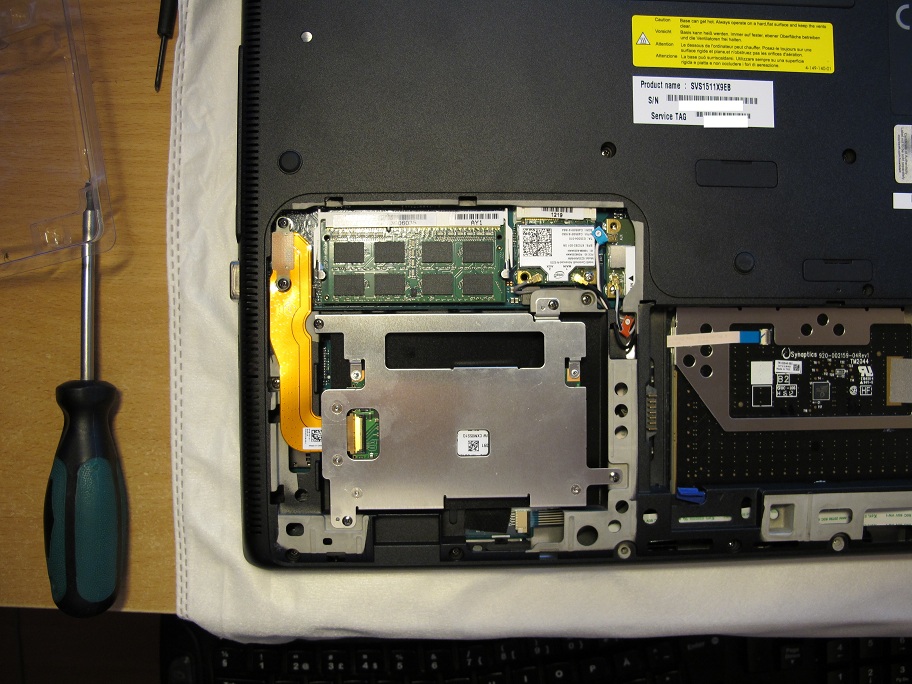

    However Vaio S SSD versions have this:
    [​IMG]
    [​IMG]

    Pictures of my own S15.

    Supranium, Jul 19, 2012
    #3
  4. The Egyptian

    The Egyptian Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    Thanks .....


    so, if I ordered the S 15" with 640GB HDD< it will have a SATA port, and the appropriate SSD aftermarket upgrade would be a SATA (not an mSATA) drive. Right?

    The Egyptian, Jul 19, 2012
    #4
  5. Lordcamel

    Lordcamel Notebook Enthusiast

    Reputations:
    2
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    I am too interested by the answer ... if anyone can confirm us :)

    Lordcamel, Oct 4, 2012
    #5
  6. bolt.pt

    bolt.pt Notebook Evangelist

    Reputations:
    14
    Messages:
    343
    Likes Received:
    6
    Trophy Points:
    31
    It's always a normal SATA connection whether you buy it with SSD or without.

    You can buy any kind of SATA SSD and put it in without problems.

    Edit: For clarification, if you buy the SSD version from Sony I think you'd need to get a different connector cable if you wanted to change SSD, although I see no reason for doing that really.

    bolt.pt, Oct 5, 2012
    #6
  7. paulsans

    paulsans Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I can confirm it's a standard SATA connection, not an mSATA. I put in one of the Seagate hybrid drives and it makes a world of difference over the 5400rpm that ships with it. The SSDs are too expensive once you get over 500GB. The 750GB hybrid is under $150.00 now.

    Paul

    paulsans, Oct 5, 2012
    #7
