    What the heck is wrong with my Sony Z? (screen issue)

    Discussion in 'VAIO / Sony' started by jamsy, Jun 18, 2011.

  1. jamsy

    jamsy Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    OK, so I just turned picked up my Z a few moments ago this morning and the screen is all jacked up. There are dark blue lines on the left hand side of the LCD, and it doesn't look like they're dead pixels/rows since they don't go all the way up, but I'm not exactly sure.

    When I picked it up, it had restarted itself overnight. I've tried rebooting, etc but nothing is working. I'm not even sure if it's a hardware or software thing. Can anyone shed some light for me? This really sucks...

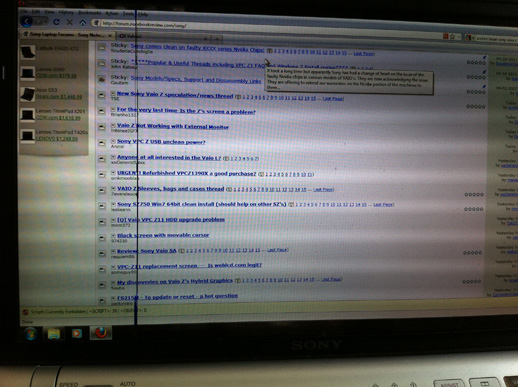

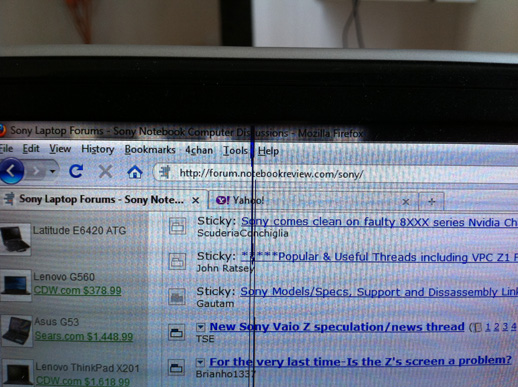

    I've attached a couple pics of the issue


    Attached Files:

  2. beaups

    beaups New Jack Hustler

    Reputations:
    476
    Messages:
    2,376
    Likes Received:
    4
    Trophy Points:
    56
    hard to tell, looks to me like it could be a cracked panel.

  3. bla1011

    bla1011 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Make a screen shot. If it will show the same lines as your photograph(which it probably wont, because it looks like a damaged screen cable or maybe even a damaged panel) then you`ve got a software problem.
    You can try to wipe the screen with a anti-static cloth anyway, static electricity sometimes does wird things to todays LCD panels.

  4. jamsy

    jamsy Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    So since the original post, I've lived with the issue - mostly because I was living abroad and getting my only computer fixed would have undoubtedly been a huge pain in the .

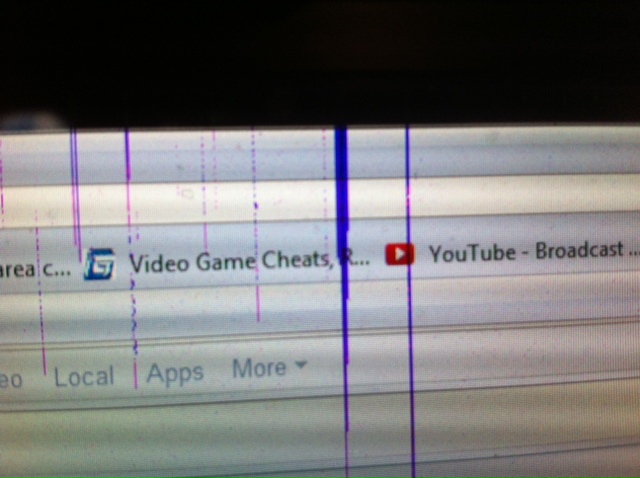

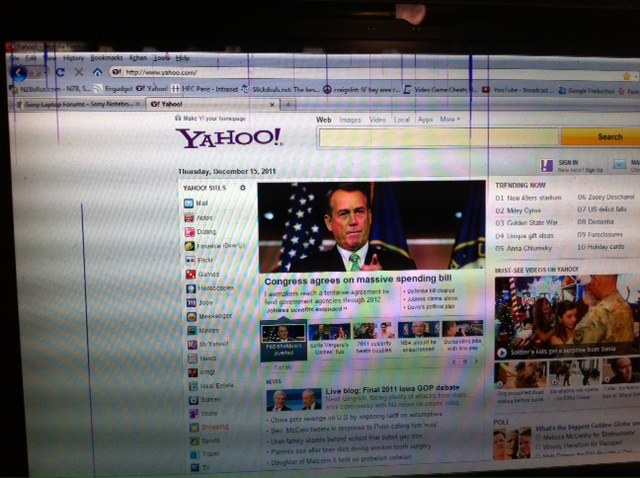

    But anyways, I've learned something about the purple lines...they come and go. They appear and reappear in different places. The other week most of them went away. Then today I opened my laptop up on the plane and there were a lot more of these lines all over the place (see pictures). When I do a print screen, the lines don't appear. But if it was a hardware issue then why do the purple lines not stay that way?

    Anyone have any ideas on how to get this fixed? I'm back in the states for 2 weeks so I thought it'd be much easier to attempt a fix here...


    Attached Files:

  5. beaups

    beaups New Jack Hustler

    Reputations:
    476
    Messages:
    2,376
    Likes Received:
    4
    Trophy Points:
    56
    If the lines move then it could be the connector or the panel backplane. You could try reseating the connector. But it looks like you need a new panel to me.
