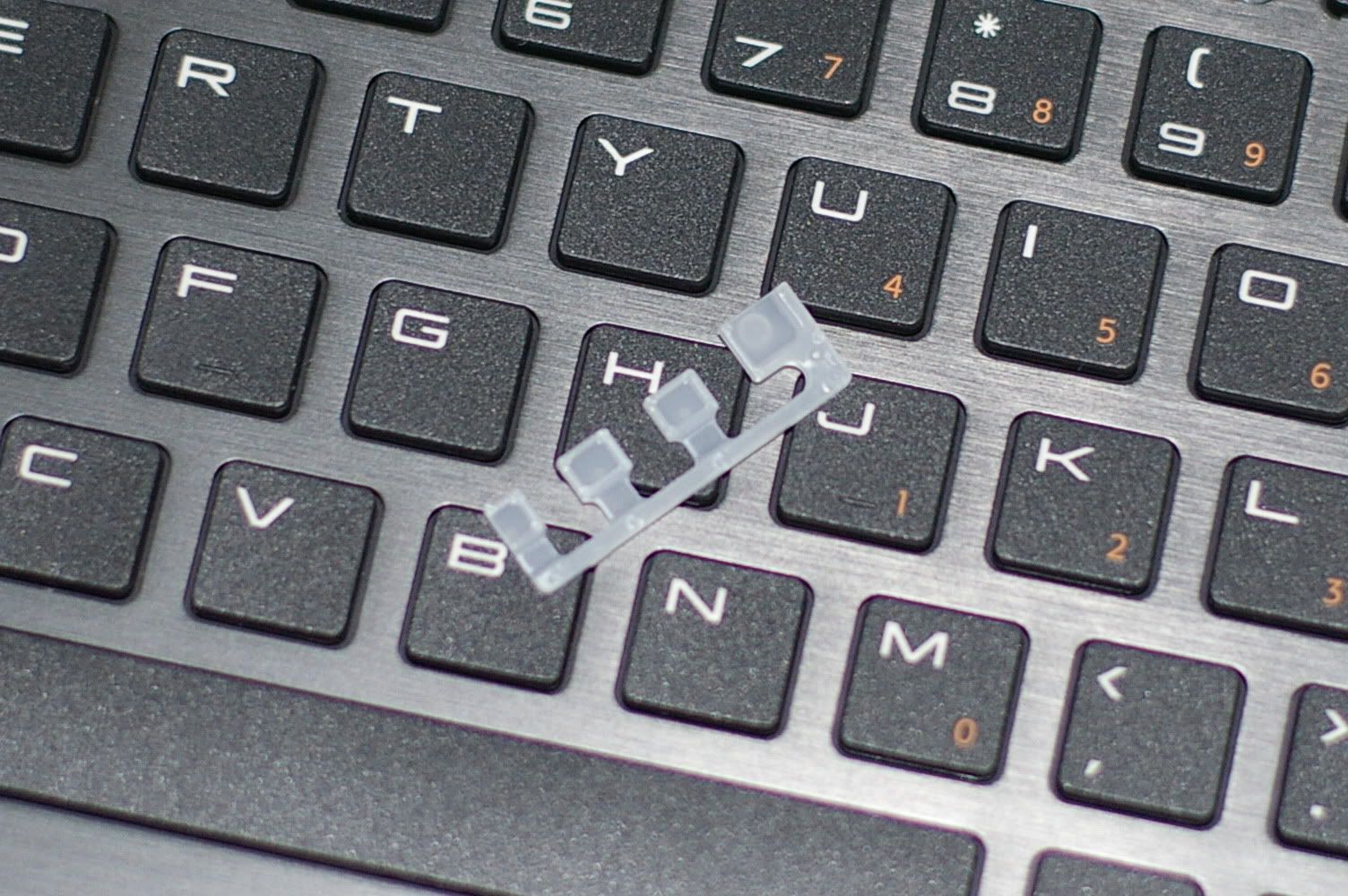

    Z11 can someone help me identify this object

    Discussion in 'VAIO / Sony' started by bsmaster, Mar 27, 2010.

  1. bsmaster

    bsmaster Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    bsmaster, Mar 27, 2010
    #1
  2. podam

    podam Notebook Consultant

    Reputations:
    0
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    30
    I think it is the part of Led , but you can easily find this piece in the service manual.
    I disassembled the whole z laptop because i dropped it and had to replacce bottom case, palmrest.... and saw this piece when i removed the front switch and led lighting.

    podam, Mar 27, 2010
    #2
  3. altecX

    altecX Notebook Deity

    Reputations:
    44
    Messages:
    894
    Likes Received:
    39
    Trophy Points:
    41
    its an led cover to defuse light.

    altecX, Mar 27, 2010
    #3
  4. bsmaster

    bsmaster Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    thanks for replying guys. I'll try finding the service manual.

    bsmaster, Mar 28, 2010
    #4
  5. ZoinksS2k

    ZoinksS2k Notebook Virtuoso

    Reputations:
    525
    Messages:
    2,223
    Likes Received:
    1
    Trophy Points:
    56
    You removed three screws that weren't necessary. I know this because I did the same thing.

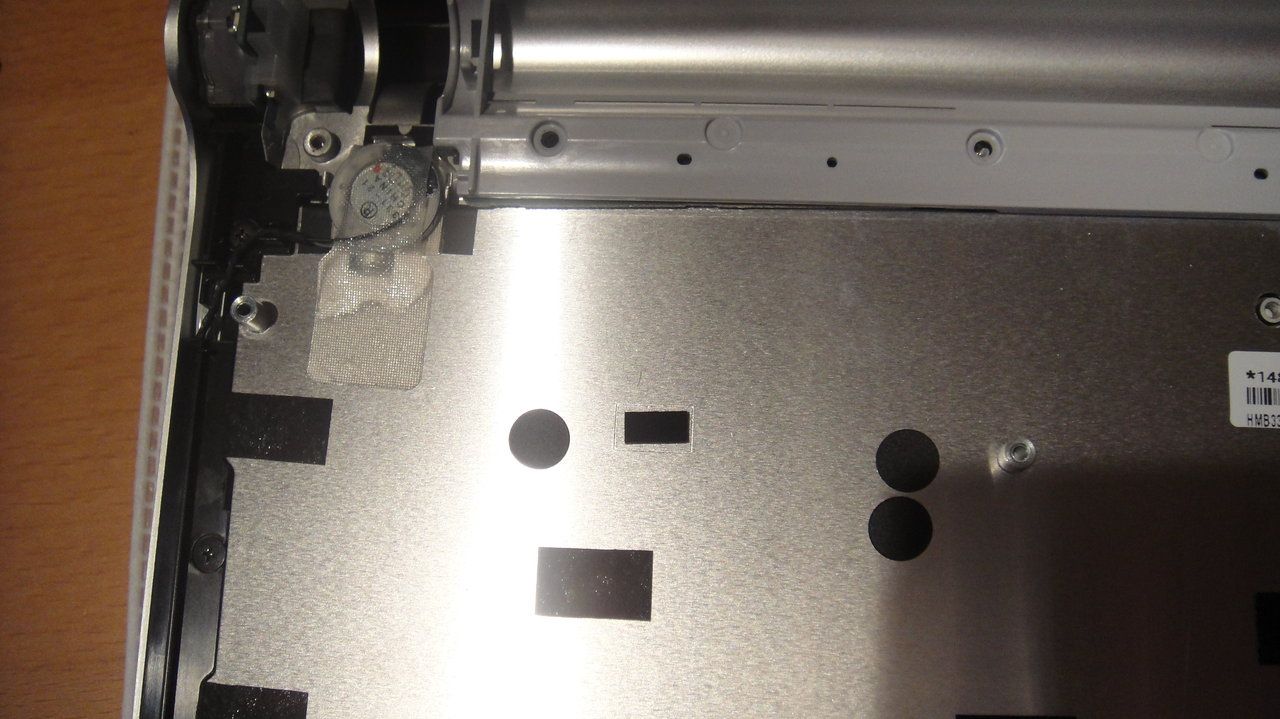

    See the grey plastic part at the top of this photo?
    [​IMG]

    This is where the clear plastic piece goes. It is a LED diffuser for the Cap/Number/function lock. If you take that part back off, you can slide it back in.

    ZoinksS2k, Mar 28, 2010
