    sony vaio vpcf115fm disply problem

    Discussion in 'VAIO / Sony' started by dudu2683, Jan 24, 2014.

  1. dudu2683

    dudu2683 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I replaced my Sony VAIO vpcf115fm motherboard (M930 main board 1P-009BJ00-8012 REV 1.2 MBX-215)
    I bought the motherboard fromthis page:
    Wholesale Product Snapshot Product name is 1P-009BJ00-8012 For Sony MBX-215 M930 REV 1.2 Laptop Motherboard/Mainboard & Fully Tested+Good Condition

    but im having a probleem ,I don't get any image on my laptop screen even on starup I don't see nothing (even the vaio logo),
    I can get an image only if I connect an external display via VGA port but I can see the boot and evrithing on the external screen only.the laptop display doesn't show nothing.
    I tried to play with the FN+F7 keys to choose display but it don't effect nothing...
    It looks thet the laptop do not know that the original laptop screen connected.

    things i tried:
    1. enter to boot -but there's no option of choosing screen.
    2. play with the FN+F7 keys to choose display but it don't effect nothing...

    I read online that maybe I need to update the video BIOS and ill need to "tell" the chipset that is a screen (the laptop screen) conected to hes ports


    There is a setup that I need to do for a new motherboard?
    how i can fix my problem?

    please help

  2. dudu2683

    dudu2683 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    someone help please ?

  3. ngvuanh

    ngvuanh Notebook Deity

    Reputations:
    288
    Messages:
    1,168
    Likes Received:
    31
    Trophy Points:
    66

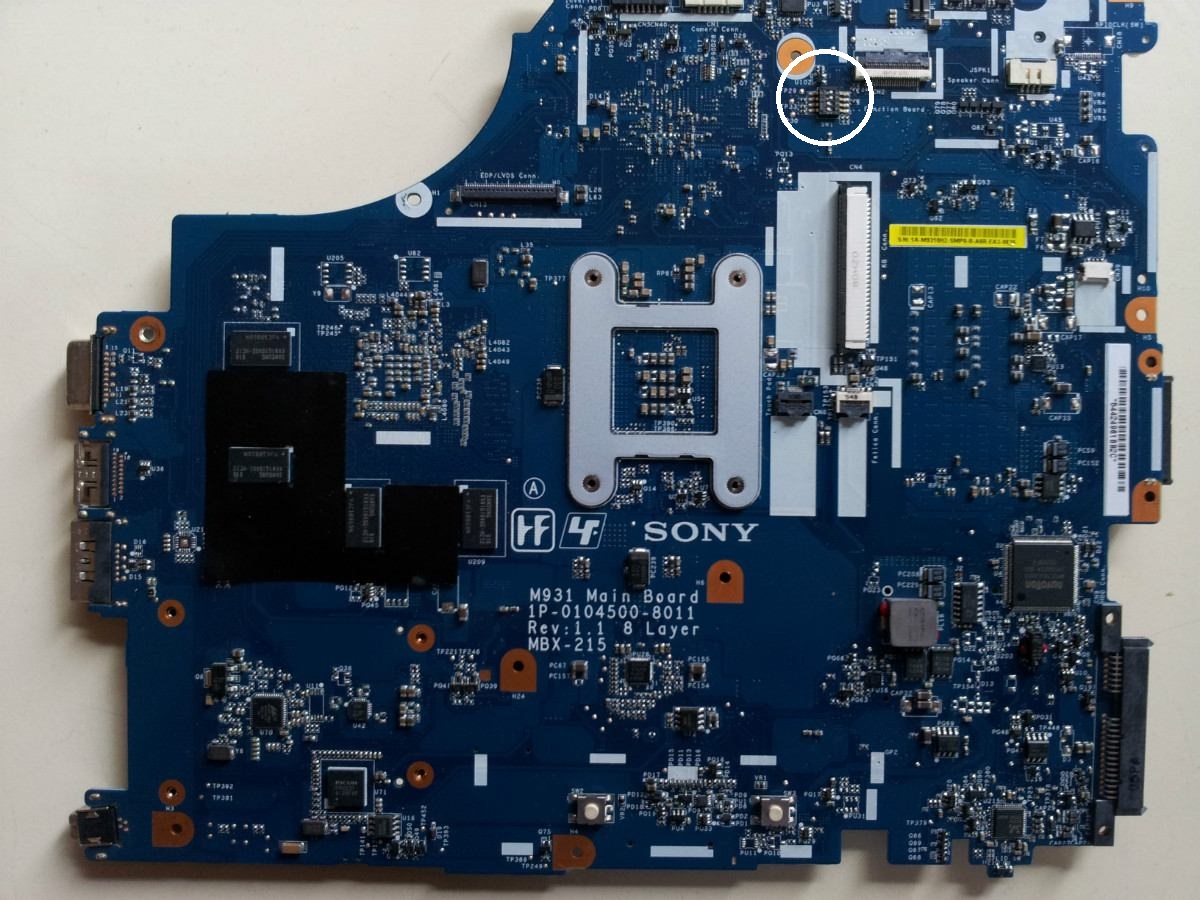

    There is a DIP switch just above keyboard connector on motherboard.
    Make sure you have it set the same as your old motherboard.
    It is LCD panel selector.


    Attached Files:

  4. dudu2683

    dudu2683 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    i did it (even i tried all the options with the DIP switch) but nothing get a video ( i see some cange in the back lcd LED - but no video)

    what i can do more?

  5. doraemon801

    doraemon801 Notebook Consultant

    Reputations:
    153
    Messages:
    229
    Likes Received:
    3
    Trophy Points:
    31
    Re-plugging the cables associated with the LCD screen?

  6. next4nextel

    next4nextel Notebook Consultant

    Reputations:
    19
    Messages:
    295
    Likes Received:
    2
    Trophy Points:
    31
    is it possible there is a fuse blown? Check and make sure there are no blown fuses near the LVDS vga connector on both sides of the motherboard. Also make sure you connected the lcd cables correctly, check for any bent pins on the connectors on the board as well as the cable. Try updating the bios on the motherboard by using an external monitor to gain access to the pc also run a hardware test in vaio care or another utility to make sure the video card passes in case you got a faulty board.

    I believe what is happening here is that you purchased a board that is slightly different from the one that came in your laptop even though it is the same cosmetically and numerically the video bios version is probably different, this is common with Sony laptops sometimes aftermarket screens won't work etc.
