    Maximum multiplier not being used

    Discussion in 'Windows OS and Software' started by Stoned Hippy, Aug 29, 2008.

  1. Stoned Hippy

    Stoned Hippy Notebook Enthusiast

    Reputations:
    1
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    I was trying to undervolt my laptop (m1330 - T7500) last night when I realised that it wasn't using the maximum multiplier, even while on high performance settings and with ORTHOS running a stress test.

    RMClock detects my max clock speed to be x11 but my laptop only runs at x6 (1.2GHz), even while running a stress test. I tried re starting, running the stress test without RMClock running and testing using CPU-z but they all just said that my multiplier was stuck at 6. I've just searched these forums and didn't find any similar questions.

    I just changed my power setting to "Power Saver" and saw that the multiplier changed to x8 and it now says the CPU clock is .8GHz.

    Any help would be appreciated,
    S.h.

    Stoned Hippy, Aug 29, 2008
    #1
  2. NAS Ghost

    NAS Ghost Notebook Deity

    Reputations:
    297
    Messages:
    1,682
    Likes Received:
    0
    Trophy Points:
    55
    In the section of RMClock where you adjusted the voltages, can you post a pic or a screen shot?

    NAS Ghost, Aug 29, 2008
    #2
  3. Stoned Hippy

    Stoned Hippy Notebook Enthusiast

    Reputations:
    1
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16

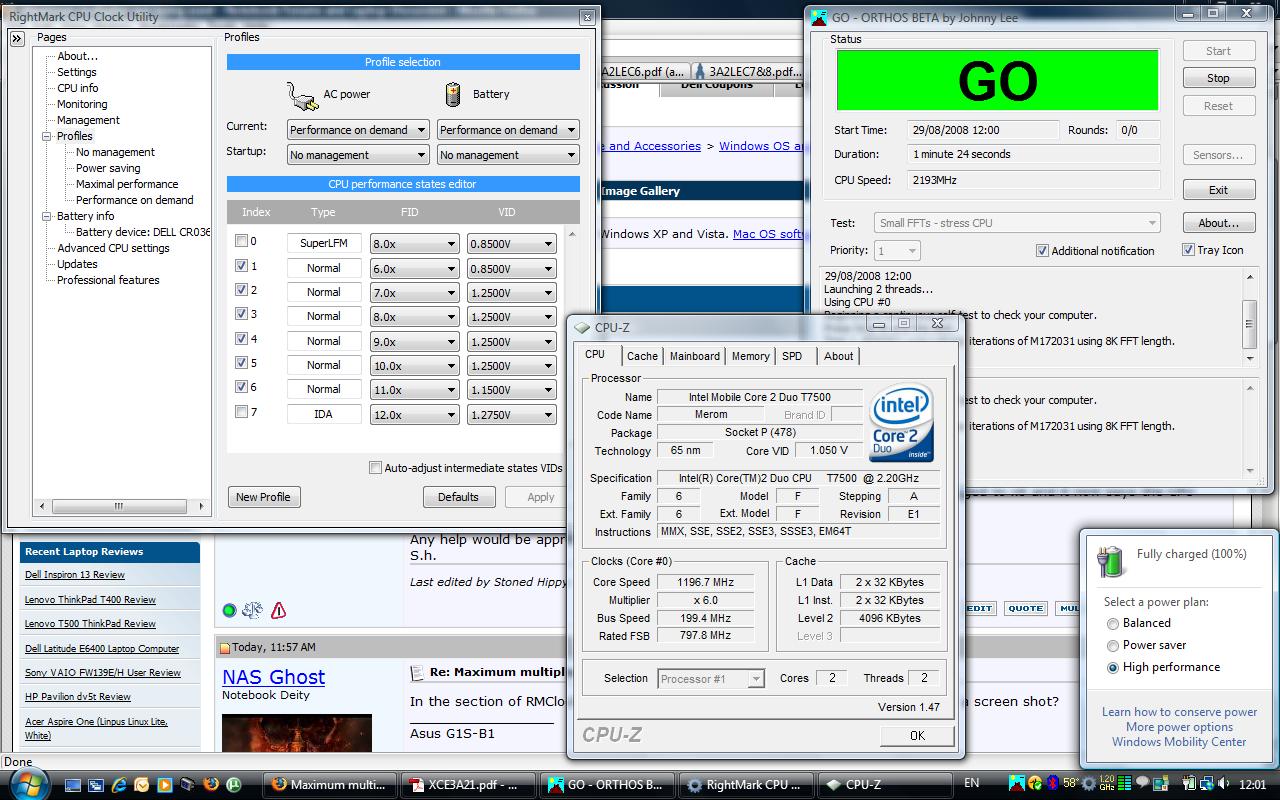

    Here you go.

    I included ORTHOS running and CPU-z as well just incase they were useful.


    Attached Files:

    Stoned Hippy, Aug 29, 2008
    #3
  4. NAS Ghost

    NAS Ghost Notebook Deity

    Reputations:
    297
    Messages:
    1,682
    Likes Received:
    0
    Trophy Points:
    55
    Ok, In "performance on demand", did you tick all the options for the P-states?

    NAS Ghost, Aug 29, 2008
    #4
  5. Stoned Hippy

    Stoned Hippy Notebook Enthusiast

    Reputations:
    1
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    Yea, but then when I unchecked 0 (SuperLFM) and 7 (IDA) in Profiles it seems to have grayed out 0 and 7 in Performance on demand. But other than that they are all ticked...

    Stoned Hippy, Aug 29, 2008
    #5
  6. NAS Ghost

    NAS Ghost Notebook Deity

    Reputations:
    297
    Messages:
    1,682
    Likes Received:
    0
    Trophy Points:
    55
    Try an older version of CPU-Z as you may be getting incorrect readings; if you notice your VID for 6x is supposed to be .85v while CPU-Z is reading it as 1.05v

    NAS Ghost, Aug 29, 2008
    #6
  7. JinRoh

    JinRoh Notebook Evangelist

    Reputations:
    38
    Messages:
    413
    Likes Received:
    0
    Trophy Points:
    30
    The same happened with my M1530.

    Browse the folder of RMClock (program files) and you'll find a file called "Wipe Out" or similar. Run it, and it will turn everything in RMClock to default.

    The problem should be fixed.

    JinRoh, Aug 29, 2008
    #7
  8. Stoned Hippy

    Stoned Hippy Notebook Enthusiast

    Reputations:
    1
    Messages:
    37
    Likes Received:
    1
    Trophy Points:
    16
    I tried an older version of CPU-z (1.40.5) and it was still showing my multiplier being 6x while under stress.

    I then added the reg entries suggested by JinRoh above and low and behold my laptop is back to running at 2.2GHz again!

    I'm now going to start from start and try undervolting again.

    Thank you both for your help,
    S.h.

    Stoned Hippy, Aug 29, 2008
    #8
