    Throttlestop Undervolting Question

    Discussion in 'Windows OS and Software' started by ihueco, Aug 15, 2019.

  1. ihueco

    ihueco Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    1
    Trophy Points:
    16
    Laptop
    CPU: i7 7700HQ 2.8GHz
    GPU: GTX1060 6GB
    RAM: 16GB

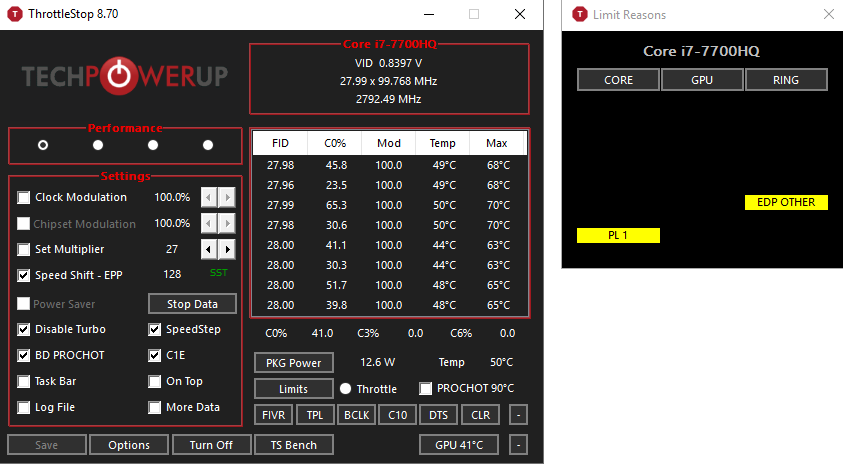

    Hey I have multiple questions on throttlestop. First one is I have been getting some limit reasons, mostly when I turn on my laptop/open it from sleep. I get PL1 and BD PROCHOT under CORE and EDP OTHER under RING. Since I am not getting them while actually using the laptop I guess it is not that worrying, but I still want to know if there is an explanation and if I should try to get it to not appear.
    [​IMG]

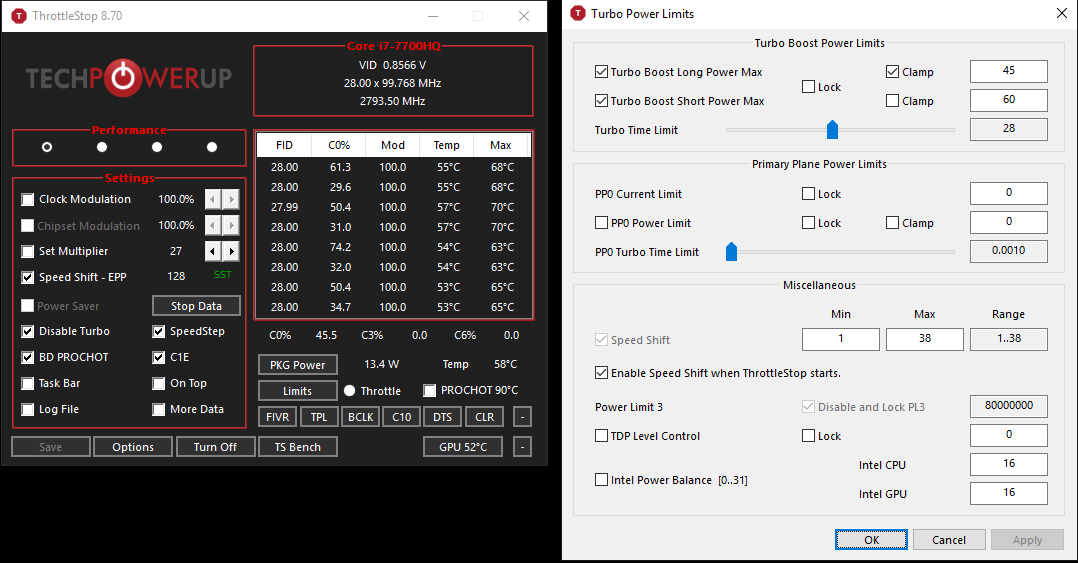

    Second one is regarding to speedsfhit. I have it set to it's default 128 since I don't know how to properly configure it and test it to get the better results. I just know it is better to have it enabled. However, I do see that under the TPL window there is another Speedshift already checked and a Min and Max boxes. The Min 1 and Max 38 are the deafult as well. Should I increase the range to max or even to include 128?
    [​IMG]

    Last, I am also using Throttlestop to undervolt. Is it safe to undervolt every option(including iGPU Unslice and System Agent)? Also which of them should I be undervolting together with the same values? I have read some guides on this, but they are only undervolting CPU Core, Cache and iGPU. However, on this guide I have seen some people also undervolting Unslice and System Agent.

    ihueco, Aug 15, 2019
    #1
  2. joluke

    joluke Notebook Deity

    Reputations:
    1,020
    Messages:
    1,796
    Likes Received:
    1,194
    Trophy Points:
    181
    Ask these questions in throttlestop thread instead of opening your own. People there will have easier access to your questions and will help you way faster.

    Throttlestop thread: http://forum.notebookreview.com/threads/the-throttlestop-guide.531329/page-1037

    joluke, Aug 15, 2019
    #2
    ihueco likes this.
