E6400 WXGA+ info please

Discussion in 'Dell Latitude, Vostro, and Precision' started by LPTP-LVR, Dec 15, 2009.

Thread Status:
Not open for further replies.
Page 1 of 2
  1. LPTP-LVR

    LPTP-LVR Notebook Deity

    Reputations:
    298
    Messages:
    1,794
    Likes Received:
    2
    Trophy Points:
    55
    Hi people,

    Could you tell me the model numbers for the WXGA+ screens?
    I know there's a LG and a Samsung one, right? Which one is the better of the two and what are the differences?
    I found a shop which might be able to get me a screen cheap but i have to give them specific info on which panel i need.

    thanx

    LPTP-LVR, Dec 15, 2009
    #1
  2. weirdo81622

    weirdo81622 Notebook Evangelist

    Reputations:
    86
    Messages:
    619
    Likes Received:
    0
    Trophy Points:
    30
    One WXGA+ is the CMO1436.
    The Chi Mei screen is OK, pretty average overall in terms of viewing angles, brightness, and colors. The screen I had initially (which had several dead pixels so I got rid of it) was the LG model (not sure of model #), which was similar to the CMO but was noticeably brighter.
    I know there is also an AUO (AU Optronics) screen that's used, but I'm not sure how great that is, and I haven't even heard of a Samsung one in the E6400.

    Oh, and this is for the E6400.

    weirdo81622, Dec 15, 2009
    #2
  3. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,839
    Likes Received:
    2,155
    Trophy Points:
    581
    My LG panel is LPL0140 and is, as you say, very bright. That said, when new it was so bright that it washed out at full brightness and this now seems less of a problem. I suspect that Dell reduced the maximum brightness in one of the BIOS updates during the past 15 months since LED backlights, unlike CCFL, don't fade with age.

    There is also a Samsung panel. Early reports indicated that it was less good than the LG and it is possible that Dell have dropped it in favour of other sources.

    John

    John Ratsey, Dec 15, 2009
    #3
  4. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206

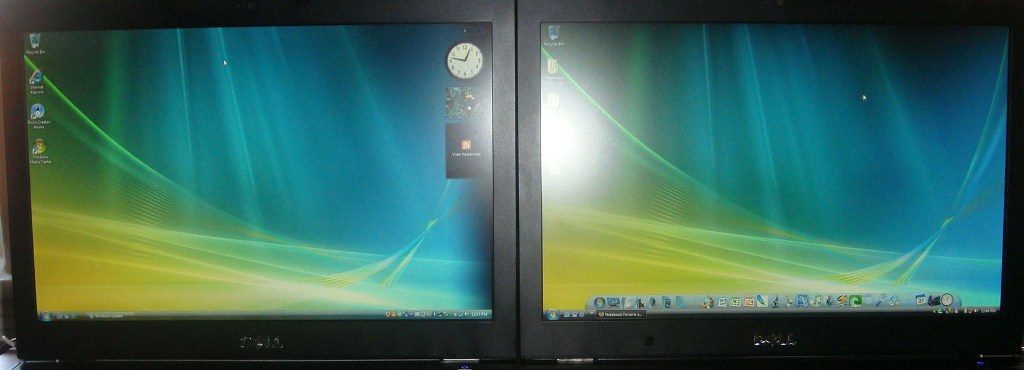

    John is correct with the Samsung and LG comparison, but it's not all that noticeable to the naked eye. I have briefly noted this in my Precision M2400 review:

    Note that the M2400 has the exact same chassis as the E6400.

    David, Dec 15, 2009
    #4
  5. Robin24k

    Robin24k Notebook Deity

    Reputations:
    274
    Messages:
    1,700
    Likes Received:
    5
    Trophy Points:
    56
    I'm not sure if the screens are the same as the D620/D630, but replacement screens for the D620/D630 are now Samsung screens, and while they are brighter, they are very washed out. I personally would steer as far away from Samsung displays as possible (I swapped my replacement LCD out with the LG Philips one in my spare D620).

    Robin24k, Dec 16, 2009
    #5
  6. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    I believe the D620/D630 uses LCD screens while the E6400 series uses LED panels.

    David, Dec 16, 2009
    #6
  7. Robin24k

    Robin24k Notebook Deity

    Reputations:
    274
    Messages:
    1,700
    Likes Received:
    5
    Trophy Points:
    56
    LED is an option, but CCFL is available (standard) too. Since they're both 14.1" widescreens, I think they might be identical.

    Robin24k, Dec 16, 2009
    #7
  8. LPTP-LVR

    LPTP-LVR Notebook Deity

    Reputations:
    298
    Messages:
    1,794
    Likes Received:
    2
    Trophy Points:
    55
    Ouch....David, being a reviewer you REALLY can't make this mistake ;)
    Both are LCD panels, it's only the backlighting that's different. One uses LED and the other CCFL...for the same panel.

    Thanks for the info, i'll see if i can get a quote for the LG screen.

    @Robin
    Could you tell me the hardware-id for the panel in your D620 maybe? Easy enough to tell if they're the same.

    LPTP-LVR, Dec 16, 2009
    #8
  9. allfiredup

    allfiredup Notebook Virtuoso

    Reputations:
    1,482
    Messages:
    3,209
    Likes Received:
    17
    Trophy Points:
    106
    The E6400 initially had a WXGA CCFL display standard and it could be upgraded to a WXGA LED or better. But for the last six months or so, ALL E6400s have had standard LED displays...at least her in the U.S.

    allfiredup, Dec 16, 2009
    #9
  10. Robin24k

    Robin24k Notebook Deity

    Reputations:
    274
    Messages:
    1,700
    Likes Received:
    5
    Trophy Points:
    56
    Is there any way for me to get it without taking apart the laptop? I tried PC Wizard, and it said "Manufacturer: TM246 141 WP1".

    I may still have the packing slip from the replacement panel, but I would have to find it when I'm at home.

    Robin24k, Dec 16, 2009
    #10
