*OFFICIAL* Alienware 17 R4 Owner's Lounge

Mine is 160W
Should Iinstall the oc vbios? Is it compatible with this iteration?

Gesendet von meinem SM-G928F mit Tapatalk



As of right now it's a one way street so that's a call that you're going to have to make.

I'd hold off for a bit until we have a way to flash back.

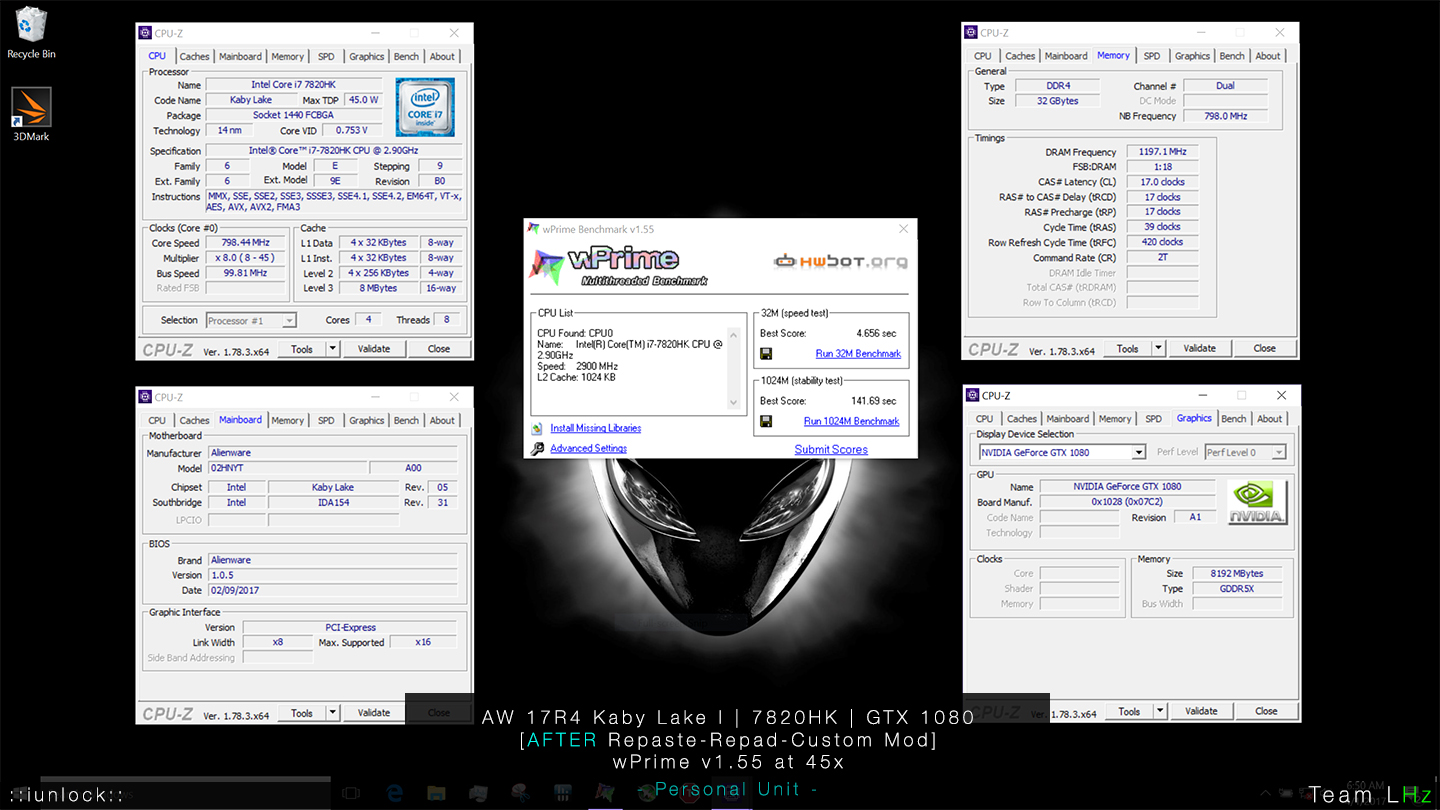

wPrime v1.55

Link to hwbot:
32M - 4.656 sec
1024M - 141.69 sec

7820HK



@iunlock My firestrike result (stock, no OC, no turbofan, ~24°C roomtemp): http://imgur.com/a/OTwao

Yesterday my Toshiba ssd maxed at 69°C, today, during the Firestrikerun, it was at max 49°C.

Another Firestrike (stock, no OC, WITH turbofan, ~23°C roomtemp): http://imgur.com/a/RwS5K



But it was the connectors on the cards that were breaking off, not the tips.
I don't want my connectors more rugged and durable. I want them softer and easier on the wifi card connectors.



The connectors on the old wires were softer around the base clamp part, while being snug around the ring that caused it to lift up the WiFi cards pin/soldered plate.

::iunlock::



Can you verify that the oc vbios already installed on your second unit is the same as on dells download page? Thanks bro

Gesendet von meinem SM-G928F mit Tapatalk



any step by step guide to overclock 7820hk with GTX 1080 would be much appreciated thank you.

GPU and CPU



nerdstaz already shared the benchmark, but here is another one:
They're pretty much the same. Never did any SSD tests, that's why I've never noticed that it can be more than 42 .



http://i.imgur.com/rycsyol.jpg

Tried to get in the region of >24k graphics score like iunlock.
Bios 1.08, oc vbios, perfromance cpu and fan profile activated in bios. Undervolted cpu by 150mV with intel extreme tuning utility, no cpu OC, GPU is at +200 MHz, no repaste yet.

... no chance. I don´t know how you do this @iunlock ;-)

btw, I don´t care about physics score, for me it´s all about graphics.

Observations:
1. 1080 uses about 200W, no problems with pch temps so far.
2. Performance fan profile spins both fans at 4500 rpm. The sound at max is quieter than on my Clevo P870DM3 when at medium workload and has very good psychoacoustic quality, no whining, no vibrations. These sunon maglev fans in the 17R4 seem to be of top quality.
3. Cooling especially of the GPU seems to be very efficient, unbelievable effiicient when looking at the thinness of the fans, can´t wait to repaste.
4. The look, feel and noise characteristic is another dimension compared to P870DM3, sorry to have to say this...quite happy so far with the unit
5. ...but wait, ohh crap, it´s BGA!!!!!!!!!!!!!!!!!!!



is there any point to overclock the core on the gtx 1070? It seems to go up to 1900mhz stock and it is already at its power limit, if I overclock it will go to 2000mhz but only for a sec due to the power limit which is around 130w



What settings is everyone using to overclock the CPU to hit 45X stable? Just the bios ones?

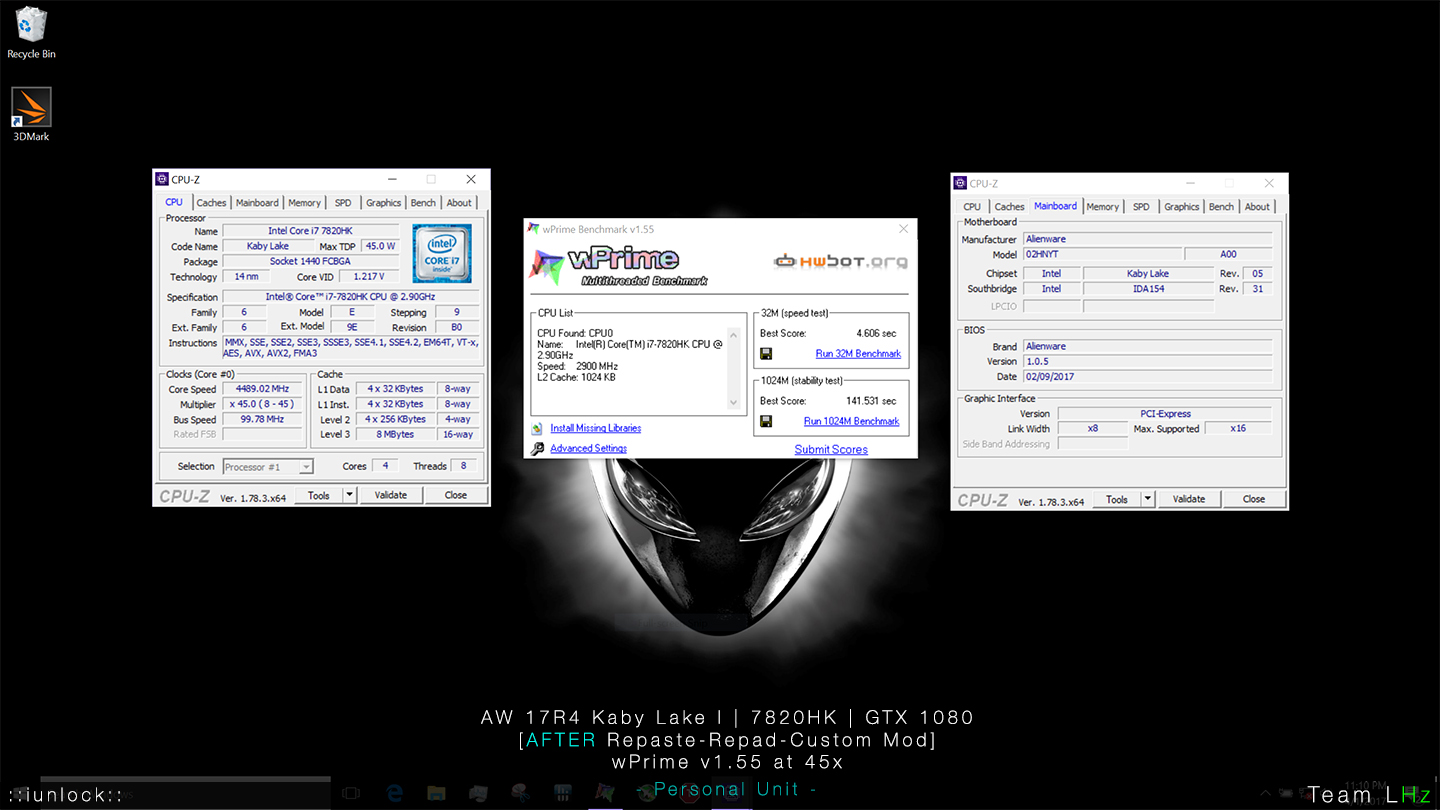

New - wPrime v1.55 - Record

32M - 4.606 sec
1024M - 141.531sec

7820HK @ 4.5GHz



@DeeX, @Mobius 1, @zergslayer69, @hmscott, @Papusan, @Pete Light



Why post for 4.5GHz? Why not post the score from clock speed in your sig



LOL maybe because I'm still working on things? Hmm..yup.

Never have anything nice to say? Or maybe shell shock from seeing respectable numbers from a bga? I'm sure it's gotta hurt.

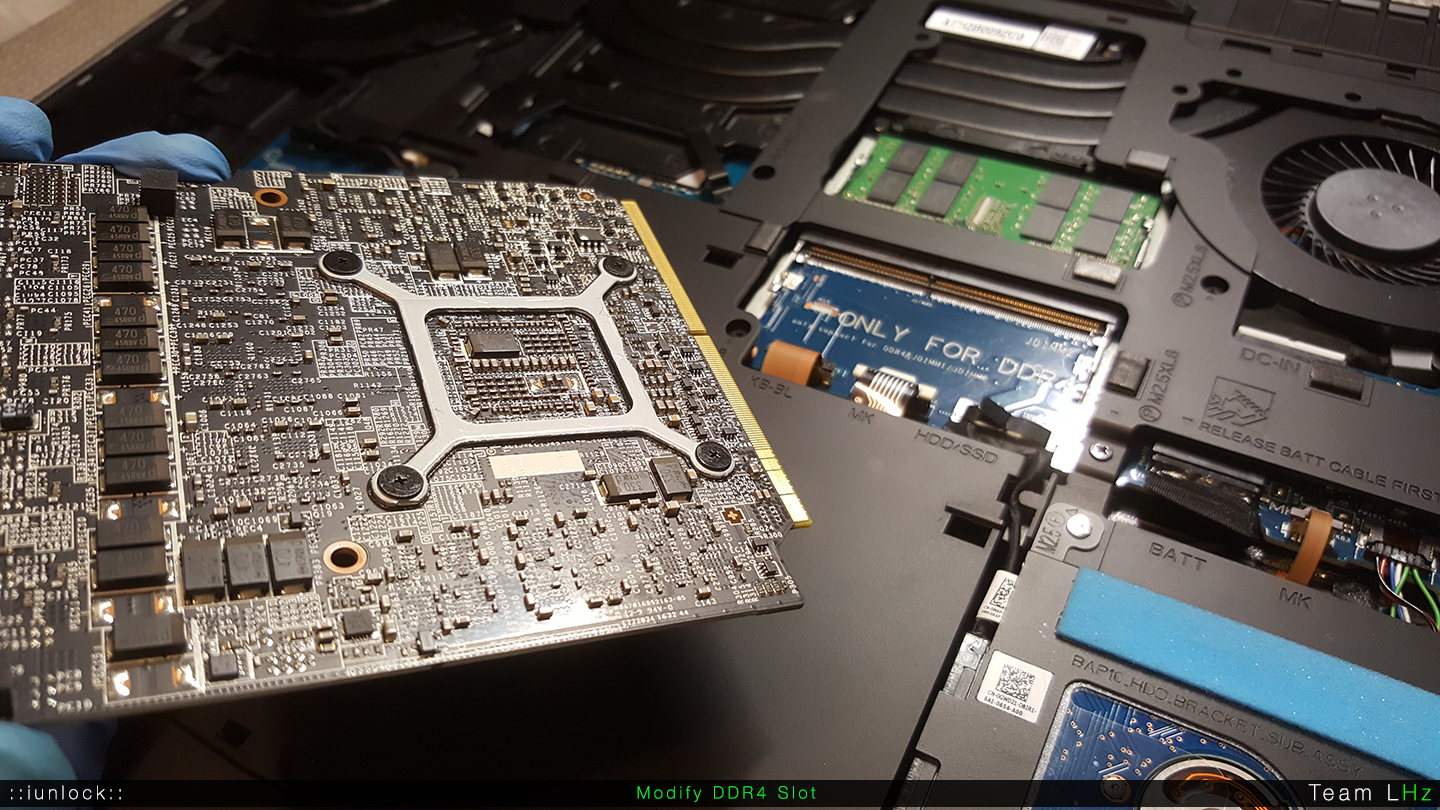

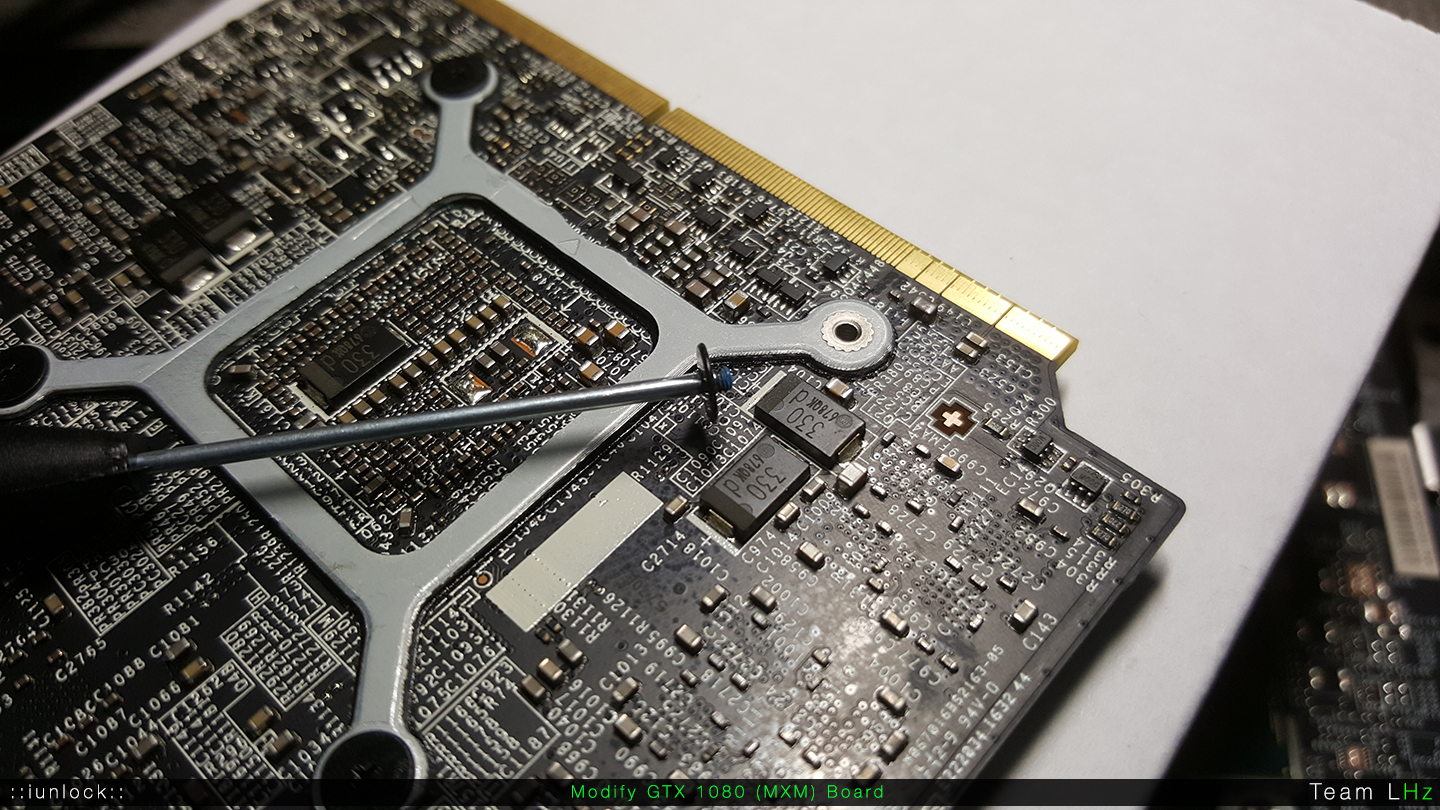

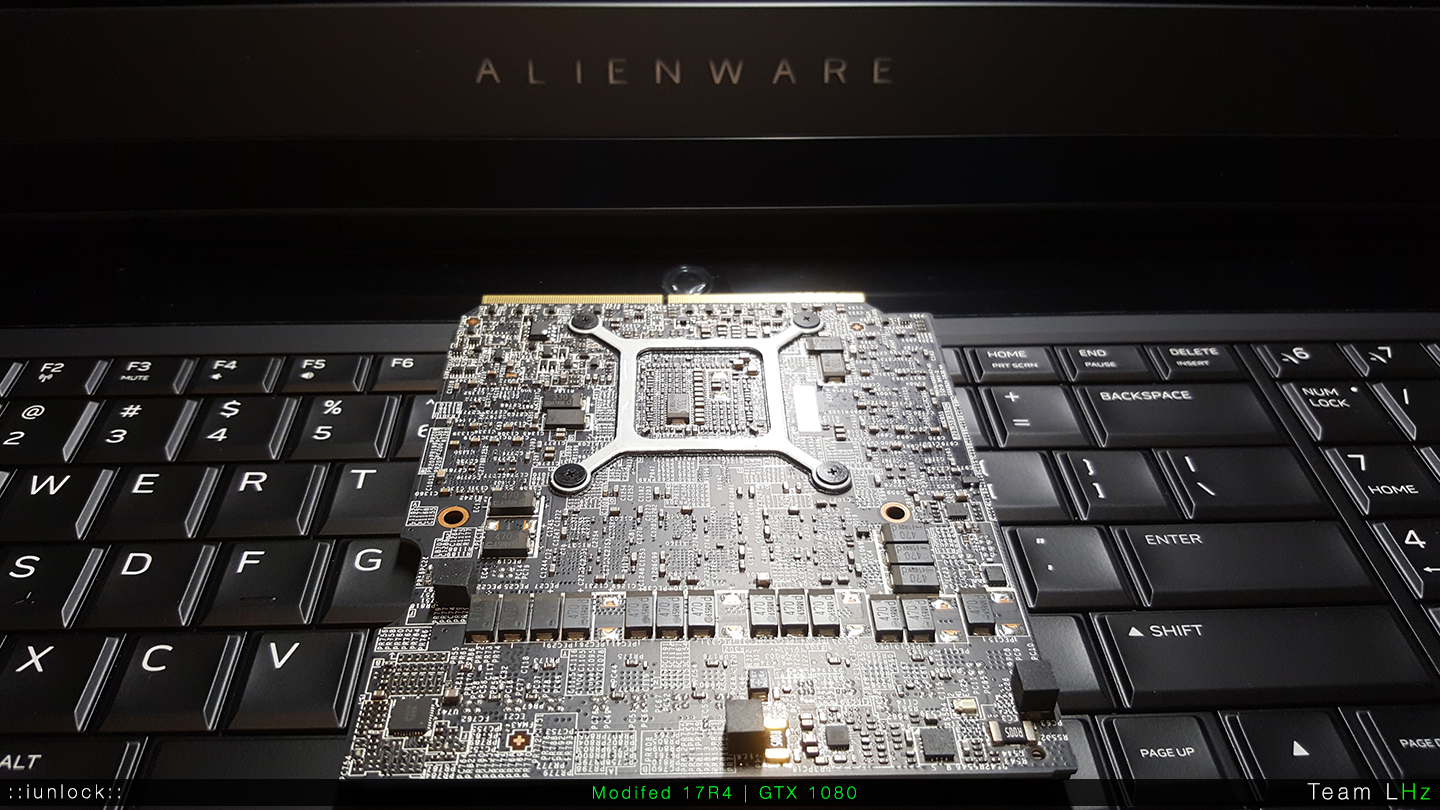

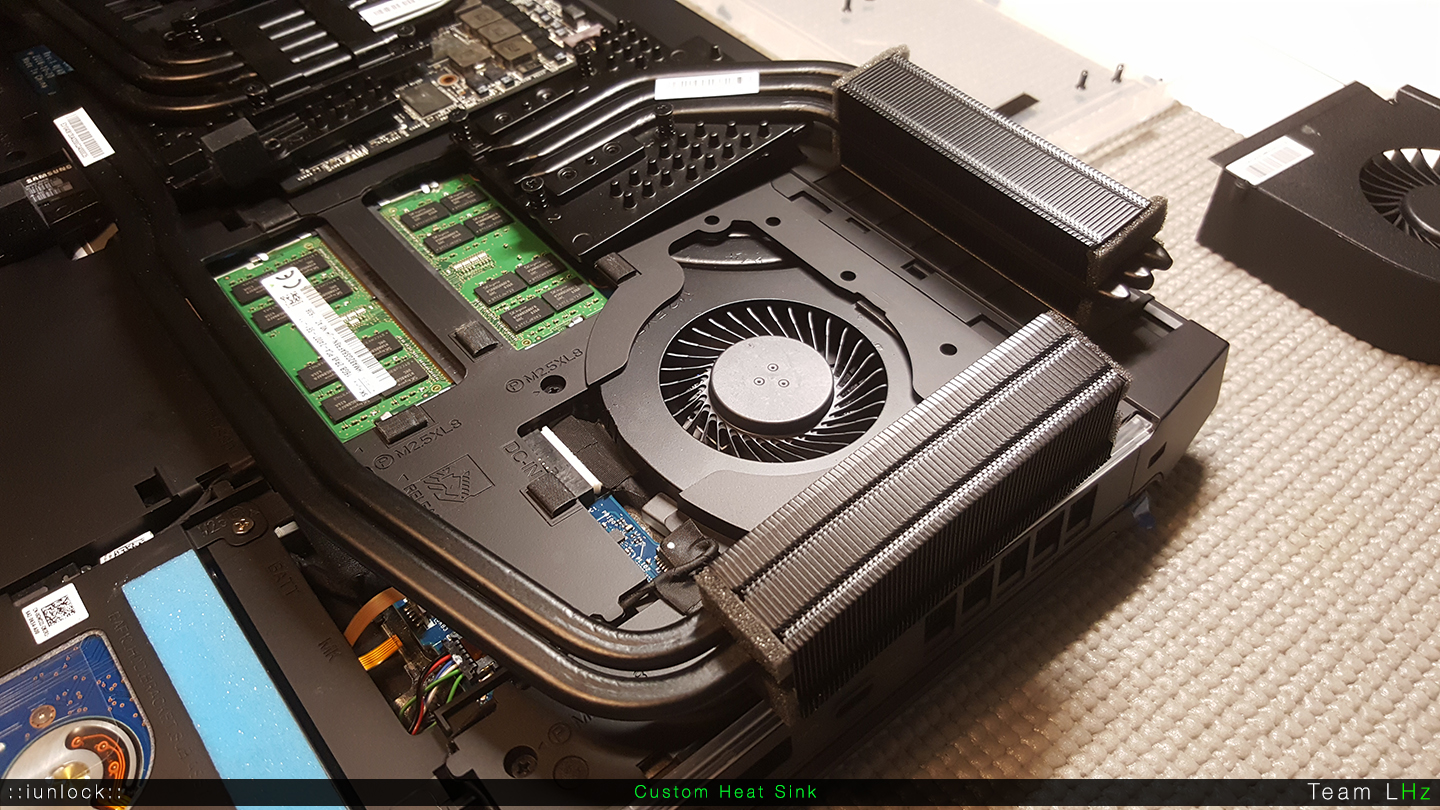

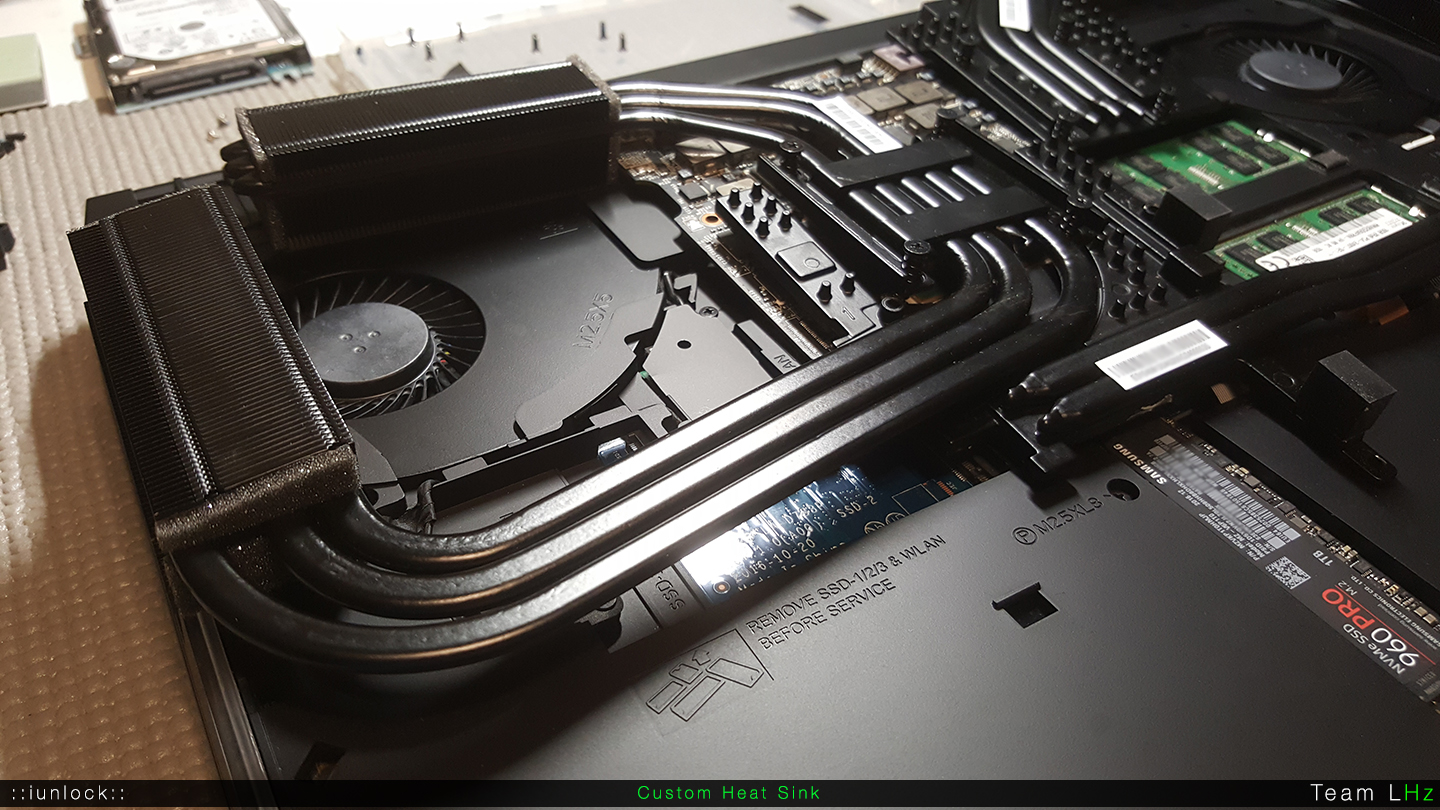

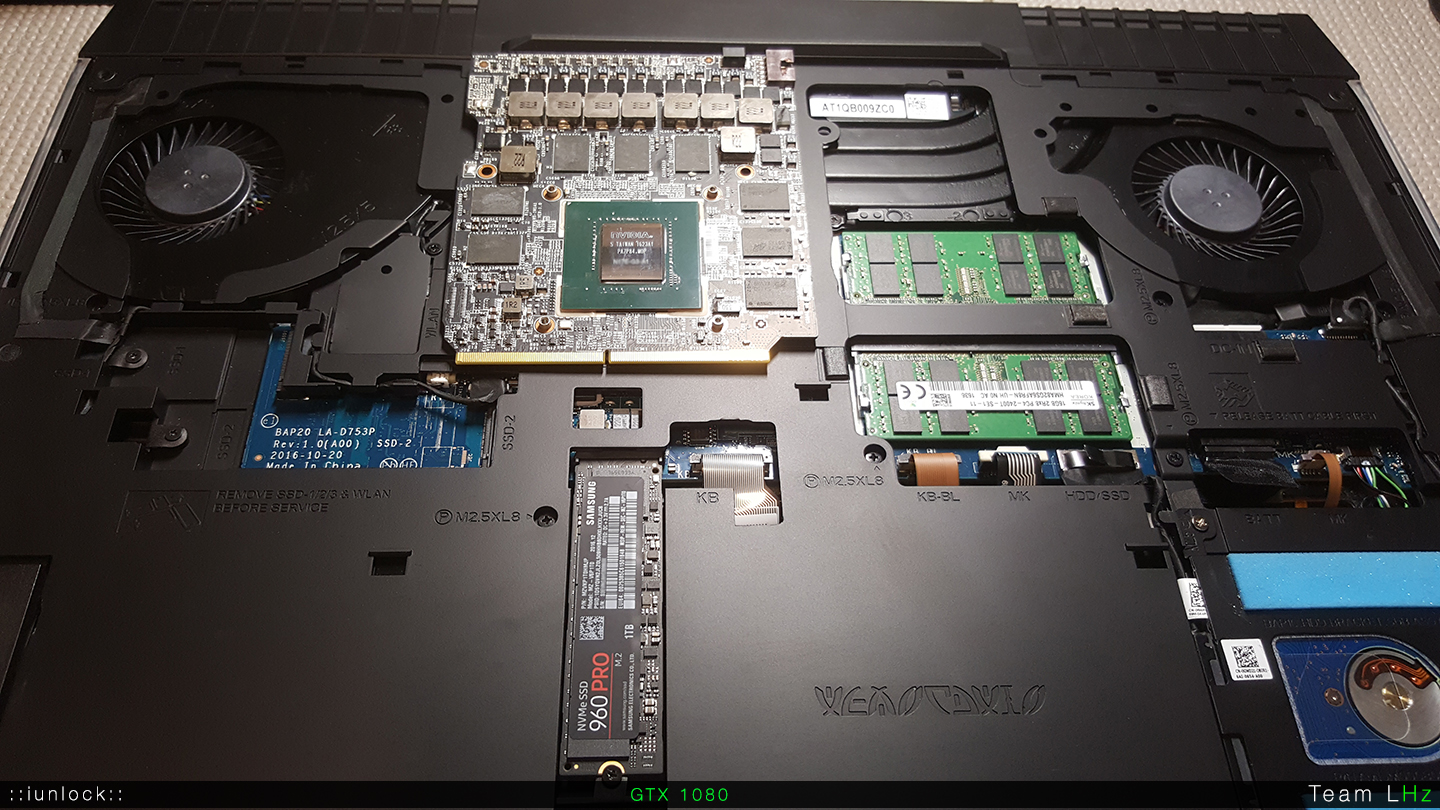

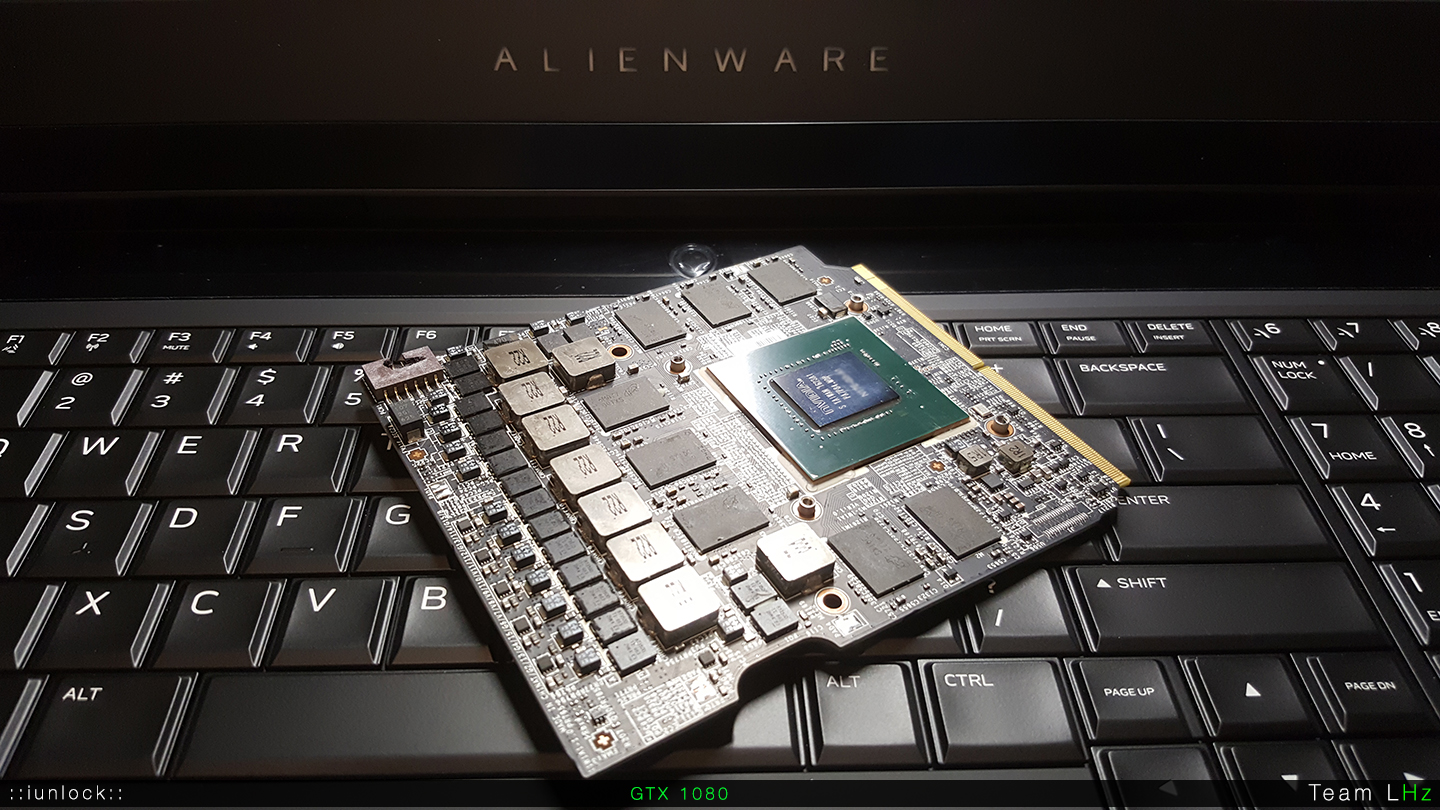

Custom Heat Sink and GTX 1080 Mod:















@DeeX, @Mobius 1, @zergslayer69, @hmscott, @Papusan, @Pete Light, @rinneh,

Haha Happy April Fools...Had to sneak one in there at the last minute as it's still the 1st here.



Sorry bro I was not that impressed. Kaby has a higher potential than old Skylake BGA (+3 bin). So why go for any lower than that?



Say something nice for once. This is a big deal for a mobile CPU... it wasn't too long ago when we were happy with getting 46x on the 6700K and considering that an OC.

Therefore, give it some credit for what it is as these new mobile 7820HK chips, in ratio, is much better than the previous 6820HK, in respect to the desktop counterparts.

It doesn't hurt to recognize accomplishments; it doesn't mean you have to like whatever it is....

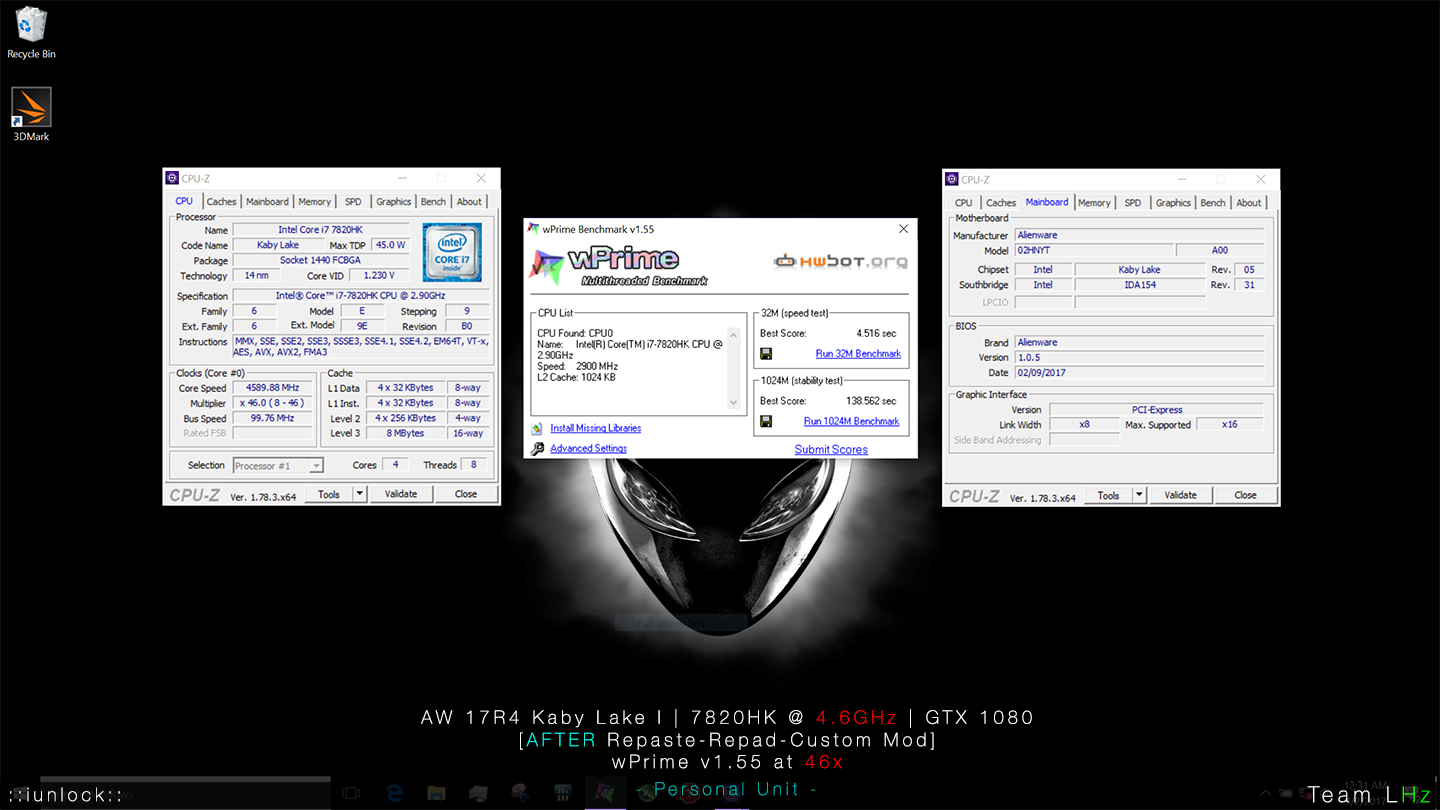

BTW, here it is. 4.6GHz achieved.

New - wPrime v1.55 - Record

Link to hwbot:
32M - 4.516 sec
1024M - 138.562sec

7820HK @ 4.6GHz



@openglcg , here's 4.6GHz.



You know me and BGA And I had no interest for 46x Those who went 4.6Ghz was not very interested in Benchmarks.
Yes see there. You just had to have a kick in the ass @Pete Light might compete with you. He talked about it for over a week ago. But since, only silence



What I had meant was that we don't have to like something to recognize its achievements.

This is also not a competition, but to show that the 7820HK can achieve 4.6GHz is a pretty big deal for the mobile chip.

As always....all in good fun and....someone has to do it right? bga or not... Whether it's me or anyone else, it's always nice to see new records.

Oh and you know this very well in that, points are points on hwbot.

http://hwbot.org/submission/3509557_iunlock_wprime___32m_core_i7_7820hk_4sec_516ms?recalculate=true

http://hwbot.org/submission/3509558...e_i7_7820hk_2min_18sec_562ms?recalculate=true



papu is kinda right though previous mobile XM chips are on par with desktop chips, they're much better binned than the HK chips by a large margin



Bloody hell! Have you cut the motherboard?!? :O it looks way too small...

Sent from my SM-G935F using Tapatalk



Well to be fair, the context of that and comparison of him mentioning that is completely irrelevant to what's at hand here.

I was saying that not too long ago, we were trying to get 46x to stick on the 6700K and for those that were able to, it was considered an accomplishment, big or small, as some 6700K's at that time couldn't' even hold 46x steady.

So now for a mobile chip to reach 46x... whether we like the chip or not, it is still an accomplishment for it being a mobile chip.

The margin between the mobile and desktop skylake's are much wider than the better binned (again for what it is) kaby lakes. ie... there's more head room with the new Kaby's.

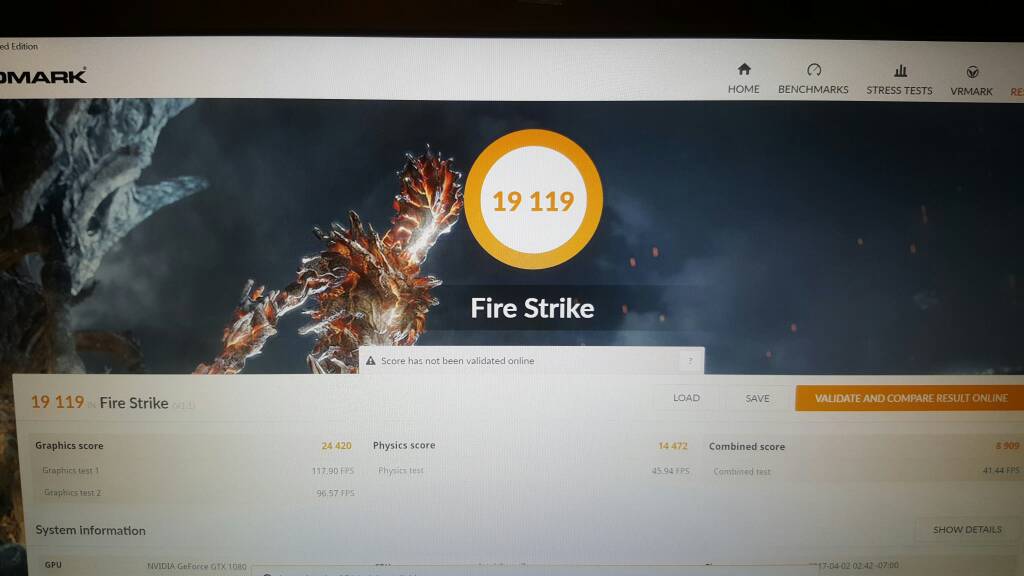

19119!

Officially have broken past the benches I had set on the Asus...

I'll upload all these soon at once to 3dmark.



::iunlock::



Did heaven stress test for 1h right now: gpu overclocked by 200MHz with oc vbios flashed, g-sync and v-sync disabled
Max Temps are:
90C cpu (undervolted by -150mV, everything else is stock)
80C GPU
80C PCH

No problems, no stuttering, friesrtike bench at the beginning: 1690 and after 1h 1674, so very small amount of thermal throttling.

I know cpu needs re-paste. But is PCH temp as it is ok?



That's all pretty high to be honest, too high really you'll be getting throttling with that

Sent from my SM-G935F using Tapatalk



Do you have any side by side with the Vindicator? What were you not able to fit into the Vindicator?



I can try to take some pictures of the vindicator here shortly before I take it back to best buy. It fits the laptop fine, but it wasn't as comfortable to carry for me and the Titan had some usability options the vindicator was lacking. For my overall use the titan is a better fit.



BB sells the Vindicator 2.0?



That Everki bag looks super sweet ...

Personally, I've been using the Vindicator Briefcase with my aW17 for a month or so and I totally love it. Suits my needs perfectly. Really nice bag, the Vindicator ... not as bulky/cumbersome as my previous Slappa Kiken and much more "business" looking ... I really like the semi hard external panels on the Vindicator too ... curious to see how it will hold up over time ...



Yes it's the only place I could find that wasn't a month+ out for shipping it.



Yeah I liked the hard outer shell more too, but overall it was enough for me to want to keep it.



http://imgur.com/a/6Uo8d

Sorry for the delay check the link. The laptop isn't in it but u can get an idea.



Cool - Dell has it for 79 -- will get BB to price match.

Anyone pick up a 2.0 Sleeve? Wondering if the sleeve fits into the 2.0 backpack.



Agreed the Everki looks very cool but a bit too much to spend based on my limited use case, especially when the Vindicator 2.0 is 1/2 the price at $79. + My 17 is such a tank ... add the AC adapter and to be honest I will LIMIT the time that this TANK needs to be taken outside of my home. I'm assuming the Vindicator 2.0- will hold up well enough. If I was taking the 17 out on a daily basis then first I'd question my sanity but 2nd if i for some reason had to carry it daily/weekly then perhaps I'd look into something a bit more robust.



Here's the max GPU voltage on my Kaby...



Yes it does. That is what I did with my R4.



Hello! I want to buy a new 17x (7700HQ, IPS, NVIDIA GeForce® GTX 1070, Intel HD Graphics 630) and set up Hackintosh as a secondary OS, I need it for work. People says that with 7 series processors all notebooks go with g-sync, and because of that Intel HD videocard is not working. Is there any way to make it working in Hackintosh? I really want this laptop, and I do not want to buy an additional Mac laptop. I already have a big mess on my workspace and I want to buy one laptop for all my needs. I already have a desktop with Windows and Hackintosh and it works good. Now I need the same but with laptop. Thanks!

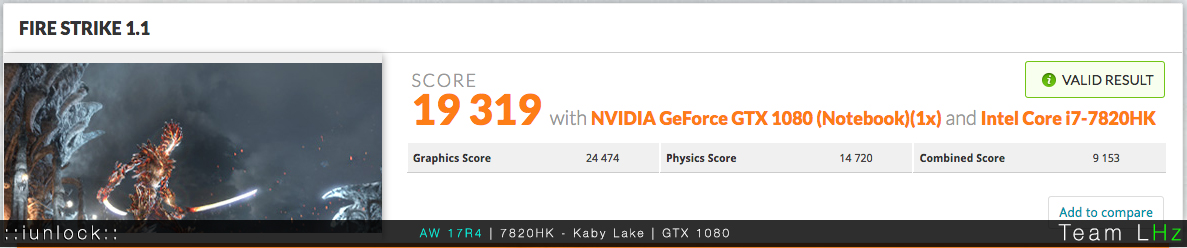

Fire Strike - 19319

*The New AW174 has beaten all of the Asus G701VI benches. Done.


@DeeX, @Mobius 1, @zergslayer69, @hmscott, @Papusan, @Pete Light, @D2 Ultima



can you guide me what settings to use on my 7820HK in my MSI GT73 to get 4.4 GHz stable?

Right now I am @ 4.2 GHz on all cores with a -100mV



Double post deleted. Tapatalk is tripping out.



PM sent



Jus got my AW17R4 replacement with the 7820-HK CPU, 1080 GPU, 1TB SSD, 1TB HDD, 32GB ram...
Below are some of the specs, and initial experience so far... Anything look off? Any suggestions?

My Kaby system went a whole 4 seconds before Core #0 went above 85°... Of course, that's stock, right out of the box...



LiteON SSD Information & Benchmark



Being a "new" system right out of the box, should the battery already have a "wear level" of 2.4%?



I bumped up the OCCT max temp to 95° and let it run for a few mins... Should the temps at Max range from 97° to 78°?



Any thoughts or suggestions would be appreciated... I plan on doing the LM to get rid of whatever is passing for paste that Dell is using now...

Is @iunlock guide for the pad replacement still valid on the Kaby system? I've got vacation coming up in a couple weeks and would like to order parts so they'll be here when I have time to play..

Thank you for your help,
CP



Just got off of the phone with tech support, about my 80c+ SSD. There going to send a tech out and replace it with a samsung one instead since ive received two toshiba ones so far and have had nothing but issues with them.



Both of my units are locked at 160 watts for the 1080 GPU. It this something that Dell will address?



No it will either hit power or voltage limit. Both are locked. Also i would not try to get around them. I did that with a 17 r2 980m and it fried pretty fast (the whole computer) once i turned it up enough. I dont think all of these systems are stable electronically and there are some indications to that being the case. This is probably why the lower power limits are in place for the 1070.



Quick update - contacted tech support who updated the vbios. I did note realize this update was on the Dell site. GPU now running at 200 watts. Firestrike graphics score went up to 23418 from around 22250 with the power increase. GPU is overclocked 200 core and 200 mem. Running CPU at stock.



Cool - think that's what i'll do .. may be good for carrying it around the house in.



My New 17R4 out of the box was less than 1% battery wear. Not sure I'd worry about it being 2+% though.



@cyber_patriot mine is also at 2,4% wear
and no your temps should not have that huge difference in between the cores i'd contact the support.
