*OFFICIAL* Alienware 17 R4 Owner's Lounge

I'm very excited to descover your fix and how do you proceed.
Before i would like to tell you thank you very much for your work and your share with us.

I'm very excited to descover your fix and how do you proceed.
Before i would like to tell you thank you very much for your work and your share with us.



What lvl of overclock are you running on the CPU? is it default?



4.0

Sent from my E6853 using Tapatalk



So what was the fix for heatsink apart from bending.?

Sent from my SM-G935F using Tapatalk



iunlock will tell you. He is the one who repasted my Alien Unit.

I tell you this though. I'd rather send the unit to iunlock to reach it's full potential like mine. Just my opinion.



Well to tell you the truth. I cancelled my order of AW 17. After reading all of the issues . Besides I live in India and my friend is getting the laptop for me from USA so can't risk it being broke.

I guess I should not be posting here. But I'm just an enthusiast. Ordered the Aorus x5 v6.

Sent from my SM-G935F using Tapatalk



4.0 is the LVL 3 oc in the BIOS?



Yes

Sent from my E6853 using Tapatalk



It's iunlock's tune. Same results, less thermals due to the tunning.



Can you do a firestrike benchmark pls.

Sent from my SM-G935F using Tapatalk



Iunlock still has my computer. Once he ships it and I received the unit, I will test.

Also, my previous max temps were 98 degrees on stock clocks.

Sent from my E6853 using Tapatalk



Is there instructions on what we need to change to do this tune?

I tried running OCCT with lvl 3 default from the BIOS. I was getting high 80's temp wise. eventually the OCCT program stopped the test saying that temps reached some type of limit...

I repasted my laptop last night along with the thermal pads. I did not do any heatsink bending... just the repaste.



Okay. Thanks. Also I was going through the firestrike results. All laptops with a 6700k seem to be the ones on top. Could this mean that 6820hk bottlenecks the 1080 ..?

Sent from my SM-G935F using Tapatalk



Just ran OCCT with no overclocks for 30 mins. My temps averaged in the mid 60's. is this ok?



You can raise the core temp limit in OCCT settings.



I see, gotcha. But my temps are nowhere near that good as what Iunlock shows...



As a reminder, the new systems are being shipped out with a borked BIOS so basically the lower temps people are seeing are not wide open throttle runs....ie....

It's like having a rev limiter (governor) on a sports car. Pointless and Dell's very shady way of trying to trick people with a band aid fix. It's just madness as it makes the GTX 1080 pointless, let alone the 6820HK.



I'm hoping you can install the older 1.02? Bios since mine will be arriving soon.

Sent from my SM-G935W8 using Tapatalk



Yep mine came Wednesday with BIOS 1.0.8 and it ran like mid 80's running OCCT on overclock LVL 3. I went to 1.0.2 and couldn't go past LVL 2 running OCCT without hitting 100c on cores 0 and 2 and 90c on the other two cores lol.

I agree. It's very shady and no one will get even close to this machine or machines similar to its full potential on 1.0.8


Sent from my iPhone using Tapatalk



ROFL!!!


Sent from my iPhone using Tapatalk



You can.



Isn't that a class lawsuit waiting to happen?



Since Dell seem to have perfected the finger print magnet coating from the XPS line even further with the new Alienwares, are there some kind of "protective coating" skin or similar you can get to put around the keyboard and touch pad?



I upgraded to the latest BIOs.... Can I go back to the 1.0.2? Is it just a matter of downloading and installing?>



I'm really curious about the heatsink fix unlock is talking about. I was planning on tearing mine down again to do the tension arm tomorrow but I'm going to hold off now. Id rather not tear it down a third time lol.



Thats great. It seems you did a great job on the repaste



iunlock is legit. He will take care of you.

You know why you want to have him repaste? Because he is like an artist. He takes his time finishing the work with finesse and accuracy. Plus he is a very nice person. Very patient.



how much would it cost to send your laptop to the states?



Perhaps a strange question but how bad are the current problems with CPU, GPU etc? I know from experience that some overclocking people can be a bit manic about this so perhaps it isn't such a problem for the average customer as it is for the ones looking to squeeze out the last 0,1% of performance



The component will last longer if the temperature is cooler.

Regarding heat, the stock paste will hold 75+c on the AW15 if the CPU is below 30watts. Anything above 30 will instantly skyrocket temps to 99 and possibly thermal shutdown. This means that the system is not working as intended because it cannot cool the default 45w/55w TDP specified by Intel for default operation.



Thanks. And for the AW17 (with, in my case if Dell ever manage to deliver it, a GTX 1080)?



There's been reports of double thermal pad disallowing contact between the TIM and GPU, then there's @richiec77 's system with a unique flaw practically doing the same thing.

The GPU cooling is decent compared to the CPU, IF the heatsink actually makes contact with the GPU silicon...



This is just embarrassing. Why do we continue to feed Dell our money? Isn't there a single manufacturer that manages to build $US3000+ gaming laptop that actually work?



The only single GPU machine I would consider (if I were not able to disassemble it) would be the GT73VR.

Many seller with NBR rep and provide member discount can sell you without tax, so the price would be similar to a cheaper AW + tax.



If there were, I would not have ordered the 17 R4, Conductonaut, and Fujipoly pads last week, which ultimately amount to a laptop kit.



I heard that next generation they'll just send you parts to assemble, not an actual laptop.



LMFAO!!! Crysis 3 ... still the benchmark! LOL ... (still one of my favorite stress test games) ...



Believe or not. For 2012 game, it is one of the most demanding games out there. Probably due to optimization



try warfame at 4k

gtx 1080 draws 280w on that game, maybe also the division



Yup. Thank goodness...if it was some shady gig where we couldn't roll back....bye bye AW. It'd be the end and a ton of us would be sending our units back.

OC'ing the unlocked CPU and GPU will gain much more than 1%. For an average non-overclocker, the GTX 1080 is overboard and a waste of money. I'd opt for the GTX 1070..it's a fine card as I along with others have demonstrated for several hundreds of dollars less.

Sad isn't it? Bait and switch by Dell.... BIOS 1.0.6 and 1.0.8 is absolute rubbish and complete madness. Trickery at it's finest.

Aside to the thermal paste and tri-goof-ball CPU arm design, the system is among the best of best. Best in build quality and a darn fine cooling system as I have yet to see any other system in this class to produce the cooling that we've shown so far after a little work under the hood.

The P775DM3 is a great machine, but it lacks major build quality when putting it up against the new AW17R4. There is just no comparison. If you can live with thicker, plasticy, horrible keyboard and the worlds worst track pad, then the P775DM3 is an excellent choice. If it wasn't for the unlocked 6820HK, the 775 would be sitting on my desk right now running a 6700K at 4.6GHz without even breaking a sweat.

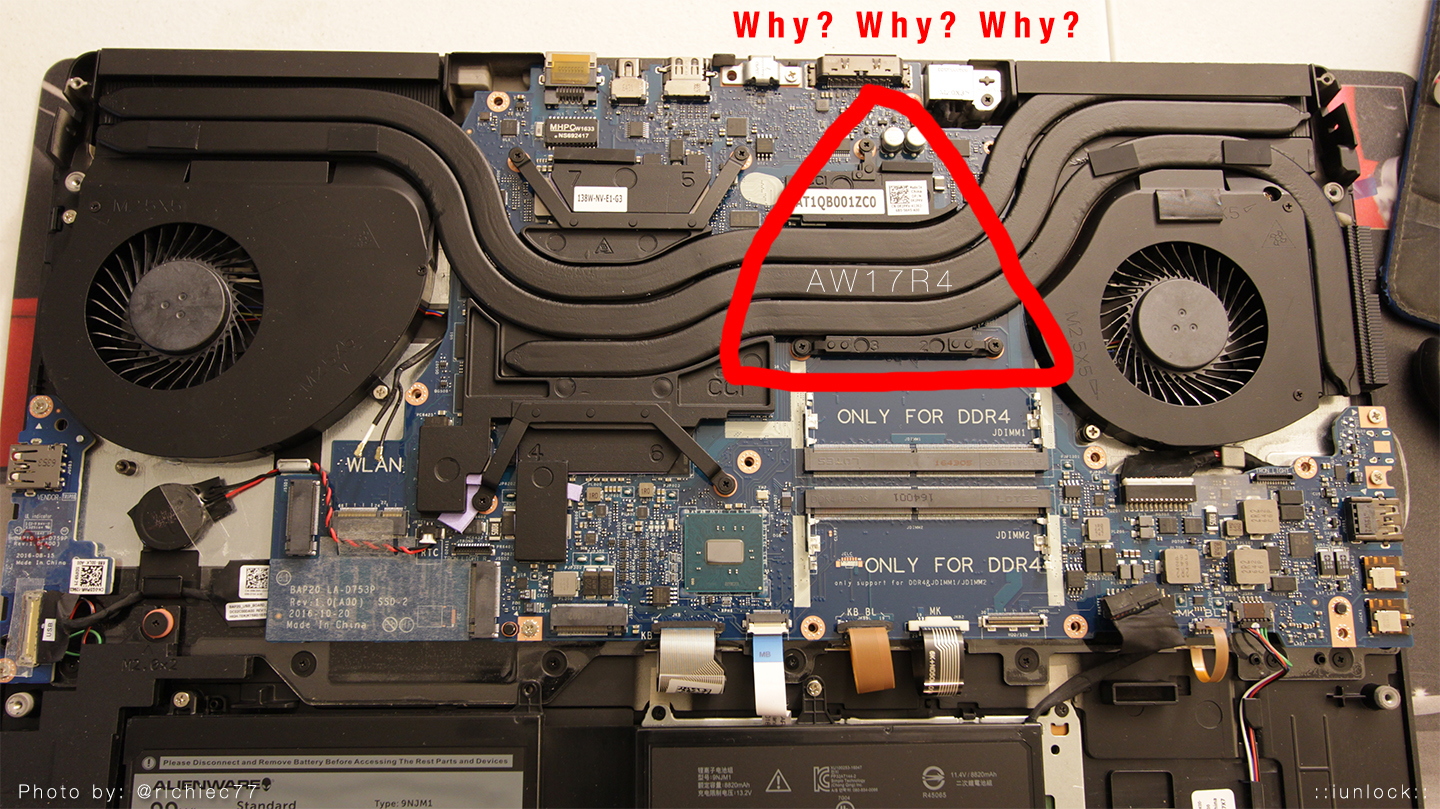

Yea Dell's hanging on by a string and with the whole toothpaste and uneven heat sink fiasco (tri-poop design) they have a lot to show for in the next revision. It's such a shame....pretty much nailed everything else only to poop on the awesomeness by the known issues. It just does not make sense...Dell needs to follow through and not let the share holders dictate the idea of taking short cuts to make their pockets deeper....Dell I hope that you realize that the damage that is being done is doing digging a deeper whole, causing more harm than gain. No more short cuts...Just follow through....

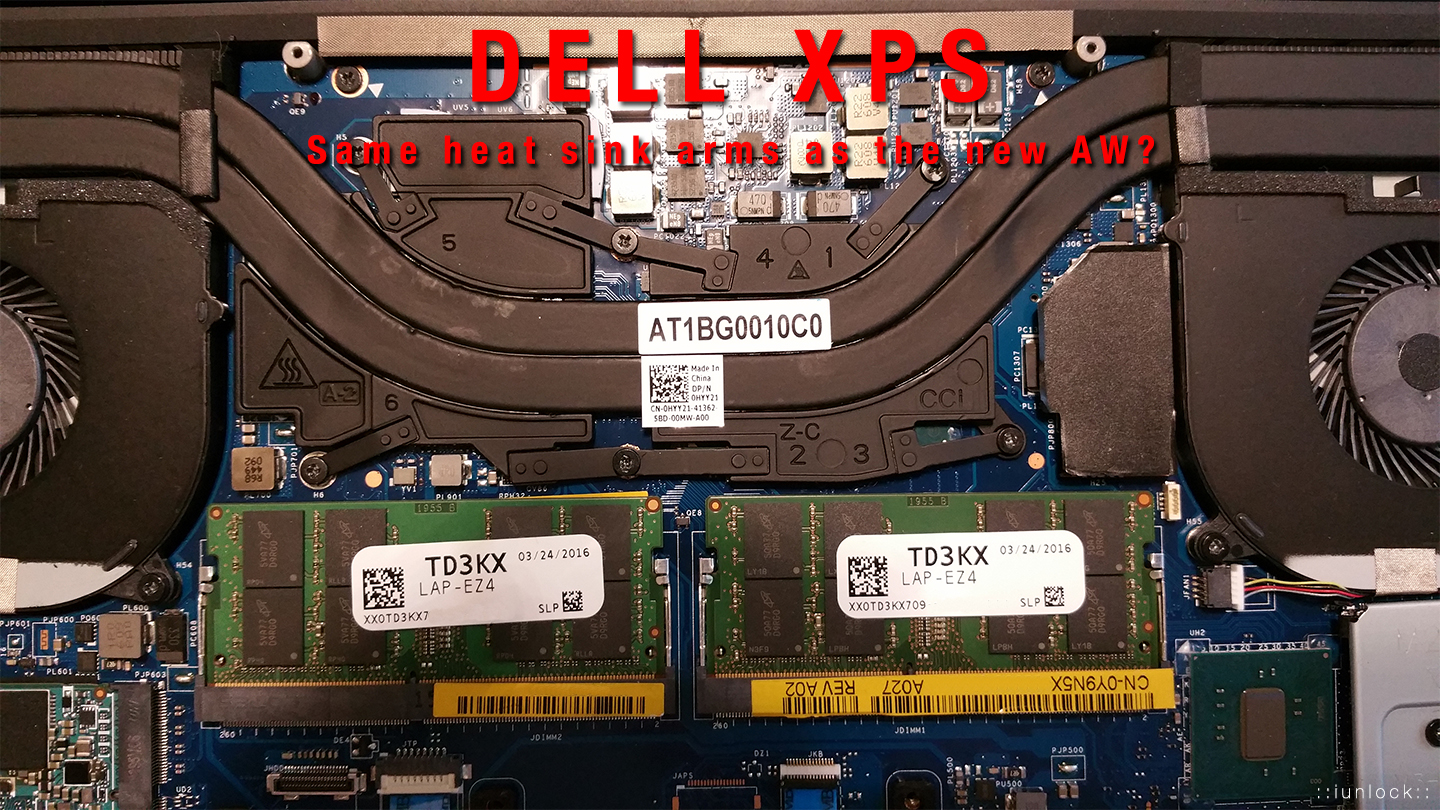

How do you justify taking weak arms from this...


And putting that same weak sauce on a gaming laptop, let alone the flag ship with a tri-WhyInTheWorld design...

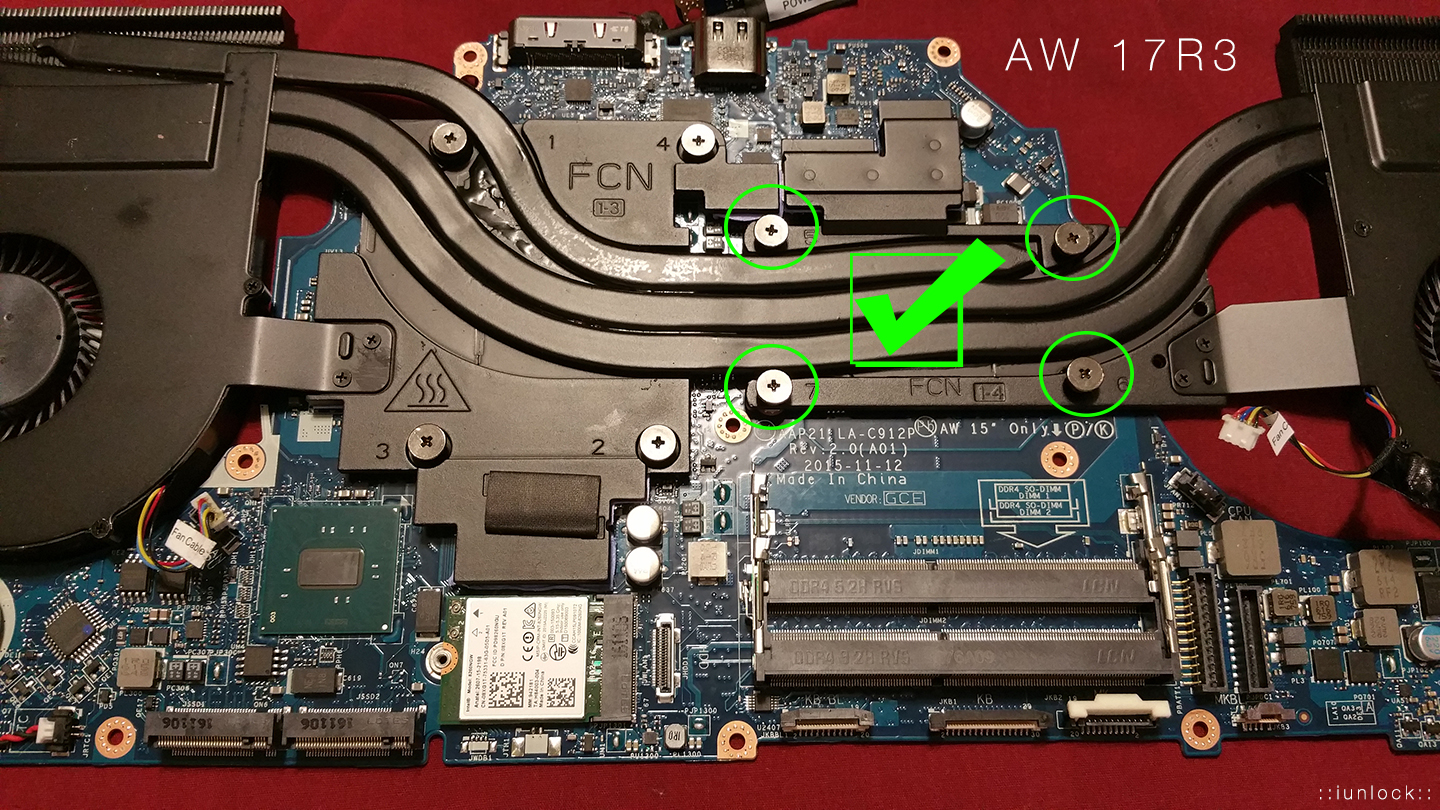

When you're previous R3's heat sink mounting system walks circles around the current revision? We don't get it....



I don't use nor recommend using the stock OC profiles. A lot of us actually despise them...it is best to OC the multipliers yourself to obtain, what we consider a true over clock of all the multipliers being the same...ie...the stock profiles have the multipliers all over the place....weak sauce ....instead, run it at 40x, 40x, 40x, 40x for example by manually setting it in BIOS, then tune it accordingly with XTU etc...

The 6700K had a huge edge over the 6820HK in that it can obtain higher clocks without breaking a sweat. Those higher clocks really add a lot onto the physics, thus yielding better results in over all scores. However, when it comes to purely looking at GPU scores...that's a different story...neck to neck.

As mentioned before, that is because the new systems are being shipped with a crippled 1.0.8 bios... this is very shady business from Dell and their attempt to addressing the high temp issues that is caused by the toothpaste and uneven heat sink (tri-mounting design). ..



Just downloaded and ran the BIOS 1.0.2... it did the reboot thing now all I see is a black screen and the fans are on full blast. it's been like that for over 5 mins. should I reboot it manually?



I'm I am right u have bricked ur machine Sir. Please return it for warranty.

Sent from my SM-G935F using Tapatalk



I'm I am right u have bricked ur machine Sir. Please return it for warranty.

I wanted to say if I'm right sorry

Sent from my SM-G935F using Tapatalk



My dead blade still does the same thing. Fans on full blast and no post. And I'm sure that my bios is corrupted coz I did it.

Sent from my SM-G935F using Tapatalk



Yeah, I am running this classic on a Noctua NT-1 Paste job from 2005-7 era, and my AMD 9950 Black OC'd CPU is idling at 31c

I am saying that most people that aren't professionals aren't going to get our results out of the gate the first time, or the first dozen times.

It's a skill that comes from being able to be aware of many aspects that all come together to have an optimal conclusion. Most people have no clue as to what 1/10th of those aspects are going in the first time.

I find it a false misdirection to tell people how long my paste jobs run, because I know they aren't going to get those results.

I know the results they are going to get are the same results everyone that does it the first few times gets, a real mess that needs to be re-done immediately or soon thereafter - no where near 2 years +

That's why I try to encourage people to let the vendor fix it instead of doing it themselves if they have no experience. Or swap it for another unit, or find another laptop brand / model that works out of the box.



Never mind.. I did a manual reboot and its good to go. I am on 1.0.2 now...



Great sorry to scare you..

Sent from my SM-G935F using Tapatalk



Ah yes...it's normal...always let it do its thing and wait it out unless it goes past 20mins or so....Sometimes it hangs and doing a simple hard shut down and powering back up is like CPR ...everything usually is fine after it powers back on...however, FOR ANYONE READING THIS, DO NOT TOUCH THE MACHINE WITHIN THIS TIME OR YOU MAY BRICK YOUR LAPTOP.
