    *OFFICIAL* Alienware Area-51M R2 Owner's Lounge

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Spartan@HIDevolution, May 9, 2020.

  1. VelvetSnake

    VelvetSnake Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    1
    Trophy Points:
    6
    Hello, I just did two Hitman 2 benchmarks on ultra at 1080p with max fans. CPU got up to around 75°C, and GPU 70°C. I have stock thermal paste and no undervolt, and the temperature in my room is between 20 and 25 °C. However the benchmark results today were quite lower than what I got when I did it two weeks ago, I’ll have to look into that, maybe I did something wrong so be careful with the temps I reported.
    Oh and while typing this, with fans off, CPU is at 55-60°C, and GPU at 50, but it’s slowly going up.

    As for your question about vapor chambers, when I bought mine the guy at Dell told me that all models come with the same cooling on the R2.

    I’m sorry I don’t have much time right now to do more extensive testing with undervolting and all that, maybe someone else has the 10700/2080S, otherwise I’ll do it as soon as I can.

    PS : the fans kicked in for a bit at 35% (barely audible), CPU was at 50 and GPU at 40

    normand668 likes this.
  2. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,597
    Trophy Points:
    931
    Doesn’t matter with stock or slightly oc’d if CPU temp is below the throttling point. Aka clocks stay put in the benchmark.

    Binned means possible higher overclock/or lower temp at same clock speed. Not lower bench scores if both run at same clock speed.

    And for the records. Haven’t seen Spartan run his 10900K overclocked. Only with default/TVB.

    Last edited: Aug 20, 2020
    jc_denton, Rei Fukai, raz8020 and 2 others like this.
  3. ratchetnclank

    ratchetnclank Notebook Deity

    Reputations:
    1,084
    Messages:
    1,506
    Likes Received:
    898
    Trophy Points:
    131
    You are correct i misread it to begin with. The R2 score does seem low though.

    You are right but my all core turbo is 4.9GHz anyway by default, i have noticed even during highly multithreaded workloads like cinebench cores will still reach max turbo as i assume the multithreading isn't perfect.

    Mr. Fox likes this.
  4. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    It does seem a bit low and it was the #1 score before Prema uploaded his new score when I searched for the ranking. So, apparently you did not upload yours?

    What we don't know from the submission is what kind of environment (temperature) or how skilled at performance tuning that person is. I would assume they have a fairly good idea of what they are doing since they had the top score, but maybe a lot of people are only taking screenshots and not uploading results. Hard to know these things.

    jc_denton, Papusan, raz8020 and 2 others like this.
  5. normand668

    normand668 Notebook Geek

    Reputations:
    82
    Messages:
    80
    Likes Received:
    112
    Trophy Points:
    41
    I imagine the driver ofc but also GPU hardware scheduling feature would have some impact as well? The only other thing I've done is removed the bloatware and changed telemetry settings.

    Papusan and Mr. Fox like this.
  6. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    Those things can make a huge difference. The graphics driver version can massively impact the GPU scores in 3DMark runs. So can settings in the NVIDIA Control Panel. Another important tuning consideration for benching is killing the services that add no value. Windows 10 has a list of worthless services big enough to choke a mule. There is a crap ton of rubbish that will leech performance, consumer memory bandwidth and CPU clock cycles that literally suck the life out of a system without adding anything of value in return. Unless you're really into the silly gimmick garbage from Windows Store and think it's nifty to let all of the app crap "talk" to one another, there is just a lot of stuff that needs to be shut down.

    I haven't identified a benefit to the GPU hardware scheduling so far. It hasn't done anything to enhance benchmark scores as far as I can tell. It might do something useful running software designed to take advantage of it, but I am not aware of a benchmark that does. There could be something I am not aware of.

  7. Rei Fukai

    Rei Fukai Notebook Deity

    Reputations:
    1,048
    Messages:
    983
    Likes Received:
    1,301
    Trophy Points:
    156
    Just looking at the average GPU temps, it seems that with the x170 it's easier to tame those hot running cores. even with a shared (but probably highly efficient/tuned) HS

  8. Clamibot

    Clamibot Notebook Deity

    Reputations:
    645
    Messages:
    1,130
    Likes Received:
    1,559
    Trophy Points:
    181
    The part of the heatsink that comes in contact with the CPU just needs a vapor chamber instead of a copper coldplate to allow us to go crazy with clock speeds.

    Rei Fukai likes this.
  9. Melvin Rousseau

    Melvin Rousseau Notebook Consultant

    Reputations:
    86
    Messages:
    203
    Likes Received:
    213
    Trophy Points:
    56
    Something that I have noticed as well is that dell hasn't raised enough the computer to let enough air in the intake fans and if you put your hand on the side and slightly raise the computer you can feel much more air going out through the sides exhausts .
    So what I did on top of delid and repad/repaste is raised the computer with two feet of 1,5 cm each with allowed me for example to bring the GPU down to 73-74 max after two hours of gaming instead of 78 .
    Doesn't seem to be affecting that much the cpu temps though

    ratchetnclank and normand668 like this.
  10. Melvin Rousseau

    Melvin Rousseau Notebook Consultant

    Reputations:
    86
    Messages:
    203
    Likes Received:
    213
    Trophy Points:
    56

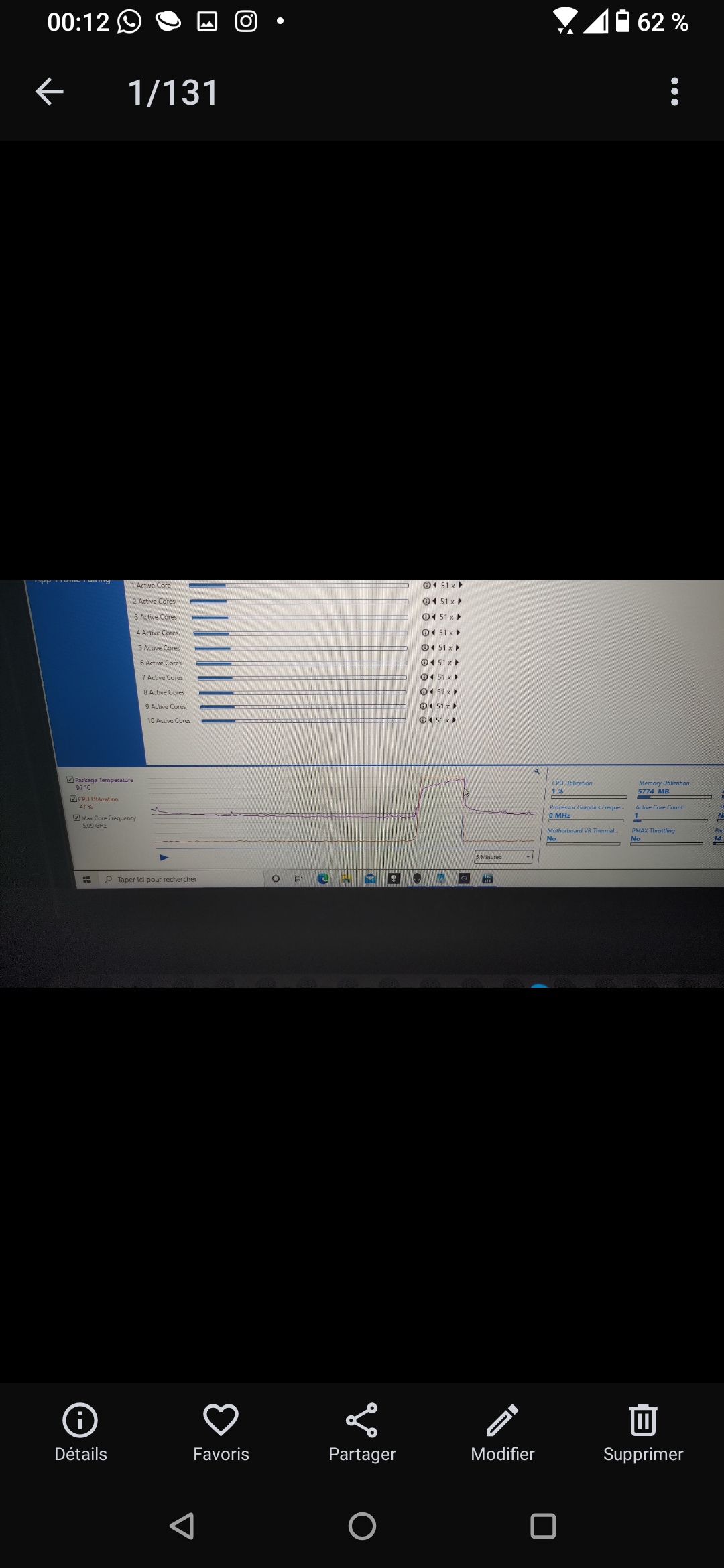

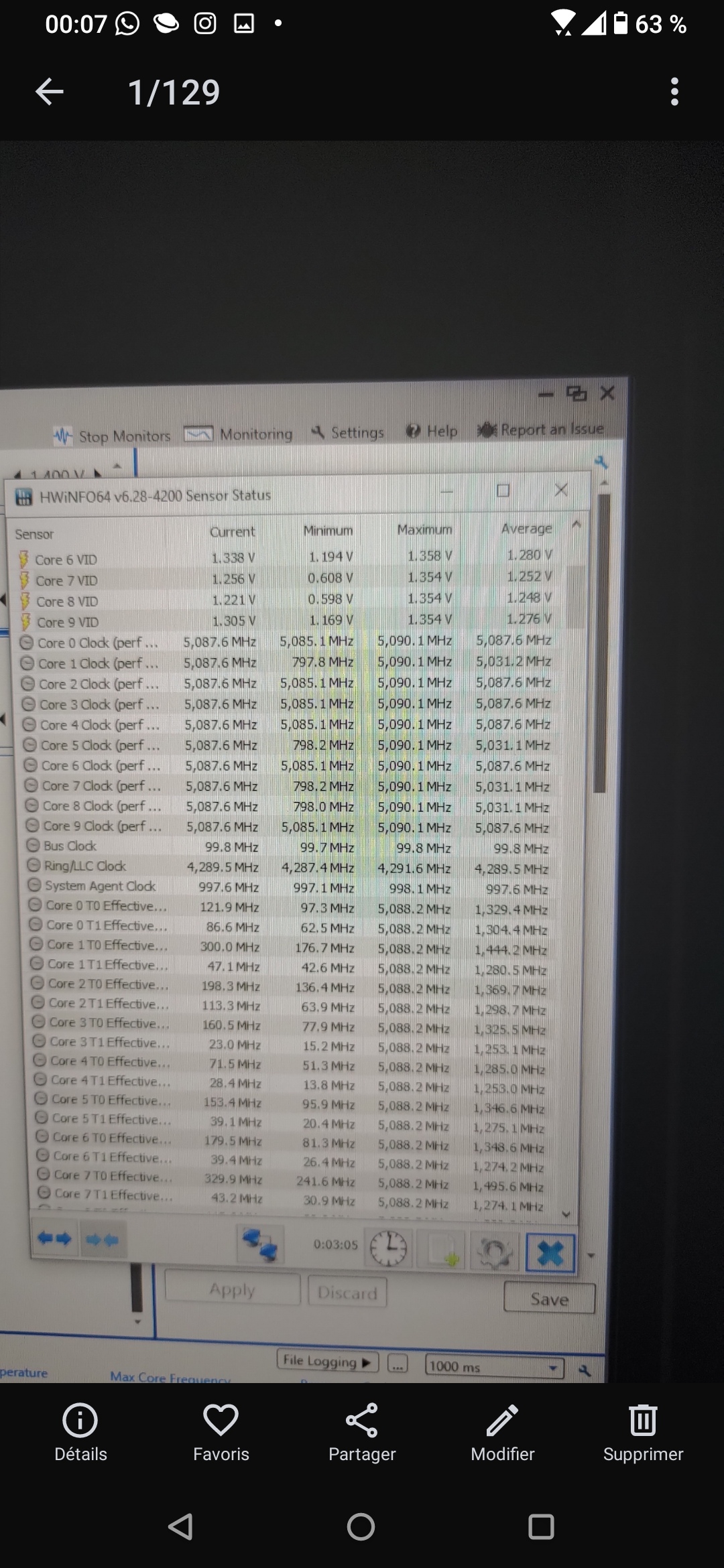

    Regarding the cpu I have the same as @Spartan@HIDevolution binned 5.1

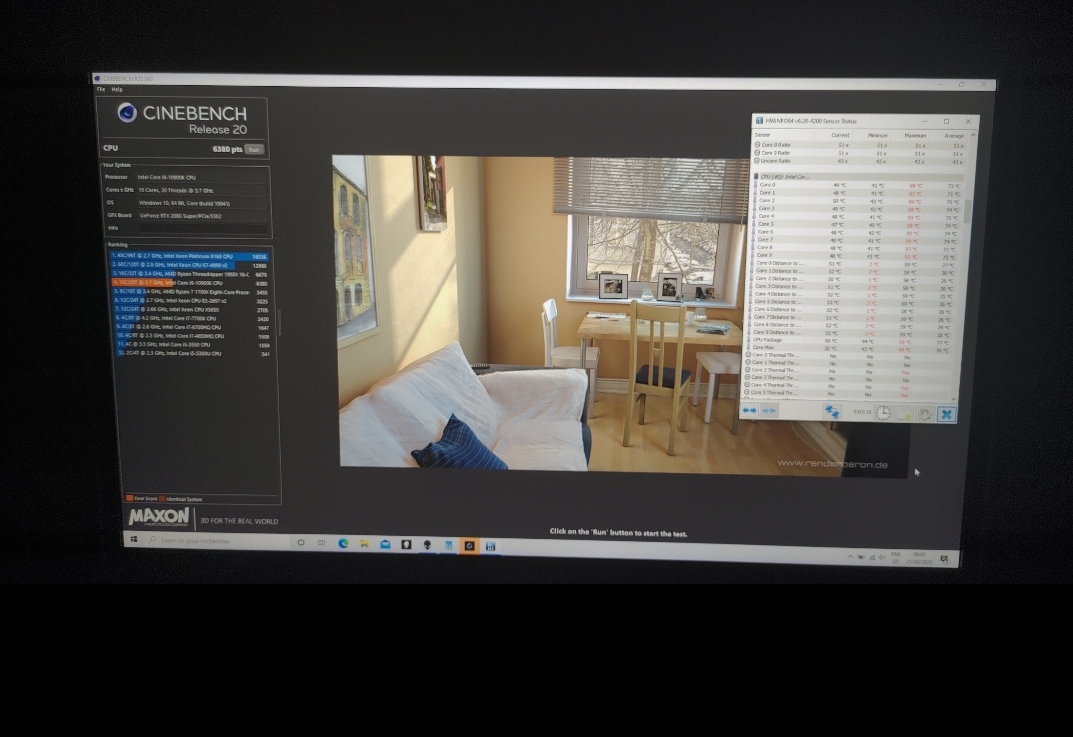

    I just did cinebenchr20 stable with 5.1 GHz on every core it reached 99 degrees on the very last 2 seconds of the benchmark
    I did the test a second time and it reached maximum 97 degrees so mine can handle 5.1 GHz on every core without an issue


    Attached Files:

    Last edited: Aug 20, 2020
    c69k, DreDre and normand668 like this.
  11. normand668

    normand668 Notebook Geek

    Reputations:
    82
    Messages:
    80
    Likes Received:
    112
    Trophy Points:
    41
    Excellent point and great idea, I've always been using the following Belkin cooling tray for my fiancées and own computers the last few years. Its not necceassily the most effective "gaming" type but its smart thats great for when I use any of the desktop replacements on my lap for any length. Main thing is it has a natural curve that adds space under the system to better ventilate, whilst I like the slight and relatively subtle raised and angled placement, so I have it under the laptop everywhere I place it, without the in built fans on usually (saves on noise). Overall like your raised feet i think it makes such a difference. Had used it so long and regularly that I forgot this may be a significant factor to improved thermals.

    https://www.amazon.co.uk/dp/B00Y0M32IG/ref=cm_sw_r_cp_apa_i_gzVpFb4VCXFYA

    Last edited: Aug 20, 2020
    Aroc and Mr. Fox like this.
  12. Melvin Rousseau

    Melvin Rousseau Notebook Consultant

    Reputations:
    86
    Messages:
    203
    Likes Received:
    213
    Trophy Points:
    56
    I like the concept but so far I haven't been able to find one big enough for the area 51 m.
    How does this cooling tray with a laptop as big as the area 51m ?
    I mean dell could have easily improved the thermals just by raising the feet a bit higher wonder why they haven't done it

  13. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    Probably because some extra-silly people would whine and complain that it is too thick even if the chassis was the same dimensions simply because the taller feet would make it appear to be thicker. That screwed-up mindset has ruined laptops of all sizes. Too big, too thick, too heavy, and too loud is how peasant consumers think, not how enthusiasts think. Unfortunately, they care too much about what the wrong people think.

    jc_denton, jclausius, DreDre and 7 others like this.
  14. VelvetSnake

    VelvetSnake Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    1
    Trophy Points:
    6
    My Dell rep also told me they would release a cooling pad for the 51M soon, no proof that it's true though...

  15. etern4l

    etern4l Notebook Virtuoso

    Reputations:
    2,916
    Messages:
    3,530
    Likes Received:
    3,482
    Trophy Points:
    331
    Well, the peasant consumers have the numbers. It's a bit like democracy, just with people voting with their wallets.

    jc_denton, Rei Fukai, raz8020 and 2 others like this.
  16. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    Very true. And, it's really sad. So much potential, so little value. Allowing reprobate idiots to reproduce and vote is what got us into such a mess. Elitists should never apologize for their superiority, but I do support the concept of showing pity to the inferior as long as they don't get too cocky. After all, they do not even realize that they are wretched, pitiful, poor, blind and naked

    [​IMG]

    Last edited: Aug 20, 2020
    MikeBloo, jc_denton, etern4l and 5 others like this.
  17. Rei Fukai

    Rei Fukai Notebook Deity

    Reputations:
    1,048
    Messages:
    983
    Likes Received:
    1,301
    Trophy Points:
    156
    If it's the size of the whole cpu substrate not just the Die it would make a significant difference.

  18. Tyranus07

    Tyranus07 Notebook Evangelist

    Reputations:
    218
    Messages:
    570
    Likes Received:
    331
    Trophy Points:
    76
    I've been through the whole 137 pages and I'm almost sold with this laptop. Seems to fix a lot of R1 flaws, temps looks great, solid performance and AW quality is always at the top. I was just wondering what's the price reference for my laptop (the one from my signature). I can't find my laptop anywhere (eBay, marketplace, etc)

  19. normand668

    normand668 Notebook Geek

    Reputations:
    82
    Messages:
    80
    Likes Received:
    112
    Trophy Points:
    41
    I really couldn't recommend it enough and think it would be a nice improvement for what you have, certainly for consistency (as opposed to SLI), thermals, CPU, size and sheer design. Are you after a reference price to enable you to sell it?

    I sold my AW 17 R5 for £1800 on eBay which had a relatively comparable spec? (not SLI ofc, but 32GB 3200MHz HyperX and i9 8950HK). If you are selling i suggest £2000 would be a good ball park figure, amending as you see fit based on offers. Though different country markets and current demand will ofc change prices i appreciate.

    Rei Fukai and DreDre like this.
  20. pathfindercod

    pathfindercod Notebook Virtuoso

    Reputations:
    1,940
    Messages:
    2,343
    Likes Received:
    2,345
    Trophy Points:
    181
    There is a category for “Price Check” down in the marketplace category.


    normand668 likes this.
  21. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,567
    Messages:
    23,559
    Likes Received:
    36,825
    Trophy Points:
    931
    You will love it more after you see my review. Best laptop I owned:

  22. Tyranus07

    Tyranus07 Notebook Evangelist

    Reputations:
    218
    Messages:
    570
    Likes Received:
    331
    Trophy Points:
    76
    You're right about the consistency. This is my third SLI laptop, but since I bought this laptop in mid 2018 I don't remember a single new AAA game that was SLI compatible. Only AC Origins, but SLI was working only for the new RTX cards, it was broken for GTX cards. I really regret expending an extra 1k on the secondary card which has done nothing for me than consume power lol

    Thanks! I had no idea about that section, lol

    I'll check it.. though is a bit of a suffering seeing this baby and not having it, lol

  23. etern4l

    etern4l Notebook Virtuoso

    Reputations:
    2,916
    Messages:
    3,530
    Likes Received:
    3,482
    Trophy Points:
    331
    How long are you planning to keep it? If medium/long term, the laptop will become obsolete in a couple of months.

    jc_denton likes this.
  24. normand668

    normand668 Notebook Geek

    Reputations:
    82
    Messages:
    80
    Likes Received:
    112
    Trophy Points:
    41
    Fair point, @Tyranus07 as @etern4l has previously highlighted if may be worth waiting out for the next gen GPUs, though if like me your worried about your old systems resell price and needing/wanting an upgrade immediately then thats justified, your decision ofc.

    I'm likely going to see about selling mine and getting the next gen, the cost incurred mitigated by the savings I've made on tax (buisness purchase) and as a dell partner reseller, on top of defence discount I could compound.

    Whatever the case I highly recommend you check the EPP/Dell Advantage portal if not already and eligible.

    jc_denton and etern4l like this.
  25. Melvin Rousseau

    Melvin Rousseau Notebook Consultant

    Reputations:
    86
    Messages:
    203
    Likes Received:
    213
    Trophy Points:
    56
    Here is a picture will all the measurements to replace the thermal pads .
    I used fujipoly extreme pads .
    Watch out if you are using more compressible pads you might want to increase the thickness.
    I didn't have a picture for the heatsink of the GPU but it was 1 mm for the vrm and 1,5 mm for the two MOSFETs


    Attached Files:

    Last edited: Aug 21, 2020
  26. alaskajoel

    alaskajoel Notebook Deity

    Reputations:
    1,088
    Messages:
    1,031
    Likes Received:
    964
    Trophy Points:
    131
    Woah, this is wild. I presume this is your completely stock heatsink, but it has the Delta fans and part of your vapor chamber is black where mine is copper.

  27. Melvin Rousseau

    Melvin Rousseau Notebook Consultant

    Reputations:
    86
    Messages:
    203
    Likes Received:
    213
    Trophy Points:
    56
    No I also have the same heatsink as you .
    The one in the attached file is the one I got from eBay to try to mod it for my area 51m r1

    I have no idea why the heatsink is different than the stock one though

  28. Tyranus07

    Tyranus07 Notebook Evangelist

    Reputations:
    218
    Messages:
    570
    Likes Received:
    331
    Trophy Points:
    76
    Actually I used to keep my laptops for 3+ years. But I got a bit tired of the resell price going down so fast. I remember paying around 3k for my AW 18 in 2014 I think, and sold it in 2018 for like $500, with upgraded video card an all. So I'm gonna try different this time and sell the P870TM while still has some of it's value

  29. Superbibi56

    Superbibi56 Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    5
    Trophy Points:
    6
    Hi,

    just to let you know, I just installed the latest driver from Nvidia and now I have no more artifact with HZD.
    No more error message regarding the driver at startup.
    By the way, i launched the benchmark of HZD ang got a nice boost from 72fps to 88!
    I'll let u know if I have any problems with these drivers but for the moment I'll stick to the latest from NVidia :)

    Ciao.

  30. BladeBook

    BladeBook Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    4
    Trophy Points:
    6
    Real talk, THE ONLY REASON I got the 10700K was due to thermal fears. Would you have gotten the 10900K (without doing thermal mods)?

  31. DreDre

    DreDre Notebook Consultant

    Reputations:
    175
    Messages:
    178
    Likes Received:
    275
    Trophy Points:
    76
    I appreciate your review. 5.3GHZ with those temperatures the notebook is damn good with the vapor chamber cooling this time around. With your Silicon Lottery 10900K those temperatures are excellent. I disagree about the keyboard though. Im not a fan of the Chiclet layout unless its rubber. LOL. The R1 keyboard is better as I have not had any keys popping off like others I have seen in the wild. As we were the crash test dummies who bought the R1 the R2 is a small improvement. The speakers do sound better with a little bit of bass. Hopefully Dell/Alienware will not disable being able to undervolt the CPU in the future. After Prema brings his bios updates to the X170-SMG we can get a better idea of which notebook is better between the Alienware Area 51M R2 and Clevo X170 with a 10900K.

    Last edited: Aug 22, 2020
    Spartan@HIDevolution and Papusan like this.
  32. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,597
    Trophy Points:
    931
    5.3gGHz ? Where? You mean this? Its a big difference between 5.3GHz all core boost vs. stock single core TVB. He can even add in 5.5GHz and Cpu temp will still be ok if he run that clock speed on single core :D
    [​IMG]

    Even Intel's BGA chips can show up with 5.3GHz for single core TVB

    Last edited: Aug 22, 2020
  33. doofus99

    doofus99 Notebook Deity

    Reputations:
    284
    Messages:
    1,013
    Likes Received:
    508
    Trophy Points:
    131
  34. ratchetnclank

    ratchetnclank Notebook Deity

    Reputations:
    1,084
    Messages:
    1,506
    Likes Received:
    898
    Trophy Points:
    131
    Depends what you do more. If it's content creation then the 4k is worth it but if you mostly game like i do it's not worth it. The 2080 super driving a 1080p panel means much better framerates and more chance of actually hitting 144fps or higher.

    DreDre likes this.
  35. Tyranus07

    Tyranus07 Notebook Evangelist

    Reputations:
    218
    Messages:
    570
    Likes Received:
    331
    Trophy Points:
    76
    I've seen side by side a game running on a 17 inch 1080p screen vs a 17 inch 3k screen and the only difference I could tell is the 3k screen had slower frame rates, lol... For gaming there is absolutely no advantage on playing on a 4k 17 inch screen over a 1080p 17 inch screen. left aside all the legacy software that would look all blurry because the Windows font escalation, that really annoys me

    Spartan@HIDevolution likes this.
  36. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,567
    Messages:
    23,559
    Likes Received:
    36,825
    Trophy Points:
    931
    I had an XPS 15 9570 with a 4K Screen. NEVER again will I buy a 4K screen on a laptop. Even popular programs like Nero Platinum Suite 2020 don't scale well. Everything was so tiny. Same goes for my HP printer software and scanning app. Just to name a few.

  37. alaskajoel

    alaskajoel Notebook Deity

    Reputations:
    1,088
    Messages:
    1,031
    Likes Received:
    964
    Trophy Points:
    131
    For what it's worth, Nvidia's integer scaling is fantastic if you have a 4k display but want to scale to 1080p without NN interpolation. It's my preferred way to use a 4k notebook display.

  38. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,567
    Messages:
    23,559
    Likes Received:
    36,825
    Trophy Points:
    931
    Is that something that you'd have to do seperately from the nVIDIA control panel in addition to setting the scaling from the Windows settings? or do you set the scaling to 100% from the Windows setting and do the scaling from the NVCPL? Would you mind sharing a few images tutorial?

  39. saturnotaku

    saturnotaku Notebook Nobel Laureate

    Reputations:
    4,879
    Messages:
    8,923
    Likes Received:
    4,701
    Trophy Points:
    431
    Integer scaling is set through the NVIDIA control panel and is independent from any Windows setting. It basically makes the screen look like it is running natively at 1080p. It only works while gaming. You still need to rely on Windows for the desktop.


    Sent from my iPhone using Tapatalk

  40. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,567
    Messages:
    23,559
    Likes Received:
    36,825
    Trophy Points:
    931
    I see, while that's good, it doesn't solve my issues with programs that don't play well with scaling so I'm stuck with 1080P because Microsoft till this date can't seem to figure out scaling properly. Wish they could learn one thing from Apple.

    etern4l likes this.
  41. Calipha

    Calipha Notebook Guru

    Reputations:
    4
    Messages:
    54
    Likes Received:
    10
    Trophy Points:
    16
    Does anyone know how I would go about unlocking GPU power limit?

  42. Calipha

    Calipha Notebook Guru

    Reputations:
    4
    Messages:
    54
    Likes Received:
    10
    Trophy Points:
    16
    Does anyone know how I would go about unlocking GPU power limit?


    Attached Files:

  43. DreDre

    DreDre Notebook Consultant

    Reputations:
    175
    Messages:
    178
    Likes Received:
    275
    Trophy Points:
    76

    My bad I was looking at the max temperatures for that run. 4.9GHZ on all cores at those temperatures is still very good. I have my 9900K running at 4.9GHZ on all cores but i have a -125uv with Phobya nanogrease repaste. If I had not all ready had the R1 and all ready experienced several Dell/Alienwares the R2 would be an exciting notebook to own. We will see how the run goes but this is a cash grab until Ampere mobile comes......

    Last edited: Aug 23, 2020
  44. ratchetnclank

    ratchetnclank Notebook Deity

    Reputations:
    1,084
    Messages:
    1,506
    Likes Received:
    898
    Trophy Points:
    131
    You can't.

  45. Calipha

    Calipha Notebook Guru

    Reputations:
    4
    Messages:
    54
    Likes Received:
    10
    Trophy Points:
    16
    Oh- I see.

    What do you guys use the undervolt & overclock the CPU by the way? Throttlestop doesn't seem to support 10-core processors, I've tried XTU before but people keep telling me to use TS.
    Also, The Iccmax values for CPU core and CPU cache are different for me, is it suppose to be that way?

  46. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,691
    Messages:
    29,835
    Likes Received:
    59,597
    Trophy Points:
    931
    TS works perfectly well with +10 cores. Max out Iccmax values for CPU core. The Iccmax value for Cashe doesn’t matter.

    Normimb, raz8020 and DreDre like this.
  47. etern4l

    etern4l Notebook Virtuoso

    Reputations:
    2,916
    Messages:
    3,530
    Likes Received:
    3,482
    Trophy Points:
    331
    Exactly, it's just a way to run games at lower res without the unpleasant softness effect due to interpolation. A nicer way to do this would be to have an intelligent upscaler from 1080p to 4K which I heard is what DLSS can do (although it's probavly not as simple, since it can't be enabled for legacy games?)

    Spartan@HIDevolution likes this.
  48. ratchetnclank

    ratchetnclank Notebook Deity

    Reputations:
    1,084
    Messages:
    1,506
    Likes Received:
    898
    Trophy Points:
    131
    Rumours are that DLSS 3.0 would work on any game with TAA anti-aliasing as an option but i guess we will see if that ever happens.

    etern4l likes this.
  49. alaskajoel

    alaskajoel Notebook Deity

    Reputations:
    1,088
    Messages:
    1,031
    Likes Received:
    964
    Trophy Points:
    131
    You can absolutely use it anywhere in Windows when you force scaling to be performed on the GPU. Just leave the desktop resolution at 1080p, set the 'Scale and layout' to 100% and move between the different scaling options in Nvidia control panel.

    Try it out yourself if you have a 4k display--even on the Windows desktop and task bar, switching between IS makes a significant difference in the softening of icons and text.

    Edit: To be clear, for this feature to work system wide, there must be a direct connection from the Turing GPU to the display, as is the case in the 51m.

    Last edited: Aug 22, 2020
    raz8020 likes this.
  50. Calipha

    Calipha Notebook Guru

    Reputations:
    4
    Messages:
    54
    Likes Received:
    10
    Trophy Points:
    16
    It only gives me the option to adjust up to 8 cores ratio with TS, what about the other two?

← Previous pageNext page →
