    [Help] Acer TravelMate 2480 CPU upgrade ?

    Discussion in 'Acer' started by ndp1007, Jan 14, 2011.

  1. ndp1007

    ndp1007 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hi all !
    This is a Laptop Acer TravelMate 2480 CPU Celeron M 440 ( 1.86GHz, 533MHz FBS,1M L2 Cache) .Detials info CPU and MainBoard of it following : (Result from Software HWiNFO32) :

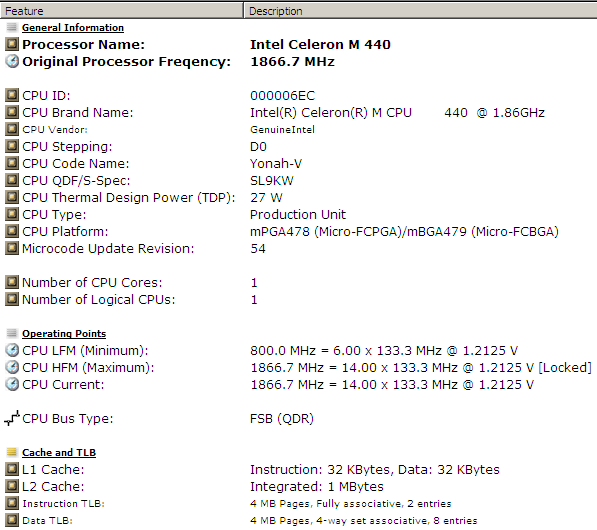

    + CPU

    [​IMG]

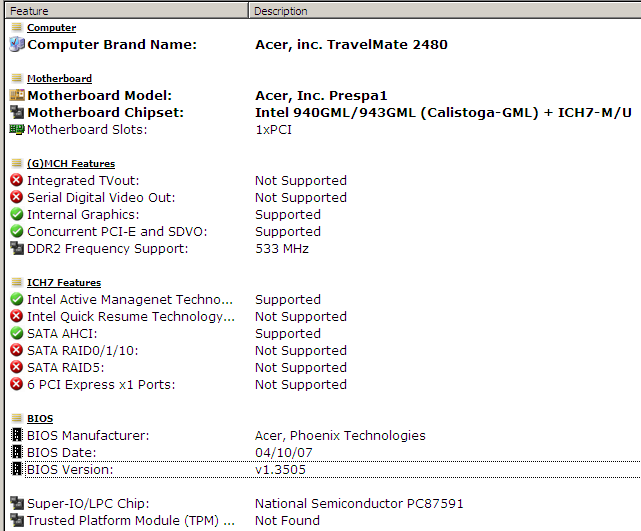

    + Mainboard

    [​IMG]

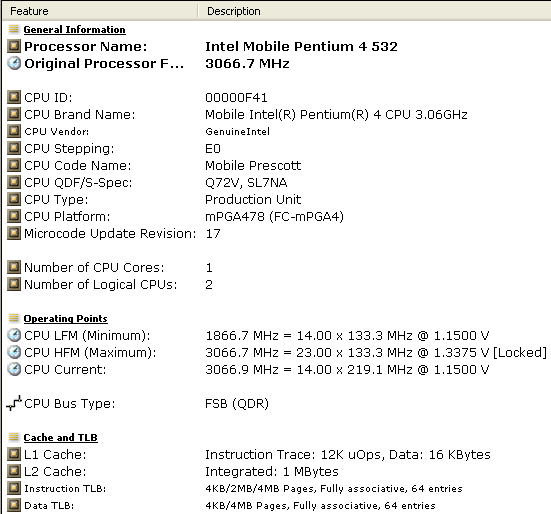

    This is a info of CPU Intel Mobile P4 of my PC :

    [​IMG]

    Now ! I want to take it instead of the CPU Laptop
    Doing so can I? Hope you share
    Thanks so much ! :)

    ndp1007, Jan 14, 2011
    #1
  2. ZaZ

    ZaZ Super Model Super Moderator

    Reputations:
    4,982
    Messages:
    34,001
    Likes Received:
    1,415
    Trophy Points:
    581
    I don't believe the 940GML chipset supports the dual core CPUs. Perhaps you can do a Core Solo CPU, which would get you speedstep. A good SSD would probably be more useful if you can live with the limited space.

    ZaZ, Jan 14, 2011
    #2
  3. ndp1007

    ndp1007 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    I search info about Mobile Intel 940GML Express Chipset at this page : Mobile Intel® 940GML Express Chipset
    And download its Datasheet ( link download : http://www.intel.com/Assets/PDF/datasheet/309219.pdf)

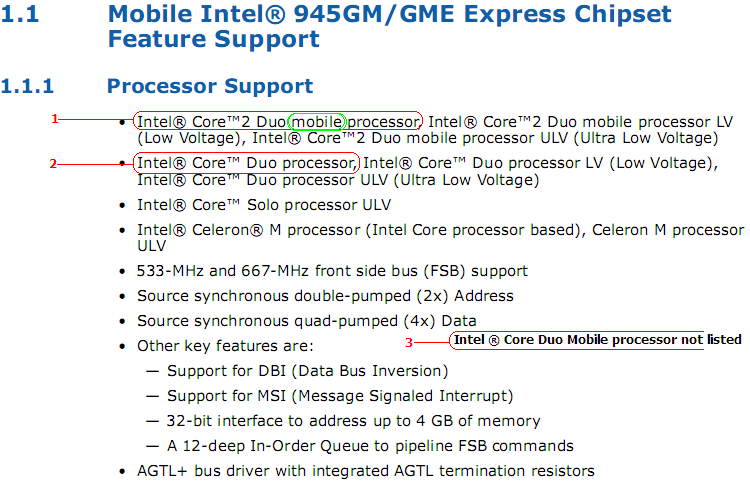

    And Info about Processor Support following :

    [​IMG]

    What is my CPU type in the list above? 1 or 2 that I draw on image.
    I think type of my CPU is : Intel ® Core Duo Mobile Processor which It is not listed in above document.
    So I can upgrade the CPU with this?
    Thanks for commenting :)

    ndp1007, Jan 14, 2011
    #3
  4. ellalan

    ellalan Notebook Deity

    Reputations:
    336
    Messages:
    1,262
    Likes Received:
    82
    Trophy Points:
    66

    Attached Files:

    ellalan, Jan 15, 2011
    #4
  5. ndp1007

    ndp1007 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5

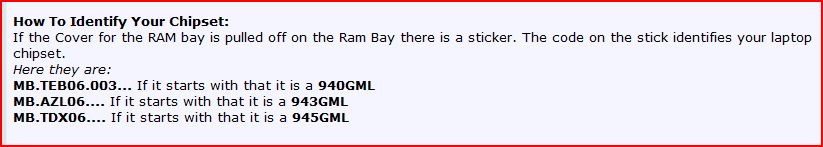

    Thanks ! I'm Wrong
    My CHipSET laptop is 940GML :) .

    ndp1007, Jan 17, 2011
