    7745g-6662 2nd hard drive bay parts numbers here!!

    Discussion in 'Acer' started by rr21, Nov 11, 2010.

  1. rr21

    rr21 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    To make the 2nd hard drive bay usable, I was able to source the parts through Acer Tier 1 Support. They are.
    HDD Door =42.PUM07.004
    HDD Bracket=33.PUM07.003
    HDD Dip Housing=PUM07.001

    I hope this saves someone some time trying to find them. I have the parts and there installed so I know they work.

    rr21, Nov 11, 2010
    #1
  2. Ryssen12

    Ryssen12 Notebook Consultant

    Reputations:
    1
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Do you have a picture of it?

    Ryssen12, Nov 12, 2010
    #2
  3. rr21

    rr21 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Acer 2nd HDD Picture. I was able to find the service manual also, but I guess I cant share it. They want everyone to buy it like I had to.

    [​IMG]

    Uploaded with ImageShack.us

    rr21, Nov 12, 2010
    #3
  4. Ryssen12

    Ryssen12 Notebook Consultant

    Reputations:
    1
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    I ordered the parts some days ago,but didn´t order a door I thought the original would fit if I cut of the pins on the inside.Will it? :(

    Ryssen12, Nov 12, 2010
    #4
  5. rr21

    rr21 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I read over at newegg that someone tried that and it did not work. The new door has a different design and has a more room for the drive. Its the outside edge of the hard drive that wont allow the door to close if you try to use the old door. That's why I took a picture of both doors.

    rr21, Nov 13, 2010
    #5
  6. Ryssen12

    Ryssen12 Notebook Consultant

    Reputations:
    1
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Hmmm,guess I have to order the door to then.

    Ryssen12, Nov 14, 2010
    #6
  7. Reelhouse

    Reelhouse Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I've talked to and chatted with support the last 2 days and tey are clueless. They even questioned my warranty status and thought I was "modifying" this unit. So after 30 minutes on the phone....I hung up. They just don't seem to understand the simple thing I want is those 3 parts....

    Reelhouse, Dec 14, 2010
    #7
  8. Ryssen12

    Ryssen12 Notebook Consultant

    Reputations:
    1
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    I just went in to Zand Group and searched for the partsnumbers and did the order,fast and no trouble.
    Just make sure you dont get the same door you have..
    I just thoght the price for these parts where a little to high,but whats a man to do?? :p ;)

    Tell us if you get the parts..

    Ryssen12, Dec 14, 2010
    #8
  9. Neogarry

    Neogarry Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

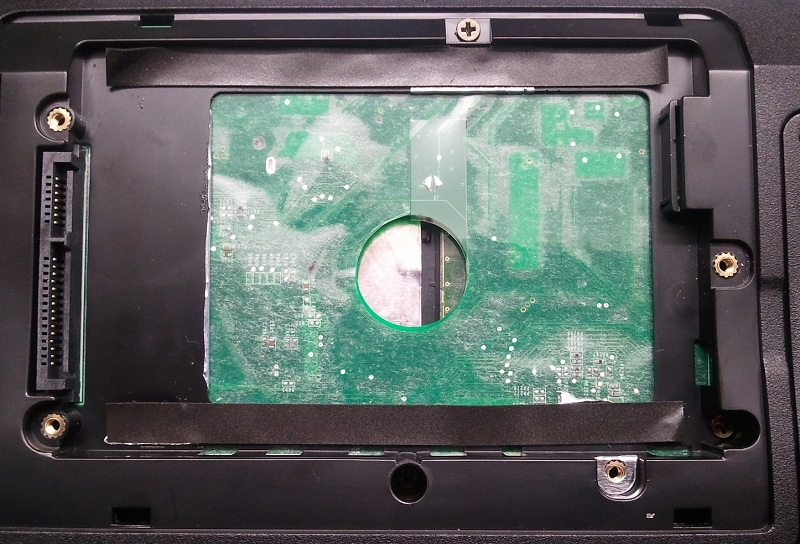

    And what is the green plate (see picture..) ?

    did you remove this plate?

    Thanks for answer...


    Attached Files:

    Neogarry, Jan 21, 2011
    #9
  10. jburr36

    jburr36 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Umm..that green plate in yout pic is part of the motherboard and not removable.

    Here is where I found the parts:

    HDD-Connector+Bracket 2.HDD for Acer Aspire 7745: battery, power supply, display, etc - Laptop Repair Shop

    Actually they sell all 3 parts together in a kit. They are out of Germany but seem to be ok for they sell to US customers and even take PayPal. I searched all around the net for these parts and couldn't find any US suppliers for them. Just dealers from Germany, France, Australia, and the UK.

    Hope this helps.

    jburr36, Feb 10, 2011
    #10
