    ACER 9410Z board question

    Discussion in 'Acer' started by J V, Jul 24, 2008.

  1. J V

    J V Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I have an ACER 9410Z which had a bad dial up modem. To get the modem out there was no acess from underneath. I had to take main board out. Changing the modem was no problem but due to a terrible memory I cannot emember where the wires for the monitor plug into the drive. I have gone over the board numerous times with no luck.

    The wires are black and white and each individually push onto a pin. CAn anyone tell me what pin number it is? Or does anyone have a picture of the board with wires attached?

    Thanks

    J V, Jul 24, 2008
    #1
  2. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    are you sure those aren't the WIFI antenna wires (those to wires come from the LCD HINGE

    which would attach to the MINI-PCI WIFI adapter....

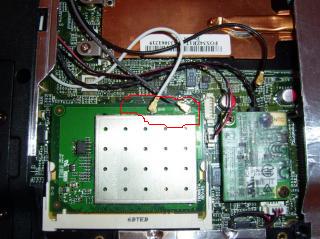

    do the wires and "plugs" look like those circled in the PICTURE attached below


    Attached Files:

    bigozone, Jul 24, 2008
    #2
