    Acer 6935g laptop monitor not detected

    Discussion in 'Acer' started by hamzie, Dec 24, 2010.

  1. hamzie

    hamzie Notebook Consultant

    Reputations:
    3
    Messages:
    132
    Likes Received:
    1
    Trophy Points:
    31
    Ok so i updated the bios to 1.20. and it was working fine but i opened up the laptop to fix a heating problem and now my laptop monitor isnt working.
    It isnt even being detected by the computer.. using an external monitor at the moment and when i go to select display it only gives 1 option - the external monitor.


    anyone know what the problem is

    Actually i just recalled that this happened right after my laptop shut down from over heating :(

    hamzie, Dec 24, 2010
    #1
  2. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    I know that happened to me once when I accidentally tugged out the ribbon cable connecting the monitor to the motherboard. Go find your 6935G service manual via Google (can't share it on NBR), and then locate where your monitor connects to the motherboard. See if the cable is possibly damaged, too.

    TehSuigi, Dec 24, 2010
    #2
  3. hamzie

    hamzie Notebook Consultant

    Reputations:
    3
    Messages:
    132
    Likes Received:
    1
    Trophy Points:
    31
    Yep the cable was loose! thank god nothing more

    Thanks a lot

    hamzie, Dec 24, 2010
    #3
  4. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    I only figured that out from personal experience and panic. Glad that was the fix! :)

    TehSuigi, Dec 26, 2010
    #4
  5. hamzie

    hamzie Notebook Consultant

    Reputations:
    3
    Messages:
    132
    Likes Received:
    1
    Trophy Points:
    31
    After you cleaned yours did you find that the CPU temperatures didnt change at all?

    I dont know if this is happening because of my amazing cleaning or something went wrong

    Because the CPU temperatures arent deviating at all *GPU is*

    hamzie, Dec 27, 2010
    #5
  6. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Nope, CPU temperatures are changing just fine on my system.

    TehSuigi, Dec 27, 2010
    #6
  7. evilmind_m

    evilmind_m Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    I got the same problem after cleaning heatsink fan,
    display only on external monitor
    vista dsnt even detect monitor and
    the led behind the screen dnst lit too.
    can u please help me out with this...

    1) in ur case was the led acer logo at the back of screen working? mine dsnt
    2) what cable fixed the prob? the flat white ribbon cable or the other thin black cable goin to lcd

    thanks in advance

    just to add im electronics graduate student so i know what i am doing, but i need to be sure..
    --------------------

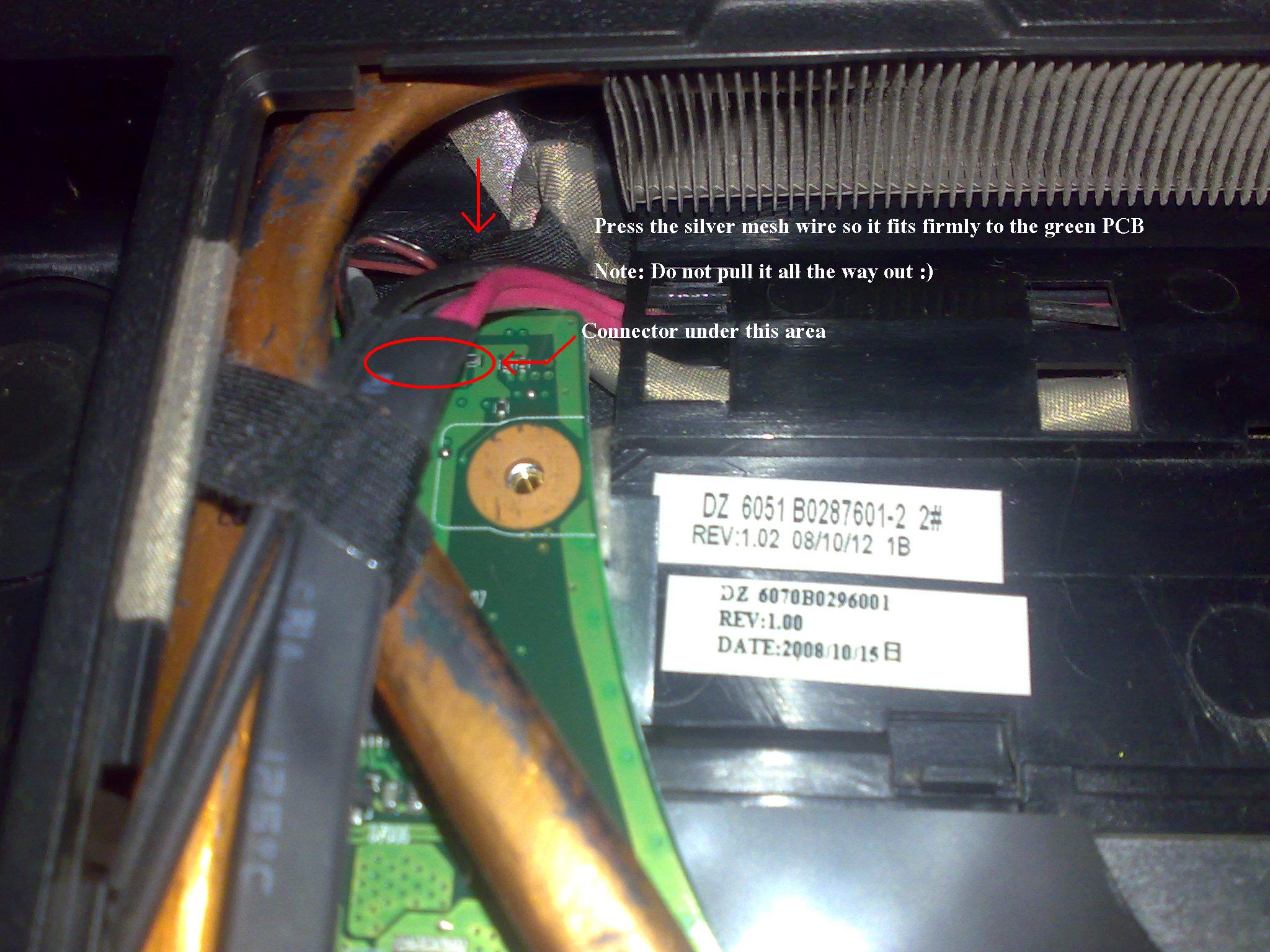

    Ok i solved the problem it was the shielded silver mesh cable which needed to be pressed into place.
    If u have the service manual the connector is labeled cn2 LCM connector page 87.
    For others who mite have the same problem im attaching an image for ease.

    Regards
    EvIlMiNd


    Attached Files:

    evilmind_m, Apr 12, 2011
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,901
    Trophy Points:
    931
    Ah you guys missed the point on an easy excuse to go 1080p lol.

    Meaker@Sager, Apr 12, 2011
    #8
  9. evilmind_m

    evilmind_m Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Ya only if u have enough buks in ur poket :)
    rite now.. mee die if me lappy dies :rolleyes:

    evilmind_m, Apr 12, 2011
    #9
