    Acer aspire 5520 unplug main monitor cable

    Discussion in 'Acer' started by unknown1138, Dec 1, 2011.

  1. unknown1138

    unknown1138 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hey all,

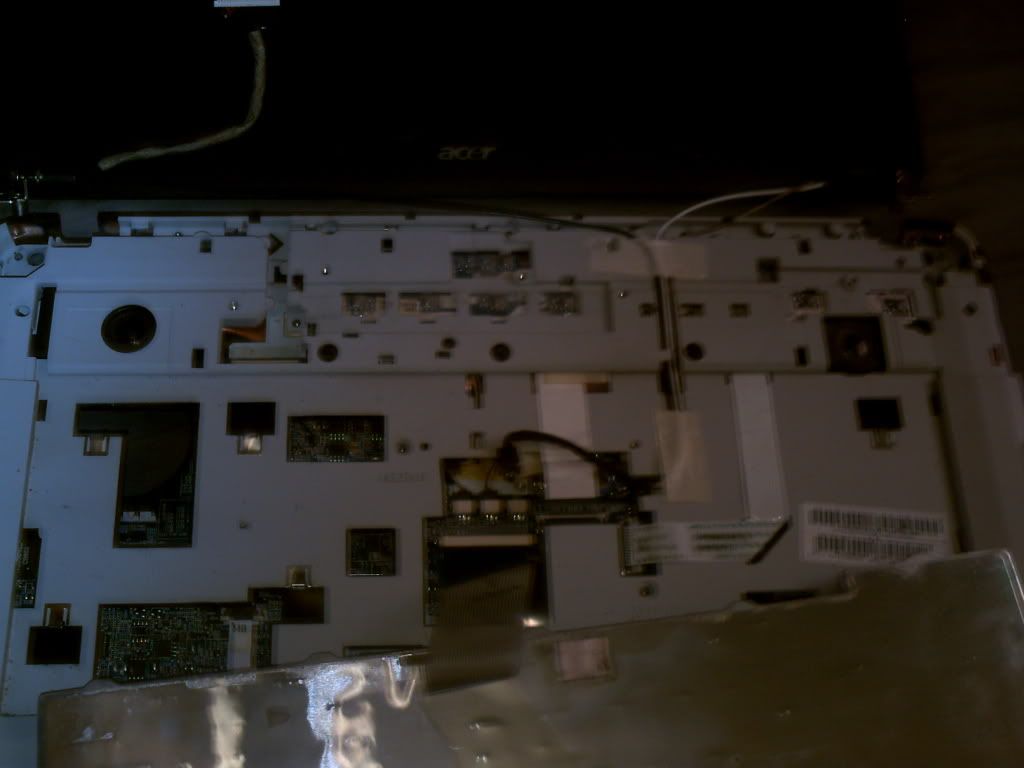

    I have dissamblied my acer aspire 5520 since my laptop monitor is broken, now I want to unplug the monitor cable so it automatically goes over to my VGA-plugged monitor. now I want to know if anyone knows what the right cable is to unplug.

    I have 1 cable unplugged atm but before I put it all back together I want to know if it is the right cable(s).

    Pictures:








    Kind regards,
    unknown1138

    P.S. I don't know if this is the right section but since it is acer related, I thought it would be the good section.

    unknown1138, Dec 1, 2011
    #1
  2. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331

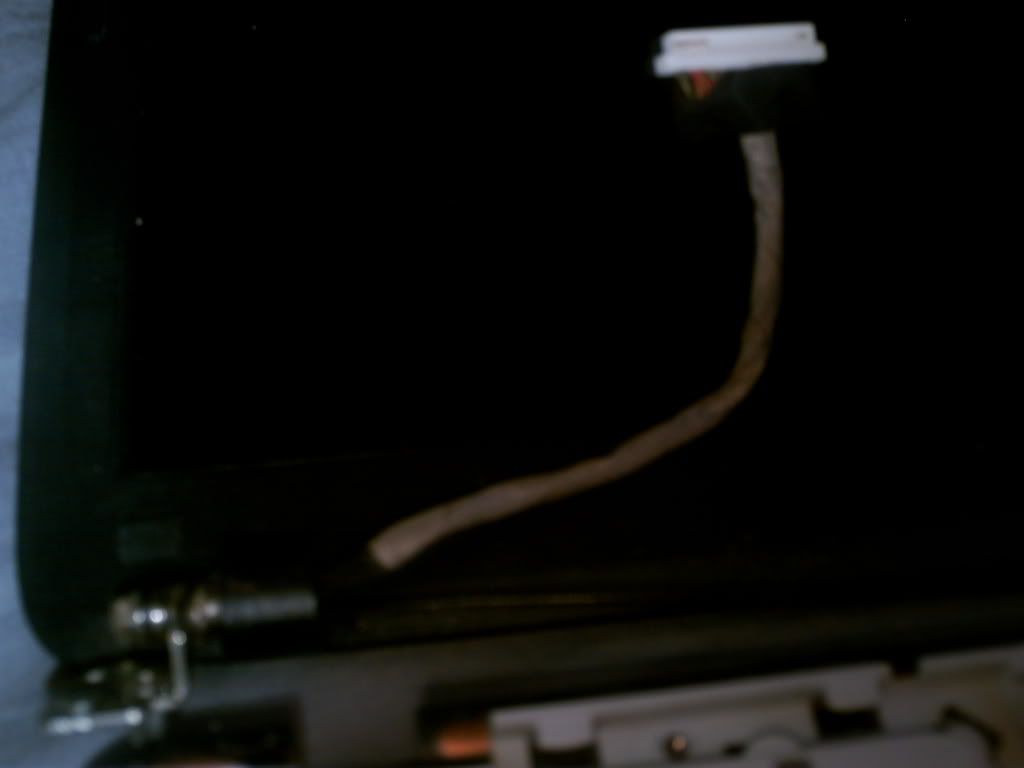

    That's the cable that can be seen already unplugged on last photo.

    downloads, Dec 1, 2011
    #2
  3. unknown1138

    unknown1138 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    First of all, thank you for replying and making that clear.

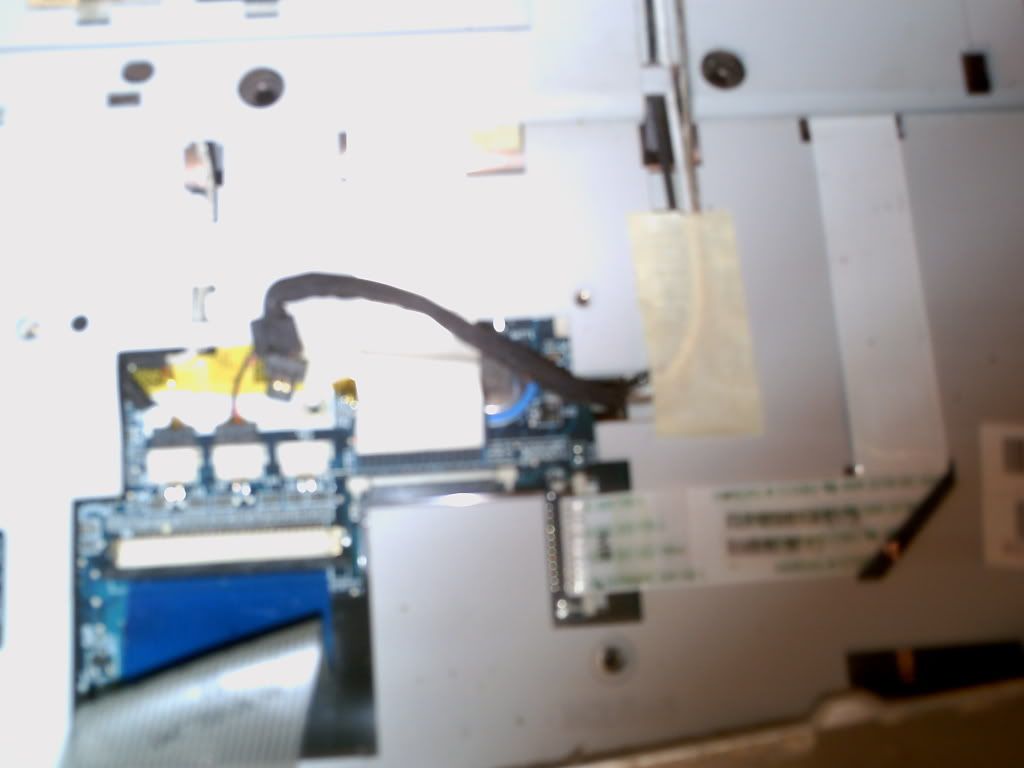

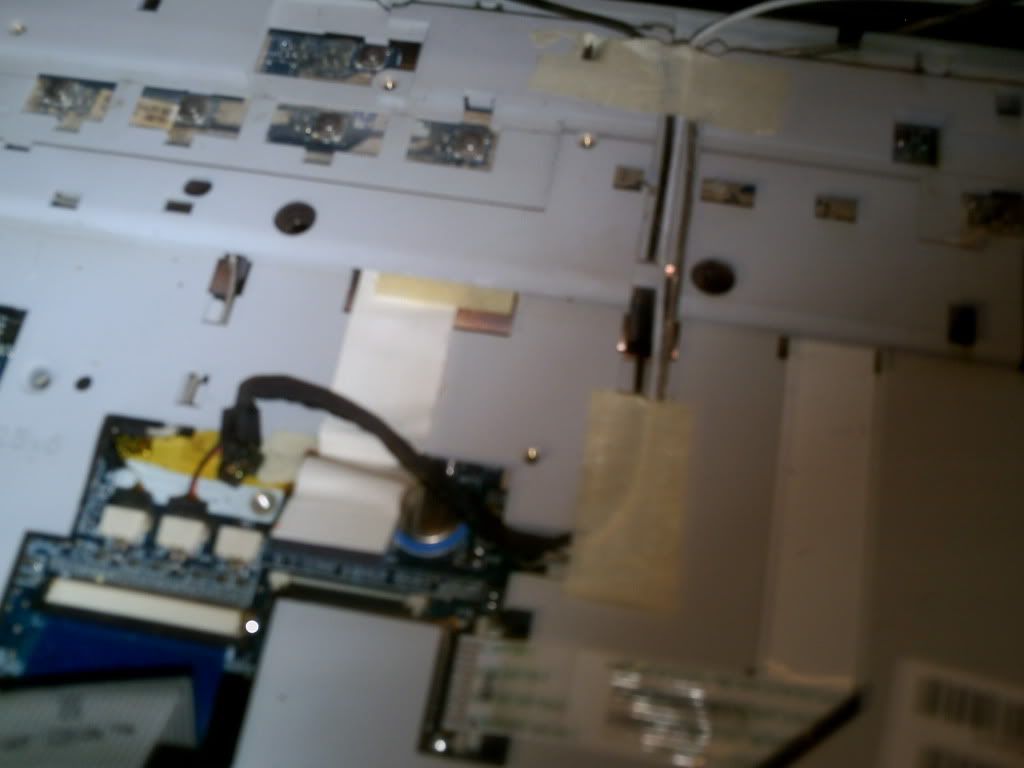

    Second, how about the cable on the first picture?
    It is connected to the monitor aswell.

    Kind regards,
    unknown1138

    unknown1138, Dec 1, 2011
    #3
  4. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    Hard to tell- I can see monitor cable, two Wi-Fi antenna cables but is there anything else there?

    Anyway- the one on the last photo is definitely the one your looking for although I don't know if disconnecting it will make the notebook automatically switch to an external screen.

    downloads, Dec 1, 2011
    #4
  5. unknown1138

    unknown1138 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    It is the only for now, as my main monitor doesn't work.
    And thank you, I'll try it out tonight.
    ---------------------
    Everything is fixed and it switches over to VGA automatically now :) thank you for clearing out which cable I needed to left plugged out.

    unknown1138, Dec 1, 2011
    #5
  6. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    The other, small cable is the microphone next to the webcam.

    .NetRolller 3D, Dec 1, 2011
