    Acer timeline 1810(1410) hard drive ZIF cable problem

    Discussion in 'Acer' started by pastoryusuk, Jan 23, 2012.

  1. pastoryusuk

    pastoryusuk Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hello,
    I think I damaged my ZIF cable while trying to upgrade my HDD to an SDD.

    Does anyone know where I can get a new ZIF cable? Or how I can fix this? The drive is recognized about 50% of the time when I boot up, but won't be recognized as a boot device when it is...

    I know the drives are good (I tested them on my other machine).

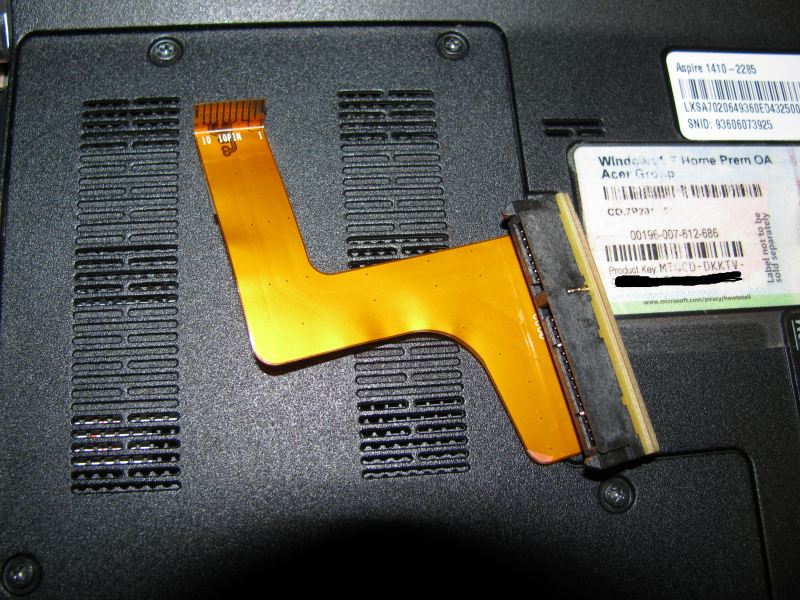

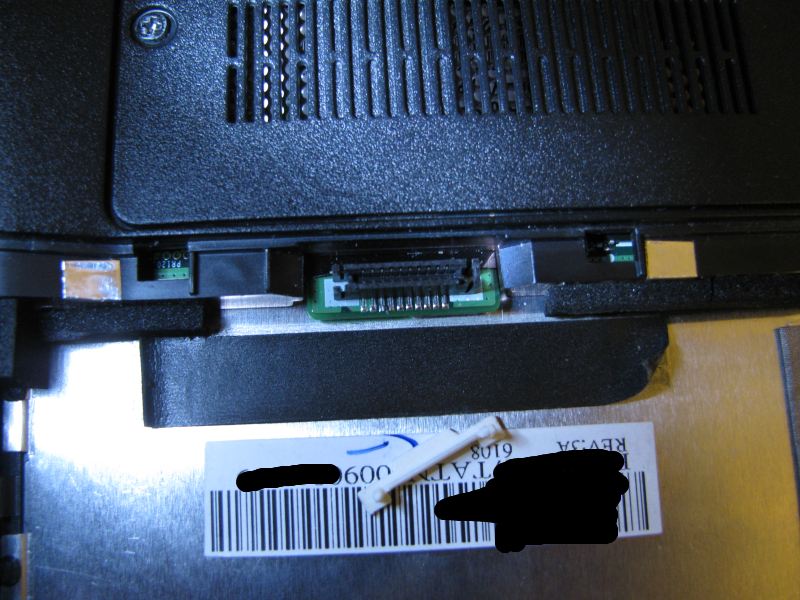

    Or, looking at the pic, does the connector look damaged (the clip fell off, but it goes back on and things line up flush)

    Pics attached.

    Thanks.


    Attached Files:

    pastoryusuk, Jan 23, 2012
    #1
  2. chroma_cg

    chroma_cg Notebook Consultant

    Reputations:
    59
    Messages:
    198
    Likes Received:
    2
    Trophy Points:
    31
    from my experience, sometimes it doesnt detect even for me, and sometimes the white thing does pull out but eventually it will work fine

    i'd say try again but insert your hard drive first and then attach the zif and then push in the white thing LAST

    chroma_cg, Jan 24, 2012
    #2
