    Acer travelmate 2410, do I have PCI express?

    Discussion in 'Acer' started by Tractable, Dec 21, 2009.

  1. Tractable

    Tractable Notebook Enthusiast

    Reputations:
    0
    Messages:
    28
    Likes Received:
    0
    Trophy Points:
    5

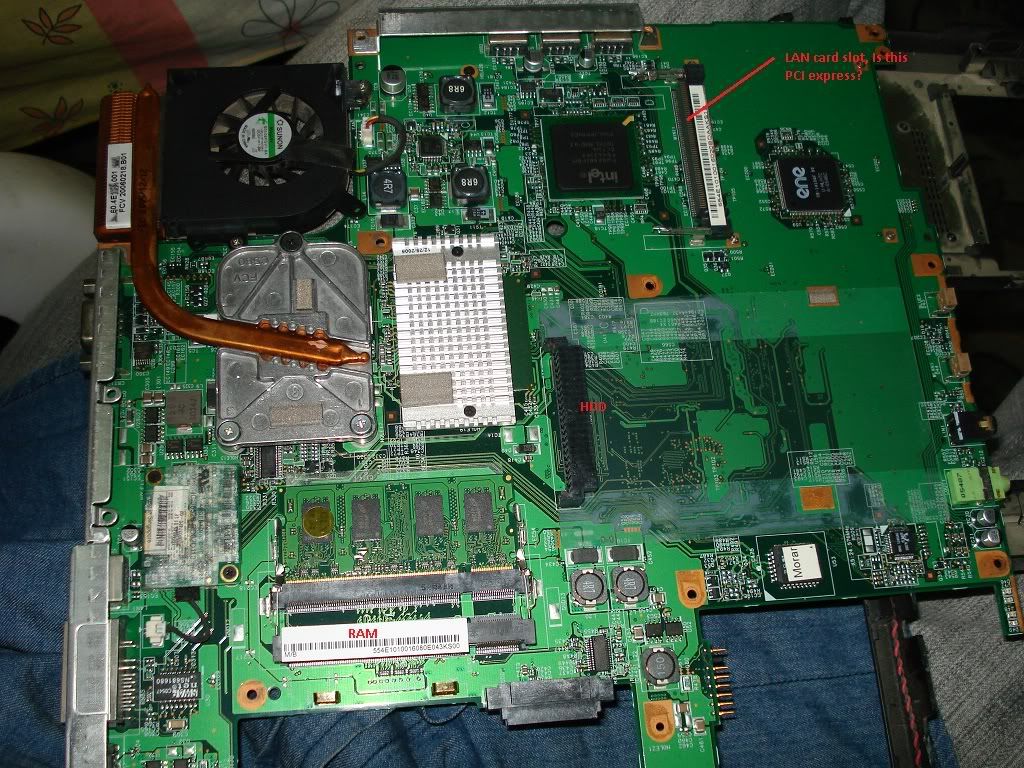

    I've acer travelmate 2410 purcased in April-2006, It has a sticker near keyboard marked with PCI express slot. Where it is? I need to put new graphic card in that. Below is the pic of its motherboard,the slot for wireless lan is empty,,,is this the PCI express slot? How to confirm it..
    Thanx
    [​IMG]

    Tractable, Dec 21, 2009
    #1
  2. Tractable

    Tractable Notebook Enthusiast

    Reputations:
    0
    Messages:
    28
    Likes Received:
    0
    Trophy Points:
    5
    nobody knows pci express slot? how it looks like? or any software to confirm the notebook has it...?

    Tractable, Dec 21, 2009
    #2
  3. techiediva

    techiediva Notebook Consultant

    Reputations:
    41
    Messages:
    192
    Likes Received:
    0
    Trophy Points:
    30
    that would be a mini pci slot. not pci-express or minicard.

    techiediva, Dec 21, 2009
    #3
  4. Tractable

    Tractable Notebook Enthusiast

    Reputations:
    0
    Messages:
    28
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for reply, is there any way I can check by using CPU-Z?

    Tractable, Dec 21, 2009
    #4
  5. PatrickVogeli

    PatrickVogeli Notebook Consultant

    Reputations:
    105
    Messages:
    212
    Likes Received:
    3
    Trophy Points:
    31
    you won't be able to change or upgrade the video card on that laptop, it doesn't have a MXM graphics adapter (pci express x16 for laptops, simplified).

    PatrickVogeli, Dec 21, 2009
    #5
  6. kiriakost

    kiriakost Notebook Deity

    Reputations:
    90
    Messages:
    728
    Likes Received:
    0
    Trophy Points:
    30
    As far I know , based on the Intel specs , this laptop uses pci-express architecture , but no external slots .. :)

    kiriakost, Mar 31, 2010
    #6
