    Any 8204 owner tell me what kind of DVI to HDMI adapter I would need to get?

    Discussion in 'Acer' started by Arla, Mar 13, 2007.

  1. Arla

    Arla Notebook Deity

    Reputations:
    35
    Messages:
    1,073
    Likes Received:
    0
    Trophy Points:
    55
    I don't have my 8204 here and want to order a DVI to HDMI adapter, but am unclear which one I really need, I know I need a MALE DVI to either male HDMI (to plug directly into TV) or to a female HDMI (to allow me to use the same cable from the DVD Recorder) but there seem to be a number of different types of MALE DVI plugs.

    Arla, Mar 13, 2007
    #1
  2. Gautam

    Gautam election 2008 NBR Reviewer

    Reputations:
    1,856
    Messages:
    3,564
    Likes Received:
    0
    Trophy Points:
    105
    The whole male-female labeling can certainly get annoying. :p

    I am guessing the 8204 has DVI out? If so, then a male DVI to female HDMI would be the right, I guess.

    Gautam, Mar 13, 2007
    #2
  3. Arla

    Arla Notebook Deity

    Reputations:
    35
    Messages:
    1,073
    Likes Received:
    0
    Trophy Points:
    55
    No, I know it's a male DVI and a female HDMI (easy male has the prongs, female has the holes) the problem is that DVI plugs seem to come in all sorts of wierd and wonderful configurations, DVI-D, DVI-I and some others (I haven't fully investigated yet) was wondering if anyone knew what the DVI Out port from the 8204 was.

    Arla, Mar 13, 2007
    #3
  4. orthorim

    orthorim Notebook Evangelist

    Reputations:
    26
    Messages:
    386
    Likes Received:
    0
    Trophy Points:
    30

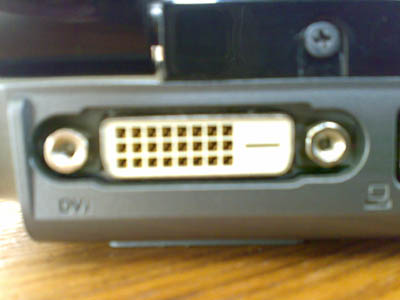

    no idea but I took a quick pic with my phone maybe that helps - sorry for the terrible quality ;)


    Attached Files:

    orthorim, Mar 13, 2007
    #4
  5. Arla

    Arla Notebook Deity

    Reputations:
    35
    Messages:
    1,073
    Likes Received:
    0
    Trophy Points:
    55
    Oh that's perfect, thanks orthorim, that allows me to match it up, fortunately looks like it has all the pin holes, so any adapter should work but I'll get one with all pins just to be sure.

    Arla, Mar 14, 2007
    #5
  6. Gautam

    Gautam election 2008 NBR Reviewer

    Reputations:
    1,856
    Messages:
    3,564
    Likes Received:
    0
    Trophy Points:
    105
    And sorry about the confusion that I tossed in as well, Arla. All mixed up, I guess. :(

    Gautam, Mar 14, 2007
    #6
  7. Yellow11

    Yellow11 Notebook Consultant

    Reputations:
    8
    Messages:
    122
    Likes Received:
    0
    Trophy Points:
    30
    Yellow11, Mar 14, 2007
    #7
  8. Arla

    Arla Notebook Deity

    Reputations:
    35
    Messages:
    1,073
    Likes Received:
    0
    Trophy Points:
    55
    Thanks for the info Yellow, seems that the 8204 uses a DVI-D type port, I've got a converter to HDMI coming and a HDMI cable, looking forward to seeing how this looks on my new TV :)

    Arla, Mar 15, 2007
    #8
