    CD stuck in Aspire 7520 optical drive

    Discussion in 'Acer' started by Loobyloo, May 7, 2009.

  1. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hi All,

    Apologies if this has already been answered but I've had a good look through & can't find anything relating to this particular problem.

    My mum (bless her heart) has managed to get a cd stuck in the optical drive of her Acer Aspire 7520 laptop. The drawer opens but unfortunately the CD remains inside, as far as I can see it's jammed above the metal casing.

    I've search everywhere for instructions for removing the drive as I'm pretty certain that this would solve it but alas no luck ..... which is where you guys come in. Any suggestions gratefully received.

    Thanks

  2. kiriakost

    kiriakost Notebook Deity

    Reputations:
    90
    Messages:
    728
    Likes Received:
    0
    Trophy Points:
    30
    Usually its just a screw at the bottom , about 15cm from the opposite direction of the optical drive door ( bottom of the laptop case) .

    If you remove that , you can slide out the all drive .

  3. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Thanks Kiriakost.

    I'll have a look & let you know

  4. docholliday

    docholliday Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Do you have a set of hemostats, if so they should be able to reach the disk and extract it.

    Hope this helps

  5. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Errr, have no idea what hemostats are - sorry. Am an enthusiastic novice at this sort of thing (which is usually a lethal combination)

    Have tried your advice kiariakost, unfortunately the drive does not just 'slide' out & I don't want to force it.

    I think that she's somehow managed to slot the cd in above the drive casing which is why it won't come out.

    Is the a way in through the top? sorry if that sounds dumb but hey, as I've already said I'm a novice :)

  6. kiriakost

    kiriakost Notebook Deity

    Reputations:
    90
    Messages:
    728
    Likes Received:
    0
    Trophy Points:
    30
    Well on a second thought , if the CD inside blocks the area , it would not give you much free play , in order to remove the drive .

    One picture with a digital camera , would help us more , in order to advice you more specifically .

  7. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    OK, I'll see if I can find my camara.

    btw, sorry for spelling your name wrong before

  8. kiriakost

    kiriakost Notebook Deity

    Reputations:
    90
    Messages:
    728
    Likes Received:
    0
    Trophy Points:
    30
    Where are you from ... France ? :D

  9. docholliday

    docholliday Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Loobyloo,

    I am sorry hemostats are kinda like needle nose pliers. Doctors use them when they stitch you up. Anyhow, they would work perfect for you to extract cd. Perhaps you have a long thin pair of tweezers

  10. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Do I sound french? actually I have just found some forgotten photo's of last years holiday in France on my camera, which is nice.

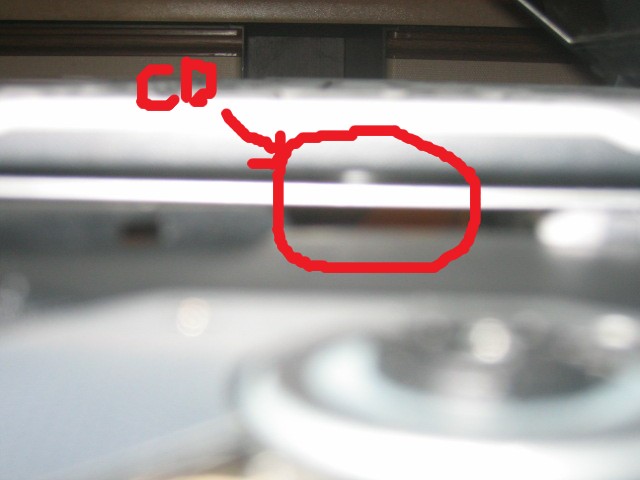

    Now please don't laugh, but I've uploaded my best attempt at taking a photo of the jammed cd, as you'll see it's quite tricky to do!!!


    Attached Files:

  11. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Ahh I see. Thanks for the clarification docholliday but sadly no, I don't think I have anything like that but will go and have a rummage around the house to see what might do it.

  12. docholliday

    docholliday Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    If only you could find something that looks like this
    [​IMG]
    In order to fix your laptop right, you might have to buy one.
    Local hobby store is a good place to start looking for a set.
    They come in handy for lots of uses, would be money well spent

  13. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Found some thin tweezers but unfortunately they weren't thin enough. I think the only way to get the CD out is going to be to dismantle the case which I guess I should really leave to someone with more experience than me .... unless I feel brave in the morning !

  14. kiriakost

    kiriakost Notebook Deity

    Reputations:
    90
    Messages:
    728
    Likes Received:
    0
    Trophy Points:
    30
    Ok contact ACER about getting it, in their service facility .

    1) You will loose the warranty if you open it by your self .
    2) You can possibly damage the exterior.
    3) You can possibly damage internal components .


    There is no breviary , a true messed laptop.

  15. docholliday

    docholliday Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Exellent Advice

  16. Loobyloo

    Loobyloo Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    I will do.

    Thank you for the advice & help
