    **Official Acer Spin 5 SP513-51 Owner´s Lounge**

    Discussion in 'Acer' started by angelo1987, Aug 18, 2017.

  1. angelo1987

    angelo1987 Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    Hi! I bought this acer and I would like to create a dedicated thread so owners can share their infos about this laptop.


    Acer Spin 5 SP513-51 (Spin 5 Series)


    Processor Intel Core i3-6100U/i5-6200U/i7-6500U or i3-7100U/i5-7200U/i7-7500U
    Graphics adapter Intel HD Graphics 520 or Intel HD Graphics 620
    Memory DDR4-2133, 1/1 slots in use
    Display 13.3 inch 16:9, 1920x1080 pixel 166 PPI, 10-point touchscreen, B133HAB01.0, IPS LED, 360° Hinges, glossy: yes
    Mainboard Intel Skylake-U Premium PCH
    Storage 2280 M.2 SATA III SSD
    Soundcard Intel Skylake-U/Y PCH - High Definition Audio
    Connections 2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5 mm stereo jack, Card Reader: SD-cardreader
    Networking Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n/ac), Bluetooth 4.0
    Size height x width x depth (in mm): 20 x 328 x 229 ( = 0.79 x 12.91 x 9.02 in)
    Battery 45 Wh Lithium-Polymer
    Operating System Microsoft Windows 10 Home 64 Bit
    Camera Webcam: 720p
    Additional features Speakers: Stereo speakers, Keyboard: 6-row chiclet, Keyboard Light: yes, 24 Months Warranty
    Weight 1.7 kg ( = 59.97 oz / 3.75 pounds), Power Supply: 284 g ( = 10.02 oz / 0.63 pounds)
    https://www.notebookcheck.net/Acer-Spin-5-SP513-51-Convertible-Review.200146.0.html









    Last edited: Aug 26, 2017
  2. angelo1987

    angelo1987 Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5

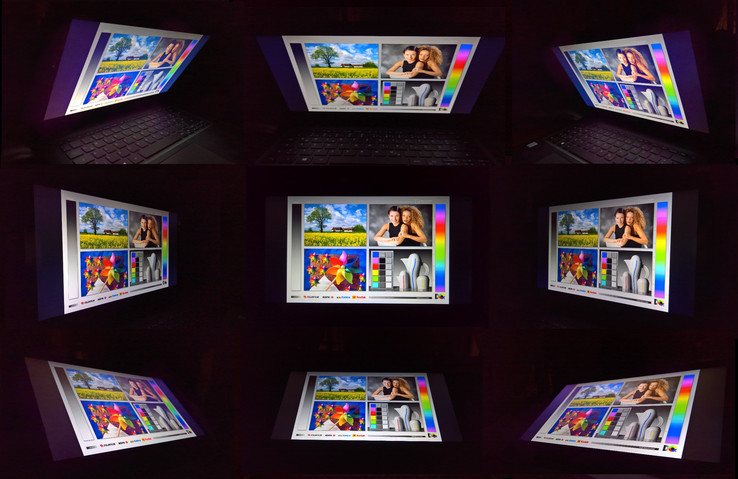

    Panel Display

    Display: 13.3 inch 16:9, 1920x1080 pixel 166 PPI, 10-point touchscreen, B133HAB01.0, IPS LED, 360° Hinges, glossy: yes

    [​IMG]

    [​IMG]


    Attached Files:

    • 1.png
      File size:
      15.5 KB
      Views:
      1,012
    Last edited: Aug 26, 2017
  3. angelo1987

    angelo1987 Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5

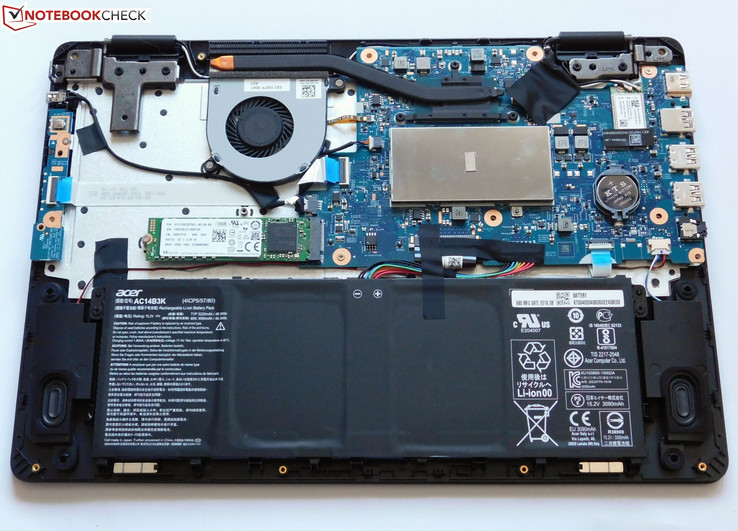

    Internals

    [​IMG]

    [​IMG]

    Last edited: Aug 26, 2017
  4. angelo1987

    angelo1987 Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    Tests/Benchmarks

    [​IMG]


    Attached Files:

    Last edited: Aug 26, 2017
  5. Georgel

    Georgel Notebook Virtuoso

    Reputations:
    945
    Messages:
    2,378
    Likes Received:
    3,021
    Trophy Points:
    281
    Welp, a Samsung Tablet has better display and better battery, so is there like any reason do go for this one instead? I mean, I doubt that any app that can use an U CPU well would do that much worse on a tablet CPU.

  6. angelo1987

    angelo1987 Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    I hate tablets and android
