    Removing DVD drive from an Aspire 3003

    Discussion in 'Acer' started by Lesl, Aug 7, 2008.

  1. Lesl

    Lesl Notebook Consultant

    Reputations:
    17
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    Start having problem with my CD/DVD drive.How big of a deal is it to pull it out.Seems it could have been an easy pull out but the mechanism on that 3003 isn't there.

    Lesl, Aug 7, 2008
    #1
  2. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55

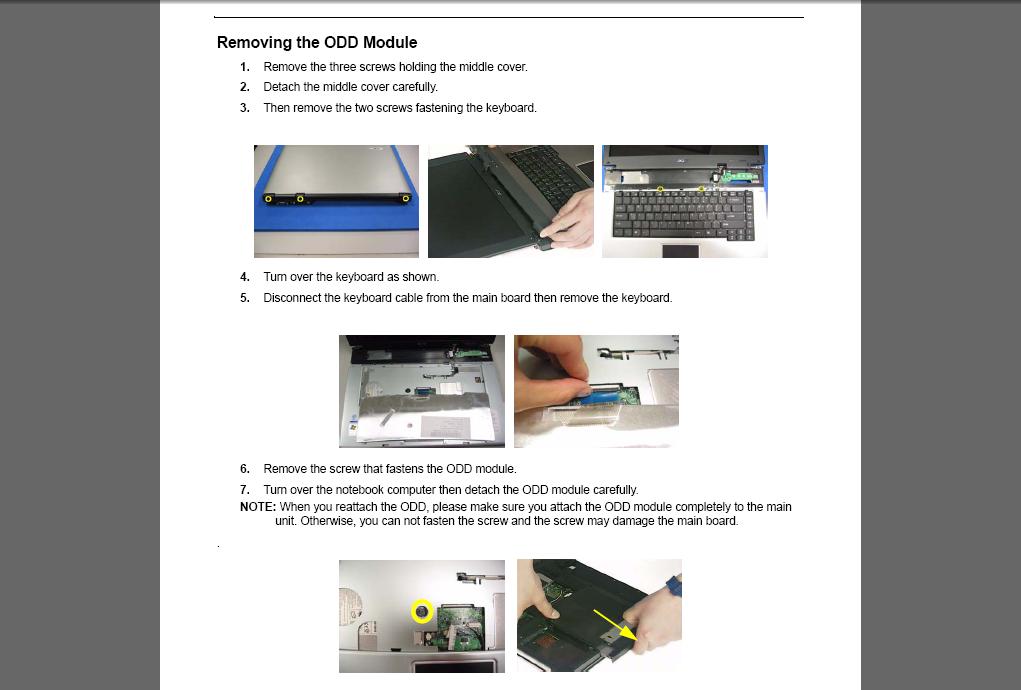

    see the attached PICTURE.

    looks like you have to remove the KEYBOARD and then take the screw out of the little round hole...

    anyway that is the entire process in the picture... that should help ya out


    Attached Files:

    bigozone, Aug 7, 2008
    #2
  3. Lesl

    Lesl Notebook Consultant

    Reputations:
    17
    Messages:
    180
    Likes Received:
    0
    Trophy Points:
    30
    Thanks for the help!

    Lesl, Aug 7, 2008
    #3
  4. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    no problem

    bigozone, Aug 7, 2008
    #4
