    Solution to Aspire 5738/7736 No-Power

    Discussion in 'Acer' started by WindDrake, Sep 1, 2011.

  1. WindDrake

    WindDrake Notebook Enthusiast

    Reputations:
    31
    Messages:
    44
    Likes Received:
    1
    Trophy Points:
    15
    Hey folks.

    Just as a preamble to these findings: YMMV. I'm a professional SMT Repair Tech and the head of engineering for a large repair company. This is just my findings, and may/may not solve your problems.

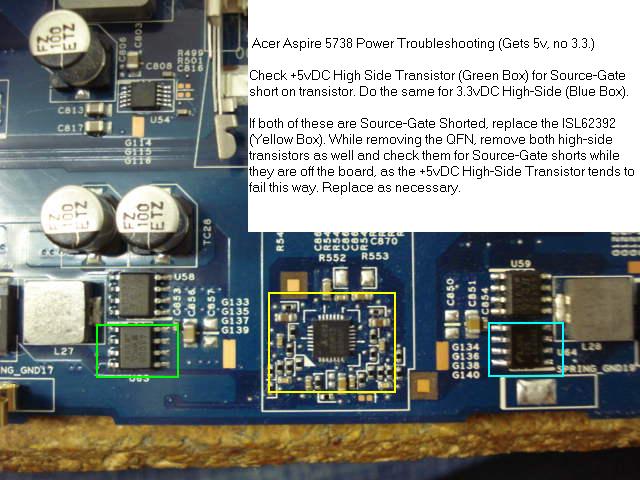

    Not a lot of text to input, just follow the images.

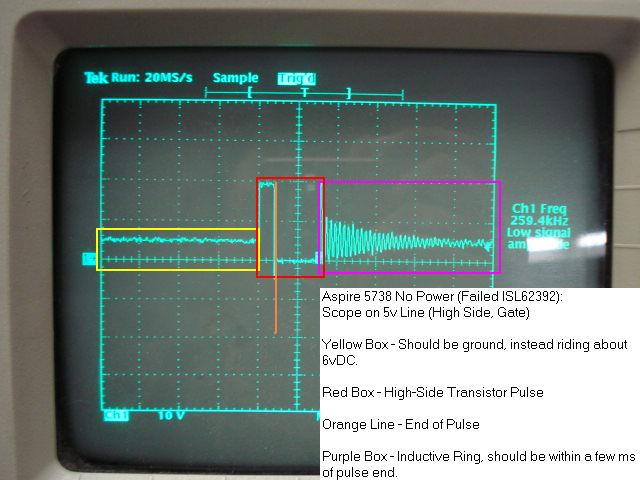

    The scope image will just help you figure out if your regulator has barfed, but is still running. This happens a lot with the 5738. You'll have 5v, but no 3.3v, and the gate line of the 5v High-Side Transistor will look like that. Yuck.

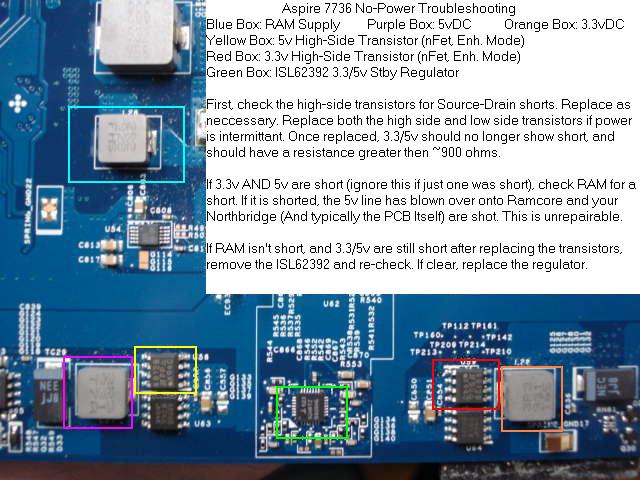

    The boards are both from the same reference design, so notes for one are applicable to the other.


    Attached Files:

    WindDrake, Sep 1, 2011
    #1
    Timborixos likes this.
  2. eizo

    eizo Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    i just replace the 5v fet u58 and my laptop is back to life! thank you!

    eizo, Aug 14, 2012
    #2
  3. nickeftekhari

    nickeftekhari Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Thank you
    It helped me alot

    nickeftekhari, Oct 27, 2012
    #3
  4. yayluu

    yayluu Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello.
    I've got a 5738g.
    when i plug the ac adapter the charger light blinkes orange.
    i pushed the touchpad on/off light on.
    i pushed the eco button light on.
    but when i push the power button nothing happens.
    is that the mosfet problem or something else?
    i can't find that mosfet (fds8884) around my country. if u say yes that is mosfet problem i will really work hard to find it.
    please help me...

    yayluu, Jan 20, 2013
    #4
  5. djamelgsm

    djamelgsm Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    big thanks

    Nice Job

    djamelgsm, Sep 15, 2013
    #5
