Temperature monitor software for Acer !!

I like to monitor the CPU Temperature .

I tried speedfan , good for desktops ... but it does not support well my laptop.

Is there anything better ?



RMClock, CoreTemp, HWMonitor, RealTemp, Notebook Hardware Control.



Thanks man .

CoreTemp = will not run with Pentium M processor .

I am testing the others .



RealTemp will not run too .



Well, I didn't really notice the Pentium M in your sig. Check out RMClock and HWMonitor. They will definitely work. RMClock will help you undervolt, and ammend a few CPU settings, and HWMonitor will give the temps of CPU, ACPI, GPU and HDD. Download both



Thanks Andy ...

The free RMClock will identify the CPU , but no CPU core temp ...
The good part with the RMClock are that it read .. the microchip , of my new battery , and gave me good details about it .

Moving again for the next target HWMonitor ..



The free version of RMClock shows everything to me, and it very well supports Pentium Ms.


HWMonitor



The problem are that they are not backwards compatible.

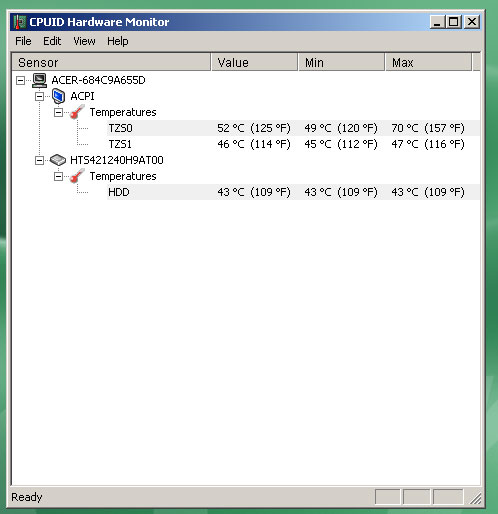

The HWmonitor works .. but i get two values as CPU temp ...
one high and one low ... and i do not know what to speculate as Core temp .

TZS0 = 52C
TZS1 = 46C

This could be motherboard and CPU sensors .
I can only imagine , that the low value are due the active cooling, so it must be the CPU core temp .

I need some testing so to find out what are what ..



Backward Compatible..??

Can you upload a screenshot..??



Well it looks that the Delphi
prophecy was wrong

The HWmonitor TZS0 sensor are the core temp...

I run CPU burn-in software , and jumped at 70C - 157F
Environment temp 30C , system idles at 50-52C .

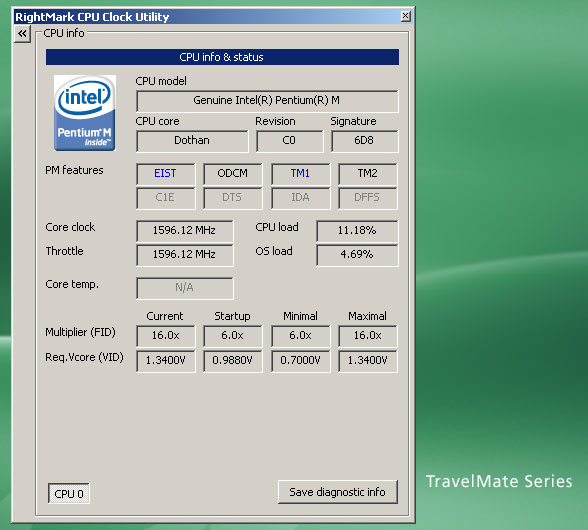

Screen shot of the RMClock ... yes in few minutes .



Screen shots .



those 2 temps are the 2 cores..

each core inside the CPU has a temp sensor,

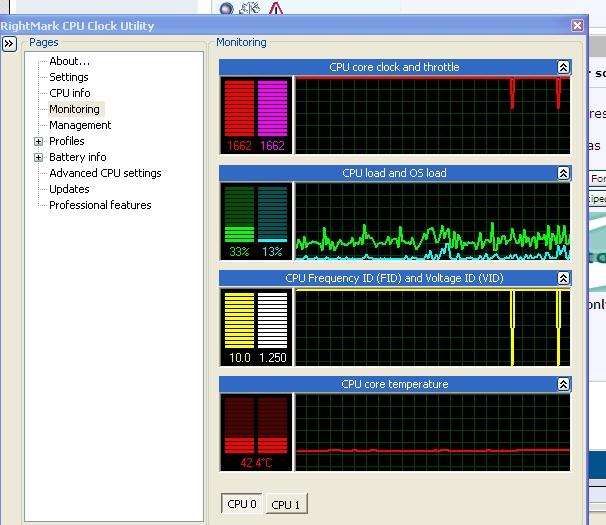

also RMCLOCK works great for monitoring MY CPU, now i admit i have no experience with the CPU you are dealing with,, but below you will see a thumbnail of my current RMCLOCK as it is monitoring things 2 minutes ago.. when the pic was taken..

and i'm pretty sure there is even an option to have the temp shown in the systray


glad you caused me to look at that PIC a second time... somehow my under volting got turned off...
must reboot,, then i'll add a pic w/ the voltage @ 0.950 (the minimum RMClock allows with this CPU)

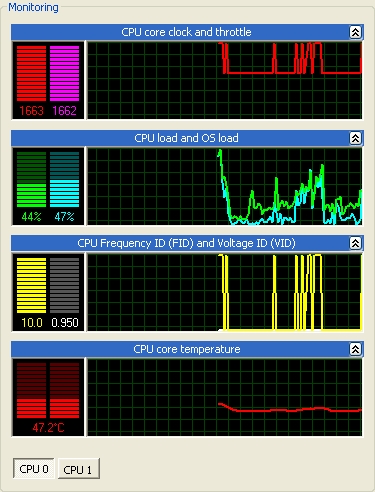

EDIT: just added second PIC showing 10x multiplier at 0.95volts.... and core temps for my cpus... dees the pentium M not have a built-in temp sensor?? that may be why you are having a hard time monitoring it,, most of the newer software is looking for that info from the CPU's internal sensor (i think that's how it works)



I guess RMClock gets confused when confronted with two Thermal Zone Sensors....



Well i am a poor man , and i have only one, and precious core ..

But this proggy will not show the temp .

I am starting to believe that the author of this software , at the times of Pentium M , he was still in high school , chasing girls .

Thats why i have lack of support for my CPU .



i bet you may be right.... heck, he may still be in college chasing skirts....
sorry to hear that that doesn't work for you..

there is a 3rd party app made for DELL laptop fan speed control, that might suite your needs... it's worked on all acers we have tested so far (only works for temperature monitoring,, nothing i have found will allow users to control ACER's fan speed...) I8KFANGUI

*** maybe we could run 12 to a POT and then feed the output to the fan***



OH, maybe you should do a bit of research on the Pentium M compatibility.
But I do remember seeing Pentium Ms being undervolted in the Undervolting Guide. Try a BIOS upgrade. (But I think you already have the latest)

ACPI temps are accurate since they have been acquired from the ACPI thermal tables in the windows registry which are related to the BIOS. Try undervolting, you can check out Notebook Hardware Control as well. It is compatible with almost all intel CPUs.

P Ms are compatible with RMClock



Undervolting Guide ?

Some sort of software control for the voltage of the CPU ...

I will get to it , but does this have to do, for running a bit cooler the CPU ..?



No i do not have interest controlling the fan .
Now that i know who is the core temp sensor , i started to use speedfan.
And after a bit of tweaking , i got the right temp on tray .



http://forum.notebookreview.com/showthread.php?t=235824



Thanks man ..



that undervolting guide is good info....

i love RMClock... helps keep my fan from turning on when i run the voltage at 0.95v instead of 1.25v

so you save battery in both voltage going to the CPU and power drawn by CPU fan since it comes on less often... the fan still turns on at the same temp (50c) and turns off at same temp (45c),, but since there is less ambient heat comming from the CPU it also helps to keep the laptop cooler in a way.
