    USB Port looks different than usual.

    Discussion in 'Acer' started by stokietom, Apr 16, 2012.

  1. stokietom

    stokietom Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi,

    I recently purchased an Acer Aspire 5750Z. One of the things I've noticed - One of the USB ports looks different than usual. It has 4 holes and doesn't have a flat egde like the others.

    I thought it might have been a USB 3.0 Port, but it's not blue. I can't make much sense of the manual however their is a USB 3.0 Driver on the support website which I did install.

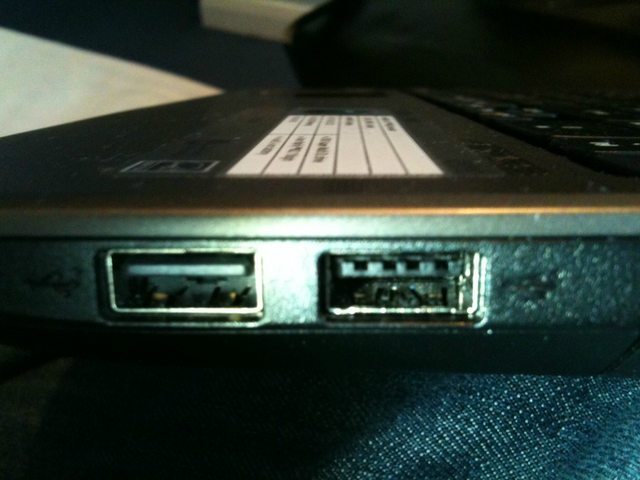

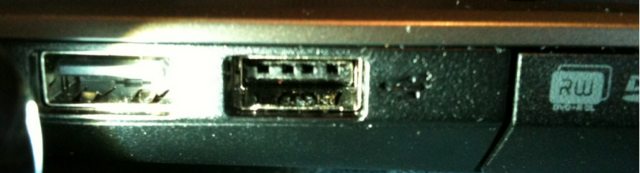

    Here are some pics of the strange looking USB.
    [​IMG]

    [​IMG]

    Does anyone know why this USB Port looks like this? The other 2 ports on the laptop look normal.

    Just to add, the port still does function perfect, I'm just wondering why it looks different.

    Many thanks

  2. spacecowboy

    spacecowboy Notebook Guru

    Reputations:
    0
    Messages:
    60
    Likes Received:
    2
    Trophy Points:
    16

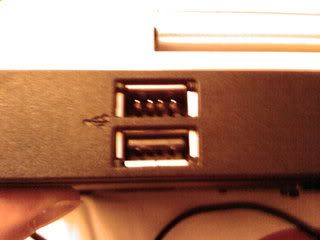

    Looks broken to me, take a look at this pic, looks similar to yours (top one):

    [​IMG]

  3. talin

    talin Notebook Prophet

    Reputations:
    4,694
    Messages:
    5,343
    Likes Received:
    2
    Trophy Points:
    205
    <s> It's an eSata/USB combo port... </s>

    Edit: It looks like a standard USB port, that originally was going to be an eSata port but they decided at some point to just wire it as USB.
    Here's the specifications. It lists only 3 USB ports. Kind of strange of Acer to do this, but whatever. On both of my notebooks I have an eSata/USB combo port, and it looks almost identical.

  4. stokietom

    stokietom Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I'm certain it's not a broken port because my brother has the same laptop and his has the exact same looking port.

    Makes sense, so it's just kind of a normal feature?

  5. stokietom

    stokietom Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Just to update.

    I contacted Acer tech support about this, the woman I spoke to didn't really seem to know much of what I was on about though.

    She said the port I'm referring to is a dual firewire/USB Port.

    Does this sound right? :S

  6. techiediva

    techiediva Notebook Consultant

    Reputations:
    41
    Messages:
    192
    Likes Received:
    0
    Trophy Points:
    30
    That is a broken USB port.

  7. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,246
    Trophy Points:
    331
    It's not broken. Some 5750G don't have USB 3 and for some reason one or the other USB port on right side looks like this.
    No idea why but no one complained about them not working and it can be seen in multiple units.

  8. techiediva

    techiediva Notebook Consultant

    Reputations:
    41
    Messages:
    192
    Likes Received:
    0
    Trophy Points:
    30
    no, is broken. plastic portion of port is pushed back and at a slight upward angle. May work for a bit, but eventually will fail as the usb contacts have no support.

  9. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,246
    Trophy Points:
    331
    You may be right as to the angle of the plastic- it's hard to tell from those photos.
    Those 4 "holes" are fine but plastic should be level- not upwards or downwards.
    I'm not sure if it is or isn't from those photos.

  10. stokietom

    stokietom Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the replys guys.

    I know what you mean about the angle of the USB Port, it does seem higher than usual but I am assured their has never been any form of damage to the actual port.

    Maybe it's normal?

    Thanks

  11. techiediva

    techiediva Notebook Consultant

    Reputations:
    41
    Messages:
    192
    Likes Received:
    0
    Trophy Points:
    30
    no, it's broken.

  12. ellalan

    ellalan Notebook Deity

    Reputations:
    336
    Messages:
    1,262
    Likes Received:
    82
    Trophy Points:
    66
  13. ajbutch123

    ajbutch123 Notebook Consultant

    Reputations:
    3
    Messages:
    298
    Likes Received:
    7
    Trophy Points:
    31

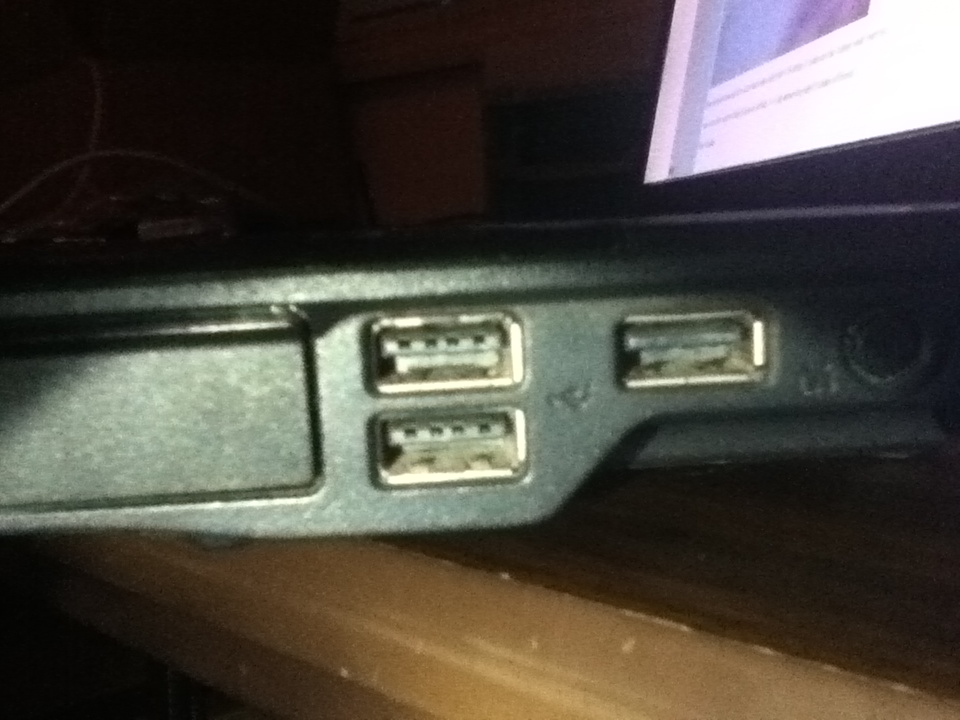

    the port is NOT broken. I have 2 of those ports on the right hand side of my acer aspire 6920g and the others are all normal. I have been trying to figure out if/why it is special for the longest time! Anyway... hopefully someone will know.

    Edit: I attached a photo of my ports.... hope it helps show that they are NOT broken!


    Attached Files:
