    Where do I apply thermal compound to an Aspire 3000?

    Discussion in 'Acer' started by cherv1, Jul 11, 2007.

  1. cherv1

    cherv1 Notebook Consultant

    Reputations:
    3
    Messages:
    175
    Likes Received:
    0
    Trophy Points:
    30
    I posted a previous thread about my notebook getting very hot on the underside where the graphics chip was. I opened it up today to spray some air around to get rid of any dust, but it still gets hot under there. I was thinking about getting some thermal paste put on, but I am not sure where to put it. The actual bit that gets hot is made of a pale grey and thick metal; it looks like it's a few mm off the circuit board, and has empty sections inside it. On the piece of plastic in the chassis above it there is a sticky white pad which covers most of the metal object.

    And then to the right of that there is the copper heatsink.

    Where about should I apply thermal paste? Is it on the actual heatsink or on this metal plate near the graphics chip? And if the latter, do I need to take off this pad?

    Thanks

  2. aaa

    aaa Notebook Consultant

    Reputations:
    6
    Messages:
    197
    Likes Received:
    0
    Trophy Points:
    30
    Pics.

    I doubt thermal paste will help. From your description it seems to be designed to let gpu heat out thru the case?

  3. Hairy_Lee

    Hairy_Lee Notebook Consultant

    Reputations:
    4
    Messages:
    285
    Likes Received:
    0
    Trophy Points:
    30
    the spot you're looking at is the aluminium heatsink underneath where the ram is situated, however i would not recommend changing the thermal pad for thermal paste as the chip located under the heatsink is nowhere near being flat (it has a recessed circle in the chip so the edges are raised). Although you say the area is hot it means that the heatsink is doing its job and that the ram cover is doing its job as a heatspreader.

  4. cherv1

    cherv1 Notebook Consultant

    Reputations:
    3
    Messages:
    175
    Likes Received:
    0
    Trophy Points:
    30
    It's not actually the RAM though, someone else previously suggested that, but that's elsewhere. Here are some pictures.

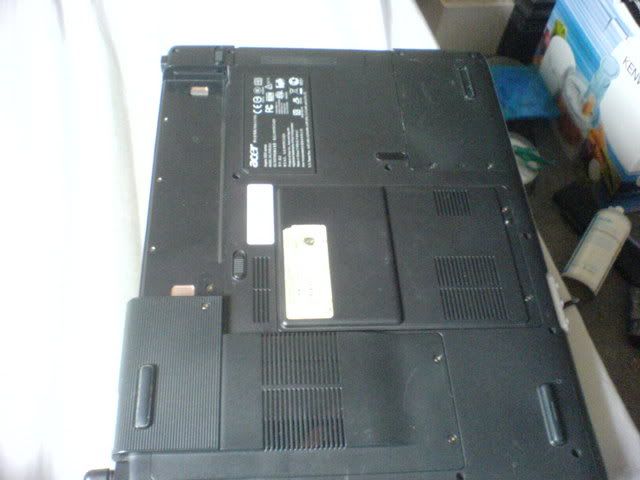

    http://img.photobucket.com/albums/v79/willcross61/DSC00741.jpg
    The bump with a sticker on it is where it gets hot.

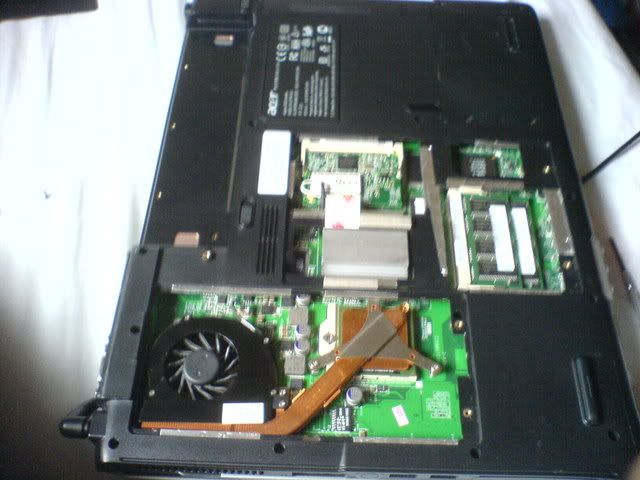

    http://img.photobucket.com/albums/v79/willcross61/DSC00742.jpg
    That's what it looks like underneath.

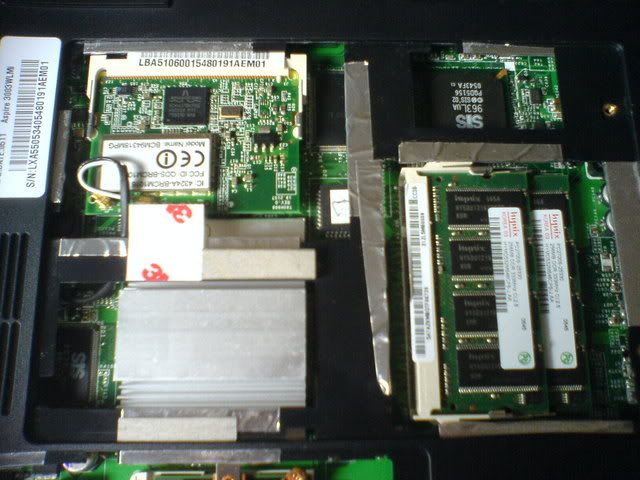

    http://img.photobucket.com/albums/v79/willcross61/DSC00743.jpg
    Close-up, you can see it says SiS to the left of it.

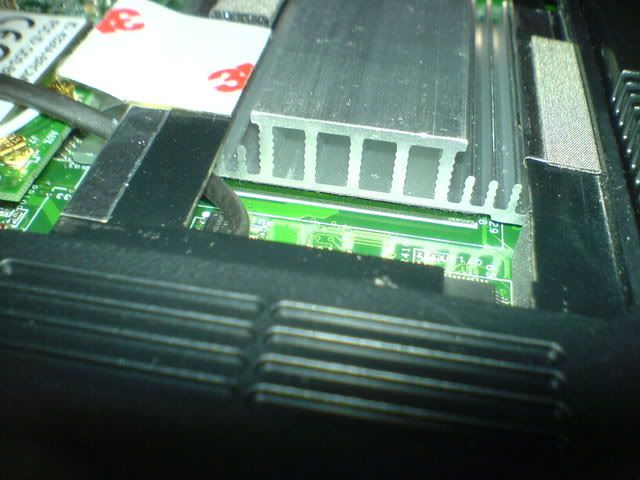

    http://img.photobucket.com/albums/v79/willcross61/DSC00746.jpg
    Same thing again from the side

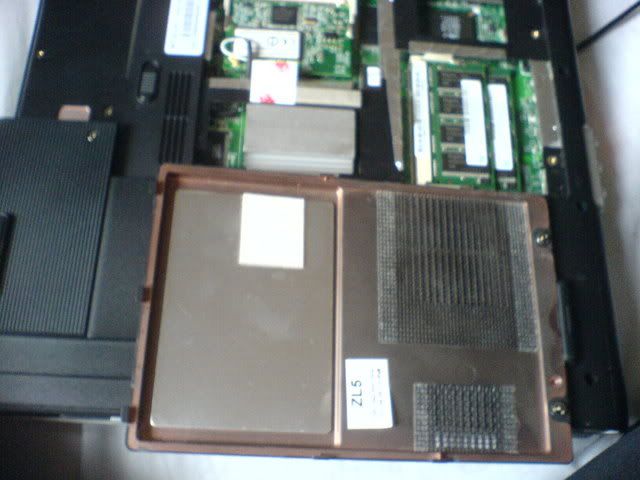

    http://img.photobucket.com/albums/v79/willcross61/DSC00747.jpg
    And that shows the cover and the white thing is the squidgy sticky pad, but it only covers some of the metal thing.

  5. Hairy_Lee

    Hairy_Lee Notebook Consultant

    Reputations:
    4
    Messages:
    285
    Likes Received:
    0
    Trophy Points:
    30
    Thats exactly where i mean :)

    Its the aluminium block thats getting hot; underneath there is where your graphics chip is located, its nothing to worry about; all aspire 3000/5000's get hot in this location.
