    acer 5820T-6825 cant get a ssd drive to fit

    Discussion in 'Acer' started by tonyatl, Jan 22, 2012.

  1. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    It seems there is a piece of rubber under the sata connection so the samsung ssd drive wont stay connected. Is there a fix for this? if I remove the piece of rubber would it break the laptop?

    Thanks

    tonyatl, Jan 22, 2012
    #1
  2. lucino

    lucino Notebook Geek

    Reputations:
    7
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    Do you have a pic you can post up of the sata connector/rubber part? Would be easier to help if we could see it.

    I had a 5750 and had to mod it slightly to get my ssd to fit, however yours sounds a bit different to mine- I had to shave some plastic legs slighty and didn't have a piece of rubber.

    lucino, Jan 23, 2012
    #2
  3. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5

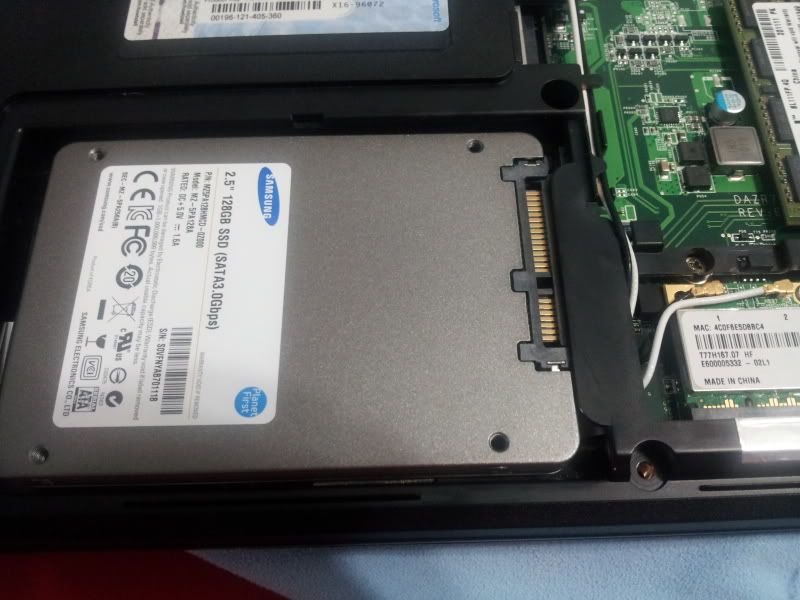

    [​IMG]

    tonyatl, Jan 23, 2012
    #3
  4. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5

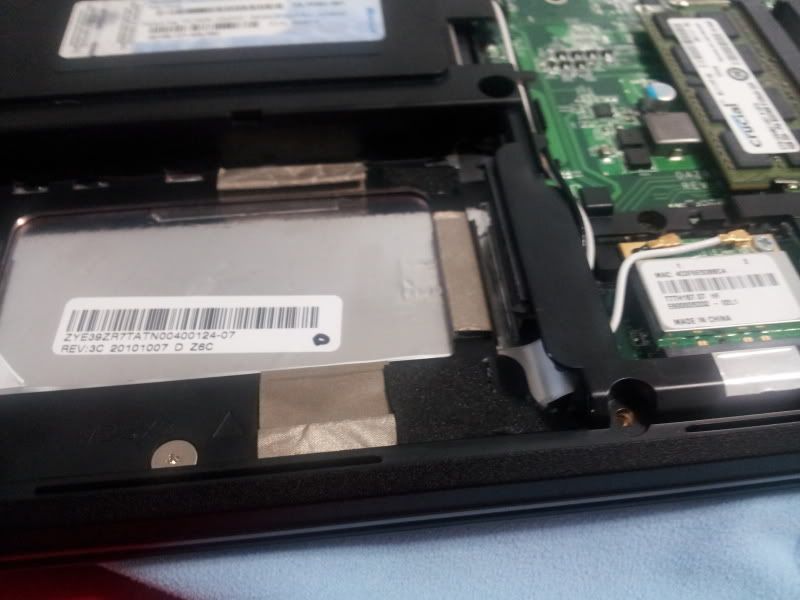

    you can see the connector than right under is the rubber. I wonder if I removed it if its going to break anything? Its not like I throw the laptop around.

    tonyatl, Jan 23, 2012
    #4
  5. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    [​IMG]

    tonyatl, Jan 23, 2012
    #5
  6. lucino

    lucino Notebook Geek

    Reputations:
    7
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    If it is the bit I circled in red, then I would personally just peel it off so your new ssd fits, looks like its just a bit of cushioning against shock etc or to line up your standard hdd to the sata connector.

    If you peel it off carefully and keep it aside you could always stick it back in if you ever removed your ssd.

    [​IMG][/URL]

    lucino, Jan 23, 2012
    #6
  7. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    That's not it, its right next to it. There is the sata connection and right under that connection is a piece of rubber. Its a shame if I could get a ssd to work it would be perfect for me.

    tonyatl, Jan 23, 2012
    #7
  8. lucino

    lucino Notebook Geek

    Reputations:
    7
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    I would try and carefully remove it if you can, it should just be stuck on and is probably there to support the standard hhd. Your ssd wont need this as it's casing is physically larger.

    lucino, Jan 23, 2012
    #8
  9. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    I cut away some of the rubber and it fits. I feel like I won the lottery. My wife is looking at me like Im crazy. lol Im installing the os and report back

    tonyatl, Jan 23, 2012
    #9
  10. lucino

    lucino Notebook Geek

    Reputations:
    7
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    lol, good stuff glad you got it to fit, let us know how you get on

    lucino, Jan 24, 2012
    #10
  11. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    It rocks. its so fast. I also have 8 gig of ram in it. It saved me buying another laptop.

    tonyatl, Jan 24, 2012
    #11
  12. tonyatl

    tonyatl Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    Im so happy with it and it seems to have dramatically extended the battery life compared to the stock drive. Im 5 hrs in and still got 31 percent left.

    tonyatl, Jan 25, 2012
    #12
