    how to take out 6920g gpu? area connected to motherboard

    Discussion in 'Acer' started by metalroses, Jun 5, 2011.

  1. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    i need help on this ive already taken out the heatsink and the fan. my laptop is not working with the charger plugged, it turns off and on. with the battery it doesnt make a sound while its on but when the charger is plugged it is making bad contact with something below the gpu area. im not so sure if its called like that but i know the gpu is on that chip or thing connected to the motherboard. thanks.

    metalroses, Jun 5, 2011
    #1
  2. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    ok its the vga card.

    metalroses, Jun 5, 2011
    #2
  3. too456

    too456 Resident Angry Bird

    Reputations:
    572
    Messages:
    836
    Likes Received:
    0
    Trophy Points:
    30
    Try to RMA your unit before attempting to remove your GPU, if your warranty is still valid. Anyway, is your GPU MXM or soldered? If it's MXM then it should be easily removable, else it will be very hard to remove a soldered GPU.

    too456, Jun 6, 2011
    #3
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,194
    Likes Received:
    17,901
    Trophy Points:
    931
    6920g is mxm.

    Meaker@Sager, Jun 6, 2011
    #4
  5. chris9191

    chris9191 Notebook Guru

    Reputations:
    0
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    15
    it is in deed.

    to the OP there are 2 screws holding the card down,
    just to make sure. you have to take out the heatsink :p

    then remove the 2 screws, and it will pop out

    chris9191, Jun 6, 2011
    #5
  6. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    If you're going to change your GPU, a tip would be to run a GPU stress test first (if it's still functioning). In your case, maybe use a hairdryer over the heatsink for a few minutes so that you can melt the heatpad a bit, thus making it easier to remove. Check out the MXM thread to see which GPUs users have replaced their 6920G with.

    sgogeta4, Jun 6, 2011
    #6
  7. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    it is mxm it looks easy to remove but im a little scared to do it. i will try too post pics

    metalroses, Jun 6, 2011
    #7
  8. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    ok i removed the screws but it keeps connected and i dont know how to remove it. by the way under gpu are there any capacitor?

    metalroses, Jun 6, 2011
    #8
  9. sgogeta4

    sgogeta4 Notebook Nobel Laureate

    Reputations:
    2,389
    Messages:
    10,552
    Likes Received:
    7
    Trophy Points:
    456
    Post in the MXM thread. There are dozens of users that have changed their MXM card, I'm sure at least one has pictures...

    sgogeta4, Jun 6, 2011
    #9
  10. alienpinkpanther

    alienpinkpanther Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hi,

    I have an Acer Extensa 5230

    that has a Celeron585 cpu that i want to upgrade to a T7500

    I Need Modified Bios , Thanks .

    alienpinkpanther, Jun 6, 2011
    #10
  11. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    ok thanks for the help

    metalroses, Jun 7, 2011
    #11
  12. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    Wrong thread.

    .NetRolller 3D, Jun 7, 2011
    #12
  13. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    apart from the title, my laptop is shutting down rapidly when the charger contacts the dc jack. i already used a voltmeter and the charger is allright. the dc jack has a blue color ive got another jack but its color is yellow. do i need another blue one or can i just use the yellow one as replacement?

    metalroses, Jun 7, 2011
    #13
  14. metalroses

    metalroses Notebook Consultant

    Reputations:
    0
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30

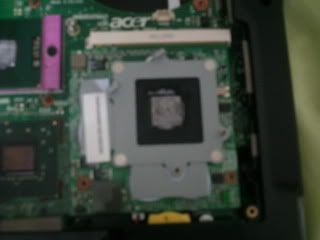

    heres a pic ( camera is cheap sorry) you can see there i removed both screws and the card stays the same. :S
    [​IMG]

    metalroses, Jun 7, 2011
    #14
  15. raserdk

    raserdk Notebook Geek

    Reputations:
    5
    Messages:
    87
    Likes Received:
    4
    Trophy Points:
    16
    try to lift it on the other end, not where its connected
    dont force it
    maybe there are some screws under the white things

    raserdk, Jun 9, 2011
    #15
