    whoooo upgrading completed

    Discussion in 'Acer' started by DaRush, Apr 2, 2010.

  1. DaRush

    DaRush Notebook Guru

    Reputations:
    17
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Hi gang :D

    As some of you will know, recently I have been busy giving my 6920G a full make over, changing CPU, GPU, HDD & OS (to the things in my sig), and I've gotta say It all went swimmingly.... well apart from cloning the damn HDD, acronis didnt work for me at all but maxiblast worked like a treat. Other than that everything else worked perfetcly, I can also see the system bios after instaling the gpu (nvidia 9600m GT) which is supposedly a known bug, so thats a big score

    So basicly I would like to say a big thanks to everyone that helped me along the way, I couldnt have done it without out you. and also too anybody thats been thinking about upgrading I would definatly go for it, if you can find what you're looking to upgrade to cheap enough that is! I mean if an idiot like me can do it pritty much isue free then it should be a breeze for most of you

    and @ Tehsuigi you were right about windows 7 mate, that was the first thing I did before I upgraded any of the other stuff, and I can say that it already made a major difference to my speed and general responsiveness, much more than I would have thought anyways, so thanks for that man if if wasn't for you I would still have been using crappy old vista :D

    btw sorry for any typos, was in a hurry

  2. nklive

    nklive Notebook Evangelist

    Reputations:
    112
    Messages:
    459
    Likes Received:
    1
    Trophy Points:
    30
    Well done DaRush. Always good to see people upgrading and enjoying their machines.

  3. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Attaboy, DaRush!
    Care to fling some benchmarks our way? 3DMark06, for example?

  4. DaRush

    DaRush Notebook Guru

    Reputations:
    17
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Thanks guys, sure Tehsuigi I will crack on with that as soon as finish work in the morning matey...........I actualy tryed runing a bench on it before the upgrades, but im sure it throttled on me and was taking ages so I aborted it, in hindsight I should have used throttle stop but even then anything that pushed my old cpu to %100 caused major slow sown, so it would have probably been the same end result to be honest. fingers crossed for a better experiance this time though :D

  5. DaRush

    DaRush Notebook Guru

    Reputations:
    17
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    ok I'm back with my 3Dmark06 result, and well it actualy completed so that must be good? 'eh lol

    my score was 5380, not to sure if this good or not tbh so somebody will have to help me out, and btw I ran the test with avg and the like still runing in the background but dont know if that make's much of a diference or not?

  6. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    5380 for a stock-clocked 9600M GT sounds about right.
    Actually, since you mentioned your 9600M GT doesn't have the invisible BIOS screen bug that others have mentioned, could you please post a screenshot of GPU-Z from your machine, along with the system BIOS version you're running (mainboard tab in CPU-Z should have that info).
    You've got one slick machine, DaRush.

  7. gazzacbr

    gazzacbr Notebook Evangelist

    Reputations:
    49
    Messages:
    443
    Likes Received:
    0
    Trophy Points:
    30
    doh, that beats my 9600GS (which i still cant overclock)
    good work DaRush, now i am interested also where, how much?
    just thinking, i assume the T9500 would also bump the score up?

  8. DaRush

    DaRush Notebook Guru

    Reputations:
    17
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    ok guys I'm back with the screenies, hopefully I've got all I needed :)

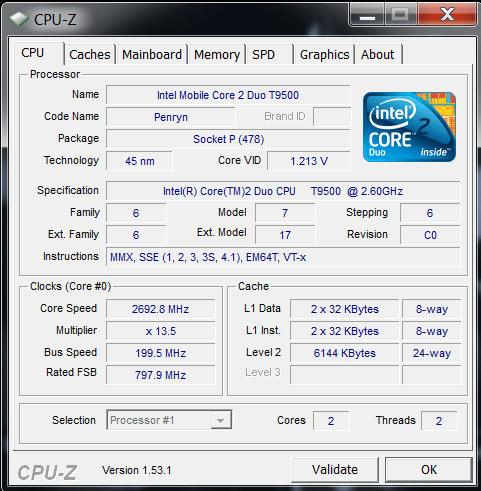

    Cpu
    [​IMG]

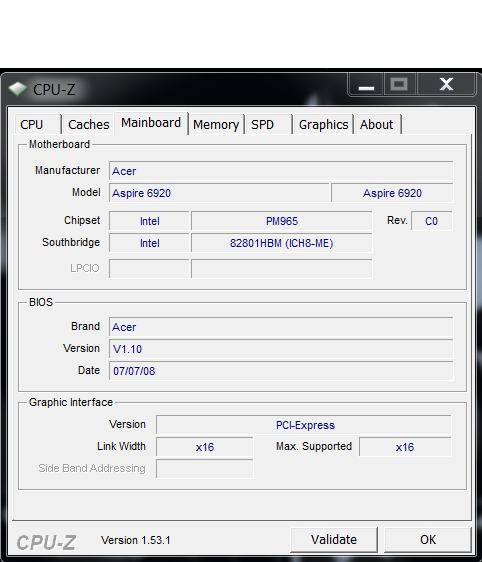

    Mainboard
    [​IMG]

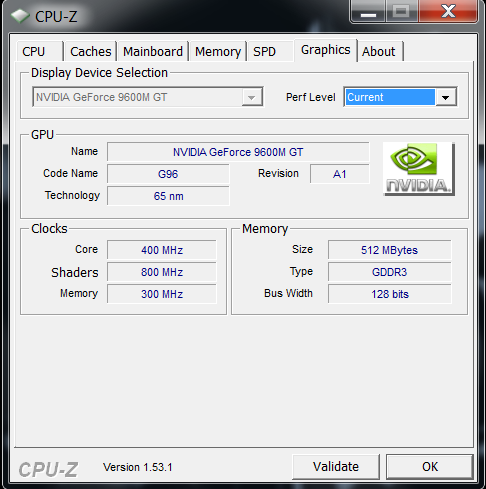

    Gpu
    [​IMG]

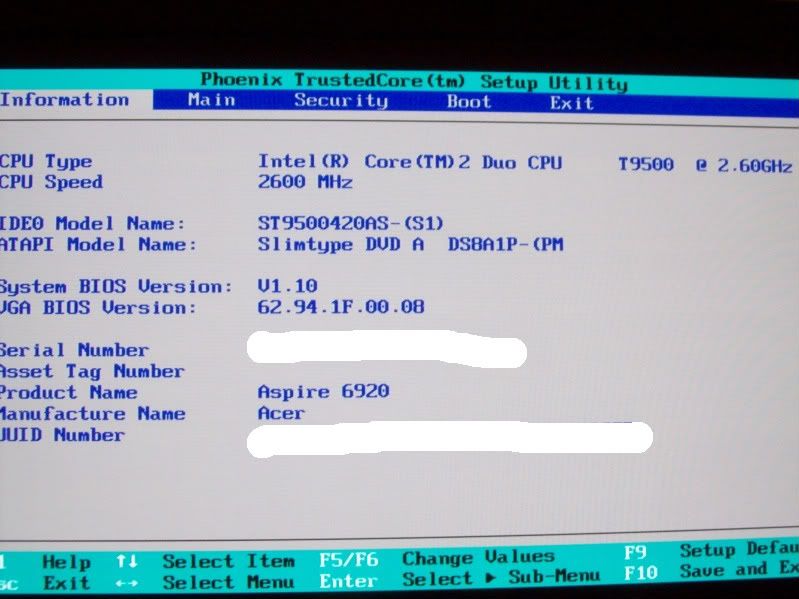

    And finaly, I took a picture of my actual system Bios just to prove that I can see it ;)
    [​IMG]

    if I am missing anything just let me know.

    its good to see that I am actualy getting a good/decent score out of this machine now, but I do have one problem, as you will see looking at my voltage that I have not yet lowered it, but that is simply because I cant, well using throttle stop anyways as it keeps blue screening on me, will have to try and see If I can do with RMclock if that doesn't work does anybody else have any ideas because I cant think of what else there is to try, I mean I'm quite confident that I applyed the correct amount of arctic silver 5 so that should'nt be an issue I dont think.

    Edit: dont worry about that last bit, Just sorted it (with throttlestop) and stable at 1.000v, so god knows what the problem was lol

  9. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    Just make sure that your system is stable at the lower voltage - run a few rounds of ORTHOS or another CPU stress test.
    Also, please thumbnail your images and put links to the full-size pics in your post. Makes it easier to read.

    Interesting to note that your T9500 is running slightly above spec in that screenshot - 2.7 GHz instead of the stock 2.6. What were you doing?

    @gazza: Probably. CPU speed does have an impact on 3DMark06 scores.

  10. gazzacbr

    gazzacbr Notebook Evangelist

    Reputations:
    49
    Messages:
    443
    Likes Received:
    0
    Trophy Points:
    30
    also DaRush, why are the clocks so slow on your 9600M GT?
    shouldn't they be about 650,1550,900, even at standard?
    like this one? 9600M GT off ebay

  11. hna

    hna Notebook Consultant

    Reputations:
    15
    Messages:
    250
    Likes Received:
    0
    Trophy Points:
    30
    maybe it's the powermizer clocks.

  12. nklive

    nklive Notebook Evangelist

    Reputations:
    112
    Messages:
    459
    Likes Received:
    1
    Trophy Points:
    30
    I've never seen such a clocked 9600M GT. My 9600M GT has default clocks 500, 800, 1250. They might have changed the default values in the video BIOS but sure enough that is a very overclocked 9600M GT. If you take a look at this page you will see the default values of the card in many laptops. Just click the 'More details' in the 3DMark06 at the benchmarks. You will also see there that the 3DMark06 value you get is normal. Bare in mind the resolution of your run is very important when you are comparing your result to results of different laptops.


    Attached Files:

  13. TehSuigi

    TehSuigi Notebook Virtuoso

    Reputations:
    931
    Messages:
    3,882
    Likes Received:
    2
    Trophy Points:
    105
    DaRush used CPU-Z's GPU tab, which does indeed show PowerMizer clocks if you're using them.
