*OFFICIAL* Alienware M14x Benchmark Thread

How do I do that?



Thanks for the tip. The Nvidia fact sheet contained several interesting revelations. I was thinking that Dell made a strange choice with the video RAM, but in fact it's two versions from Nvidia, of which the GDDR5 version only has 96 CUDA cores. Not only that, but that card also has a smaller 128-bit memory bus.

Still, if Nvidia had built the M14x version of the GPU with GDDR5 it looks like it would have been quite a bit faster. Perhaps they opted to throttle it so it shouldn't outperform the company's own GTX series.



Here is mine

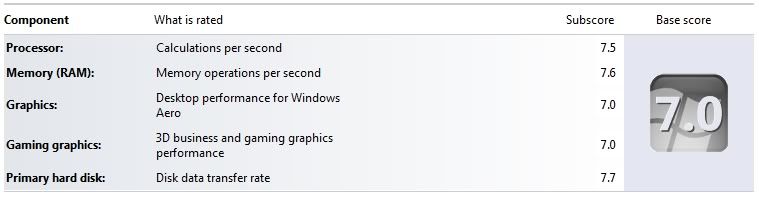

what kind of memory are you using that you got a 7.9 ?



kingston hyper x 1600.. I have the cpu overclocked so its boosting the memory speed...



in the command prompt of windows can you run the command

"winsat mem" <--- without quotations

and tell me whats the speed of the memory test.

Thank You!



21754.59 MB/s was a 3 test average



I just ran the Furmark 720p preset, all stock (specs in sig)
SCORE:758 points (12 FPS, 60000 ms), max 65*C

will report back after I mess with overclocking some

EDIT
With 700mhz gpu and 1080mhz memory clock (nvidia control panel):
SCORE:897 points (14 FPS, 60000 ms), max 65* (max 68* running consecutively after that)



Wow. my 3 year old core2 duo pulls only 3900. (For comparison, that's with ddr2-667MHz on an 800MHz FSB)



with the stock ram I Have (Hynix) at 1600 Mhz, mine runs about 19000 MB/s

Not bad...

My friends Tri-channel DDR3 on his desktop with 12GB of ram gets about 30K...

For a notebook I think we are pretty darn close



Can someone please post the link to the detailled result (like this Result) for 3Dmark 06 at Stock.



Hi, I want to buy a M14x and I heard on the forums that the 2820QM will make no difference in gaming between the 2630QM. I know that people here have 2820QM and other have 2630QM, can you please test some games with the same config and same driver but only the proc different to be sure there will be no perf increase? I trust the NBR users but I just want to be sure...
So can you please run some game benchmark, like GTA IV, Crysis, ect, with the same drivers and the same res (no OC please).
Thanks in advance, I hope you'll can help me.



Gta 4 with a base m14x no oc, only upgrade is 900p screen.
(aka 2630, 4gb ram, 500gb hard drive, 1.5gb 555)
________________________________________________________

Statistics
Average FPS: 36.49
Duration: 37.51 sec
CPU Usage: 72%
System memory usage: 69%
Video memory usage: 49%

Graphics Settings
Video Mode: 1600 x 900 (60 Hz)
Texture Quality: High
Shadow Quality: High
Reflection Resolution: High
Water Quality: Very High
Texture Filter Quality: Anisotropic x8
Night Shadows: High
View Distance: 35
Detail Distance: 40


very happy with those numbers



i am getting 14300 on 3mark06 with only GPU overclock, is this good?



Thanks! Those numbers are really good! But sometimes you are getting good FPS on the bench but when you really play the game the FPS are lower than in benchmark, are you really getting those numbers in game?
Anyway thats amazing results, can't wait for my m14x!



cant say 100% certain what my numbers are in game. However I can tell you that it's running very smooth with zero issues, no screen tearing hiccups etc. All the while it looks great!



Thanks, if you have time could you download fraps to see your FPS ingame? Anyway thanks a lot for your information!



I have a question to all you M14x owners. I currently own an Asus G53JW with an Nvidia GTX 460M in it. On 3DMark06 I'm getting 12584 which seems around some of these scores for the GT 555M. My question is if I decided to get an M14x, will I be sacrificing graphics power in high end games (most importantly upcoming Battlefield 3) with the GT 555M vs. my current GTX 460M?

It seems likes the specs are all higher on the GTX 460 but all the benchmarks seem pretty similar if not better for the GT 555M. Can anyone explain this?
Thank you.



its just a benchmark at the end of the day 460 is more powerful than the 555m stock, but the overclocks and the sb processor helps 3dmark06 scores. Check 3dmark11 scores there is a larger gap there. Ultimately everyone of this forum has or wants an m14x. I am more than happy with my purchase.

My latest 3dmark11 score with 275 drivers
http://3dmark.com/3dm11/1221213;jse...11/1221213?key=Za0UszNerf4N63TW2HeKUe8wBE0Cb0



It really depends on your screen resolution. The m14x is 1600x900p, which takes a lot less processing power to crunch the pixels. If your Asus g53 is full 1080p, it will wear down the 460m to 555m level. However, if they both competed at the same resolution, the 460m would eat the 555m



A friend of mine has the g53jw - if you buy the m14x you will love the space on the sides of your new laptop - just look at the AC cord at the right side of your machine. Also, the g53jw is much heavier.
In terms of graphics you will go down A BIT, but not much. As the above had already said the m14x has lower resolution. The good thing is that you can carry your laptop around - with g53jw though...well, you know its not so easy.
What you should really consider though rather than the 460m vs. 555m is heating and fans - the m14x is louder and gets hotter than the g53jw. In the end the Asus has bigass exhausts.



Would 900 Core, 1050 Memory be a suitable, long term overclock?



no 900 is way to high for the core 3dmark11 crashed on me at 810



Oh, I see

I'm completely new to this overclock business. What's a suitable set of clock rates that's sustainable in the long term?



I run and this is me personally 770 core 1080 memory



Hey guys, love the forum. New m14x owner and loving it. Specs are on bottom (I made some adjustments). Running with my specs with no overclock I got a 1331 on 3DMark11. with MSI Afterburner I set the Core clock to 695 (synched with Shader clock), and my memory clock set to 1000. On the O/C setup I got a 1541 in 3DMark11. More than good enough numbers in my opinion, with a very stable O/C (this is a 14" laptop people, try not to forget that). Plus with my Zalman 1500 notebook cooler (GOD OH WHY DID THE CANCEL THE NZXT CRYO S?????????????) my GPU didn't go over 58C (checked after running the benchmark twice and the full program once). That's after putting windows in my new HDD (plus the 80+ updates) and the drivers, downloading everything, yada...yada...yada. I do have the sqeaky spacebar, but life will go on. Best built and looking notebook I have ever owned.

P.S. - IMO the bottleneck is the GPU, and with the quality of the SB processor, and the block they have on the CPU, O/Cing the CPU just doesn't do all that much for the possible consequences.

m14x - 2720qm, 3GB555m, Seagate Momentus XT 500GB, 8GB HyperX 1600, 1600x900



MSI Kombuster crashed for me running those settings after a few minutes. The best I got with a short 5 min test was

750/1080 which got me 140+ avg fps but the CPU started to hit 78+'C which is when the fan kicks into hair dryer mode.

I personally liked 700/1000 which got me an avg 132fps and the CPU stayed around 75-76.

GPU stayed a pretty constant 65-67'C when OC'd regardless of settings.

This is also sans laptop cooler, just had the backend perched up a bit.



700/1000 would seem like a stable clock then?

I don't mind a loud fan...but that can't possibly be ideal in the long run.



Please don't take this the wrong way but you really should Google "how to overclock" and the name of your chip. There is a risk, however reduced it may be these days, that you could damage something if you don't know what you're doing. By reading one of the many guides out there not only will reach the peak performance you seek faster, you'll also gain a better understanding of the whole process that you can apply to other machines in the future.

It's time well invested, believe me.



Umm...thanks



Take a look here and ask questions. Good jump off point.

http://forum.notebookreview.com/alienware-m14x/576951-m14x-overclocking-discussion.html



idk what i was doing but after reading for a bit....

ImageShack® - Online Photo and Video Hosting



CPU overclocked, Ram OC, GPU OC

EDIT* sorry its so small, GPU @ 770/1540/1050
3dmark'11
EDIT 2* GPU @ 778/1556/1050 = P1826 3D marks '11



3D Mark vantage: 9182 PCMarks
http://imageshack.us/photo/my-images/708/unledqps.png/

GPU @ 778/1556/1050
Ram, Cpu, and gpu are OC'd



Anyone do pcmark7 yet?



PC Mark 7 4499

Result



How about using the discrete card?



That is the discrete card it just reads weird.



Just ran 3DMark06
Stock CPU, stock GPU: 12286 3DMarks Result
Stock CPU, GPU @ 700MHz core clock, stock others: 13803 3DMarks Result



Just ran 3D 11.

Stock with Dell Driver 1334


OC'd core clock 650 with NVIDIA 275.33 drivers 2607


*EDIT*

I just ran it again with the modded INF from Jetbo oc'd to 700 Core and got This Result



With my overclocked settings I am getting 15799 on 3DMark 06, the only thing I haven't seriously touched is my memory. I'm not sure whether I should. It's Kingston HyperX XMP stuff, I've set XMP to Profile 2 in the BIOS currently. I get a 7.8 on the memory in the WEI.

3DMark 06: 15799
- SM2.0 Score: 6447
- HDR/SM3.0 Score: 6381
- CPU Score: 5834

3DMark 11: P1838



Wish I could hit this high

Hit 1885 3dmark11 on 275.27



Thats just way too high for actual gaming though I hit 1872 at like 800 but I usually run at about 1865. Benchmarks like 3dmark11 are just numbers though fun to compare, real world gaming is what really matters



How are you getting such a dramatic increase with such small overclocking??
i was amazed to see the results.



I really don't have an answer for that.

Here's the link to the entire result so you can all of the settings. Result Here



@MB67 - nice score, unfortunately it's NOT AT 1280X720 which is the default standard resolution that 99.99 percent of the m14 owners run 3dmark11 at.

Notice your resolution is 1024x600. So that answers how the score is 2607.



^yeah was gonna say that was on E benchmark. The first was P. Do it on the performance setting and it'll come down.



Can you run this benchmark again with performance settings .



No overclocking done. Used free version.



It seems that we have the same problem: Hardware monitor did not show the temps of the nvidia card on your pic. If you want to see it I think that you need to lunch cpuid harware monitor when the discret card is used bye an application.

By the way: nice numbers!



Ya the nvidia card temps are sporadic and like to show up when they feel like it.
