*OFFICIAL* Alienware M18xR1/R2/18 Benchmark Thread - Part 3

The thought just occurred to me that I could do a minor variation of what Nospheratu did [ LINK] instead of modifying the dual adapter converter box. That would allow me to share the Clevo AC adapters with the Alienware 18 and M18xR2. All I would need to do is use a female connection for the Clevo on the receiving end and the Alienware connection on the output end of the dongle.

If I end up buying a P570MW at some point, that might be nice to have if for no reason other than convenience. It could be used with just one adapter, or two with the converter box.



i think 8gb or 16gb there no difference in performance but from 1600cl11 to 1866cl10 there must be a difference



Congrats on the 840 EVO Mr.Fox good pick:thumbsup:
You will find it ignores PrimoCache as well
Loving Devil's Canyon 5.0Ghz/2400mhz:thumbsup: And EVGA GTX 780Ti Sli Upgrade:thumbsup:

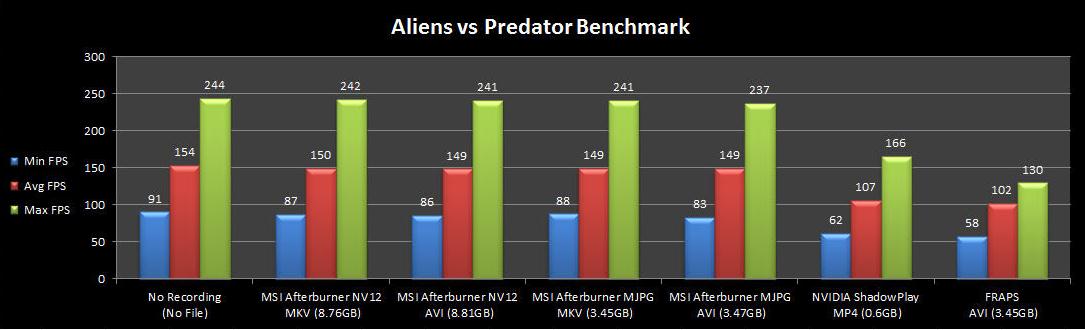

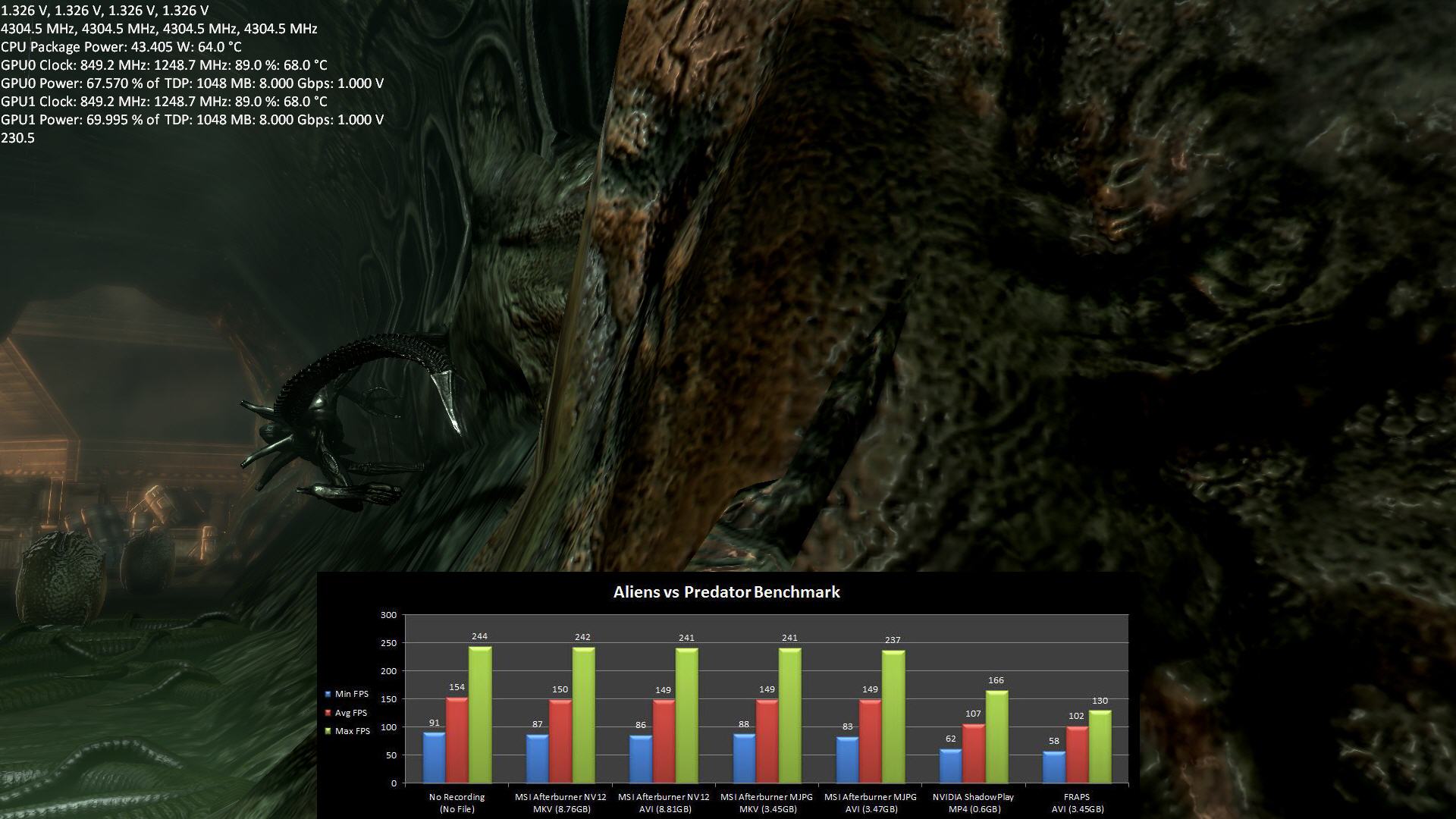

Decided to bench something different, so I benchmarked screen recording performance. I was surprised that Afterburner has stepped up their game on game capture... pun intended. So, buh-bye GeForce Experience... don't need you any more ShadowPlay. Video editing will take longer due to the need for transcoding, but the hit on performance is reduced dramatically, so it will make it worth the extra time on the back end.

Spoiler

Captured with Afterburner...
<iframe width='1280' height="720" src="//www.youtube.com/embed/n5sHEGzfpMg?rel=0" frameborder='0' allowfullscreen=""></iframe>



I dual boot. Windows 8 is terrible for most things, but the new 3DMark suite appears to have been made to favor Windows 8 and it does get slightly higher overall scores than it does with Windows 7. The Physics scores running Windows 8 are lower in everything, including the new 3DMark suite, but the Physics performance is basically totally ignored and carries no weight in the overall 3DMark score. If that were not so, then Windows 8 3DMark Fire Strike and Sky Diver scores would be lower than Windows 7. In just about every other benchmark Windows 7 beats Windows 8, especially CPU benchmarks. Windows 8 does something really ugly to cripple CPU performance for some reason. In 3DMark11 and Vantage, 3DMark06 and 05 CPU performance carries substantial weight and the overall score will be lousy if the CPU isn't doing its fair share of the work.



What were the Fire Strike and Sky Diver scores with Windows 7? What happened with the Physics score? Did you do before and after comparisons with 3DMark11 and 3DMark Vantage?



PassMark Software - Display Baseline ID# 284519



cpu is weakish but.. the thing that pisses me off is this machine on test like these scores great but real world use blows..



Long live the M18xR2 Beast! Doesn't it just suck when newer is not better?

PassMark Software - Display Baseline ID# 241765



That is the worst!
It's the main reason I still have this GTX Titan. LOL



Yup, when new ain't better it's a sin and a crime...

89°C core max benching in my living room recliner

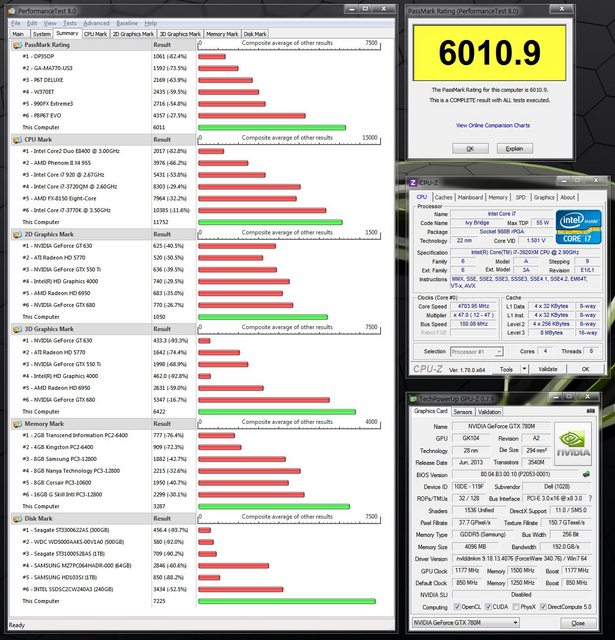

This is just one GTX 780M...

PassMark Software - Display Baseline ID# 286210





And here was a run back in May with SLI enabled...

GTX 780M (x2): http://www.passmark.com/baselines/V8/display.php?id=24204451588



Mr Fox

Simply awesome !!!



Even if I only have a tiny little Alienware 17 laptop , I have tested PassMark for the first time. I have unfortunately only one GPU without a mod vbios, but the total score of 5440 p I think is ok



I cannot upload this because it is within 5% of my previous baseline... I really hate that about PassMark.
You should be at least able to override your previous score, or delete the previous one and replace it.

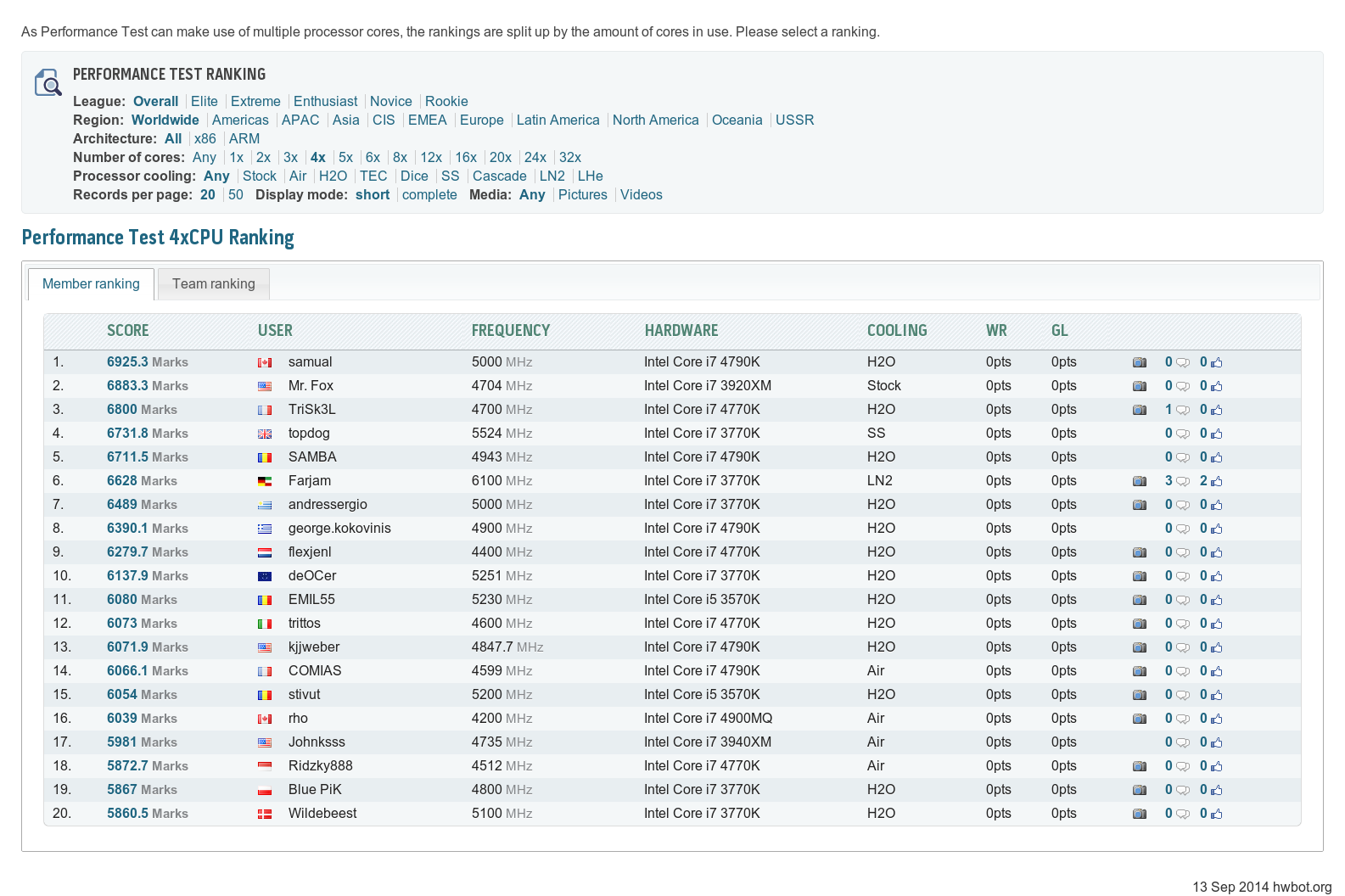

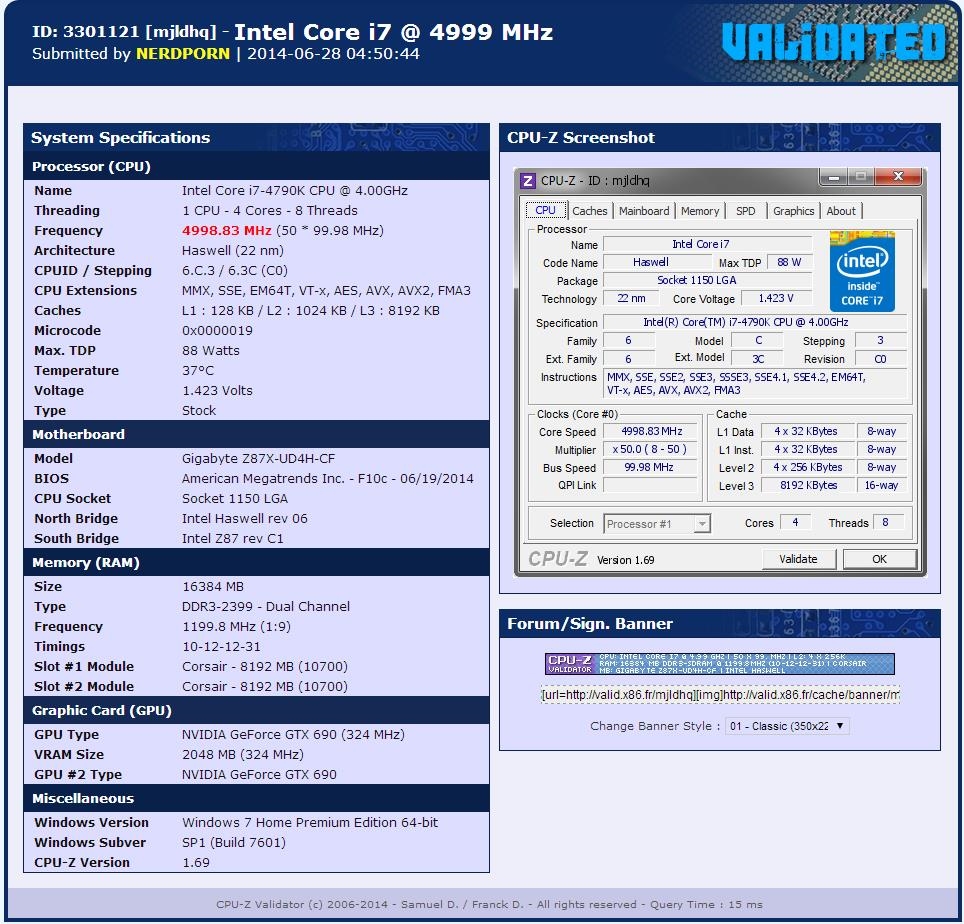

At any rate, for the moment I placed second in 4xCPU behind a 4790K @ 5.0GHz, so not too shabby.



I like your score Is it the two graphics cards and mod vbios that draw up the results? I see that you have 11907p on your cpu, while mine has 11448p = 4% in favor of you Mod VBIOS certainly plays a role, I think. I have to wait and mod the VBIOS until I invests in a more powerful power supply. Is there any difference in scores between win7og Win8 in this benchmark test? What do you think otherwise about my score?



I think it is really good, papusan. :thumbsup:



Thanks for that
What hardware is there, which increases RESULTS (score) in this test



Well, HWBOT classifies it as a CPU test. Without a strong CPU the overall score will be low. For example, a system with a top end AMD CPU overclocked like crazy still has a low overall score even if it has a beast GPU. But, each category has its own score so you can compare that way also. I selected the hardware in my baseline to provide a 3D graphics comparison. You can see that in my screen shot. I sorted them in ascending order. Having SLI does not make a gigantic difference because the 3D tests play a very small part in the calculation. I have to manually set AFR2 for the DX11 test or it only runs on one GPU and in the rest of the other graphics tests only one GPU is used. Setting AFR2 doesn't help in anything except the 3D DX11 test. Memory speed and disk read/write performance also go into the calculations. A slow HDD will have an impact on the overall score. The trouble with trying to compare hardware in their database in the configurations are all over the board. You have to look at clock speeds when setting a baseline because you can have two identical CPUs... one with a great score and a wild overclock and another running stock with a lousy-looking score.



Thanks for an informative answer. How is your Alienware18 Viking in relation to your favorite laptop when testing with only one GPU in this test?



I don't know... haven't checked. Probably about the same. In most things they run neck-and-neck until the 330W AC adapter reaches its limit then the M18xR2 leaves it behind.

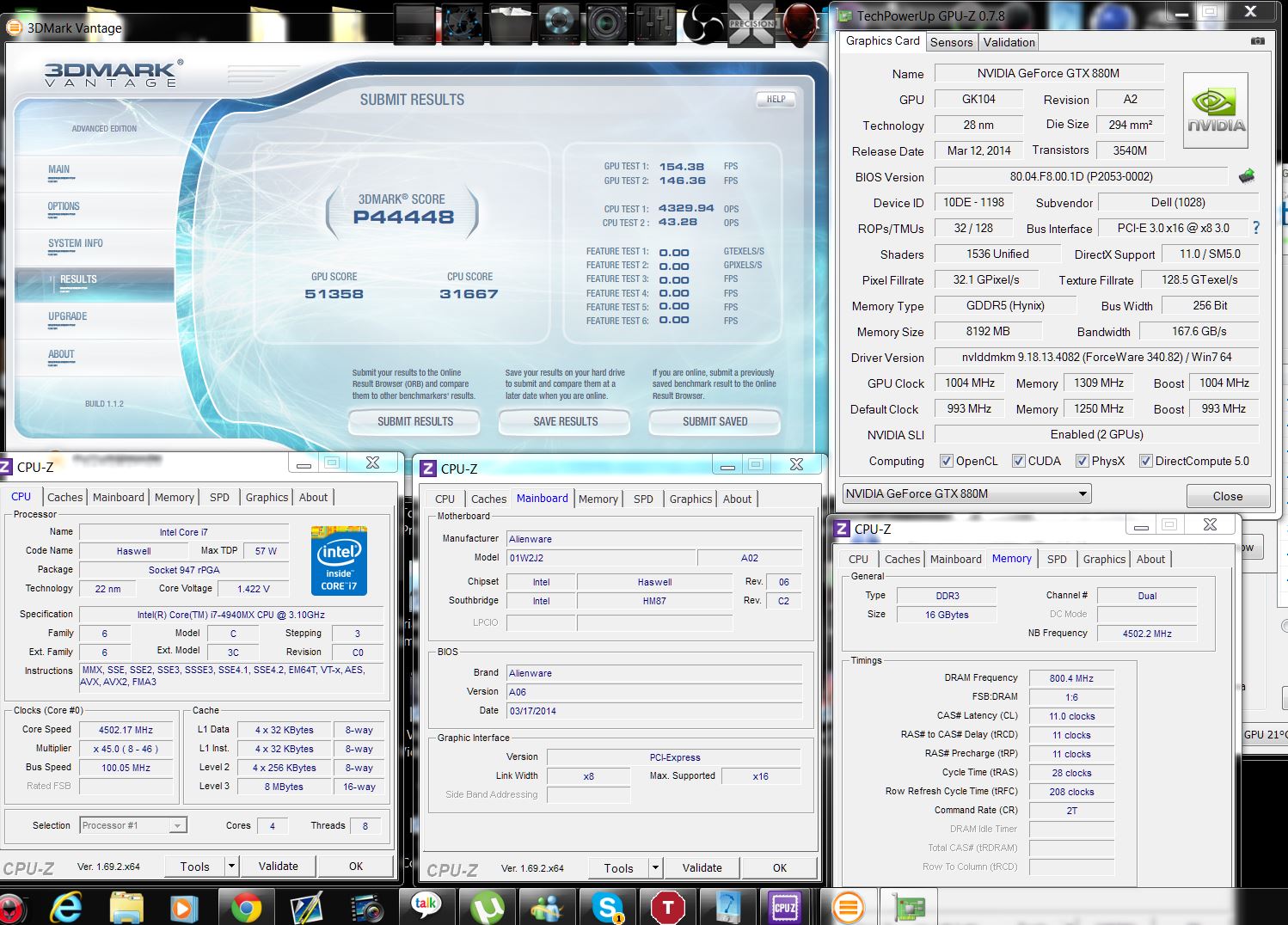

well heres one for the wall when it gets updated.. and heres the web link! EDIT: http://www.3dmark.com/3dmv/5110516



Nice job... needs the web link for it to go on the wall.



ok its been added!



Cool... just updated the leader board for you.



Nice work brother Dumbdumb :thumbsup:



Just thought I'd post up a Work in Progress - nothing worth leader board attention yet. Never really given Vantage much love. It's a different beast to 3D Mark 11 so I've still gotta work out the sweet spots with my GPU overclock. This was on stock voltage and I didn't get them to boogie yet on higher clocks/volts.

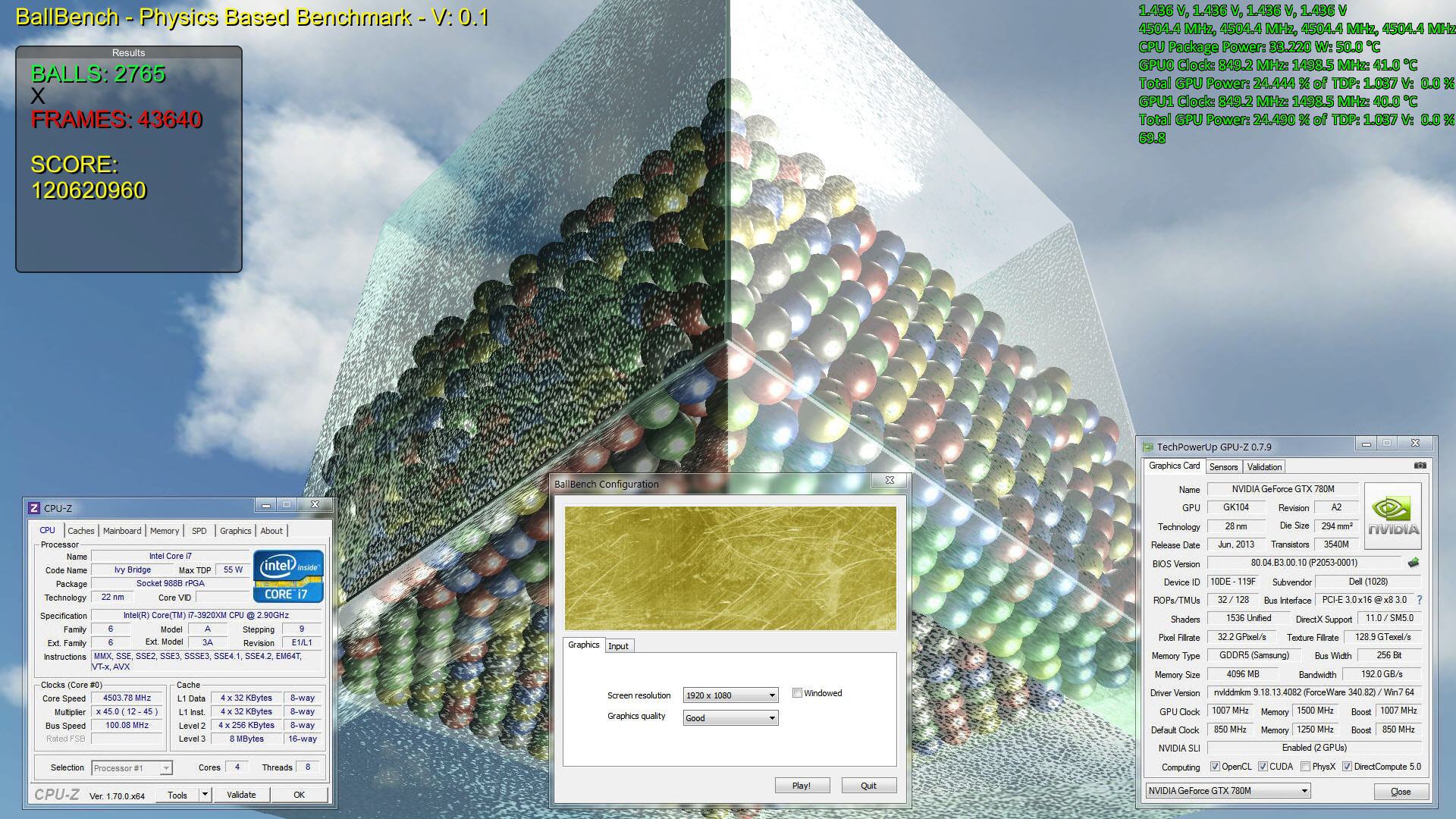

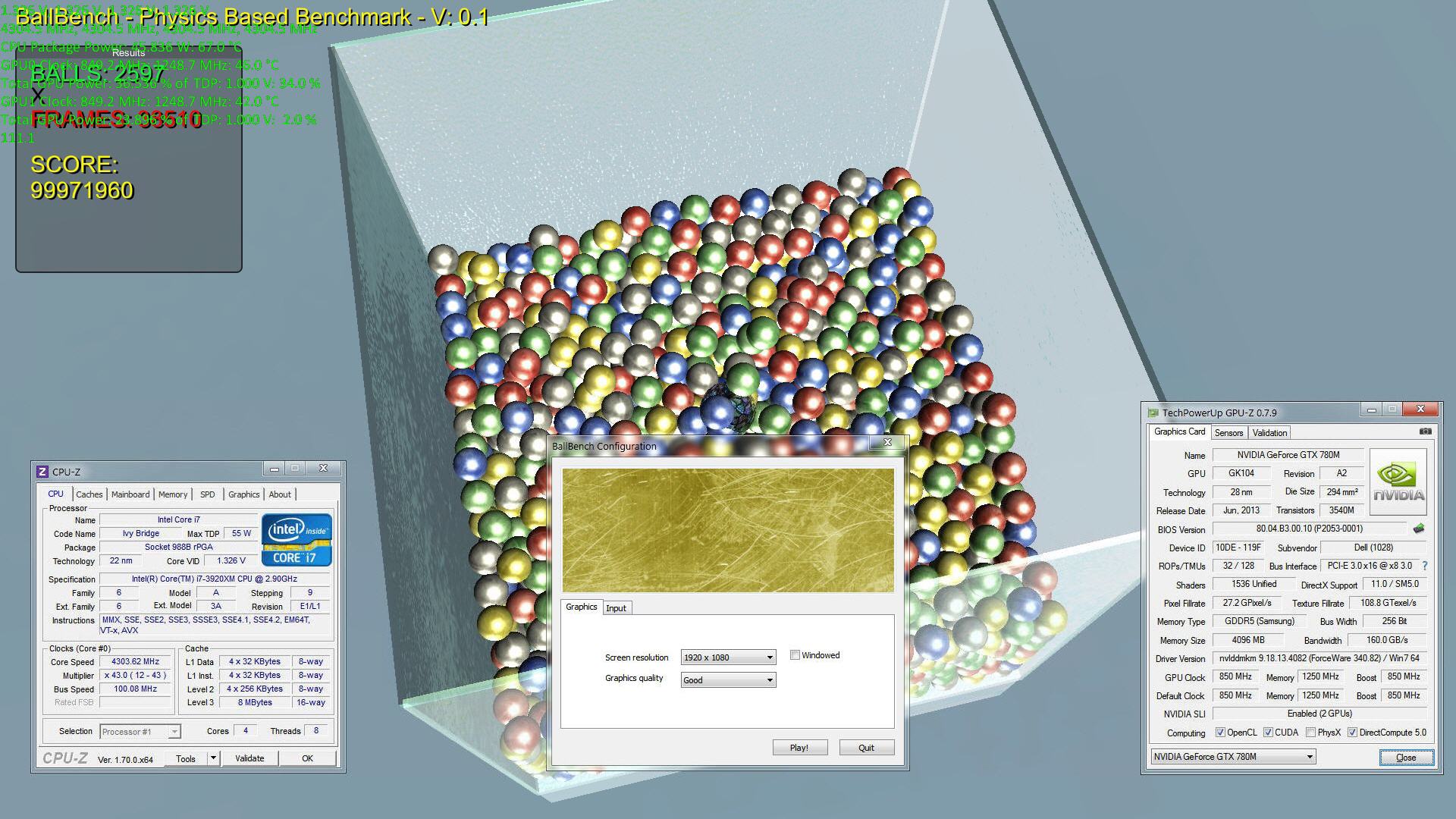

Linking a new benchmark made by NBR user sa7ina

BallBench - Physics Based Benchmark



Download link is available from the thread

edit: I did a second run with a mild OC @ +110/330 and my machine abruptly shut off. I'm a little scared to use it more since it was only using a single GPU with CPU.
It's a very nice benchmark though.

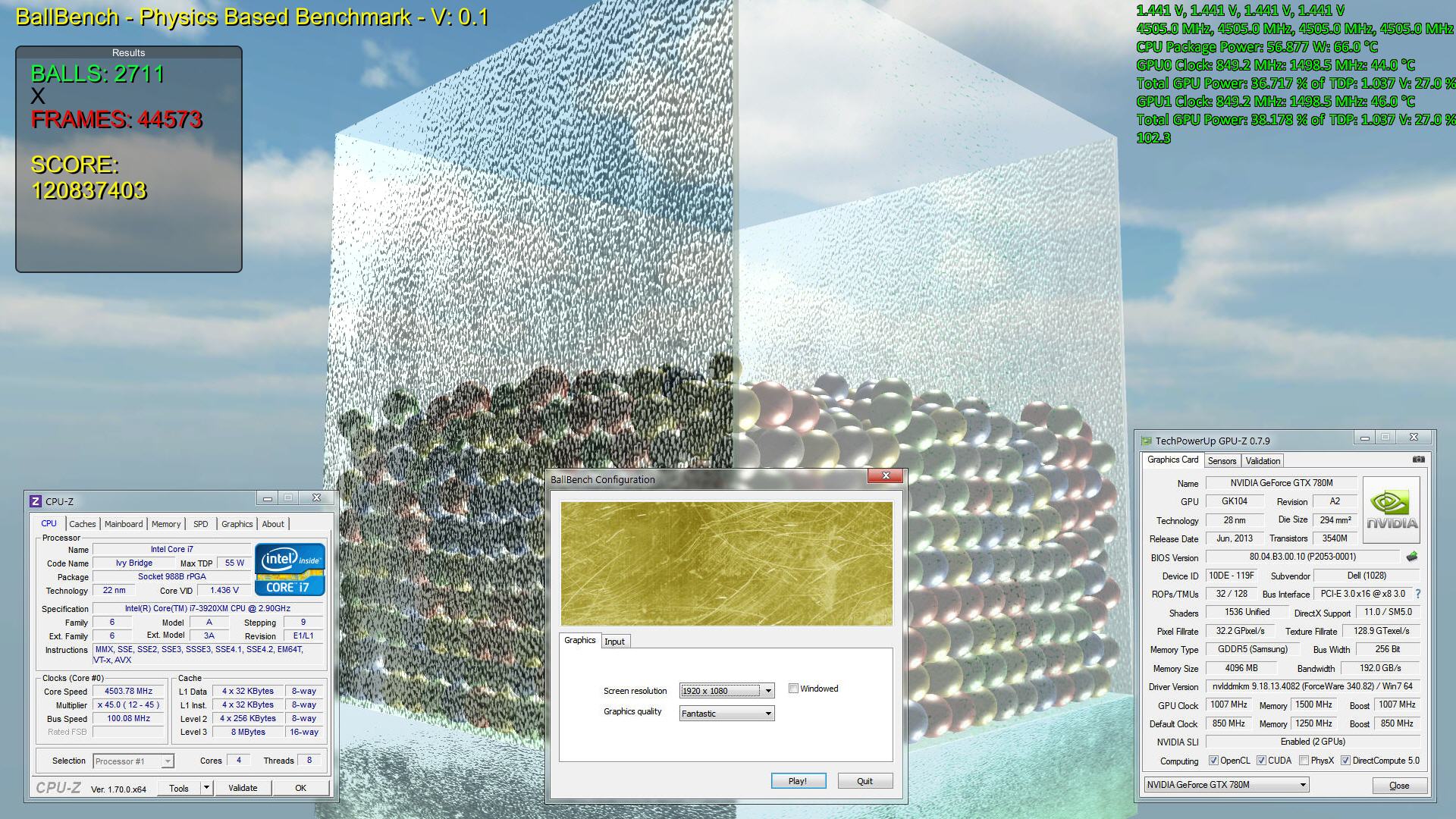

Very nice! Thanks for the link. That's a pretty sweet CPU/PhysX benchmark.

I wonder why your system shut off? I ran it with a much higher overclock and a single AC adapter.



I don't know why either. I heard a faint circuitry buzzing noise from the GPU or left side of the KB that I only usually hear when I'm doing extreme overclocks with 3D Mark 11 (usually that's only only a single GPU for my 1 PSU), then power of as if I'd gobbled up all the power. It scared me off

Shame I really like the benchmark but not sure if its wise I go again.



I know that buzzing sound you're talking about, I hear it in my Clevo and it comes from my master GPU only when I run synthetics (never gaming).

Oddly my desktop also gives this buzz that seems to originate from around the CPU socket area when I do an XTU bench.



Yep same, not in gaming and only under extreme conditions OCing in synthetic benchmarks (eg 1.1v) . Hence why I'm a little apprehensive beta testing the benchmark when I'm hearing that sound at standard clocks.



Came across a nice Street Fighter 4 benchmark you can download here



Thanks. That sucker runs so fast it is hard to see what is happening sometimes.



Haha yeah it's almost comical. It's nice and quick though.



I remember benching the SF4 bench back in the days of the Alienware M17x R1 days Lol!

Sent from my XT912 using Tapatalk



quick and dirty

M18X-R2 3920XM 4.7GHz Flex 55 | wPrime



I just ran that. 4637 [email protected]



Just did 4603.87 @ 5.907



Unfortunately, that's not a completed benchmark.



nice one what priplane and flex do you use for 4.6?



Sadly you're right. I went to validate it online and the front end had shat itself

Not much secret sauce to get 4.6. I need around 50 Flex and I use a healthier dose of Pri Plane than most. I think I've got around 1350 dialed in right now.



i have one of those at 5.66.



Haha, I only ask because I was wondering (since I saw it in your signature) if you use 4.6 24/7 and if so, if your temps are ok if I have it dialed at 4.3GHz my idle temps are between 45 - 55 with Liquid Ultra.

For 4.7 I used 55 flex and 1200 pri plane. But this was just a i-guess-setting for a quick wprime test, so nothing i have been meesing around for a long time haha



I bet it doesn't complete 1024.



I have my system boot to desktop at 4.6 them usually run 4.3 after that by toggling with Throttlestop since I rarely need 4.6. Temps are fine at pretty much the same at idle using 4.3 - 4.6. Only really under big load do I see a real temp difference.



haha, yeah, this is my bet as well ;-) i was actually already surprised that it made it through 32 this way ;-)



Johnksss | wPrime
But it doesn't show up in the records for some reason.



Hello to all I have to ask for advice on the thermal paste, here in Italy only find the Noctua NT-H1and ARCTIC silver 5 and also Coollaboratory Ultra Which is better?



Should you choose, select CoolLaboratory Ultra, because this thermalgrease is the best on the market. I have used the Noctua NT-H1 in the past and was very disappointed. Gelid extreme and IC7 a better choice than the Noctua NT-H1and Arctic Silver 5 for a standard thermal grease. :thumbsup:
