    Alienware m7700 d900t d900k PLZ help

    Discussion in 'Alienware Area-51/Aurora and Legacy Systems' started by jingles111, Aug 28, 2011.

  1. jingles111

    jingles111 Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I recently purchased an alienware m7700 off ebay, it would only show the power light on with no display on screen. I placed a music cd in the drive and used the feature to play that without booting the system and that worked. Long story short i put a new pentium 4 in it and bam working system. So heres my questions it says it only supports 1gb of ram per dimm slot, i have placed 2gb sticks in dimm 1 and dimm2= 4gb's will this then support another 2 more sticks in the remaining dimm's. Also i have the manual and it says it only supports Intel® Pentium® 4 520/ 530/ 540/ 550/ 560 Processor with HT Technology which i googled the chipset which listed many more supported so i am running a P4 672 which does run hot, so i updated the bois to have fans on always and am running a targus cooling pad. if anyone has input to help me out on the ram and if i should be running this cpu in this unit thanks in advance

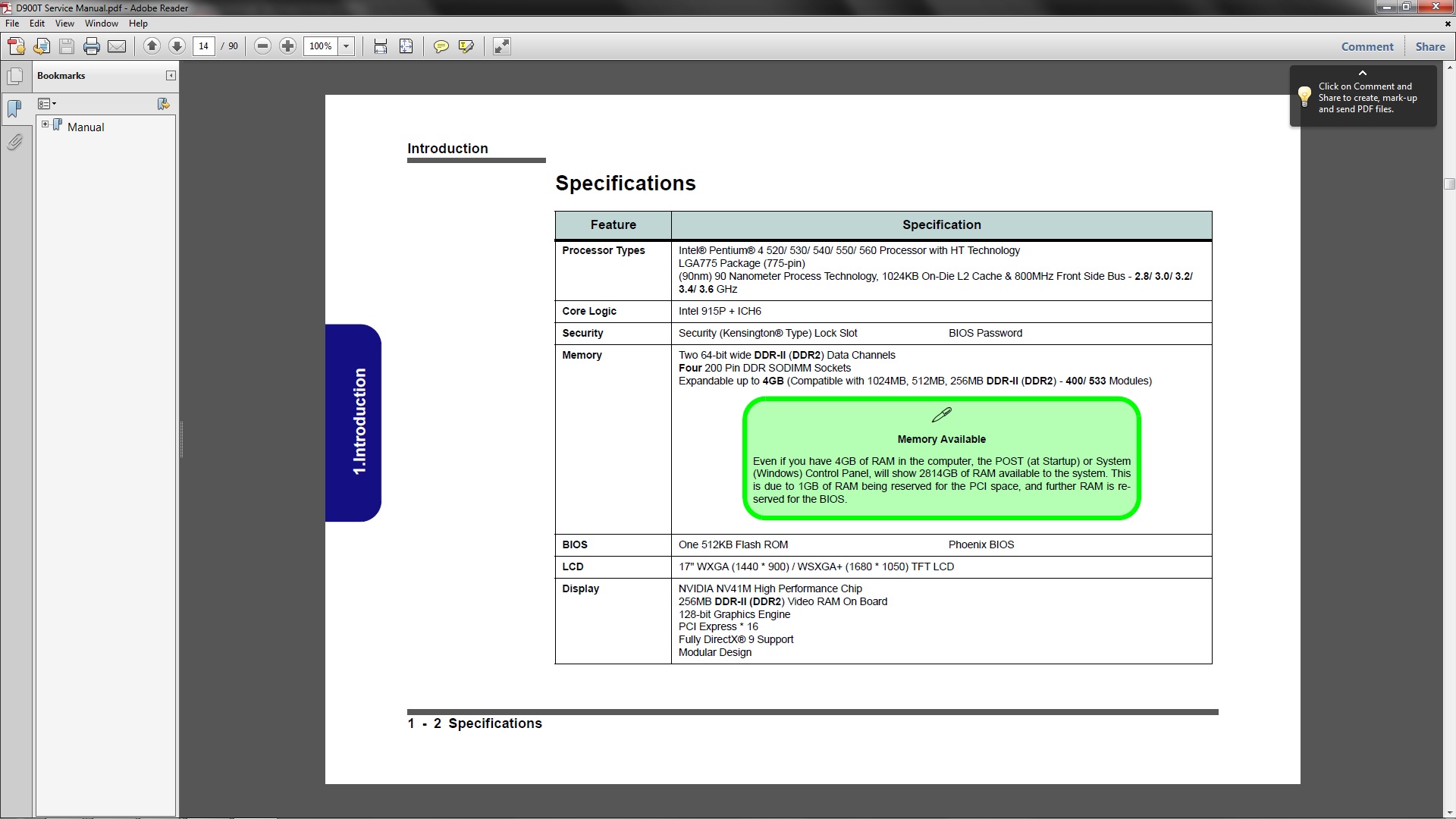

    Attached Files:

    jingles111, Aug 28, 2011
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    What chipset does it have?

    EDIT: nevermind, looked at your pic.

    moral hazard, Aug 29, 2011
    #2
  3. itinerantbluez

    itinerantbluez Notebook Enthusiast

    Reputations:
    34
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    hey moral, i became a member to just ask for your assistance. ive been recently coming past this website alot and it helped me in most cases by reading. i recently oc'ed my graphics car quadro 2700m, with quite a nice boost, with optimum temp. this comp has a core 2 duo P8700 Q45/Q43 intel chipset. i used your trial n error method to discover the PLL ID (ICS9248BF-
    26, ICS9248BF-87, ICS9248BF-96, ICS9248BF-102) They all function with no error. this is a M6400 Precision DELL laptop. please assist me, im sorry i intruded, the website wouldnt let me post up a new thread.

    itinerantbluez, Aug 30, 2011
    #3
  4. itinerantbluez

    itinerantbluez Notebook Enthusiast

    Reputations:
    34
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    i used setfsb, to find those compatible pll id. on top of that ive tried to set the overclocks with all those, but it wouldnt stick. so i believe i a have a lock on the Pll possibly?

    itinerantbluez, Aug 30, 2011
    #4
  5. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Could you please click on the diagnosis tab in setfsb, then click getfsb and take a screenshot? By looking at the diagnosis tab, I might be able to tell you if I think you have a lock on the pll.

    It would also be good if we continue this conversation in the following thread:
    http://forum.notebookreview.com/har...pll-pinmod-overclocking-methods-examples.html

    moral hazard, Aug 30, 2011
    #5
  6. bueller

    bueller Notebook Consultant

    Reputations:
    0
    Messages:
    180
    Likes Received:
    8
    Trophy Points:
    31
    I bought the same system new and I'm sure it will only take 3g.

    bueller, Oct 9, 2011
    #6
  7. Mechanized Menace

    Mechanized Menace Lost in the MYST

    Reputations:
    1,370
    Messages:
    3,110
    Likes Received:
    63
    Trophy Points:
    116
    Mechanized Menace, Oct 9, 2011
    #7
  8. bueller

    bueller Notebook Consultant

    Reputations:
    0
    Messages:
    180
    Likes Received:
    8
    Trophy Points:
    31
    I am runing a 3.8 G in mine. Runs fine.Dont remember what kind. This lapy does run hot. I made a cooler with 4 fans that I have always used with this 7700. It is about 5 years old now , but I have replaced all components at-lest once. I have tryed all the GPUs. I have 6 dead ones here. But parts are very cheep now. You can buy complete 7700s on ebay for parts for almost nothing.

    bueller, Oct 13, 2011
    #8
