    Aurora M9700 working until I reattached the LCD front cover panel

    Discussion in 'Alienware Area-51/Aurora and Legacy Systems' started by myemerald, Jun 16, 2015.

  1. myemerald

    myemerald Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    1
    Trophy Points:
    6
    I removed the front bezel when I was considering replacing the LCD panel. Today I reattached the cover, very carefully, or so I thought. Now the computer starts up (I can hear the Windows tones) but the screen is black.

    What did I do??? :confused: Any suggestions? Please :)

    P.S. The num lock and caps lock icons don't light up now either. The other icons do.

    Last edited: Jun 17, 2015
    myemerald, Jun 16, 2015
    #1
  2. simonmpoulton

    simonmpoulton Notebook Deity

    Reputations:
    158
    Messages:
    1,004
    Likes Received:
    37
    Trophy Points:
    66
    Sounds like you might have knocked out the inverter connection ( the small board underneath the LCD panel) or you may have caught the LCD cable and damaged it.

    simonmpoulton, Jun 17, 2015
    #2
  3. myemerald

    myemerald Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    1
    Trophy Points:
    6

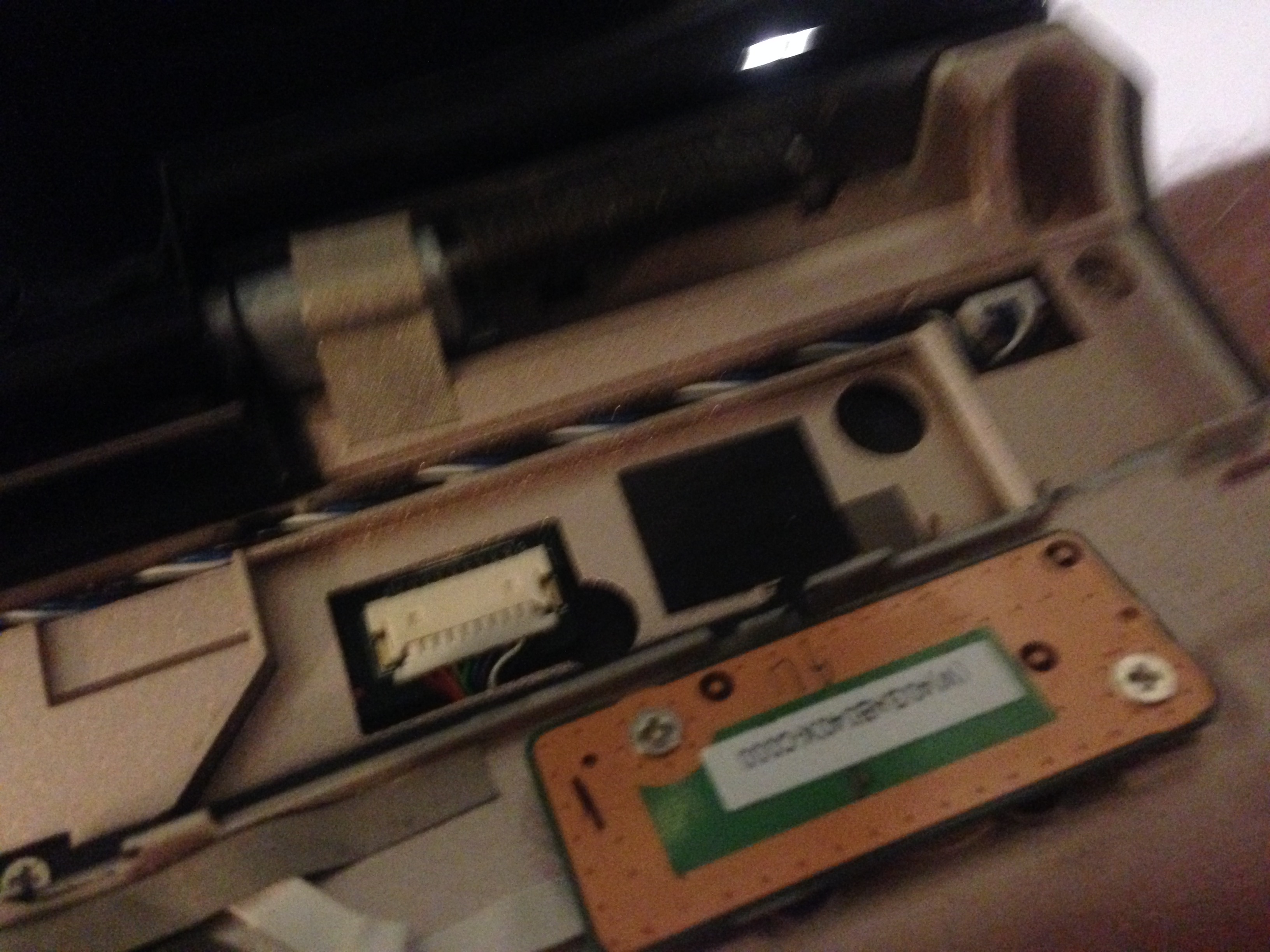

    I found two places where things were lose/disconnected. They are in the red circles. I thought I had them secure when I closed it up, guess not. Now I wan to put the cover back on, but am having difficulty with these crazy wires/cables. Can you suggest a way for me to place them where they are supposed to be in order to put the cover back on? I don't know how it is supposed to look in here.

    IMG_20150617_121336.jpg IMG_20150617_122250.jpg
    Thank you!

    Last edited: Jun 17, 2015
    myemerald, Jun 17, 2015
    #3
  4. thehunterooo

    thehunterooo Notebook Consultant

    Reputations:
    51
    Messages:
    292
    Likes Received:
    70
    Trophy Points:
    41
    Looks like it was taken apart, the thick black wire/connector should never come loose on its own. The blue/white/black intertwined wire should be tucked in, and the white and black antenna wires should be under everything else.

    I am about to part out a M9750 soon, I will get some pics on how it should look wire wise (everything was the same pretty much on the M9700/M9750).

    thehunterooo, Jun 17, 2015
    #4
    myemerald likes this.
  5. myemerald

    myemerald Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    1
    Trophy Points:
    6
    THANK YOU!!!

    myemerald, Jun 17, 2015
    #5
  6. thehunterooo

    thehunterooo Notebook Consultant

    Reputations:
    51
    Messages:
    292
    Likes Received:
    70
    Trophy Points:
    41
    Yeah I plan on pulling it apart tonight I should have some pictures at around 11pm

    thehunterooo, Jun 17, 2015
    #6
  7. thehunterooo

    thehunterooo Notebook Consultant

    Reputations:
    51
    Messages:
    292
    Likes Received:
    70
    Trophy Points:
    41

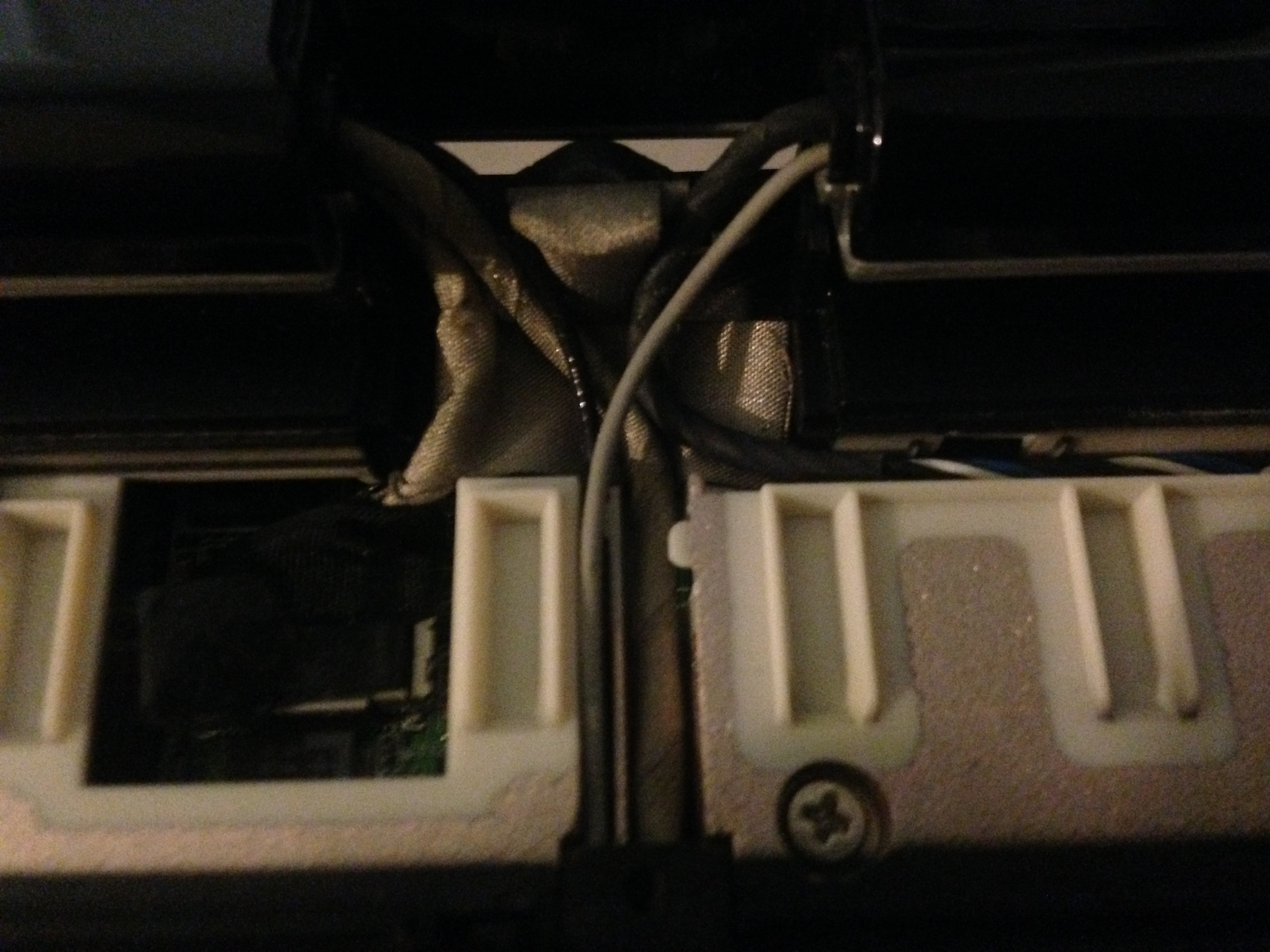

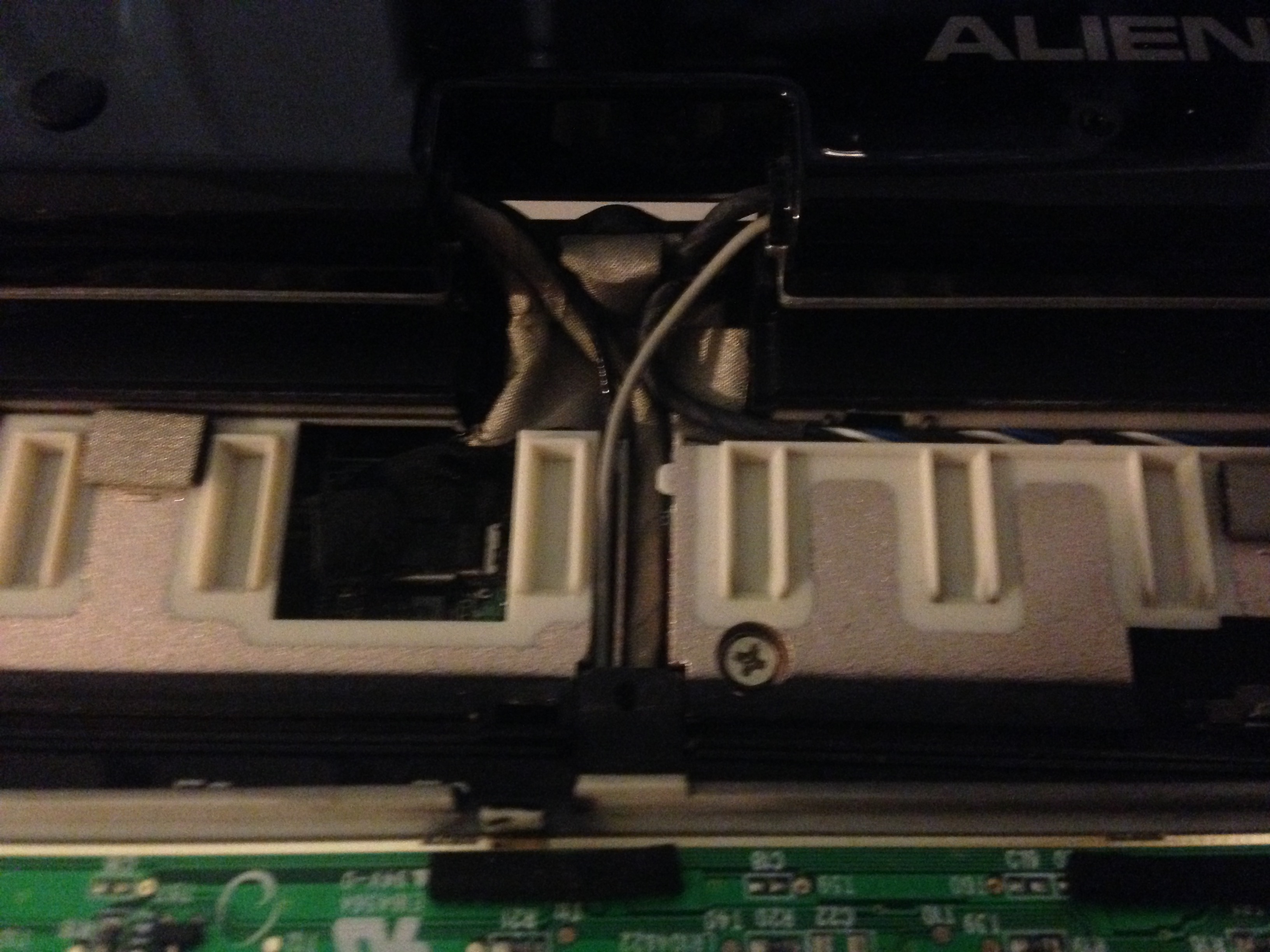

    I actually had a silver M9700 laying around haha, here is what it looks like (well, how it should look like lol) you will want to pull up the keyboard to get everything tucked away.


    Attached Files:

    thehunterooo, Jun 17, 2015
    #7
    myemerald likes this.
  8. myemerald

    myemerald Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    1
    Trophy Points:
    6
    Thank you so much for the pictures - they helped a lot! I finally have everything tucked in where it needs to be, everything is connected, I just turned it on and voila! It's working beautifully! I don't want to see the insides of this Alien ever again! :vbthumbsup:

    Thanks again!!
